Bottom Outlets to Suit One Channel

Bottom Outlets to suit One Channel

One Channel by Grated Drains is a modular drainage system. Various Accessories are available to make the installation simple

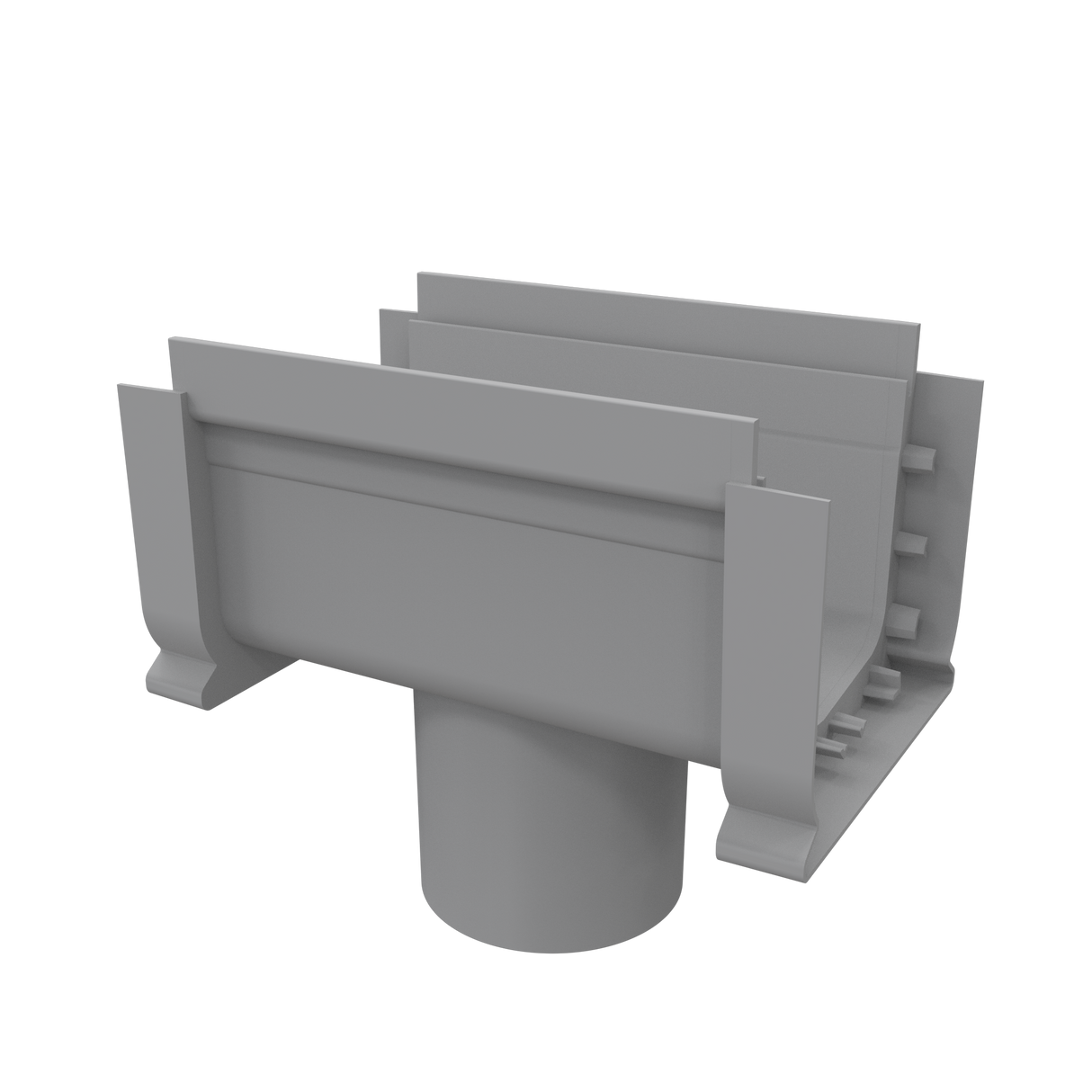

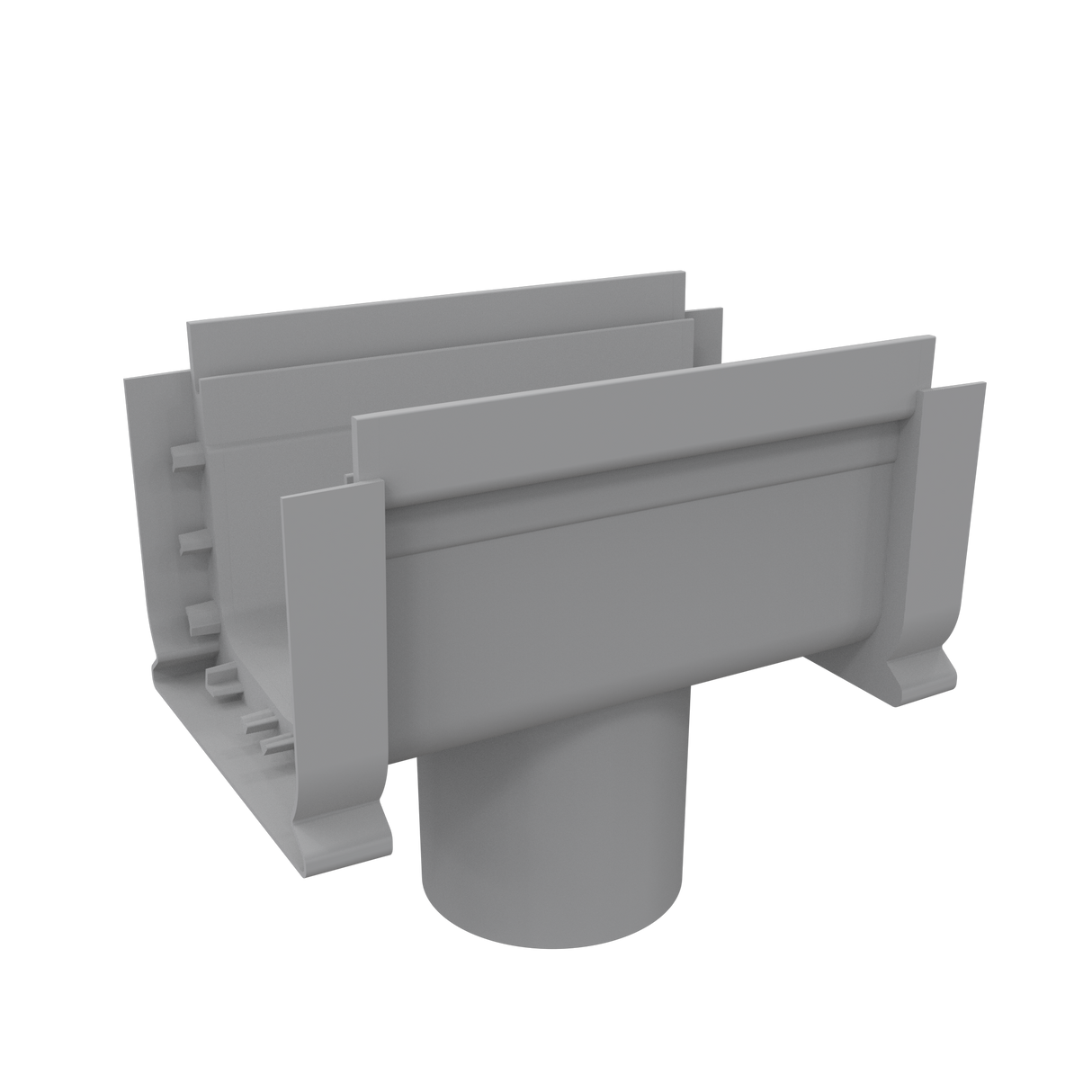

Bottom Outlets are design to make a simple downward waste outlet. The fingers at each end of the bottom outlet simply into the drainage channel and using PVC solvent cement they form a bond and seal with the channel.

Cut your drainage channel at any point and join back together with the bottom outlet.

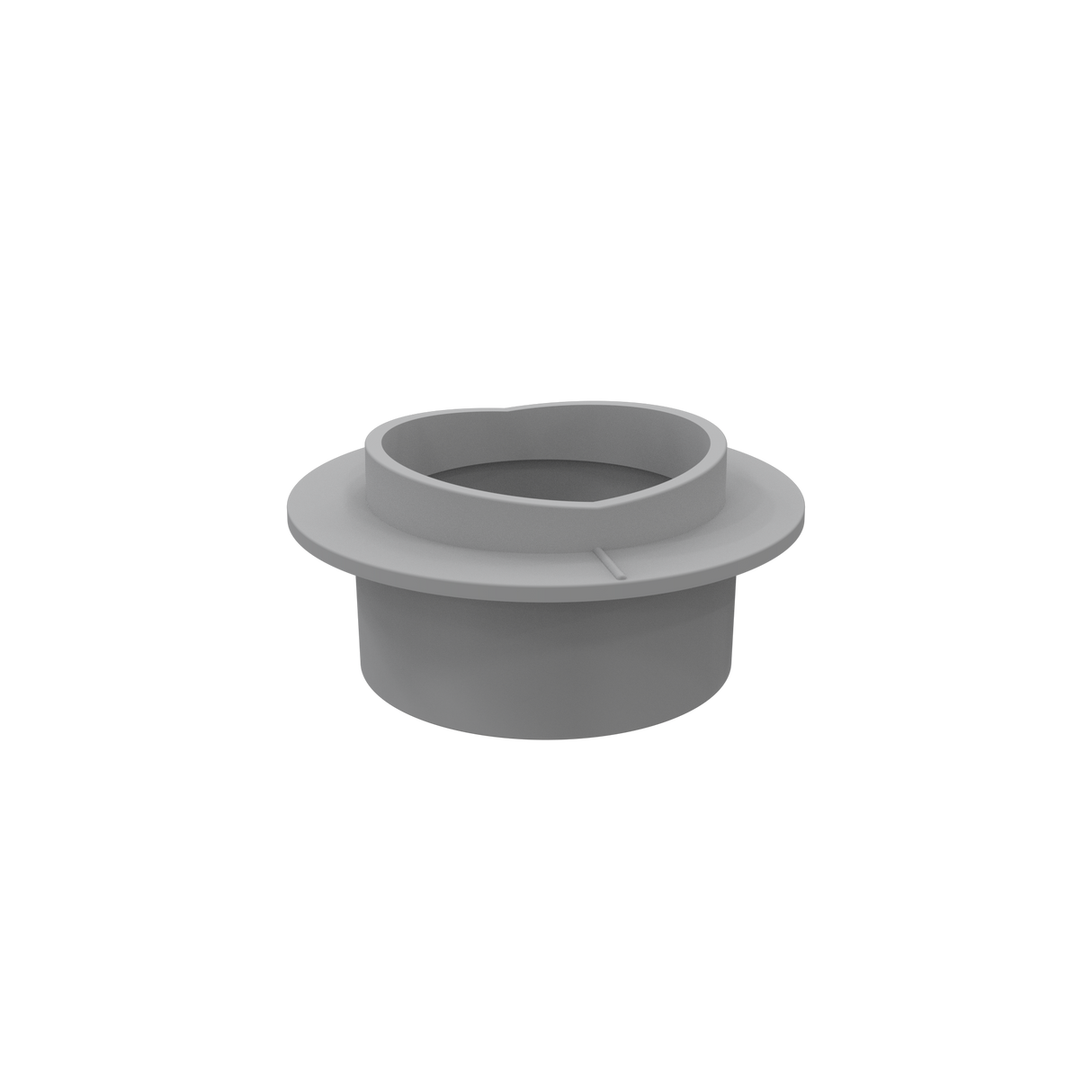

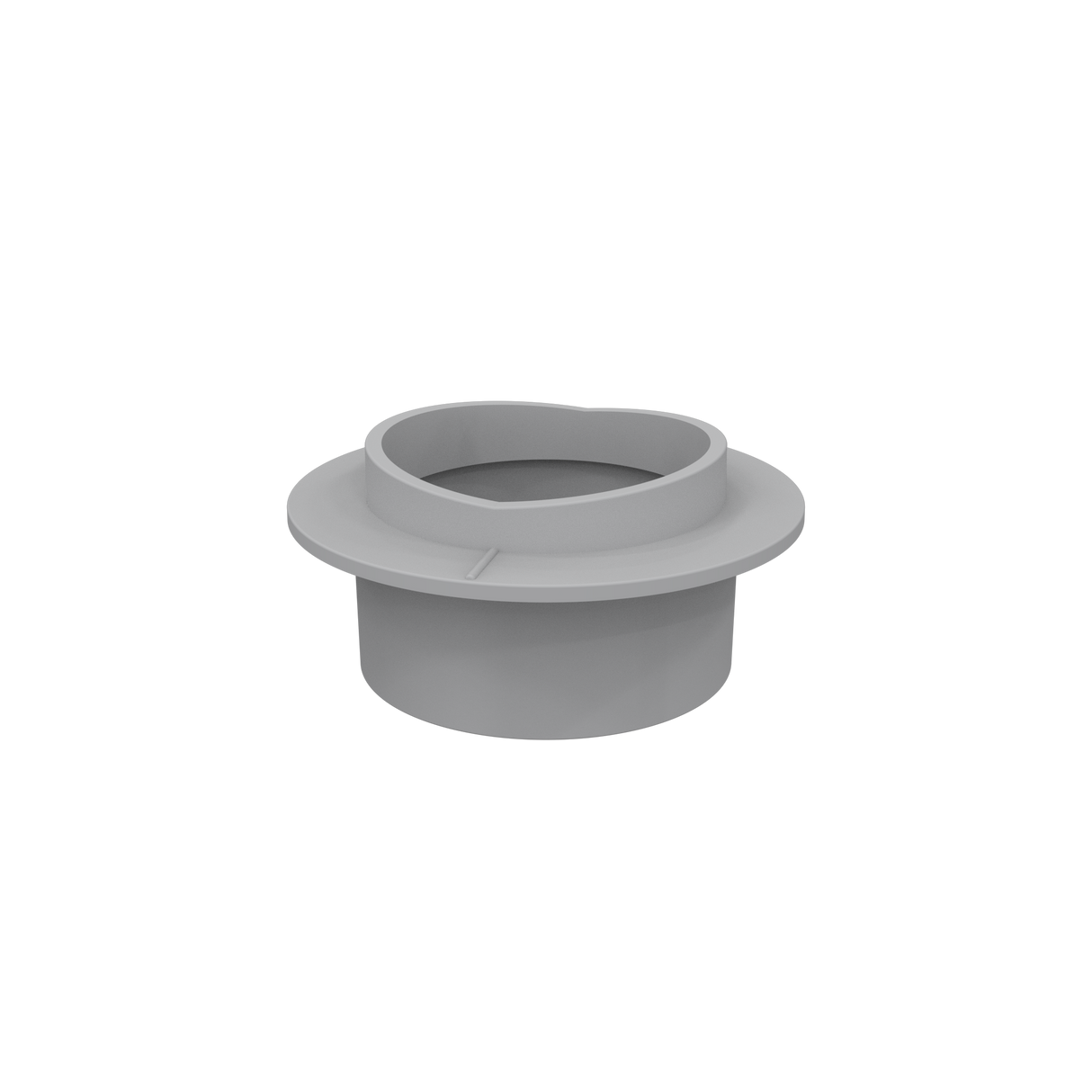

To Install the Spigot on OC45, simply use a holesaw to cut a hole in the drainage channel at the desired position, then use PVC Solvent cement to bond and seal the Spigot in place.

Note: The Spigot is compatible only with OC45, It is not compatible with OC100 due to the thicker wall section. For OC100 you need to use the OC100 - Bottom Outlet

The Landscape Store are an authorised retailer of the One Channel by Grated Drains range

Features Easily bond and seal to the One Channel Drainage bases using solvent cement Applications Balconies, Driveways, Outdoor Patios, Wineries, Pools and landscaping applications.
