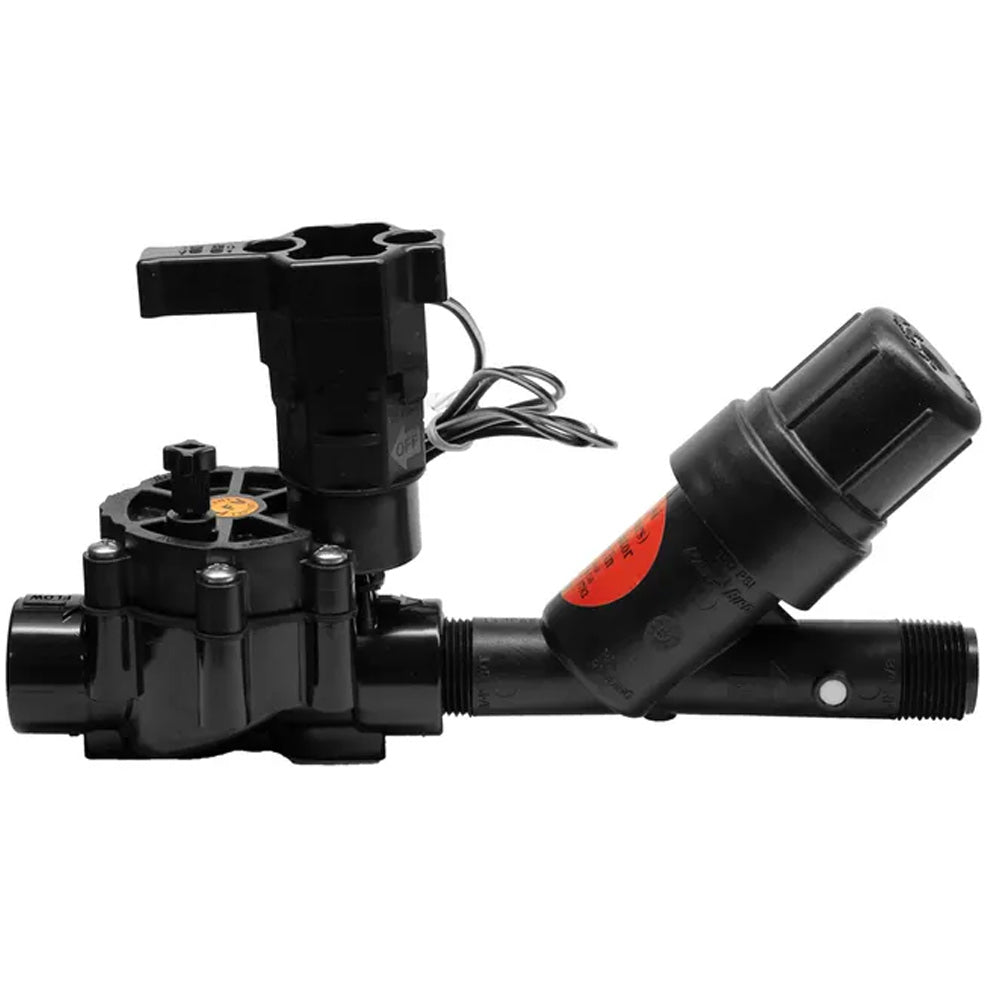

Xeri Control Zone Kit with Solenoid and PRF Filter
For an all in one kit check out our range of Xeri Control Zone Kit. The kits features a pressure regulating filter already attached to a Solenoid valve. Great for providing protection down stream, requiring a low volume irrigiation setup while providing a highly efficient solenoid to control the flow of water. Check out our range of Rainbird irrigation supplies for more.
 |
Solenoid Val Specifications & Features
-
Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
-
Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
-
Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
-
Unique, easy-to-turn pressure assisted flow control mechanism (DVF models only)
-
External bleed to manually flush the system of dirt and debris during installation and system start-up
-
Internal bleed for spray-free manual operation
-
Accepts Rain Bird TBOS latching solenoid for use with most battery-operated controllers or use the DVF Valve with 9V latching coil
-
Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
PRF Filter Specifications & Features
- Reduces the number of components in a control zone, making it smaller and easier to install. More control zones can fit in one valve box
-
Combination unit comes with 200 mesh (75 micron) stainless steel reduces the number of connections, making installation easier and faster
-
Static RBY filter regulates pressure to a nominal 30 or 40 psi (2.0 or 2.8 bar) - PR RBY Filter Cap has sealing O-ring and unthreads to provide access to the filter element for easy cleaning
-
30 or 40 psi pressure regulator is integrated into the filter body
-
Robust body and cap are made of glass-filled polypropylene and provide 150 psi pressure rating
- ¾ units: 0.8 to 18.9 l/m
- 1" units: 11.4 to 56.8 l/m
- Inlet pressure: 20 to 150 psi
- Regulated pressure: As stated below
- 3⁄4" units: 30 psi.
- 1" units: 40 psi.
|
