Elmich VersiDrain 8 Geo

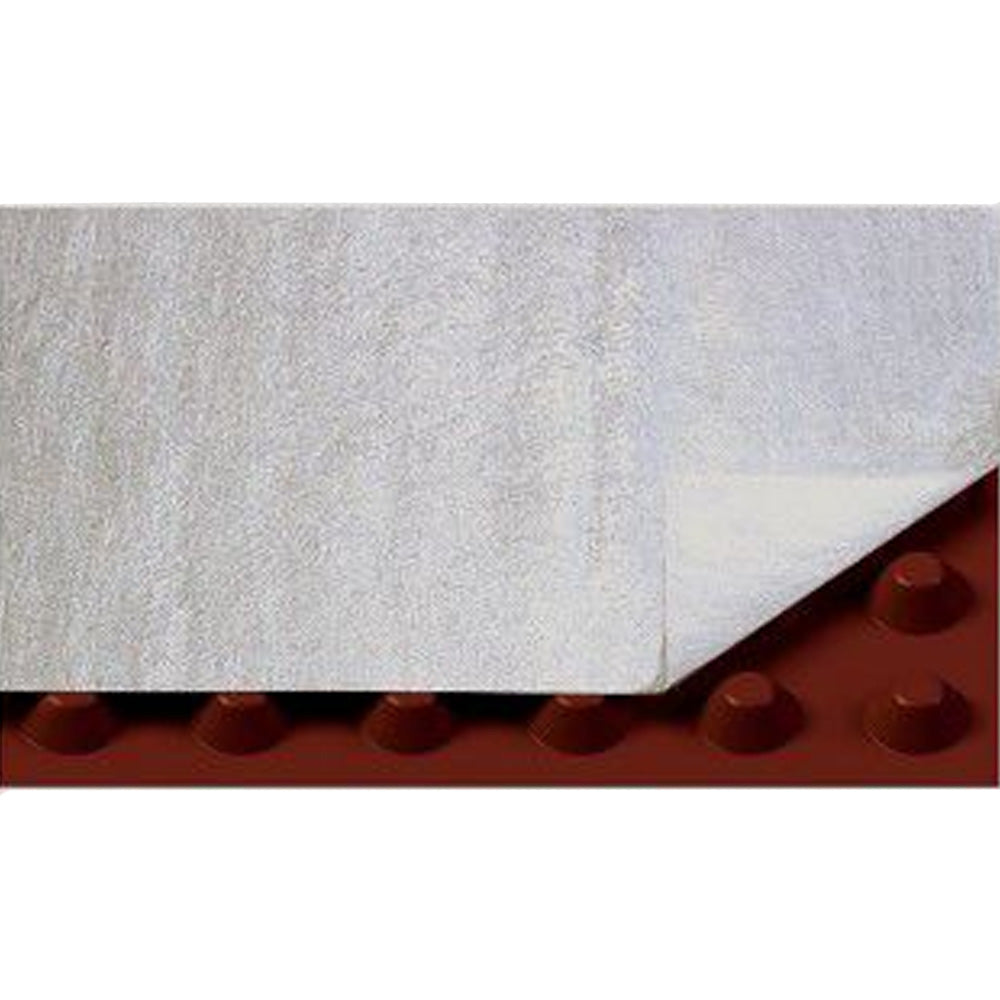

VersiDrain® 8 Geo is a dimpled plastic sheet that provides effective drainage and waterproof membrane protection on foundation walls and other underground structures. The integrated non-woven geotextile covering the dimples prevents soil particles blocking the drainage sheet, creates an air gap for reliable ventilation and allows inflow and transport of water from surrounding soil. VersiDrain® 8 Geo with its dimple structure effectively captures and transports high water volumes and resists high loads from earth and formwork.
 |
Features

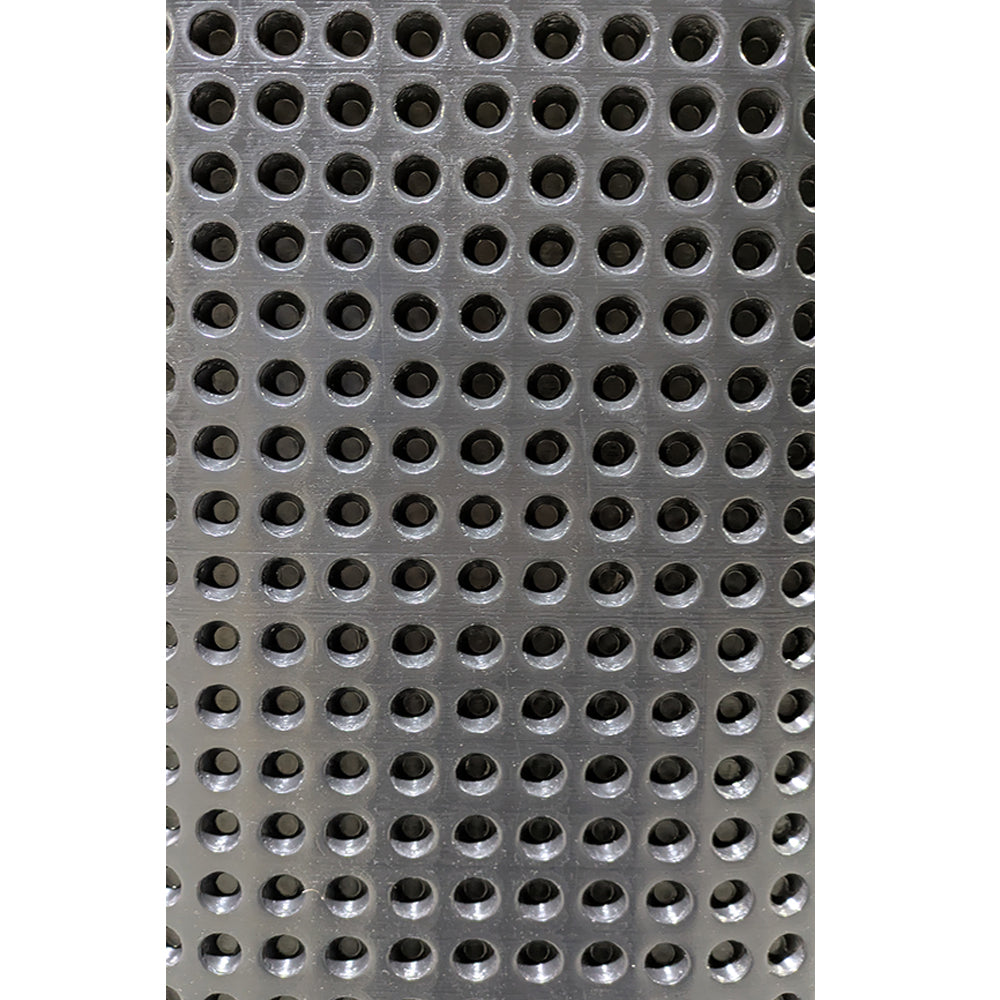

- A horizontal 8 mm high dimple configuration
- Compressive strength of 250 kN/m² (25 t/m²) that permits usage in medium to high weight bearing load situations
- An adhered 136 g/m² geotextile
- Dimpled configuration that allows efficient water capture and discharge rates
- Resistance to biological attack and to a wide range of soil-borne chemicals
- Maximum continuous length is 20m as the roll length is 20m
Applications

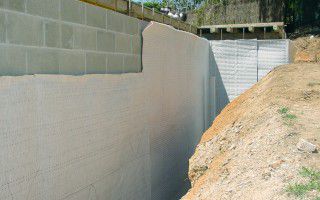

- VersiDrain® 8 Geo drainage sheets provides effective drainage and waterproof membrane protection on:
- Retaining and basement walls
- Tunnels and landfills
- Paved areas
- Roof gardens and landscaped decks
- Planter boxes
Benefits
- Wide, lightweight rolls that allow rapid and low cost installation
- Creation of efficient drainage and vapour barriers between diaphragm and internal walls
- Resistance to punctures for when its installed as a vapour and drainage barrier under concrete slabs
- Replacement of lean concrete sub-base slabs without compromising load-bearing capacity
- Creation of a cavity control layer in chemical storage areas
- Acting as a protection layer over waterproofing membranes
