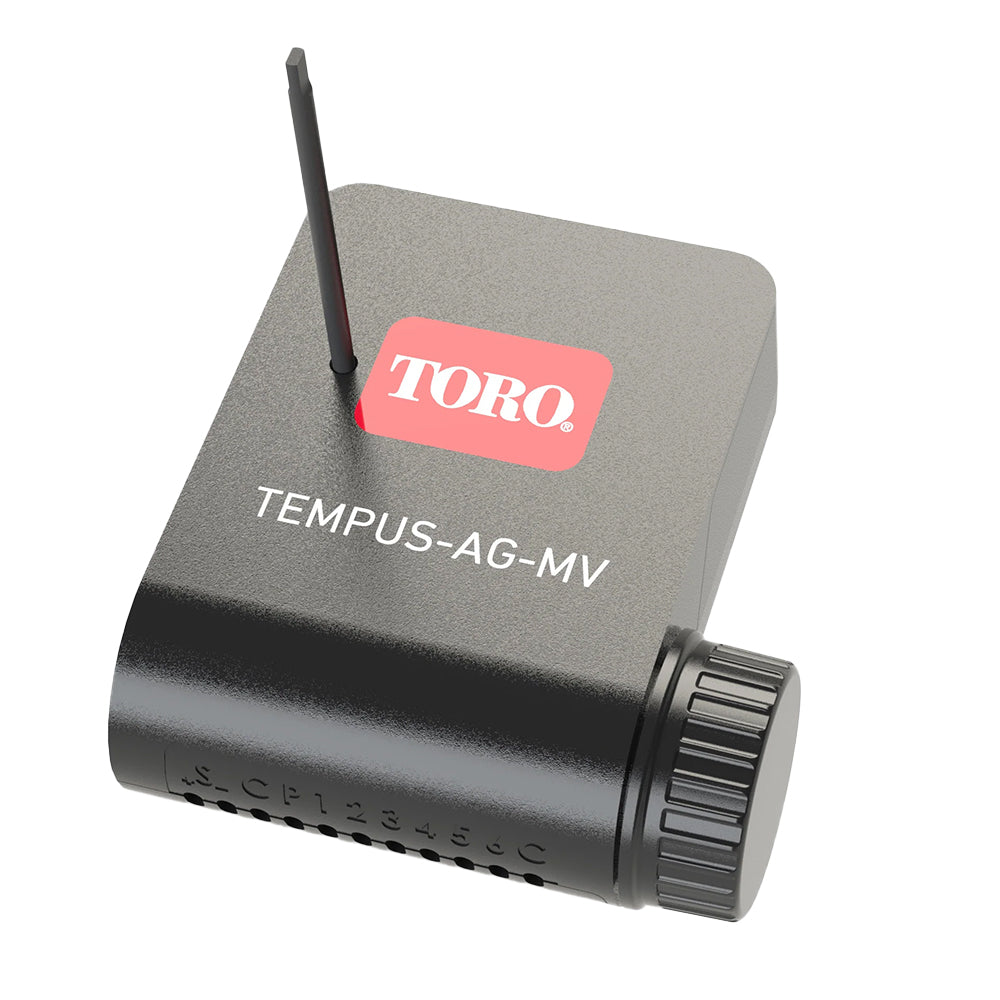

Tempus Ag Water Proof Battery Powered Sensor Module
Master your water flow and pressure with our Tempus Ag Water Proof Battery Powered DC Controller for Master Valve. The DC controller is powered by a 9V battery, with an automony to work for about a year. It allows you to manage a main valve or pump through a pump relay. The pack comes enclosed with waterproof wire connectors and a bracket for installation. In addition, they are compatible with one sensor and a 9v solenoid for the main valve.
The Tempus AG system works through a sophisticated radio wave that transmits and receives irrigation program data, water flow rates, and sensor data like temperature, moisture, humidity, rain, etc. At its centre is your gateway which communicates and transmits programming information to your modules. The modules then take in the information from your sensors including the rain and flow meter sensors, which also transmit back to the gateway for you to review and control from your MyToroApp.
The Tempus Ag range is great for commercial applications like Agriculture for perm crops, low crops or protected crops and other use cases like schools, zoos and municipalities. The Tempus Ag range lets you fully automate your water, all through the wireless Tempest Ag system.
|
Specifications
- LoRa™ radio connection
- Bluetooth® Smart 4.0 Low Energy.
- 9V DC Battery.
- Operating temperature: -20° C/60° C.
Features
- Can control the pump through connecting the Tempus AG Pump Relay.
- Master Valve Management.
- Up to 200 automatic start-ups for connected
Tempus® AG CT controllers.
- Permanent Memory.
- Input for rain or volumetric sensor (flow meter).
- Rain delay mode from 1 to 15 days or “permanent”.
- Remote management via MyToroTempus App and
MyToroTempus.com Web platform.
- 9V Latching solenoid compatible.
- Maximum wiring distance from the MV module to
the solenoids: 300 m
