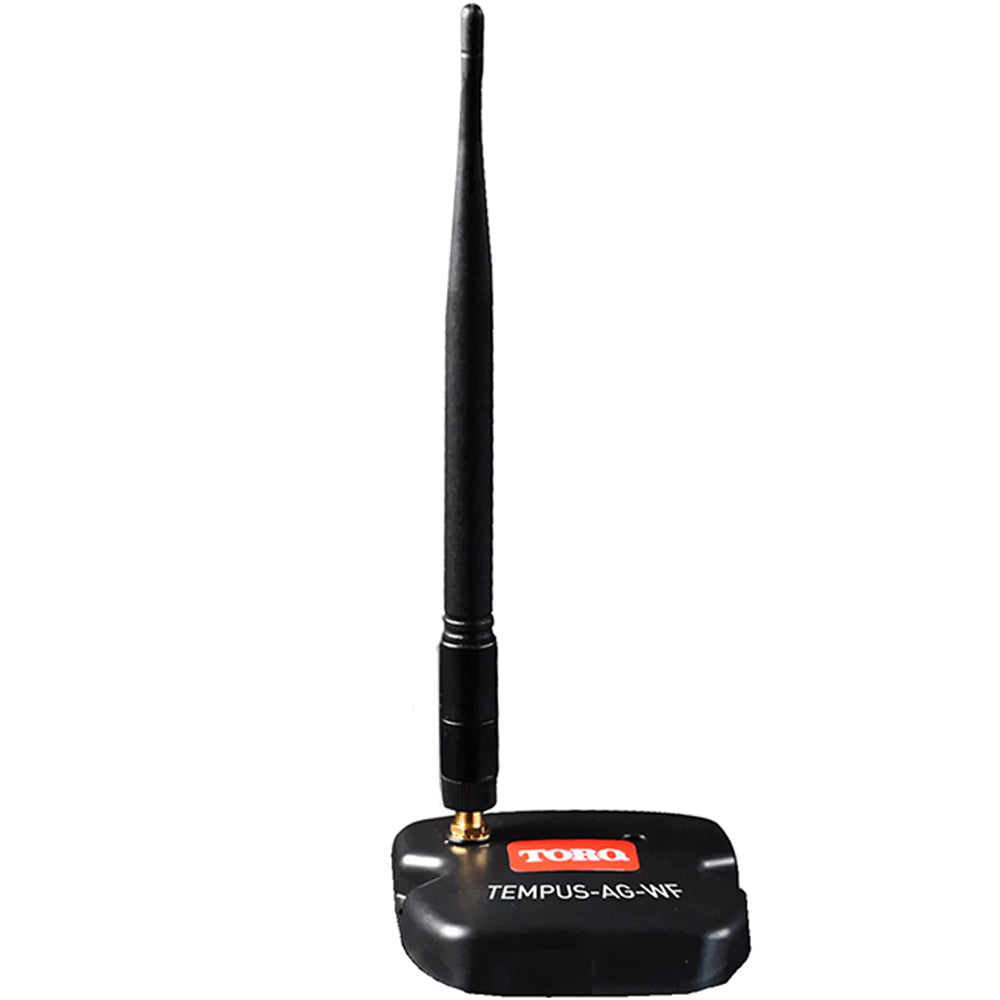

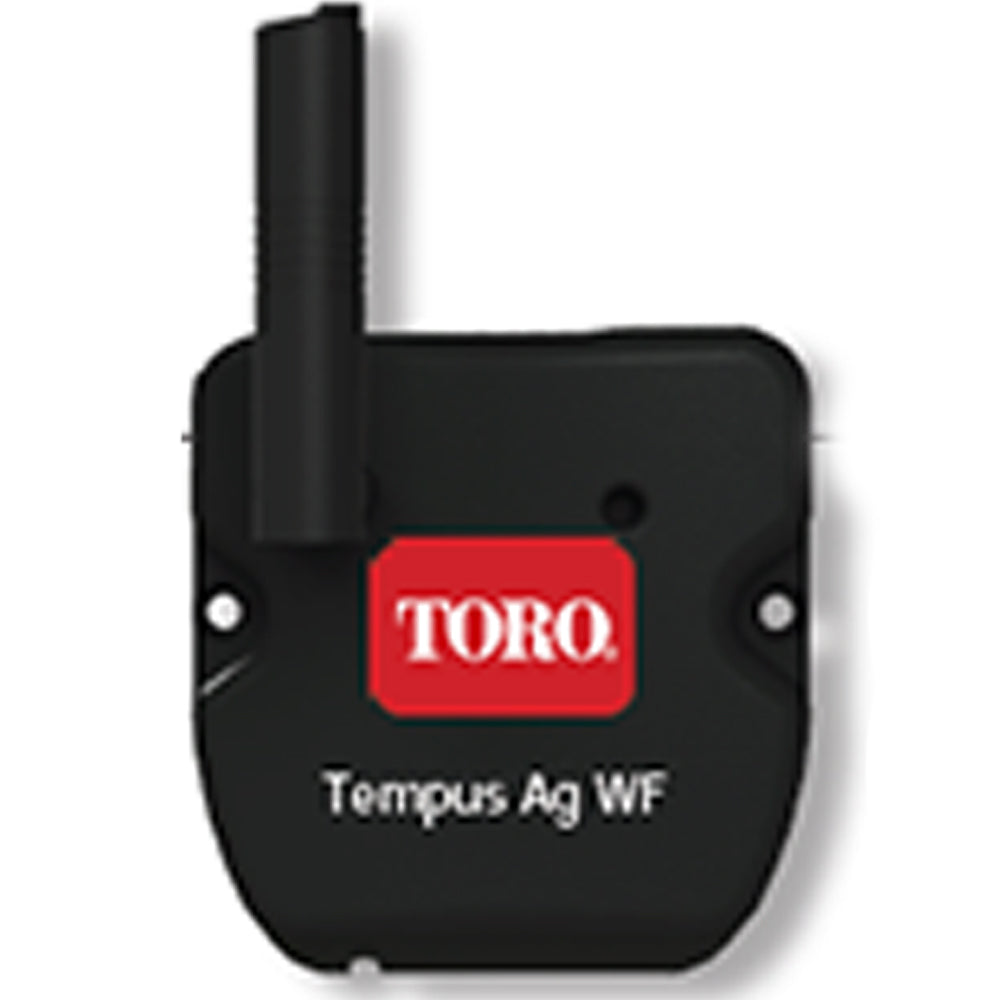

Tempus Ag LoRa Wifi Gateway
Take control of your water usage with our Tempus Ag LoRa Wifi Gateway. The Tempus gateway communicates and transmits programming information to your modules through LoRa Radio connections. The LoRa radio has a reliable range of up to 800m allowing you to space your controllers and modules efficiently. The Wi-Fi gateway itself has an inbuilt Wifi adapter capable of transmitting up to 2.4ghz to your nearby router.
The Tempus AG system works through a sophisticated radio wave that transmits and receives irrigation program data, water flow rates, and sensor data like temperature, moisture, humidity, rain and much more. At its centre is your gateway which communicates and transmits programming information to your modules. The modules then take in the information from your sensors including the rain and flow meter sensors, which also flow back to the gateway for you to control from your MyToroApp. The LoRa radio has a reliable range of up to 800m allowing you to space your controllers and modules efficiently. Before installing your modules out in the field be sure to pair them to your gateway.
The Tempus Ag range is great for commercial applications like Agriculture for perm crops, low crops or protected crops and other use cases like schools, zoos and municipalities. The Tempus Ag range lets you fully automate your water, all through the wireless Tempest Ag system.
|
Specifications
- LoRa Range up to 800m.
- Wifi connection 2.4GHz, 25mW.
- Operating Temperature: 0C / 50C.
Features
- Manages up to 30 field modules simultaneously.
- Bluetooth Smart 4.0 Low Energy.
- Power Supply with an included external 220-240V transformation.
- Remote management through MyToroTempus app.
- Continuous connection with your Wi-Fi network.
- LoRa Radio communication with modules every 3 minutes.
- Ability to test connection status between the WF and modules.
- Antenna wire extension up to 10m optimal.
