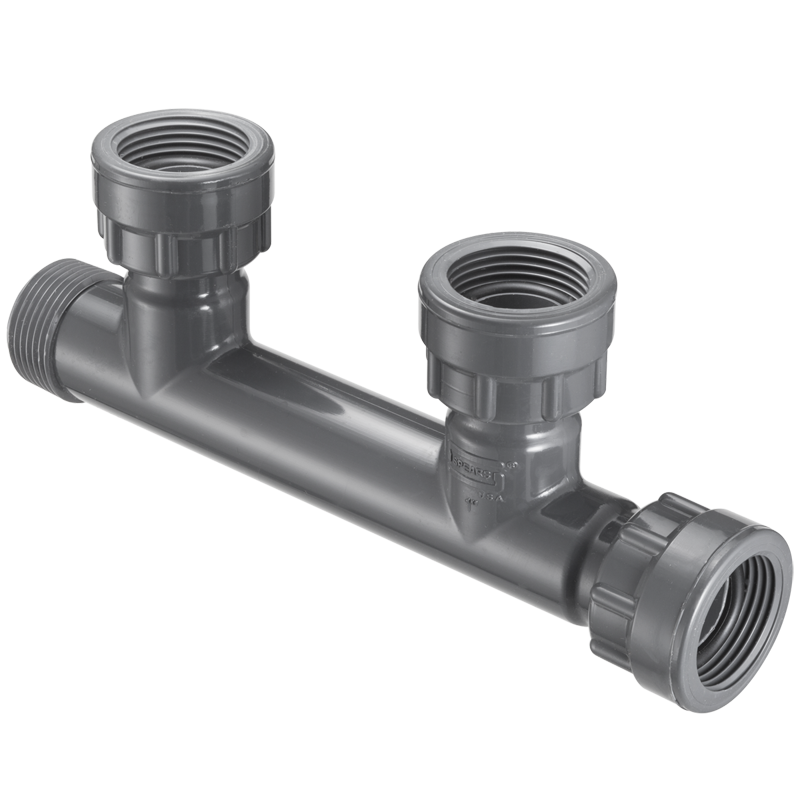

Spears 2 Port Manifold
Two port manifolds for use in automatic 25mm control systems. We recommend ordering a 1" end cap to cap off the line at the end of the manifold
 |
Specifications and Features
- High strength glass filled HDPE construction – superior impact and freeze resistance over PVC manifolds
- Pressure Rating: 1034 kPa at 20°C
- O-ring sealed swivel connections – require no thread sealant and allows hand tight assembly for positive seal
- 25 mm male and female BSP threads
- Easy to install – no cutting, no glueing, no thread tape – saves time
- Makes the valve assembly neat
- Additional valves can be added conveniently
- Valves can be removed without cutting the valve manifold which speeds up the process of replacing faulty or damaged valves
- No glueing means the valve manifold can be pressurised immediately
- Swivel connectors mean the valve manifold takes up less room
|
