Reln Storm Drain Pro 100 Hidden Tray

$405.00
Reln  |  SKU: 210050

Reln Storm Drain Pro 100 Hidden Tray | Hidden Channel Drain for Tile, Stone & Paver

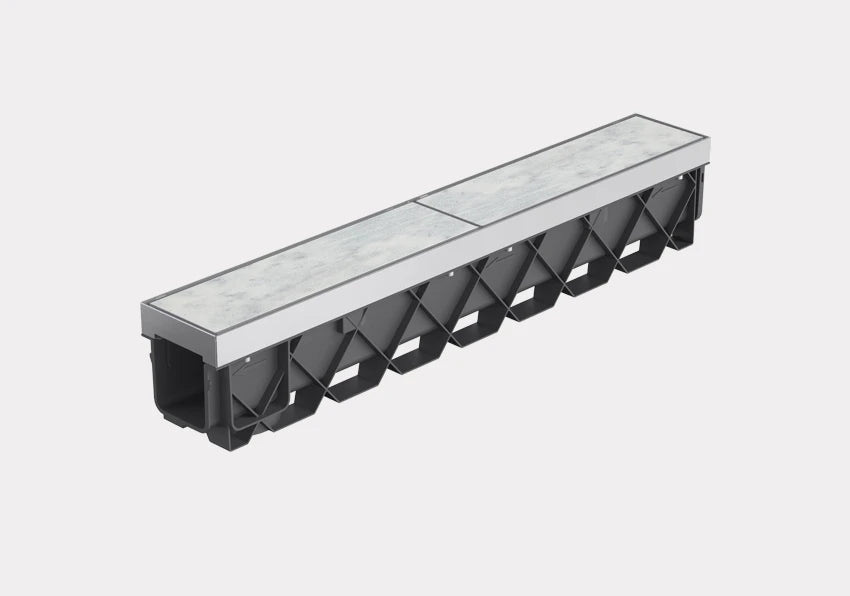

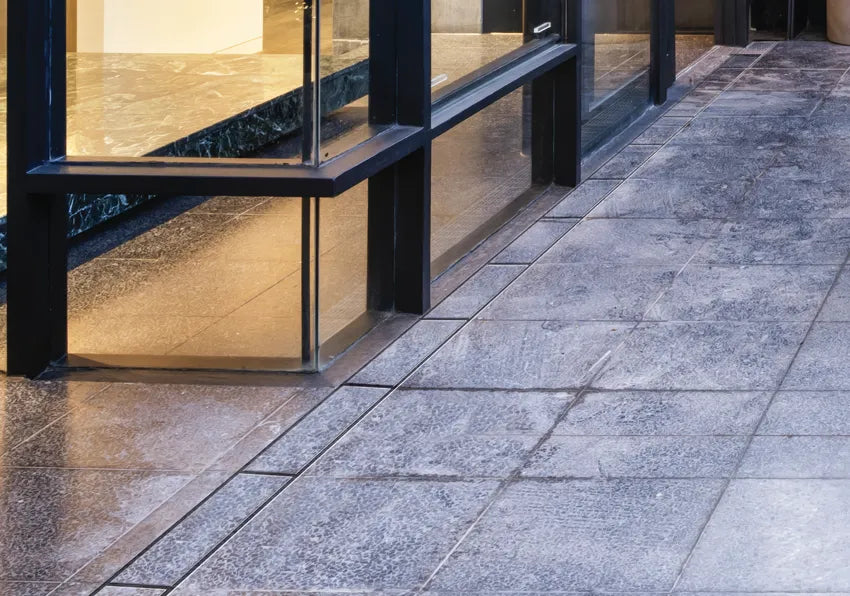

The Reln Storm Drain Pro 100 Hidden Channel Drain is a grate-free surface drainage system that disappears into the finished surface. A 316 marine grade stainless steel tray is filled with the same tile, stone or paver used on site, so all the client sees is a clean slot line instead of a grate. Choose the tray depth to match your surface material (17mm Tile, 35mm Stone or 60mm Paver) and it snaps straight onto the proven Storm Drain Pro Series 100 channel base. Ideal for alfresco areas, patios, courtyards, pool surrounds and walkways where the architect has specified a seamless finish. Australian made from UV stabilised recycled plastic, with anti-flotation feet and rebar anchor points so the channel stays put during the pour.

Reln Storm Drain Pro 100 Hidden Channel Drain features

Specifications and Features

  • Three tray sizes: 17mm Tile (code 210050, 5kg), 35mm Stone (code 210051, 5.5kg), 60mm Paver (code 210052, 7kg)
  • Channel length: 1000mm modular sections, connect end to end for any run length
  • External width: 151mm | Internal channel width: 129mm | Overall depth: 175mm (135mm channel plus tray)
  • Load rating: Class R residential, rated to 5 tonne when installed in concrete

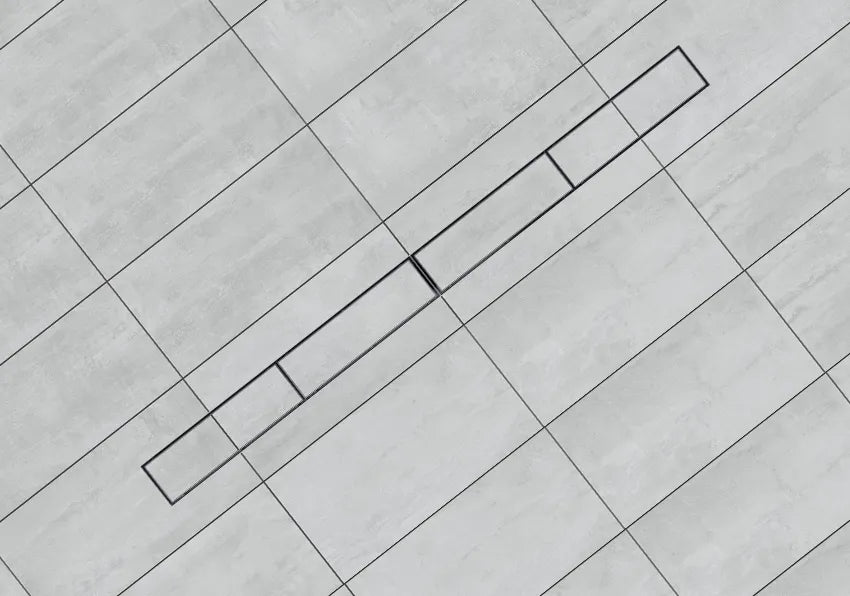

  • Hidden channel design: no visible grate. Fill the tray with your tile, stone or paver for a continuous surface

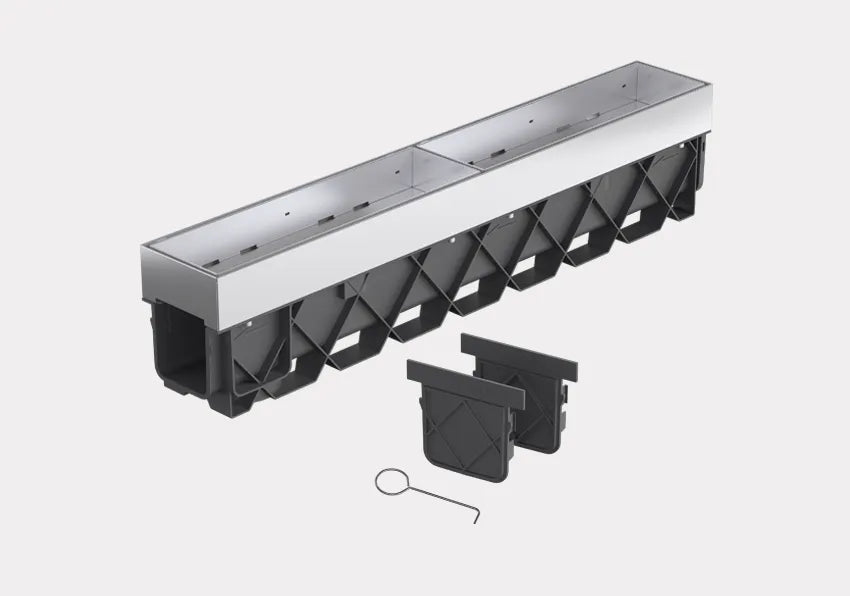

  • 316 marine grade stainless steel internal tray and external surround for corrosion resistance

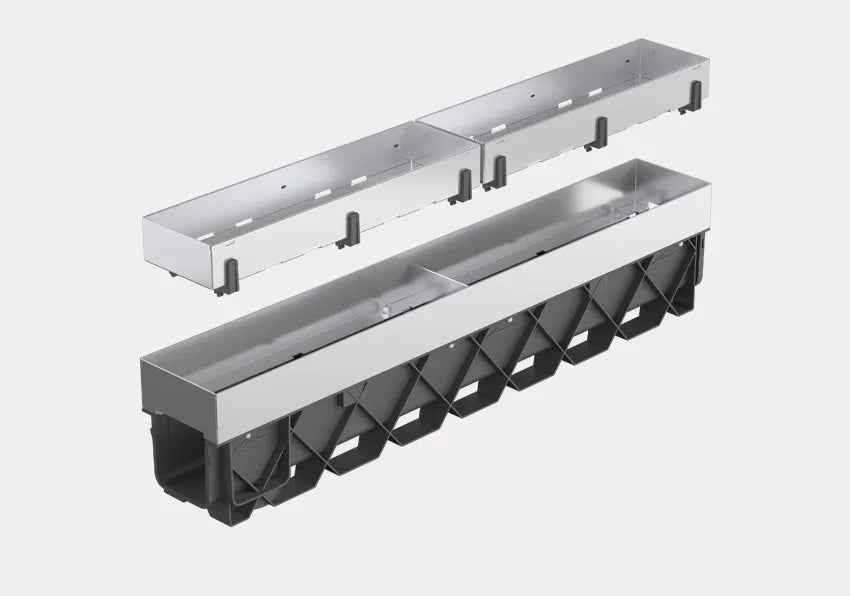

  • Heelsafe snap-on/snap-off trays: lock down, slip resistant, no movement or heel catch in pedestrian areas
  • Large capacity drainage: high flow 100mm channel handles heavy downpours
  • Bottom outlet discharge: multi-size socket suits 90mm AU stormwater and 100mm DWV PVC
  • Inbuilt corner outlets: side connections allow 90° changes of direction without extra fittings
  • Easy install: integral flanges, hold-down feet, anti-flotation feet and rebar anchors keep the channel level and secure during the concrete pour
  • Low maintenance: lift the tray out for quick debris clean-out
  • Australian made and owned, moulded from UV stabilised recycled plastic
  • Warranty: 5 year channel, 1 year tray

View product brochure and specifications here
