Rainbird MPR 5000 Nozzle Tree (Pack of 30)
Rain Bird 5000/5000 Plus MPR Nozzles simplify both the design process and the installation of rotors, because they reliably deliver matched precipitation rates within and between rotor radii from 25' to 35'. Without having to use fixed arc plates, designers and installers can achieve MPR using either 5000 Series or 5000 Plus Series Rotors. Superior flexibility in arc adjustment minimizes the risks of over- or under-watering.
Features
- Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
- Precipitation rate is automatically matched with a uniform radius that does not require stream deflection
- Matched 0.6in/hour (15.2mm/hour) precipitation rates enable large and small turf areas to be zoned together by mixing rotors and Rain Bird R-VAN rotary nozzles
Specifications

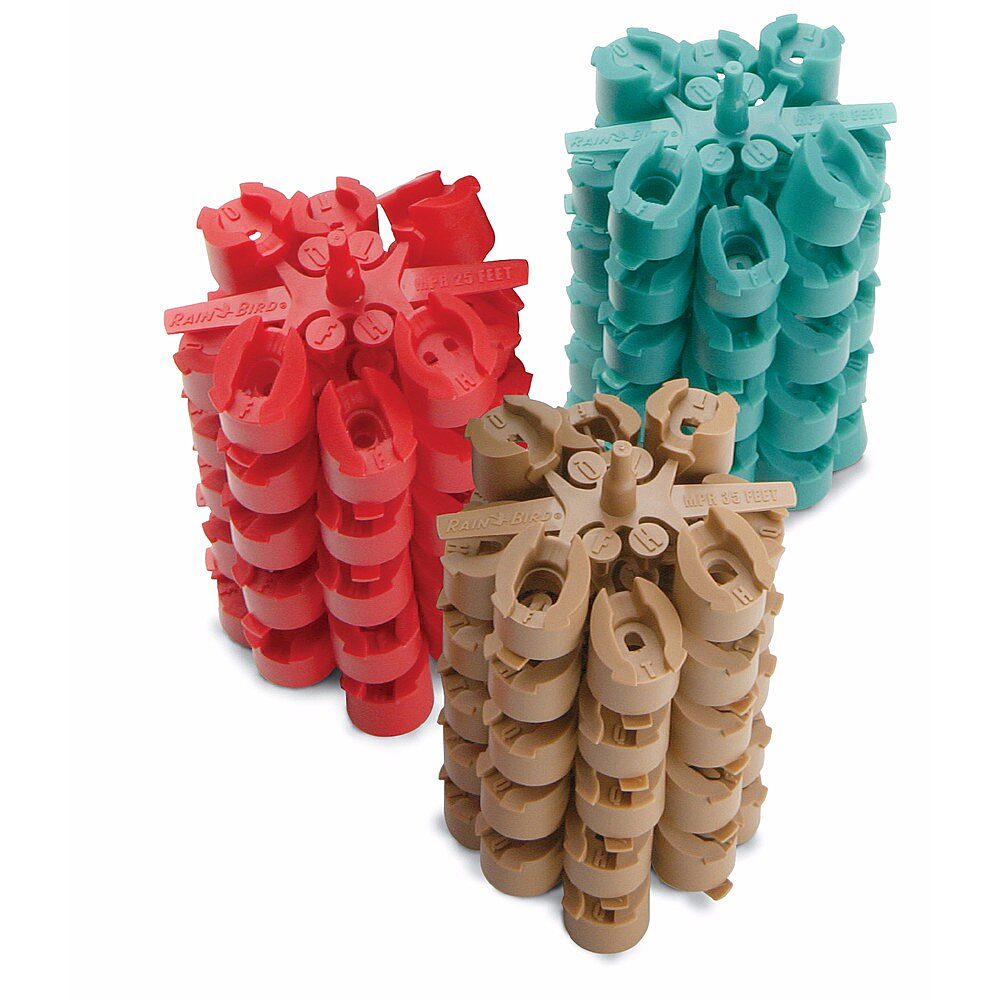

- Pack Includes three Nozzle Trees of 25', 30', 35' (7.6m, 9.1m, 10.7m) radii

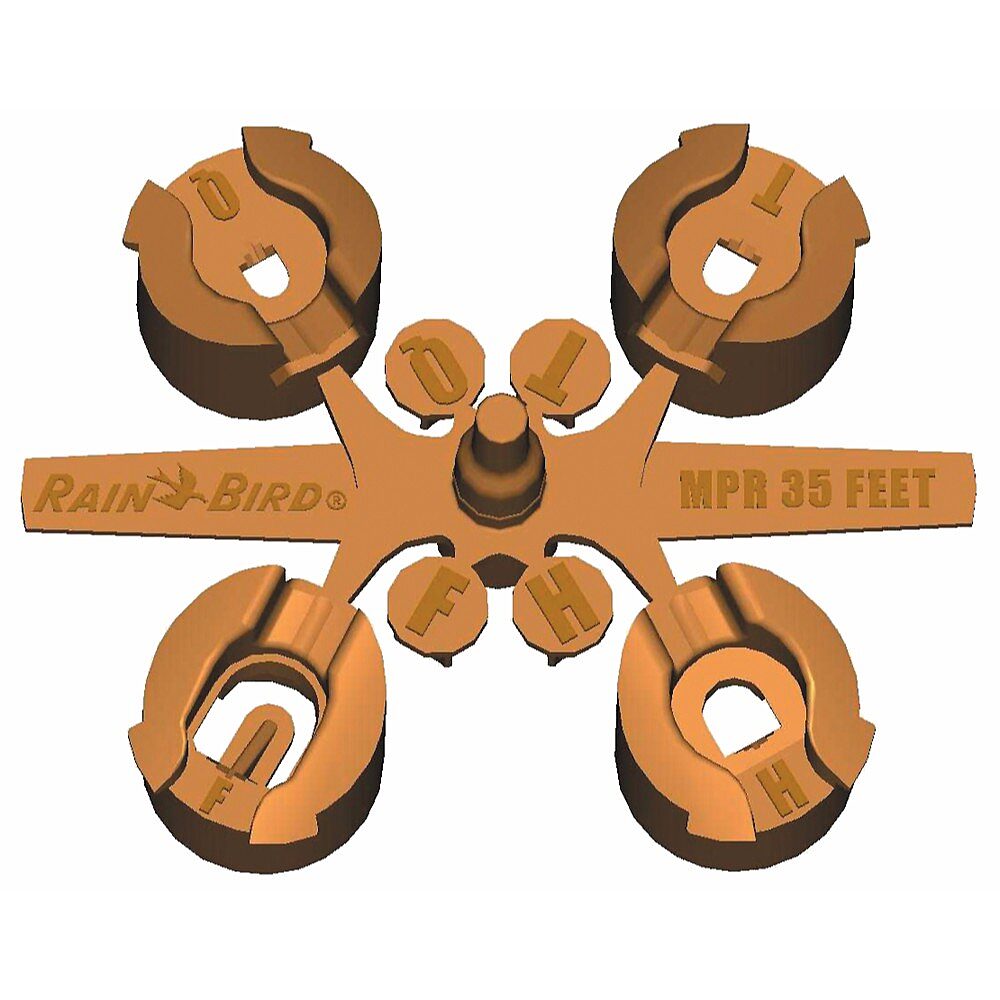

- Each tree contains a Q (90°), T (120°), H (180°), and F (360°) Nozzle

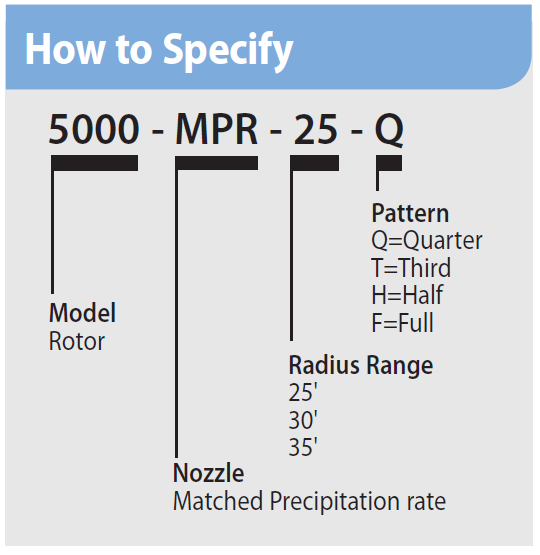

- 5000MPRMPK - SKU: Y046MPK
Downloads
- 5000 Series MPR Nozzle Tree - Data Sheet
