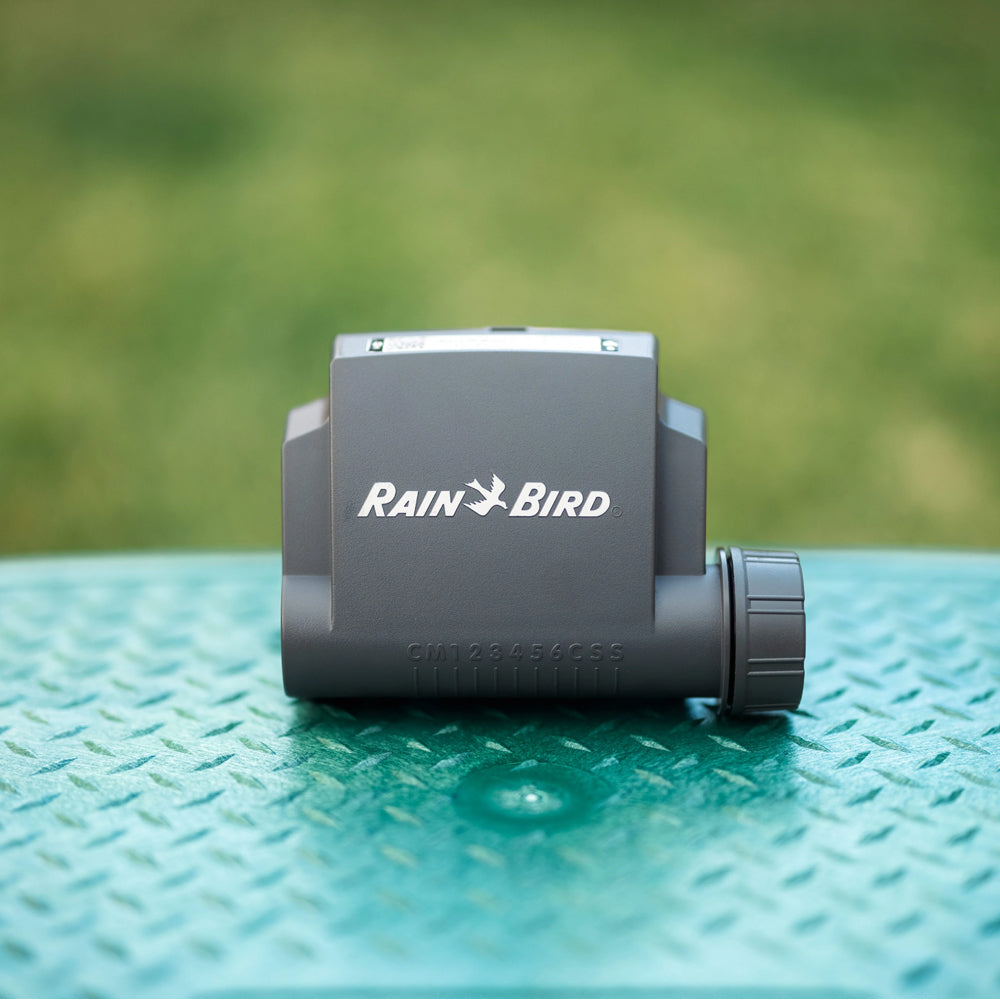

Rainbird Battery Powered Bluetooth Controller

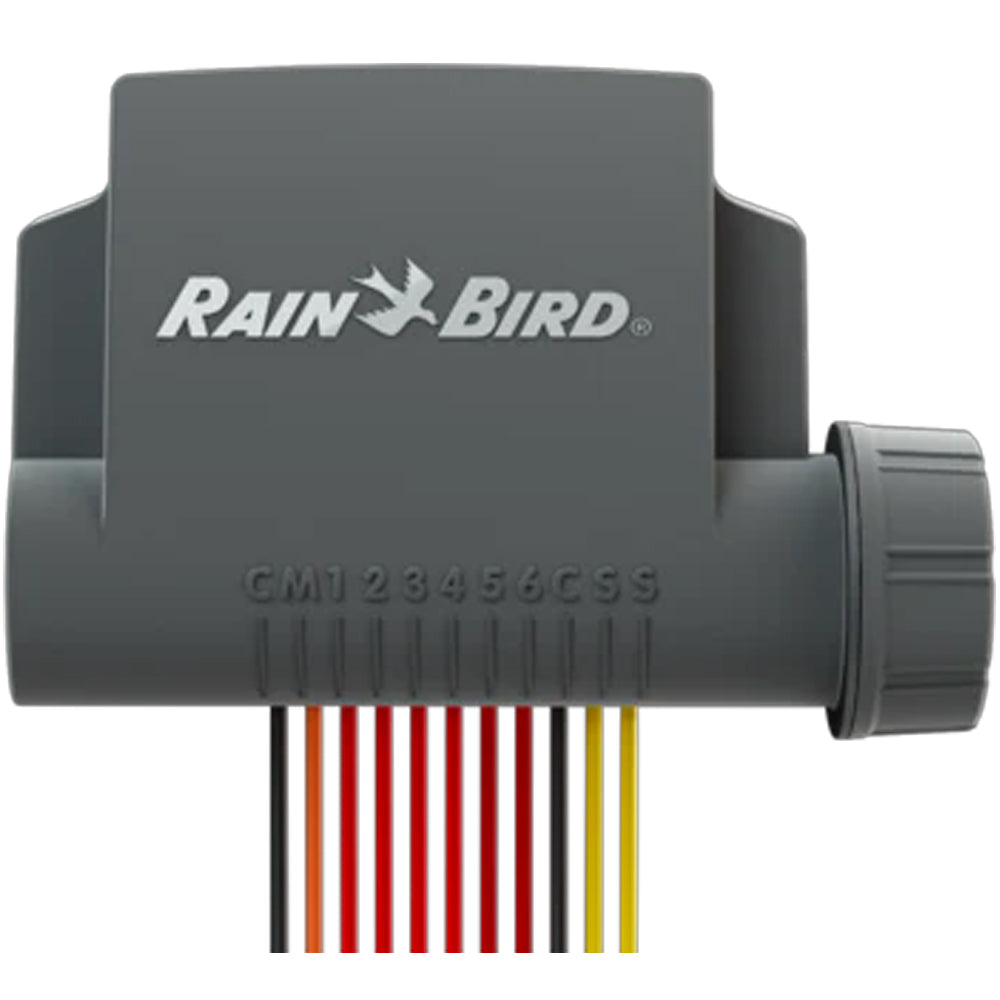

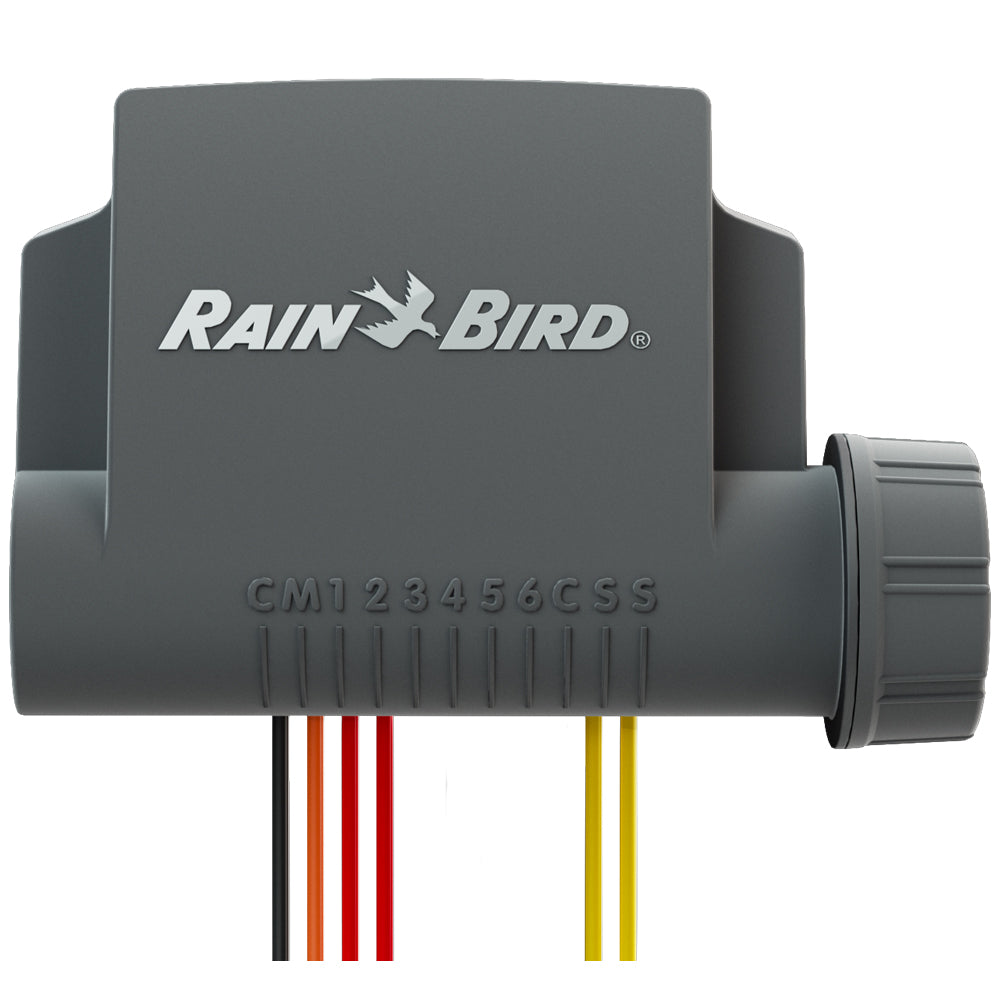

Check out our Rainbird Battery Powered Bluetooth Controller for a completely wireless irrigation controller solution. The Bluetooth controller has a solid construction that makes it resistant to all types of weather and is dust, water and dirt-proof. Available in 2 stations the controller has one common wire, one wire for your optional master valve, 2 red wires for your 12v DC latching solenoids and a looping yellow wire, and is compatible with one Rain Bird sensor. In addition to having Bluetooth that operates at a 2402-2480 MHz frequency which allows you to manage all your watering needs straight from the RainBird app.

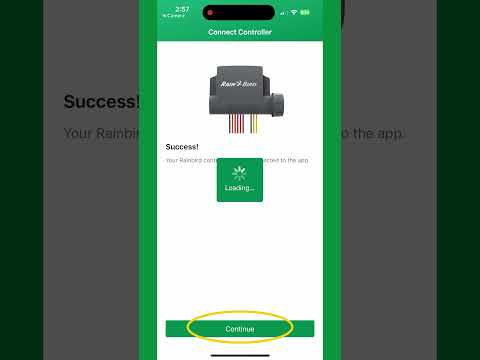

The Rainbird app includes advanced mapping software showing the last location of your devices and giving you an estimation of battery level based on the last time you were in Bluetooth range. In addition, satellite view so you can pinpoint your device, from its last synced location. As well as make any changes to your irrigation system while in Bluetooth range. Check out our range of RainBird solenoids and sensors for more.
 |
Features
- 3-5 year Battery Life.
- Monthly Seasonal Adjust.
- Mapping Function.
- Share controller access team members for landscaping collaboration.
- App allows you to make adjustments to your controller even while your out of Bluetooth range. Once back in range, the app will synchronise any changes.
- Cycle & Soak™ Technology: This feature helps to eliminate runoff by breaking up watering times, allowing soil to absorb water more effectively.
- Customisable Run Times: Adjust watering times from as short as 7 seconds up to 18 hours to suit your specific needs.
- 3 Year Warranty.
Specifications
- Rain Bird 2.0 App; available for Android™ and iOS® devices.
- Available in 4 models: 1, 2, 4, or 6 stations.
- Master Valve/Pump output on all models.
- Basic programming includes four independent programs A, B, C and D each with 8 start times per day.
- Stations can be assigned to several programs with different watering run times.
- Run time is from 7 seconds to 9 hours (max 18 hours with 200% seasonal adjust) in 1-second increments.
- Independent station operation allows sequential start times (with stacking in case of overlap).
- Operates one valve per station.
- Global Monthly Seasonal Adjust; 0% to 200% (1% increment)
Four watering day cycle modes (custom, even, odd and cyclical) with permanent days off so no irrigation takes place on mow days, selectable by program for maximum flexibility and watering restriction compliance.
- Backup program may be saved and restored (manually or automatically for contractor default capability).
- No loss of irrigation program after a battery replacement.
- Short and open circuit detection.
- PIN code protection.
- Direct Rain Sensor Connection accommodates the Rain Bird RSD-BEx Rain Sensor.
- Rain Sensor shutoff globally or by station.
- Operates with four AA alkaline batteries (AA, LR6, LR06): batteries not included
