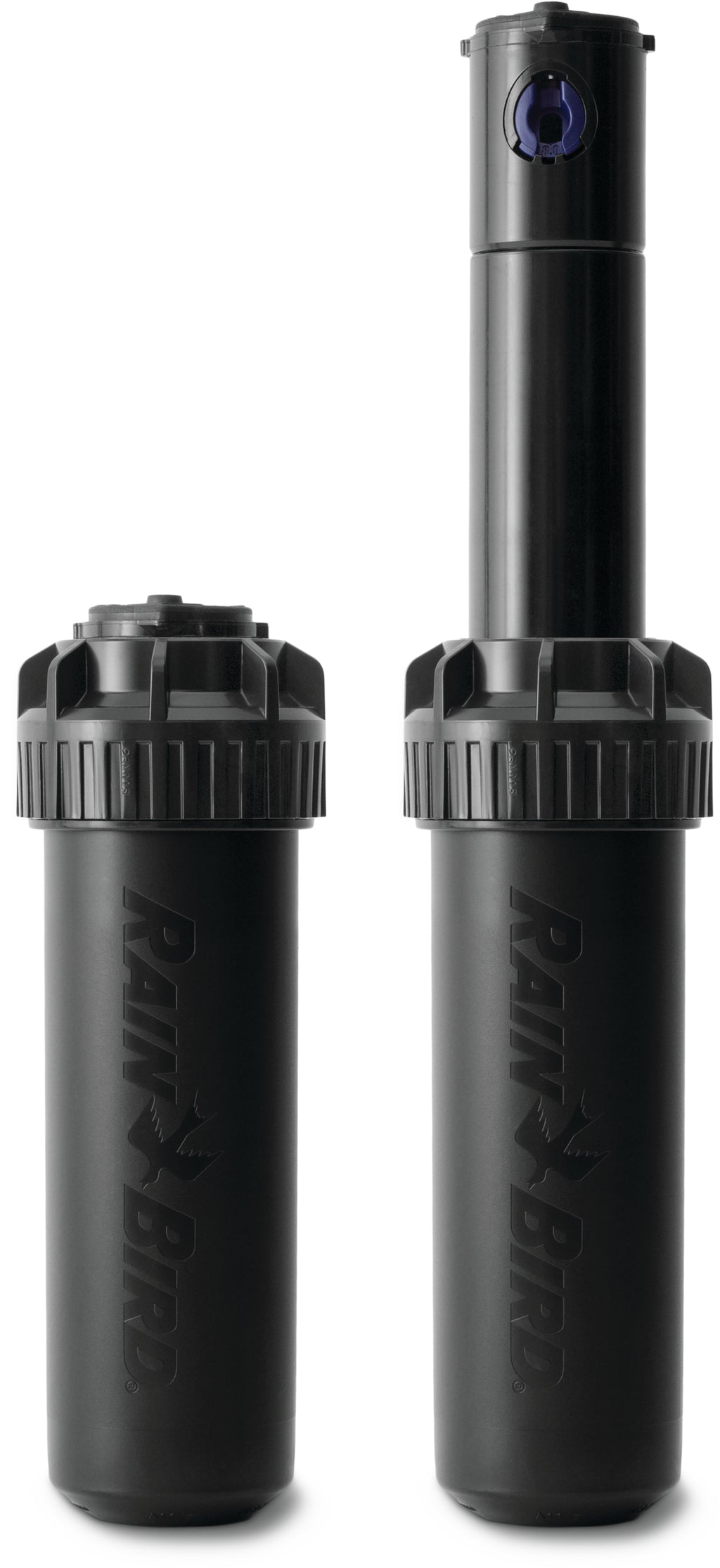

Rain Bird 5000 PLUS Series Sprinkler Rotors

• 5004 Plus Full Circle (5004+FC)
• 360 Degree Rotation Only
• 5004 Plus Part Circle / R (5004+PCR)
  • Adjust Rotation from 40-360 Degrees, Includes PRS
• 5004 Plus Part Circle / SAM (5004+PC-SAM)
• Adjust Rotation from 40-360 Degrees, Includes SAM
• 5004 Plus Part Circle / SAM / PRS (5004+PC-SAM-R)
• Adjust Rotation From 40-360 Degrees, Includes SAM and PRS
• 5004 Plus Part Circle / SAM / PRS (5004+PC-SAM-R-SS) Stainless Steel Riser

  • Adjust Rotation From 40-360 Degrees, Includes SAM and PRS

• Oversized wiper seal designed to prevent leaks and protect internals from debris
• Rain Curtain™ nozzle delivers an even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
• A history of proven performance and reliability tested in millions of installations.
• Self-flushing arc adjustment port that prevents build-up of debris
• 5 year trade warranty

Specifications

• Precipitation Rate: 5 - 38mm/h
• Radius: 7.6 - 15.2 m (Radius can be reduced by 25% with radius reduction screw)
• Pressure: 170kPa - 450 kPa
• Flow Rate: 3.0 - 36.6 Lpm

• Reversing full and part-circle adjustment (40° - 360°)
• Inlet: xxx
• Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25°.

Optional Features

• PRS (R) - Flow optimiser technology. The 45 psi pressure regulator
  lowers water bills, provides exact flow of each rotor, equalizes lateral
  lines, and eliminates misting and fogging
• SAM Seal-A-Matic™ - Check valve holds up to 2.1m of elevation change
• Stainless Steel (SS) Riser - Helps deter vandalism on public turf areas (available on 4 and 6" models)
• PCR -
• Purple Cover (NP) for non-potable Systems
