Description

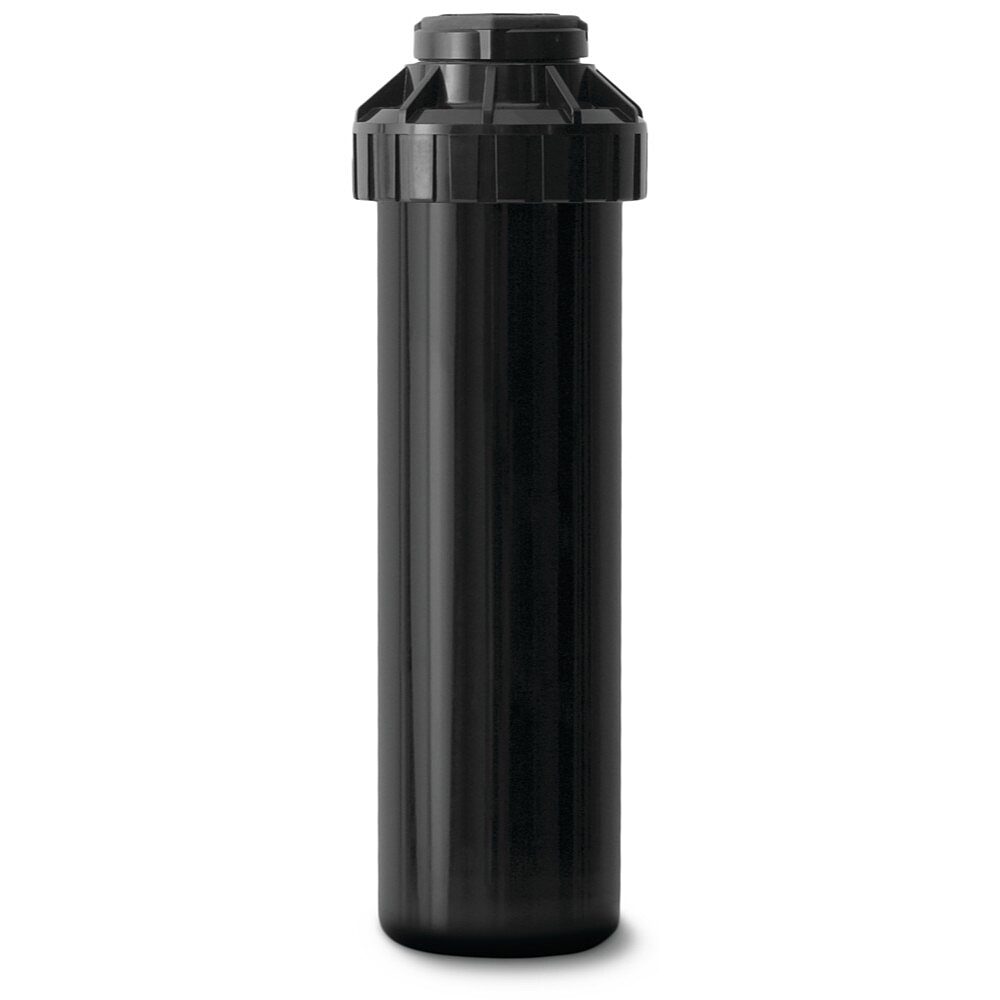

RainBird 3500 Series 1/2" Gear Drive Sprinkler with Nozzle Tree

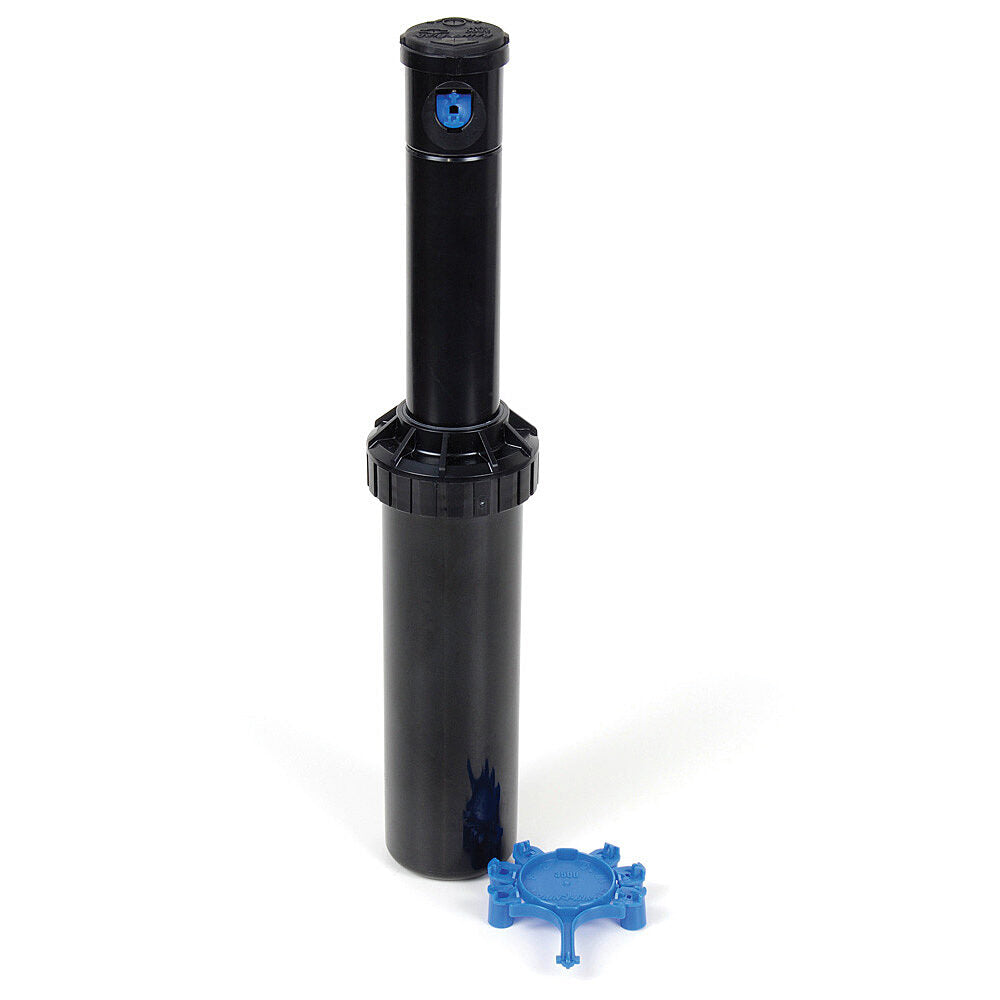

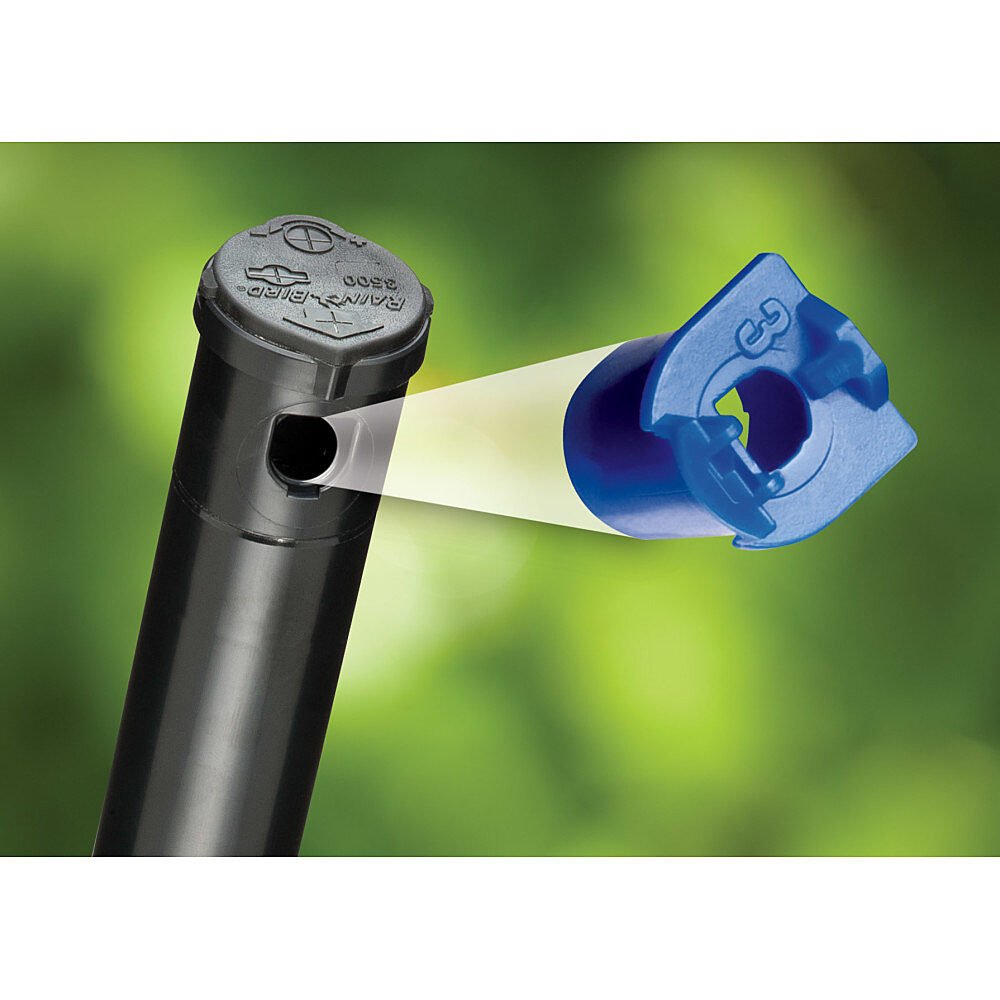

The 3500 Series Rotor is an easy to use short to mid-range ½" gear-drive rotor, offering value and convenience for residential applications. The 3500's arc adjustment is quick and easy with the use of a simple flat-bladed screwdriver. This versatile rotor offers an attachable nozzle tree with six superior performing Rain Curtain nozzles, and the convenience of reversing full and part circle operation (up to 360 degrees) in one unit. Additionally, a nozzle removal feature and an easily removable filter screen make maintenance a breeze.
Features
- Three Year factory warranty

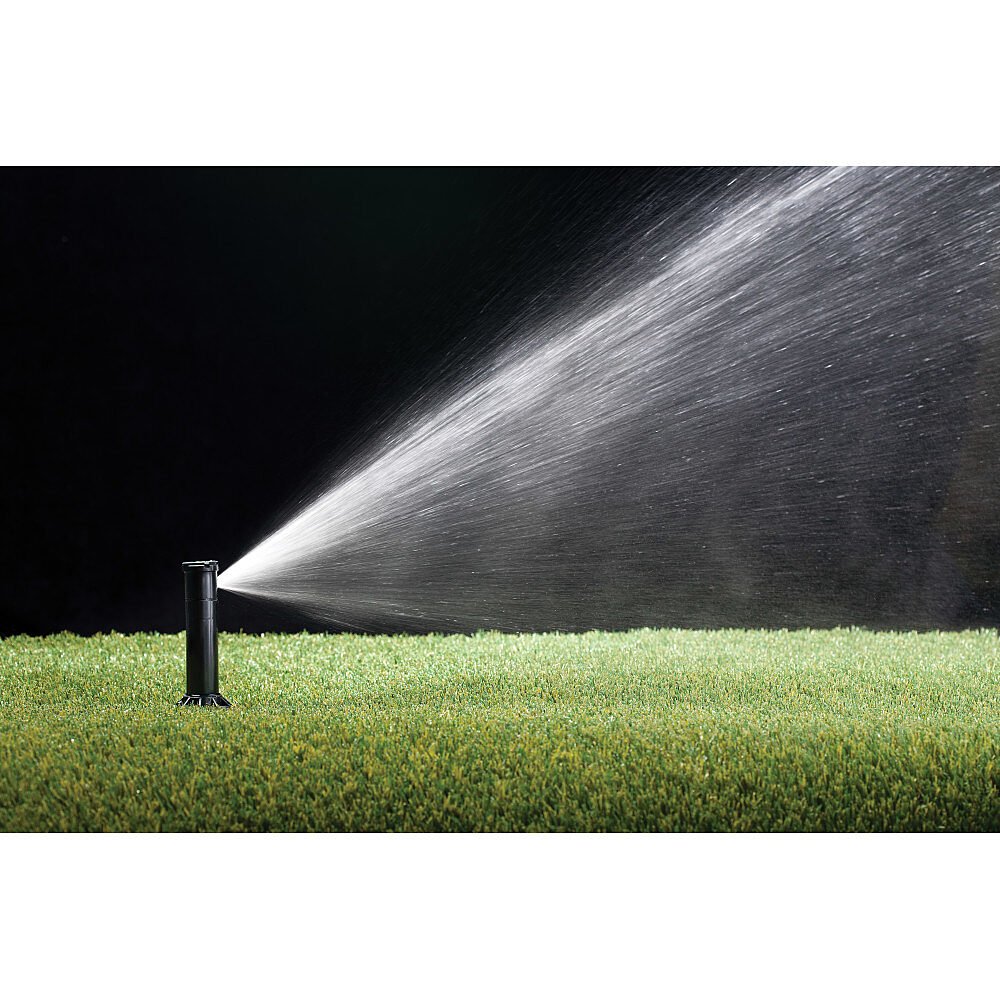

- Rain Curtain™ nozzles are designed to deliver an even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
- Oversized wiper seal prevents leaks and protects internals from debris
- Simple Arc adjustment on the top of the rotor by using a standard flat-blade
screwdriver
Specifications
- Precipitation Rate: 9-21mm/h
- Radius: 4.6-10.7m (Radius can be reduced by 25% with radius reduction screw)
- Pressure: 170 to 380 kPa
-
Flow Rate: 2.0 - 17.4 Lpm
- Inlet: 1/2" NPT female bottom threaded inlet
- Nozzle trajectory: 25°
- Reversing full and part-circle adjustment (40° - 360°)
- Optional Seal-A-Matic™ (SAM) Check Valve: holds up to 2.1m of elevation change

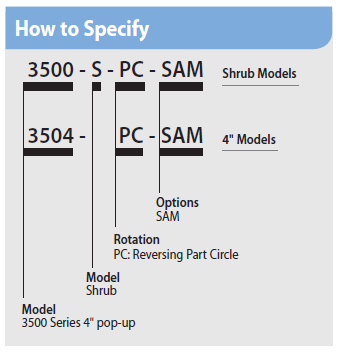

Models available
- 3504-PC: 4" part/reverse full circle (SKU: Y34000 )
- 3504-PC-SAM: 4" part reverse full circle with SAM Check Valve (SKU: Y34500)
