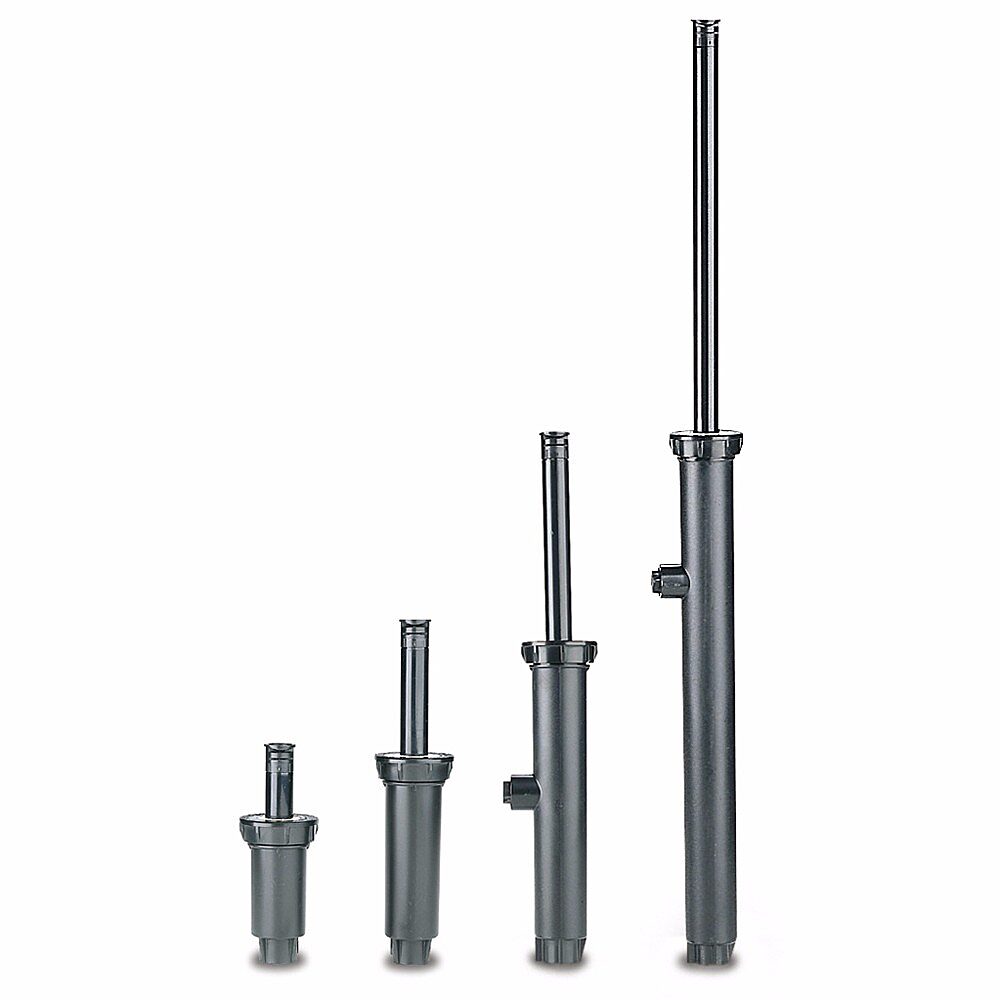

RainBird 1800 Series Pop-Up Sprinklers

Box Quantities

• 1802: Box of 100.
• 1803: Box of 36.
• 1804: Box of 75

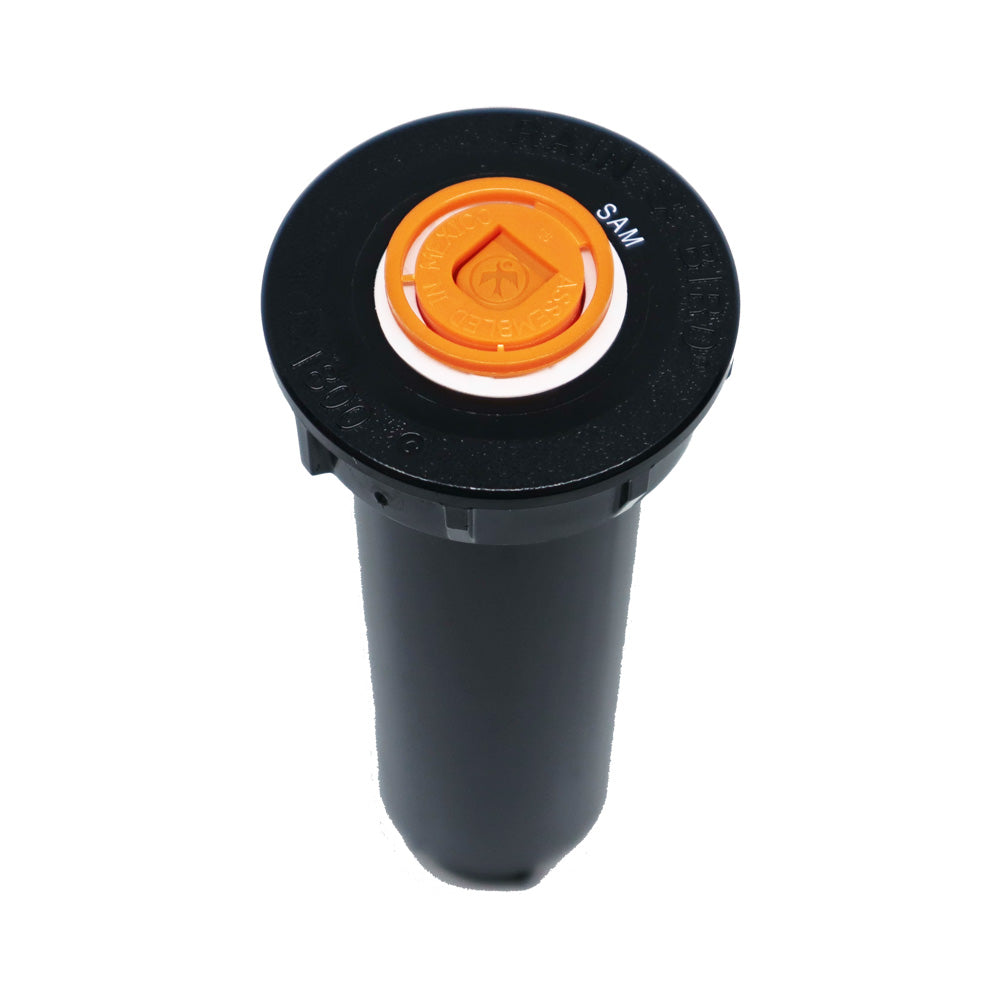

• 1804 with Sam: Box of 75.

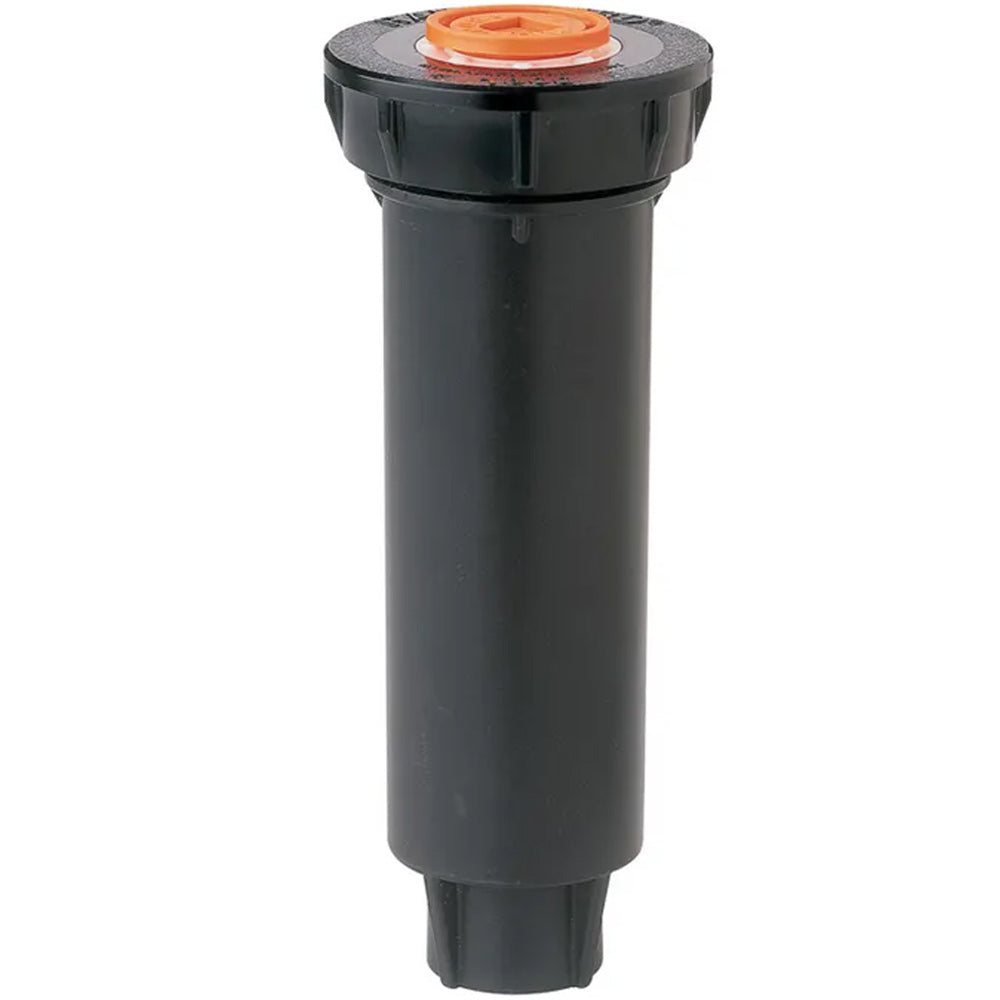

• 1804 Pressure Reducing with Sam 30PSI: Box of 75
• 1804 Pressure Reducing with Sam 45PSI: Box of 75
• 1806: Box of 50.
• 1806 with Sam: Box of 75.
• 1812: Box of 50

Features

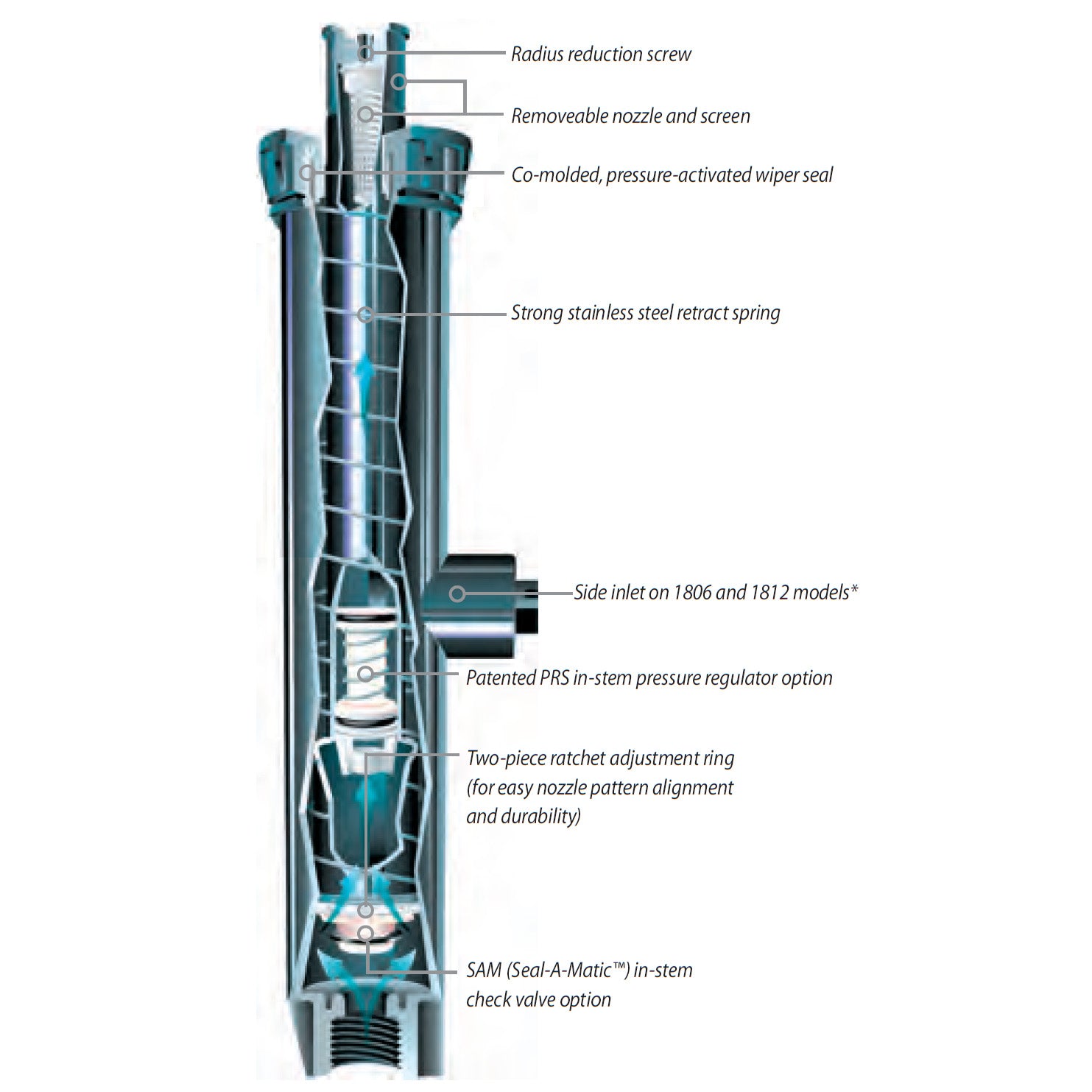

• Co-Moulded wiper seal provides unmatched resistance to grit, pressure and the environment

• High impact UV-Resitant plastic construction and corrosision resistant stainless steel parts.
• Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
• Two piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
• Compatible with most nozzles and feature a 15mm BSP inlet compatible with standard Poly or PVC fittings.
• Five Year Trade Warranty

Specifications

• Inlet Thread size: 15mm BSPF
• Outlet Thread size: 10mm Male Thread
• Minimum recommended Pressure: 100 kPa
• Max recommended pressure: 480kPa

Downloads

• Rain Bird 1800 Series Spray head Data Sheet
• Rain Bird Spray Head - Catalogue
• Rain Bird Spray Head - Instructions
