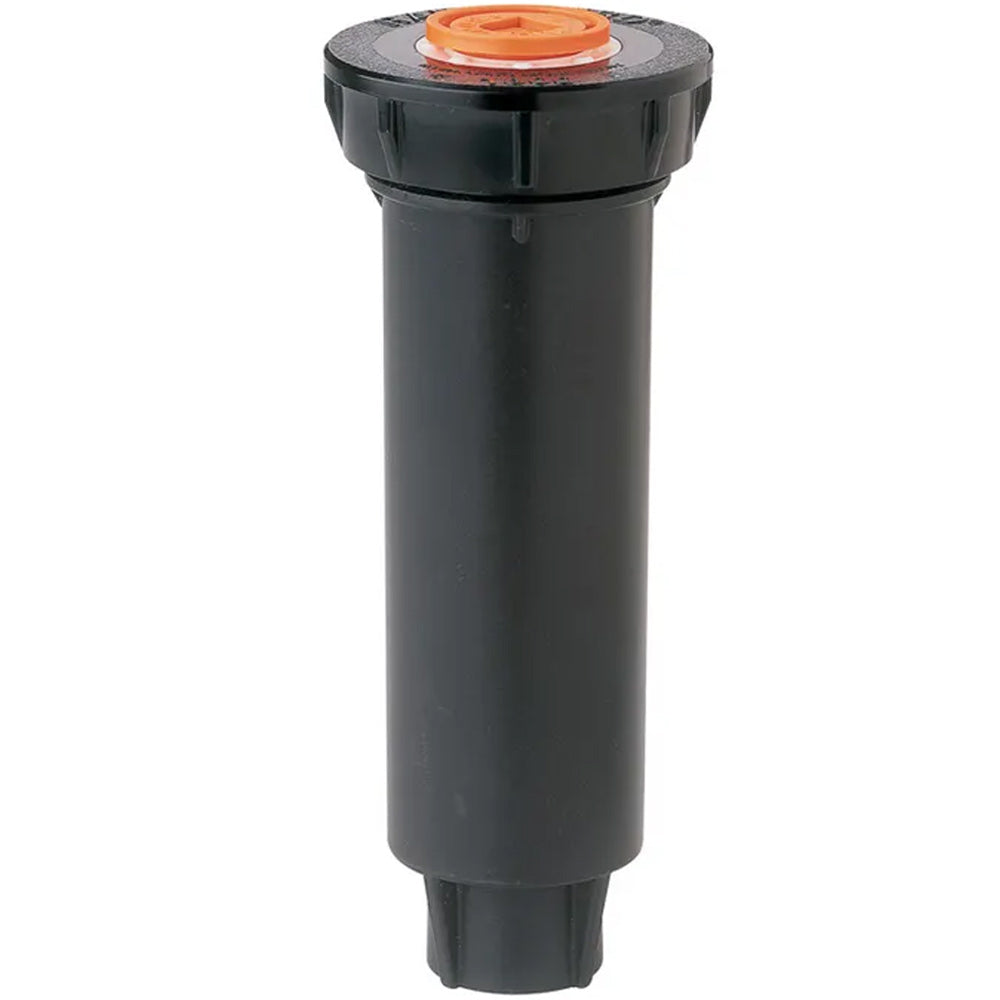

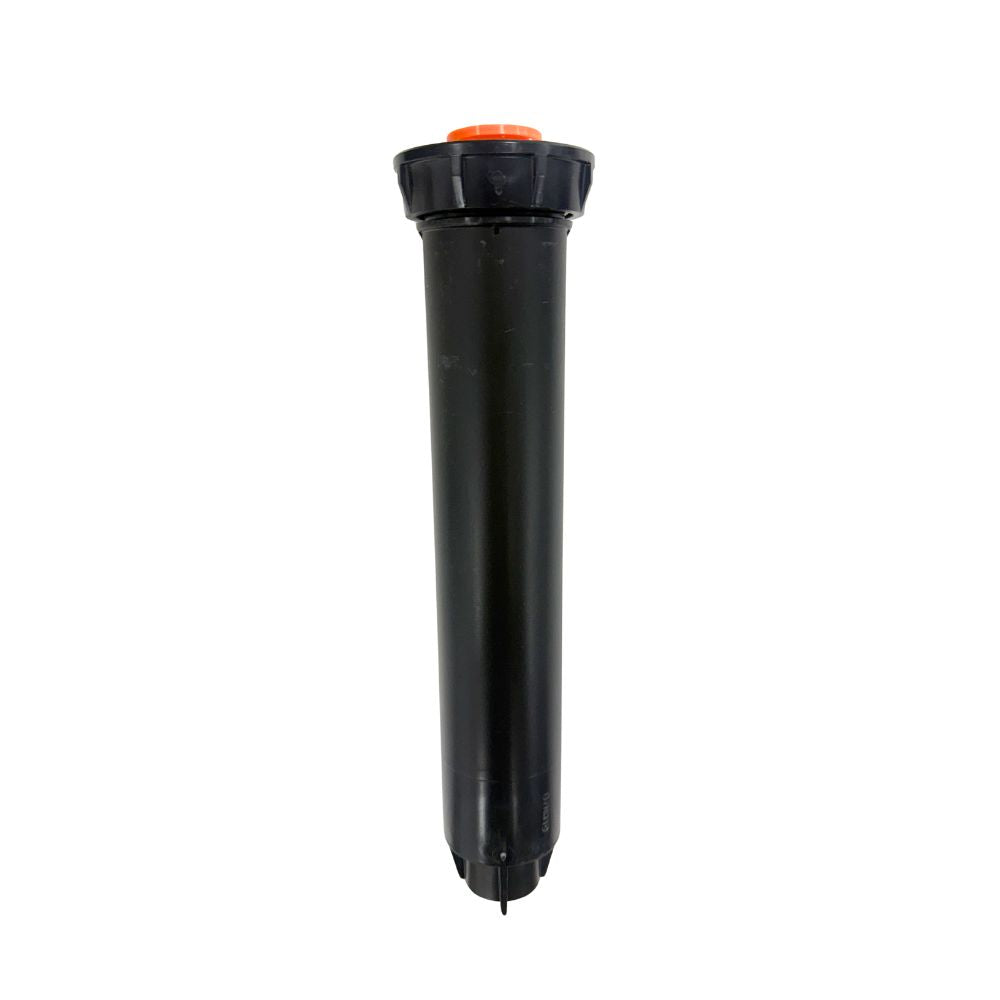

Rain Bird 1800 Pop-Up Series - #1 Irrigation Spray Head In the World
Rain Bird's 1800 Series Pop up Sprinkler range are the #1 commercial grade irrigation spray head in the world. Seen in backyards and parks across Australia and the globe.
Features
- Co-Moulded wiper seal provides unmatched resistance to grit, pressure and the environment
- High impact UV-Resitant plastic construction and corrosision resistant stainless steel parts.
- Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
- Two piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
- Compatible with most nozzles and feature a 15mm BSP inlet compatible with standard Poly or PVC fittings.
- Five Year Trade Warranty
Specifications
-
Inlet Thread size: 15mm BSPF
-
Outlet Thread size: 10mm Male Thread
-
Minimum recommended Pressure: 100 kPa
-
Max recommended pressure: 480kPa
| Model |
Body Length |
Pop-Up height |
Inlet Size |
| 1802 |
100mm |
51mm (2") |
15mm BSPF |
1803
|
127mm |
76mm (3") |
15mm BSPF |
| 1804 |
150mm |
102mm (4") |
15mm BSPF |
| 1806 |
240mm |
152mm (6") |
15mm BSPF |
| 1812 |
400mm |
305mm (12") |
15mm BSPF |
