Rain Solenoid Valves
Orders before 1pm ship same day
Rain Solenoid Valves

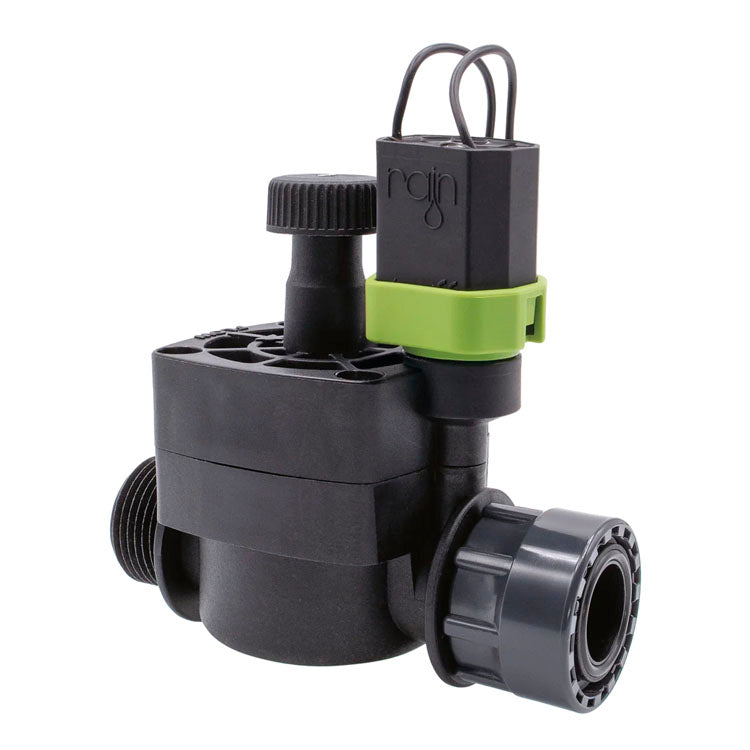

The RN 154 solenoid valve is the ideal solution for residential and commercial irrigation with flow rates from 30 l/min to 150 l/min. Available in different configurations of diameters (¾" to 1") and voltage (24 Vac and 9 Vdc). The presence of the patented Manifold system ferrule saves considerable time during installation, but more importantly, it allows the solenoid valve to be replaced in seconds and without the use of tools. In addition, the 1" F model is interchangeable with models of other irrigation brands thanks to its reduced length of 11.2 cm, making the RN154 even more versatile, also on existing systems.
Benefits
- Solenoid 9 Vdc: Battery-operated controllers control 9Vdc latching solenoids. The control unit will send an electrical signal at the start of irrigation to open the solenoid valve and a signal at the end of irrigation to close the solenoid valve.
- Solenoid 24 Vac: The controllers control 24 Vac normally closed solenoids. The control unit will supply the solenoid with a 24 Vac electrical signal for the entire irrigation time to open the electrovalve.
- Manifold system: The patented Rain Manifold System allows easy installation of solenoid valves and during valve box maintenance allows quick removal of the solenoid valve.
Features
- Solenoid type: 24 Vac - normally closed, 9 Vdc - latching
- Minimum pressure: 1 bar
- Maximum pressure: 12 bar
- Minimum operating flow rate: 30 l/min
- Maximum operating flow rate: 150 l/min
- Minimum operating temperature: 4°C
- Maximum operating temperature: 70°C
- Diaphragm type: In co-molded parts
- Manufacturing material: Glass fiber PA 6 30%
- Manual opening with security key (provided)
- Solenoid inrush absorption 24 Vac: 0,43 A
- Absorption at solenoid maintenance 24 Vac: 0,21 A
