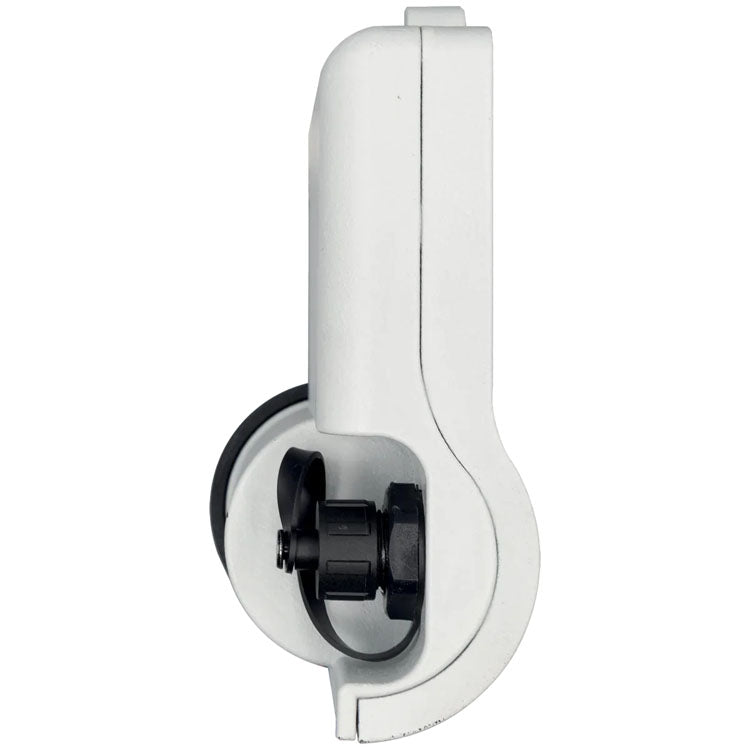

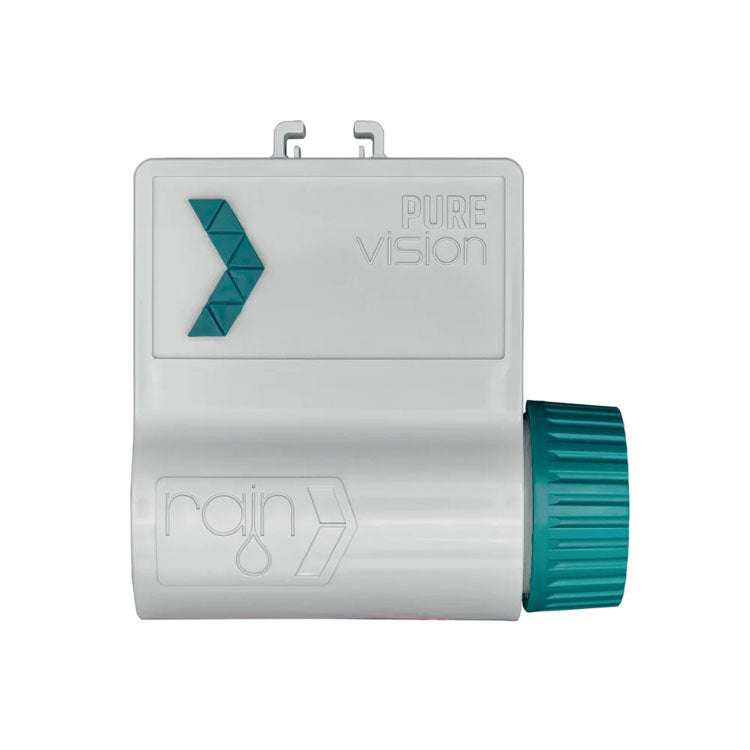

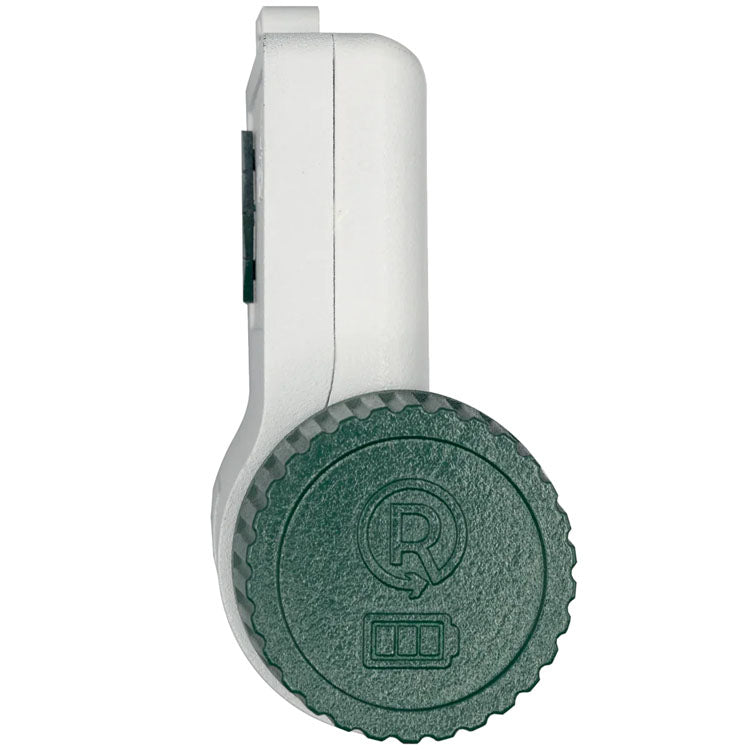

Rain Pure Vision 2.0 Battery Irrigation Controller Bluetooth + Optional Wifi
Orders before 1pm ship same day
Rain Pure Vision 2.0 Battery Irrigation Controller Bluetooth + Opti...
Pure Vision is the rechargeable and remotely manageable valve box controller of the Vision™ system. The battery is kept charged at all times by solar power or water from the system itself, thanks to the Vision Luce and Vision Turbine recharging systems, reducing maintenance costs and use of environmentally harmful waste such as alkaline batteries. It is conveniently programmed from a smartphone, PC or tablet via the Vision App, choosing between standard or advanced programming as needed. Ideal for monitoring irrigation anywhere, anytime.
Benefits
- EASY mode: The EASY programming mode is designed for the management of balconies and small gardens, and can be approached by everyone. Programming allows irrigation to be managed with two programmes and one start time per programme, the watering frequency can be set from once every 6 hours per programme (a total of 8 times per day) to a minimum of once every 15 days.
- PRO Mode: The PRO programming mode is designed for more technical applications such as seeding and rolling lawns. The high number of starts (6 starts per programme) allows the irrigation installer and maintainer to manage large systems with ease.
- ONE-BY-ONE mode: The ONE-BY-ONE programming mode allows for totally elastic irrigation scheduling, designed to manage each individual solenoid valve independently. This programming mode allows you to enter the start time and watering frequency for each individual solenoid valve.
- Internet Access: The controller is Internet-ready via the Nuvola Vision hubs. The controller will connect via Bluetooth to the Nuvola device, and the irrigation system will be accessible and manageable via Wi- Fi or cellular network.

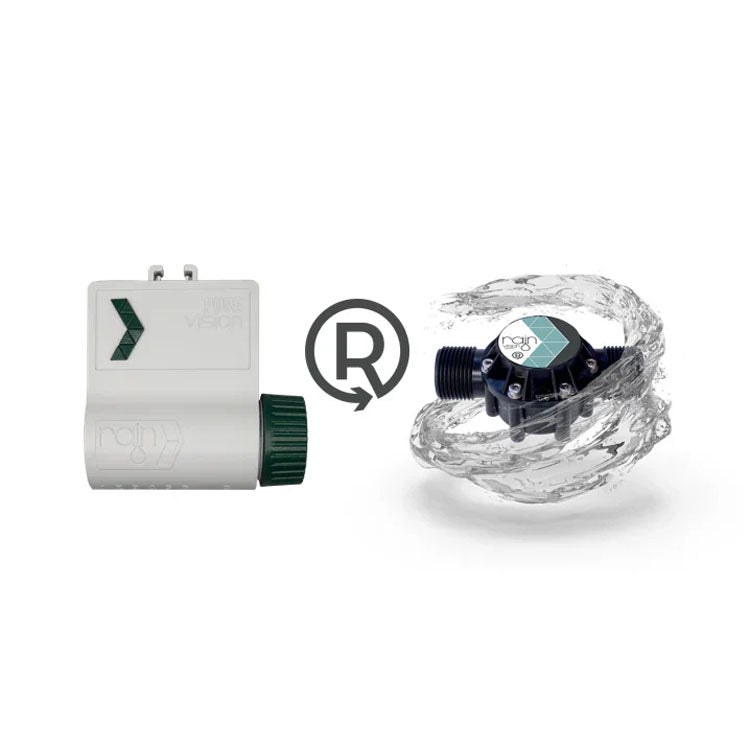

- Recharge: The lithium battery supplied with the controllers can be recharged by the Vision Turbine, Luce solar panel and Docking station devices. By integrating one of these devices, the irrigation system becomes energetically independent, and it will no longer be necessary to replace the batteries.
- Vision App: The Vision app is available on Google Play and App Store for smartphones and tablets.
- Solenoid 9 Vdc: Battery-operated controllers control 9Vdc latching solenoids. The control unit will send an electrical signal at the start of irrigation to open the solenoid valve and a signal at the end of irrigation to close the solenoid valve.
- BLE: Sta per Bluetooth Low Energy. È una versione del protocollo Bluetooth progettata per consumare molta meno energia rispetto al Bluetooth classico, mantenendo comunque una buona capacità di comunicazione wireless a corto raggio. Questa è la tecnologia di connessione tra dispositivi attualmente in circolazione, Bluetooth 5.0.
Features

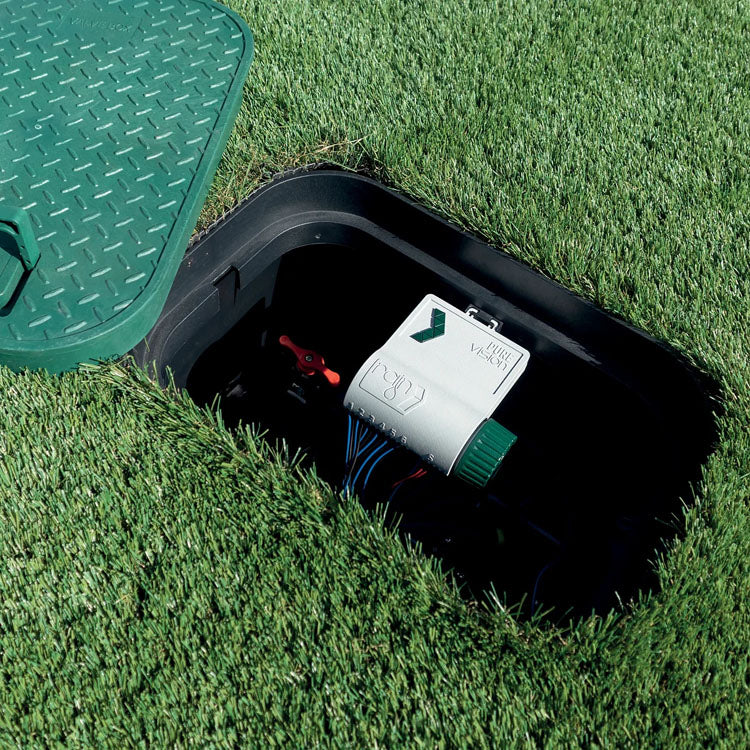

- Controller type: Valve-box
- IP68 watertight (submersible)
- Power supply: 18650 rechargeable lithium battery - 2,000 mAh 3.7V
- Power supply: 4 alkaline batteries 1.5 volts (AAA) not included
- Recharging mode: Via USB cable
- Bluetooth 5.0 BLE connection
- Internet connection: Via Nuvola WiFi Vision
- Rain sensor input
- Pump/master valve control outlet
- Removable control unit
- Low battery signal
- Maximum number of zones: 6
- Models available: 1, 2, 4 and 6 zones
Operating Programs
- EASY mode: via Rain Vision App
- PRO mode: via Rain Vision App
- ONE-BY-ONE mode: via Rain Vision App
