Rain Pre-Assembled 25mm Irrigation Solenoid Manifold Kit (4 Valves)

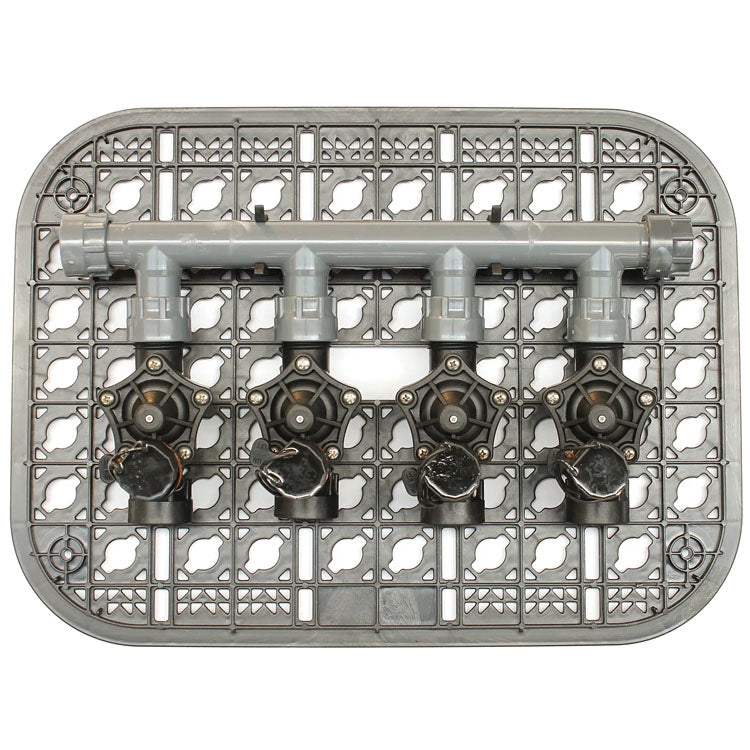

The pre-assembled 113 Rack Kit with 4 RN 150 solenoid valves speeds up the installation time of the valve box and reduces system maintenance time, as well as keeping the valve box clean and tidy at all times. In addition to the 113 rack and 4x150 1" MxUN solenoid valves, the kit includes a 4-outlet Manifold, a cap, and the positioning grid. Compatible with the EZ-Open PZRM 113 valve box with patented handle. Ideal for systems with flow rates from 10 l/min to 25 l/min.
Benefits
- Wall-mounted: Rain's patented Rack start kit can be installed in the valve box or mounted on the wall of utility rooms, simplifying the maintenance of the irrigation system.
- Manifold system: The patented Rain Manifold System allows easy installation of solenoid valves and during valve box maintenance allows quick removal of the solenoid valve.
- Solenoid 24 Vac: The controllers control 24 Vac normally closed solenoids. The control unit will supply the solenoid with a 24 Vac electrical signal for the entire irrigation time to open the electrovalve.
- Solenoid 9 Vdc: Battery-operated controllers control 9Vdc latching solenoids. The control unit will send an electrical signal at the start of irrigation to open the solenoid valve and a signal at the end of irrigation to close the solenoid valve.
Features
- Solenoid type: 24 Vac - normally closed, 9 Vdc - latching
- Minimum pressure: 1 bar
- Maximum pressure: 12 bar
- Minimum operating flow rate: 20 l/min
- Maximum operating flow rate: 90 l/min
- Minimum operating temperature: 4°C
- Maximum operating temperature: 70°C
- Diaphragm type: In co-molded parts
- Manufacturing material: Glass fiber PA 6 30%
- Manual opening
- Solenoid inrush absorption 24 Vac: 0,43 A
- Absorption at solenoid maintenance 24 Vac: 0,21 A
