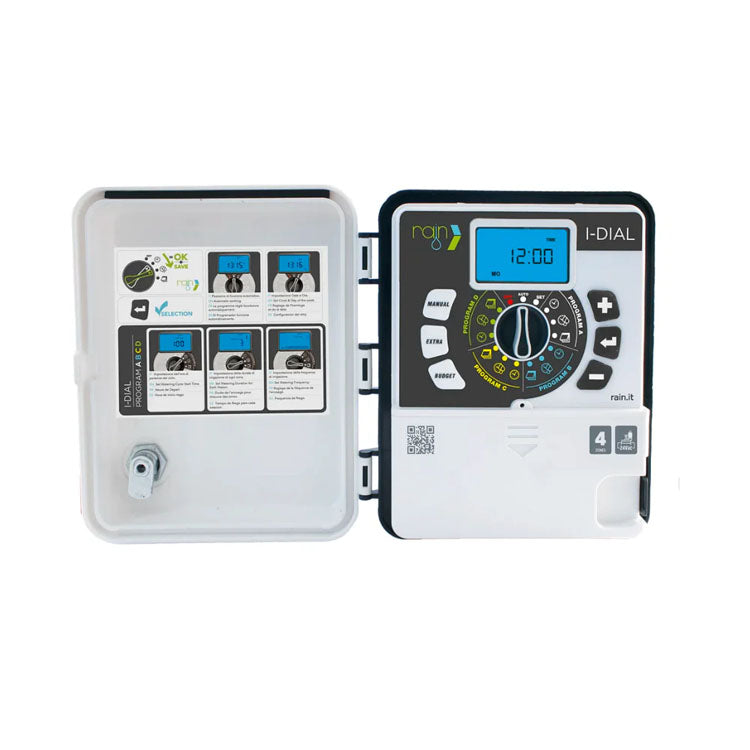

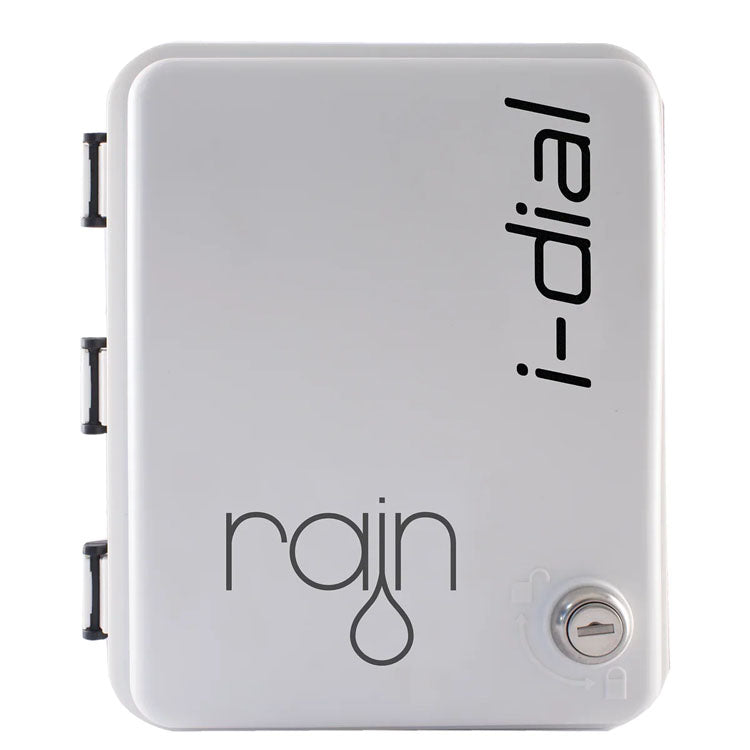

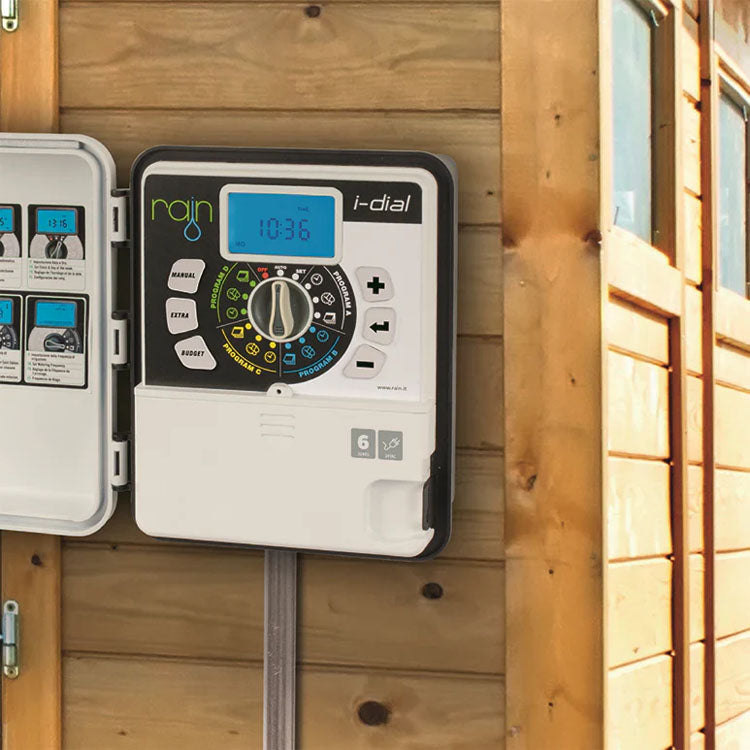

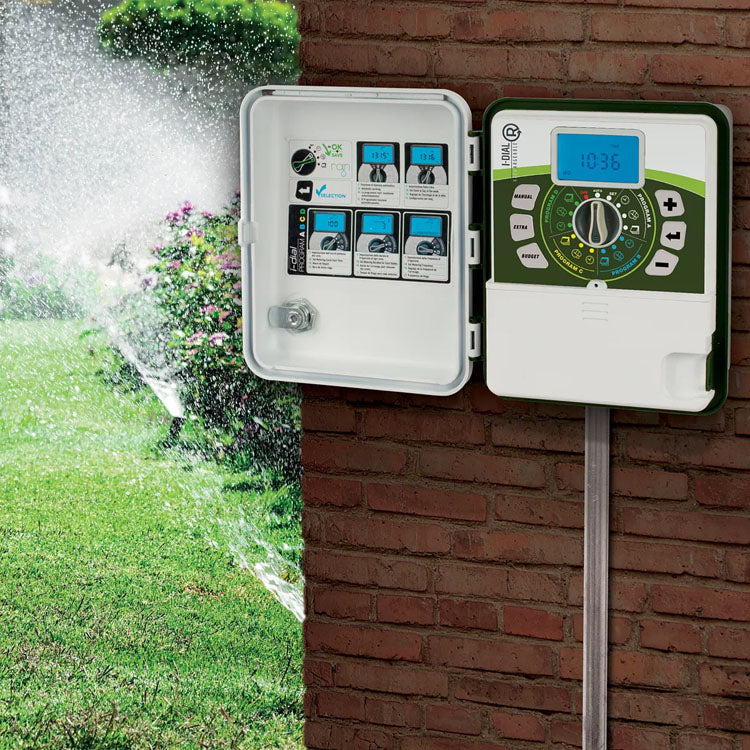

Rain I-Dial Outdoor Basic Irrigation Controller

I-Dial R Outdoor is a 9 Vdc wall-mounted control box. It allows a larger number of solenoid valves to be connected compared to a common valve box controller. In addition, the lithium battery charging system is compatible with the Turbina Vision and Luce Vision recharging devices, ensuring the control unit is always charged and ready for use.

Benefits

• Sens Start: The Sens Start feature allows the rain sensor intervention to be programmed on a zone-by-zone basis.
• Solenoid 9 Vdc: Battery-operated controllers control 9Vdc latching solenoids. The control unit will send an electrical signal at the start of irrigation to open the solenoid valve and a signal at the end of irrigation to close the solenoid valve.
• 3 Easy Steps: The special three-step programming feature allows for easy and intuitive programming in less than 60 seconds. The programming logic is based on answering three simple questions: what time of day to water, for how long, and how often.
• One Look Display: The 3" backlit display shows you the full irrigation schedule at a glance. It is no longer necessary to navigate through various programming menus to see the irrigation schedule.


Features

• Controller type: Wall-mounted
• Rechargeable Battery: Li-ion 18650 2000mAh 3.6V
• Bluetooth 5.0 connection
• Rain sensor input
• Pump/master valve control outlet
• Backlit screen
• Closing lid
• Low battery signal
• Maximum number of zones: 12
• Models available: 4, 6, 8 and 12 zones


Operating Programs

• Programming mode: Traditional
• Number of programs: 4
• Start times per program: 1
• Maximum number of starts per day: 4
• Minimum irrigation time per zone: 1 min
• Maximum irrigation time per zone: 240 min
• Irrigation frequency: By days of the week
• Irrigation frequency: from once a day to every 15 days
• Manual start: By zone
• Reset button
• Clear button
• OFF function: Control unit
• Seasonal adjustment from 10% to 200%
• SENS START function
