Rain Bird XERI-BIRD With 8 Emitters
The Most Flexible and Feature-Rich Multi-Outlet Device on the Market, Ideal for New Projects and Retrofit Applications.
Please Note: Male threaded riser pictured in the image does not come included.
 |
Specifications and Features
- The only multi-outlet device on the market with 8 configurable ports and 10 flow options for each port for maximum flexibility
- Contains a built-in filter. Makes retro-fitting easy when installed with the optional
- Easy to maintain, because body can be easily removed from riser
- Threads onto any 1⁄2" (15mm) male riser and delivers water to multiple locations for increased system flexibility

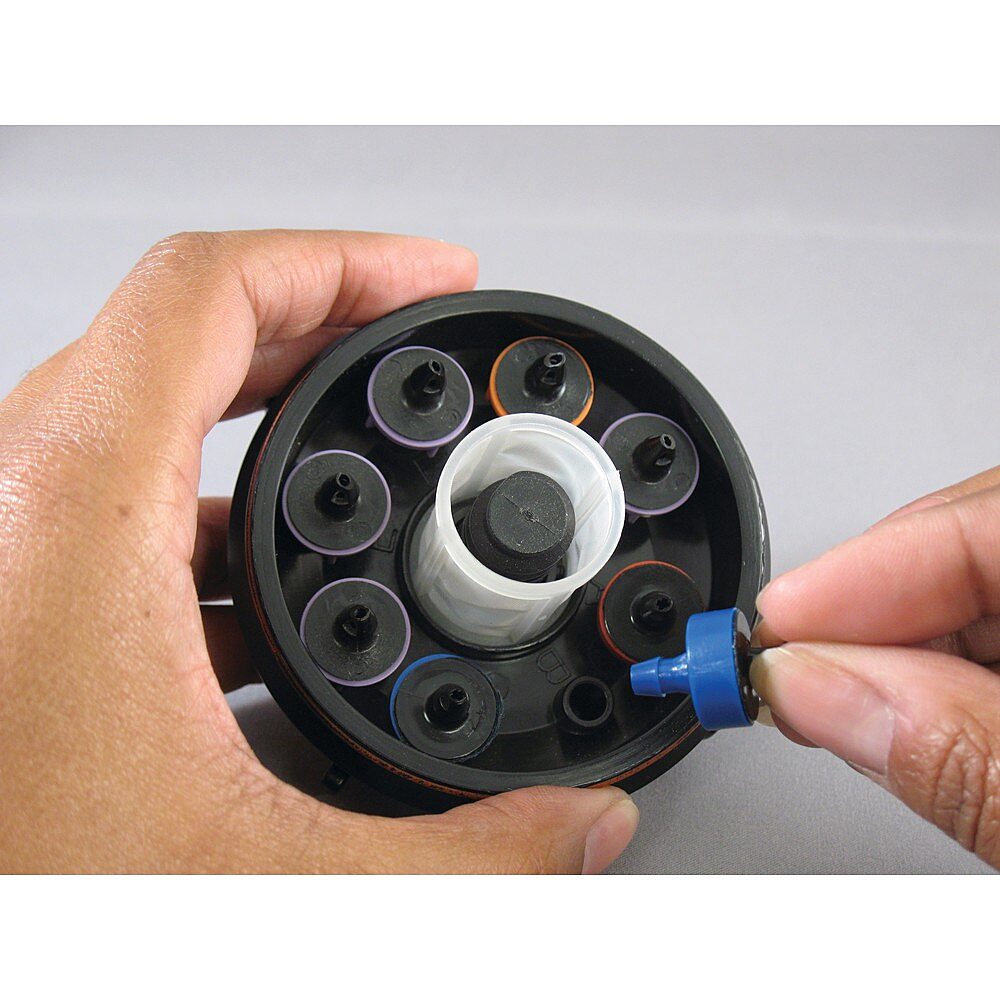

- Each port accepts a Xeri-Bug™ Emitter or PC Module for independent flows from 1.89 to 90.84 l/h or use a self-piercing barb connector for unrestricted flow
- Feature an integral 200 mesh (75 micron) filter which is easily serviceable from the top of the unit
- Eight bottom-mounted, sure-grip barbed outlets securely retain 4mm Distribution Tubing
- Unique union base nut allows removal of Xeri-Bird 8 body from riser for easy installation and maintenance
- Emitters must be installed inside the Xeri-Bird to prevent excess back pressure
- Tubing not included.
Operating Range
- Flow: 1.89 to 90.84 l/h per outlet
- Pressure: 15 to 50 psi (1.0 to 3.5 bar)
