Rain Bird R-VAN Rotary Nozzles

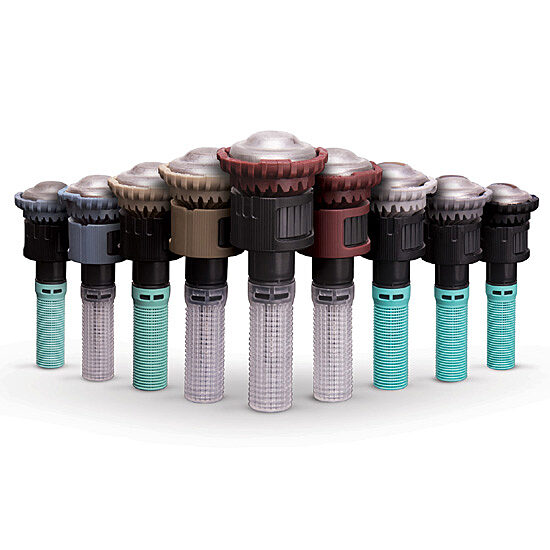

Rain Bird R-VAN Rotary Nozzle Range
The Rainbird R-VAN range provides a full line of high-efficiency rotary nozzles. R-VAN is designed with unique features such as hand adjustment, pull-to-flush, and matched precipitation. These all save time and labor when it comes to installation and maintenance.
| R-VAN Nozzle Model Comparison | |||
| Â | Â Type |
Min. Spray Radius |
Max. Spray Radius |
|

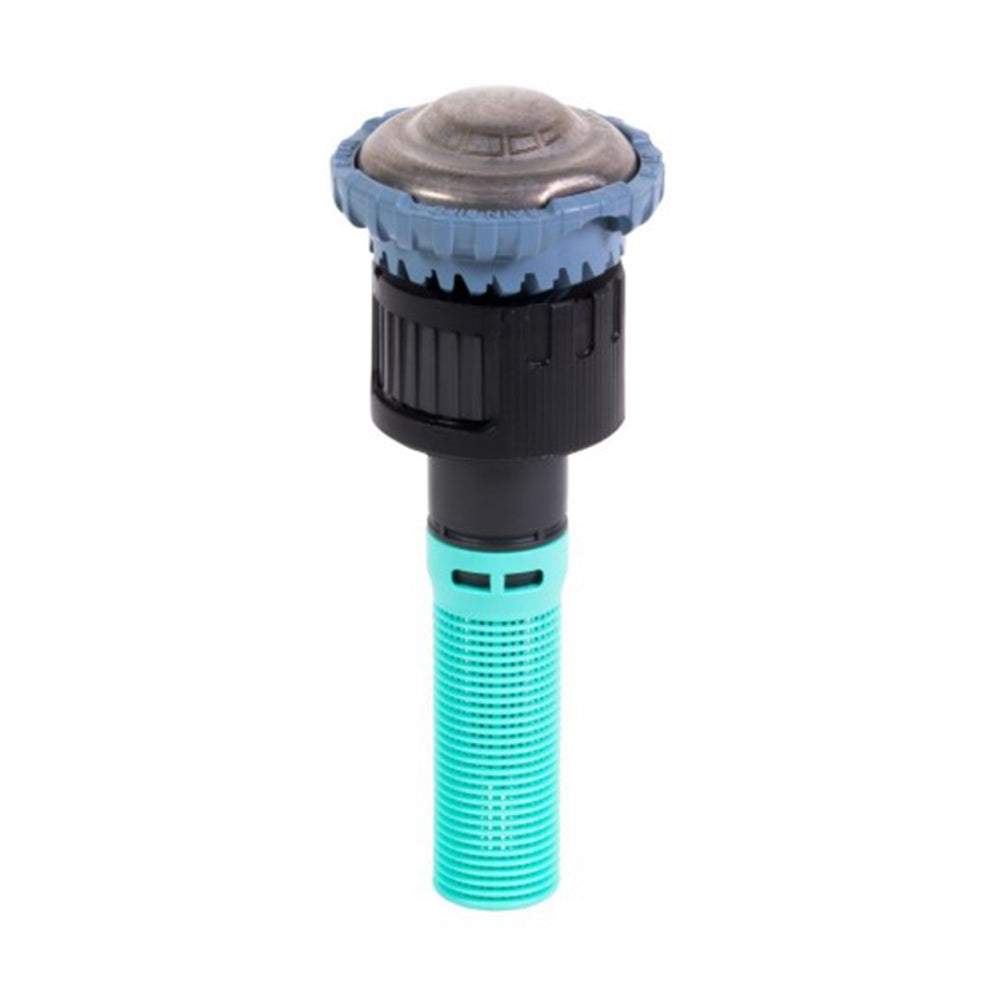

R-VAN14 |
 Variable Arc (45°-270°) |  2.4m (8ft) |  4.6m (14ft) |

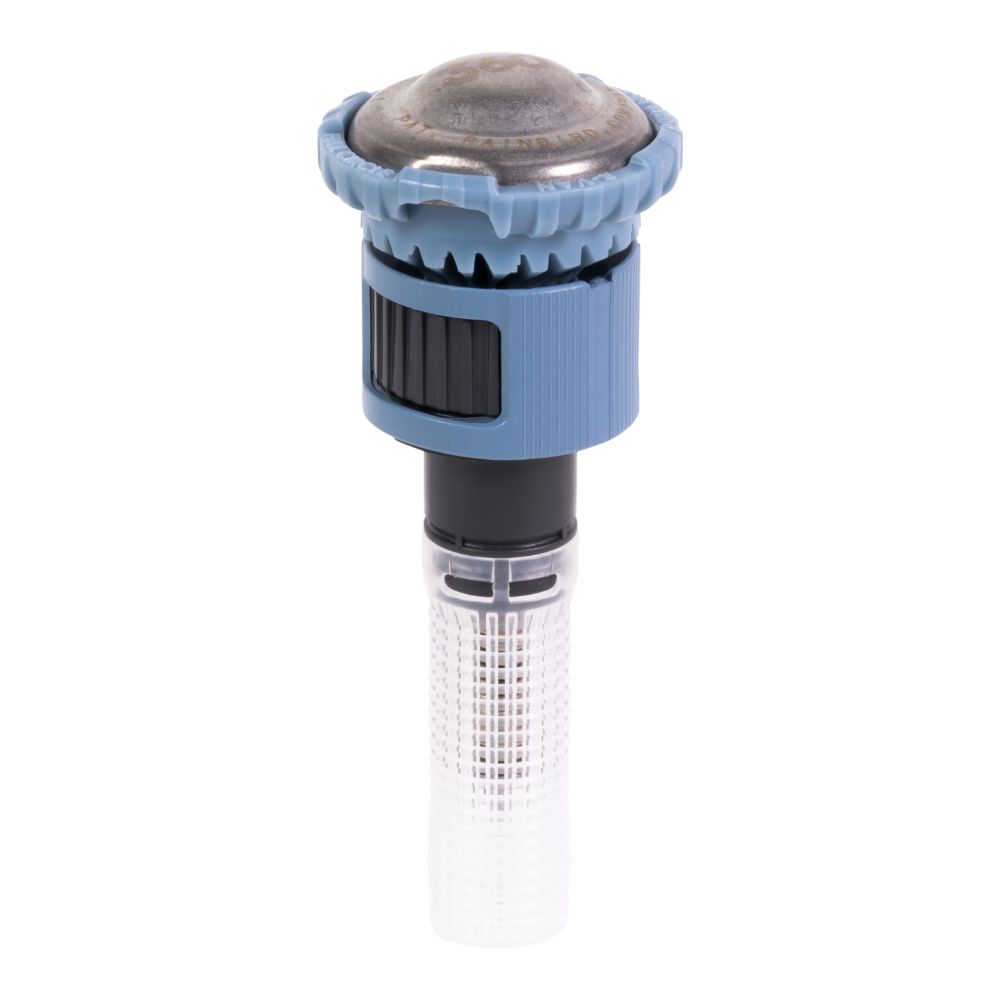

| R-VAN14-360 | Â Fixed 360 Rotary Nozzle | ||

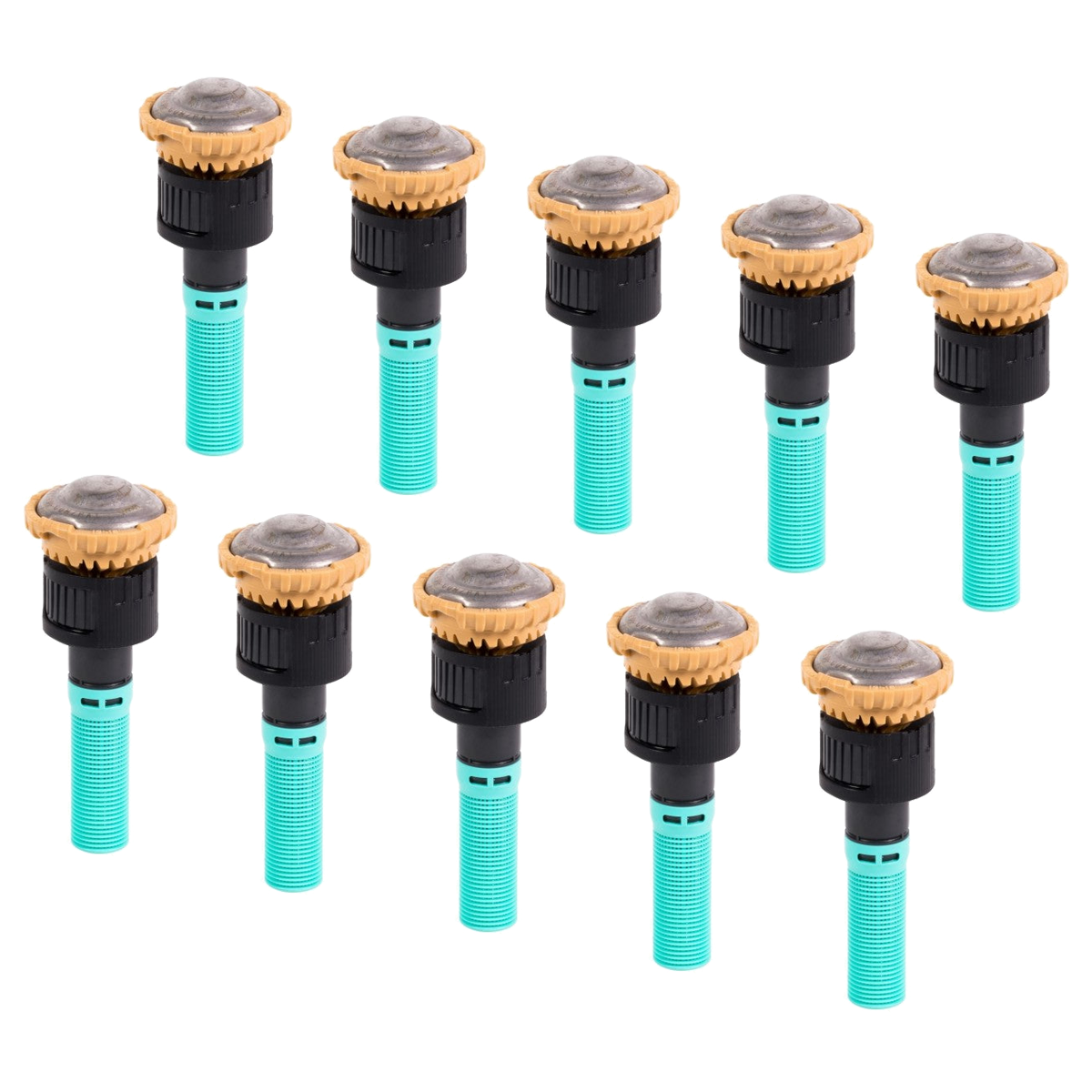

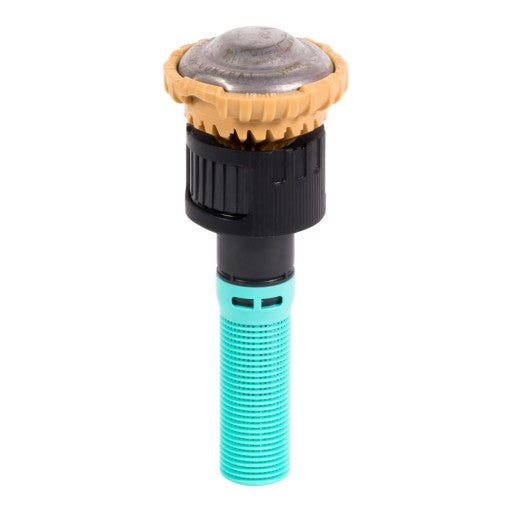

| R-VAN18 |  Variable Arc (45°-270°) |  4.0m (13ft) |  5.5m (14ft) |

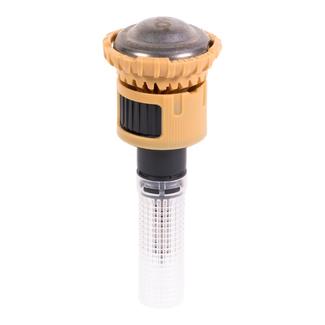

| R-VAN18-360 | Â Fixed 360 Rotary Nozzle | ||

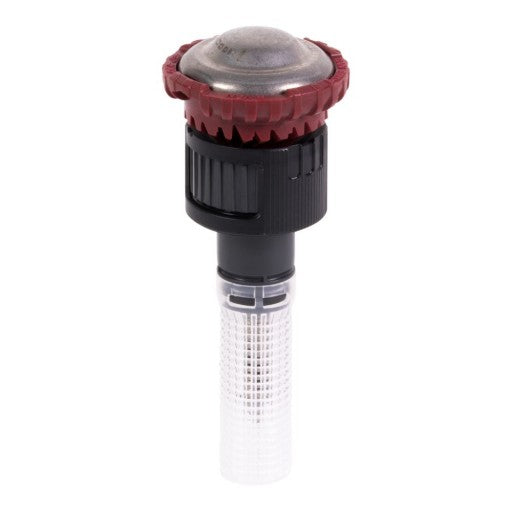

| R-VAN24 |  Variable Arc (45°-270°) |  5.2m (17ft) |  7.3 (24ft) |

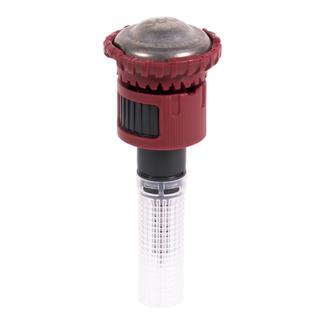

| R-VAN24-360 | Â Fixed 360 Rotary Nozzle | ||

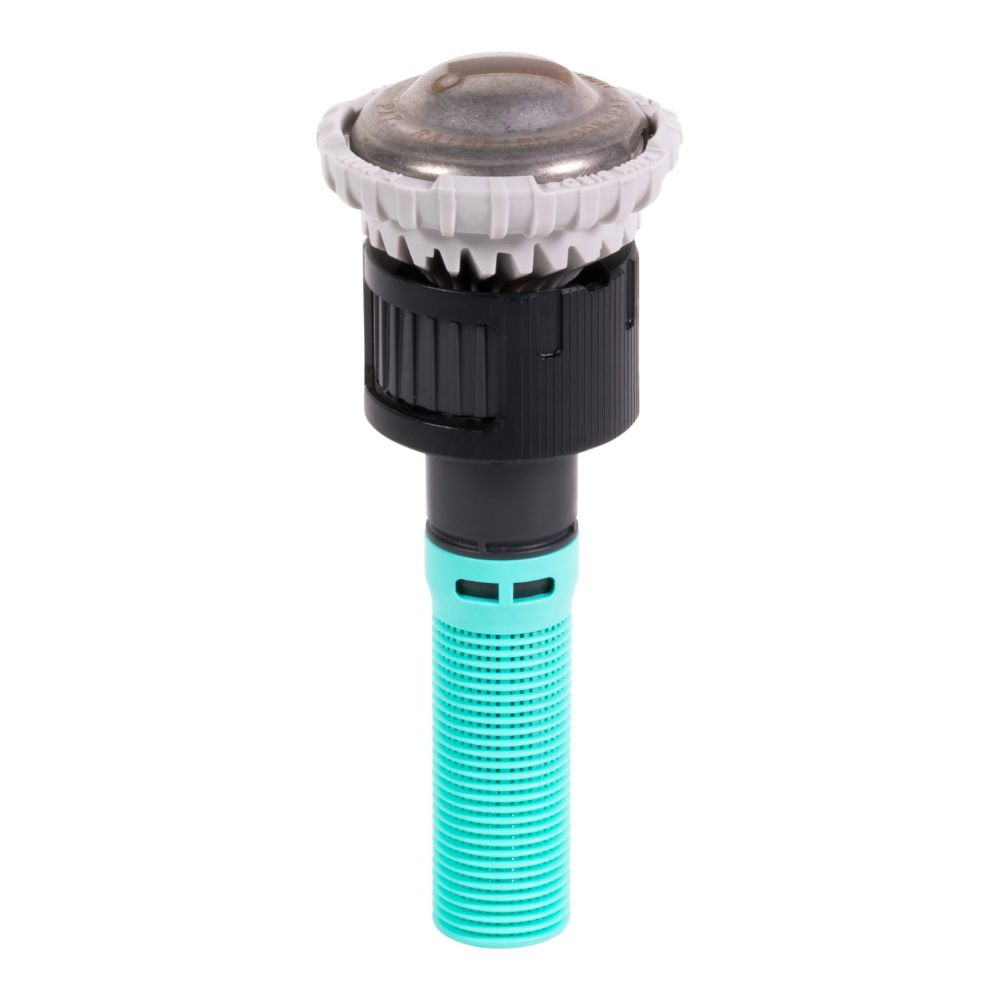

| R-VAN-LCS | Â Strip Nozzle | Â 1.2 x 4.3m | Â 1.8 x 4.9m |

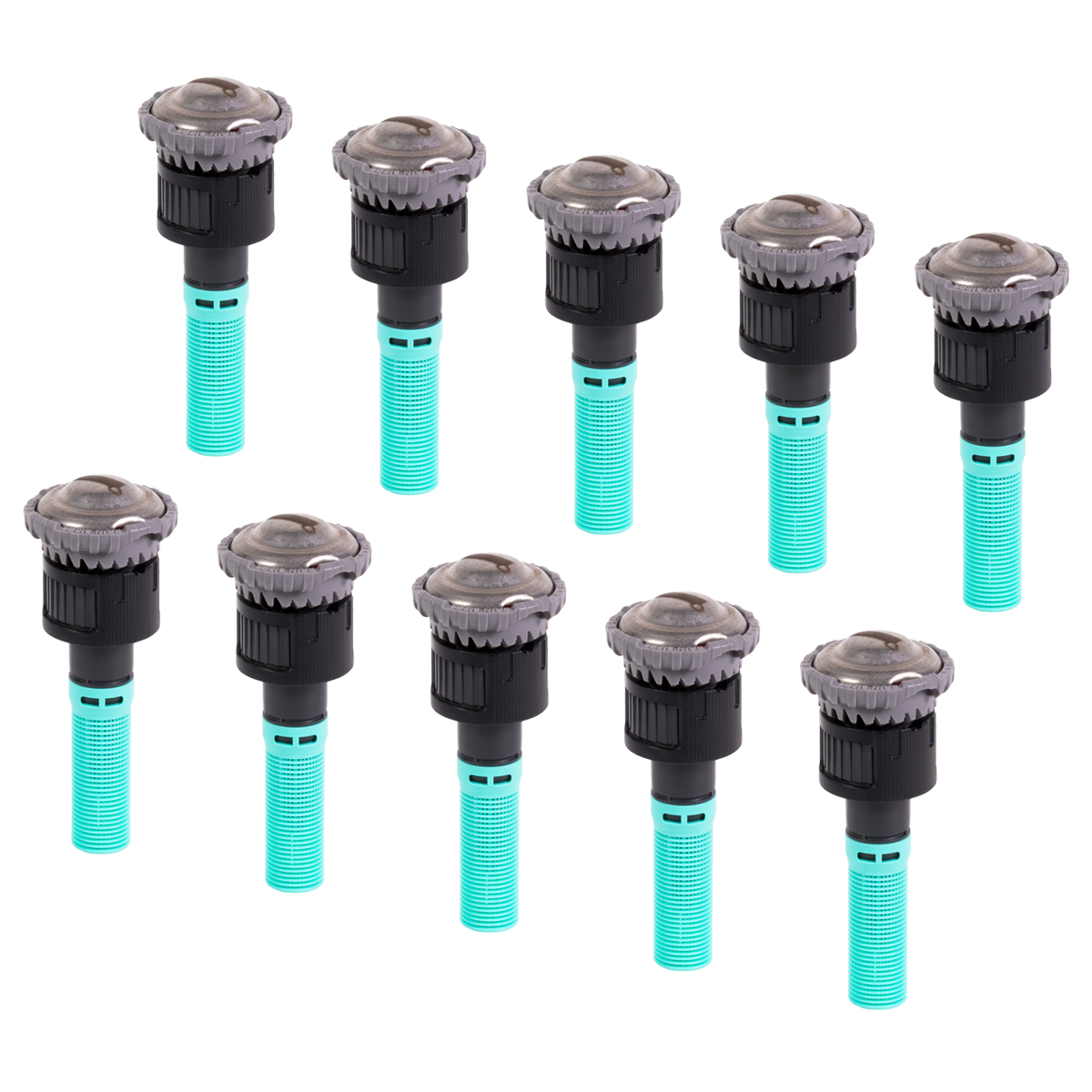

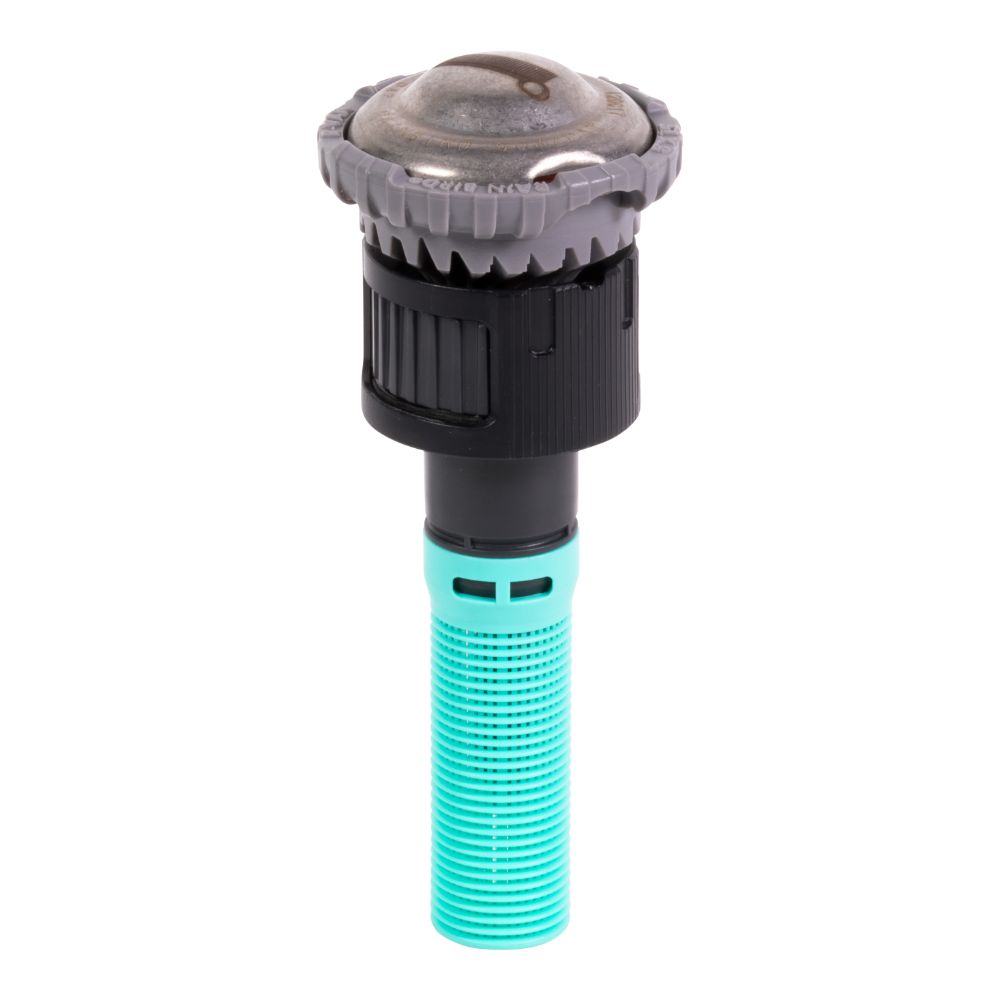

| R-VAN-RCS | |||

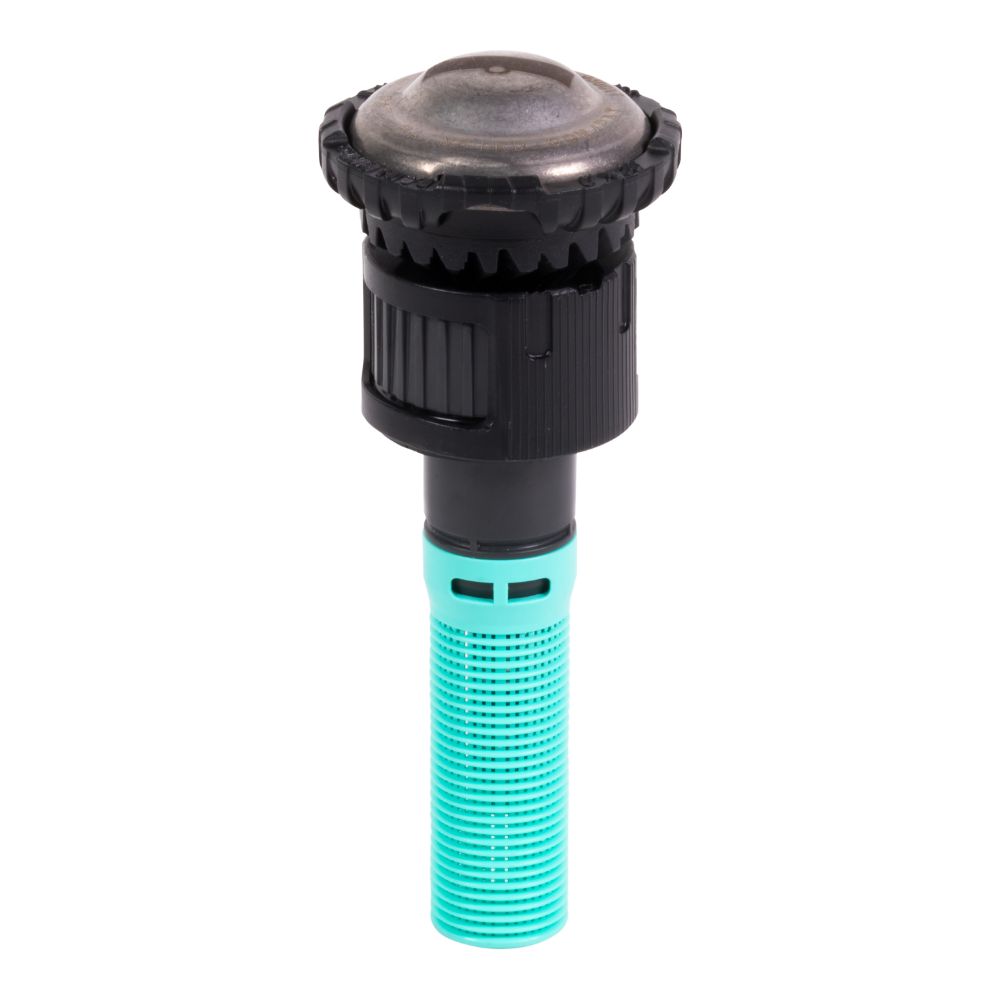

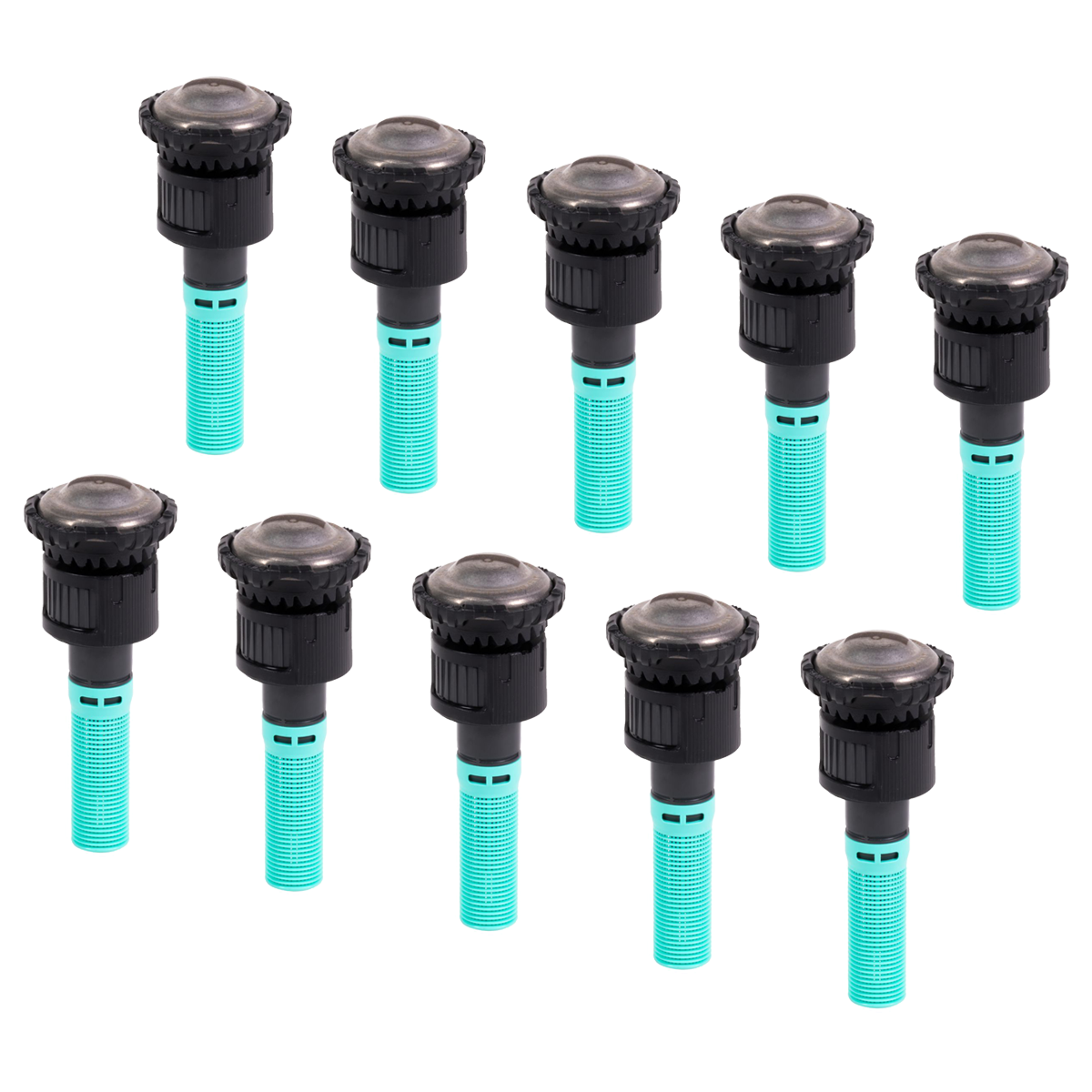

| R-VAN-SST | Â 1.2 x 8.5m | Â 1.8 x 9.8m | |
Â
All R-VAN Nozzle Specifications
- Material
- Matched precipitation across radius, arcs, and pattern types
- Low precipitation rate reduces run-off and erosion
- Adjust arc and radius without tools
- A pull-up to flush feature clears the nozzle of dirt and debris
- Color coded and laser marked for easy identification of R-VAN model
- Maintains efficient performance at high operating pressures without misting or fogging
- Compatible with all models of Rain Bird spray bodies, risers and adapters
- Installing with Rain Bird 5000 MPR Series Rotors allows for matched precipitation from 8’to 35’(2.4m to 10.7m)
- Three year trade warranty
