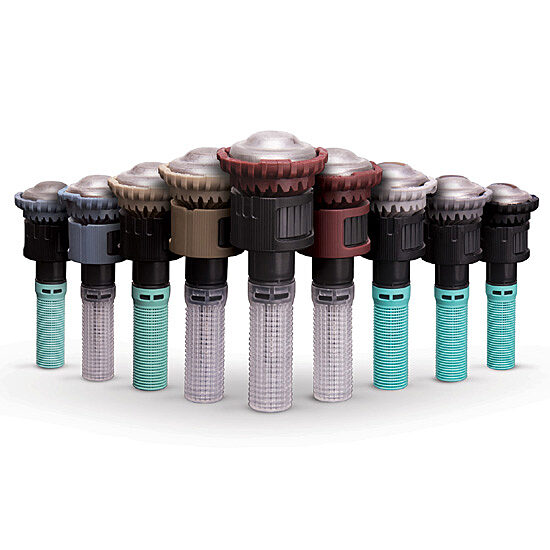

Rain Bird R-VAN Rotary Nozzle Range
The Rainbird R-VAN range provides a full line of high-efficiency rotary nozzles. R-VAN is designed with unique features such as hand adjustment, pull-to-flush, and matched precipitation. These all save time and labor when it comes to installation and maintenance.
| R-VAN Nozzle Model Comparison |
| |
Type |
Min. Spray Radius
|
Max. Spray Radius
|

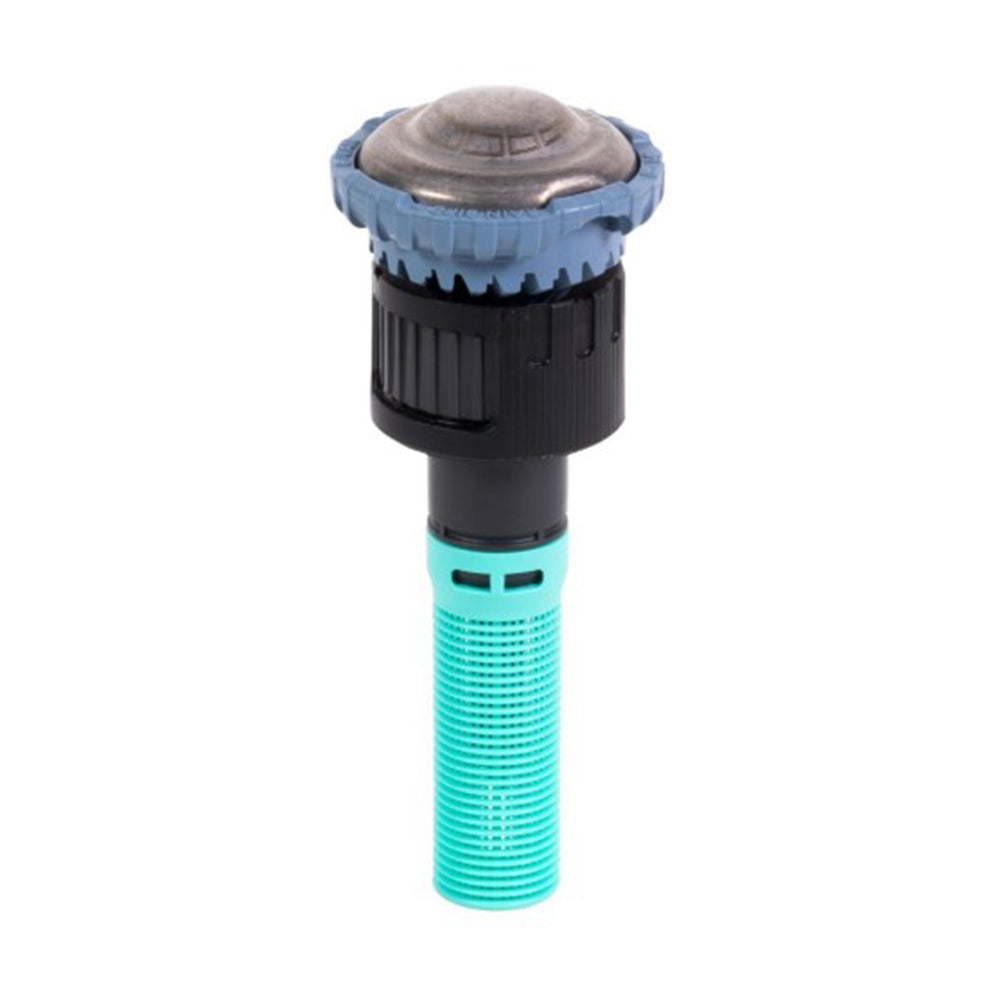

R-VAN14
|
Variable Arc (45°-270°)
|
2.4m (8ft)
|
4.6m (14ft)
|

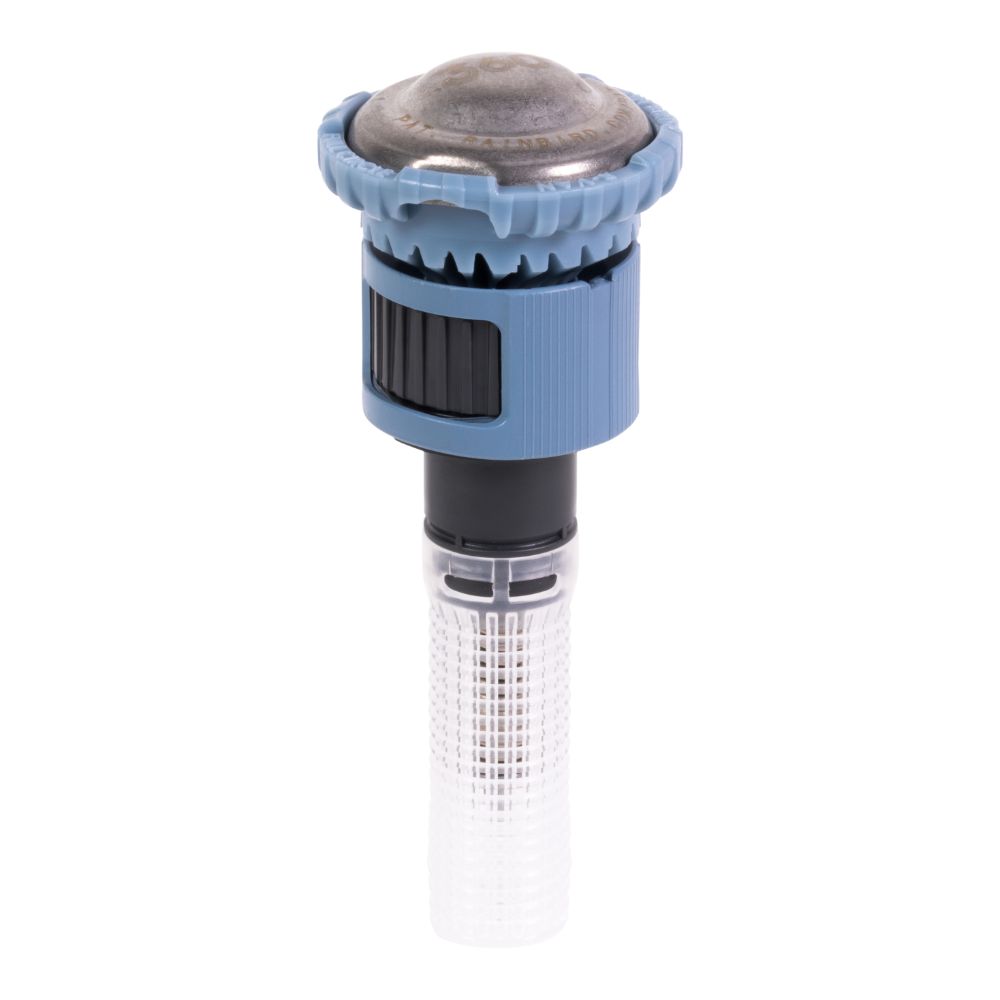

| R-VAN14-360 |
Fixed 360 Rotary Nozzle
|

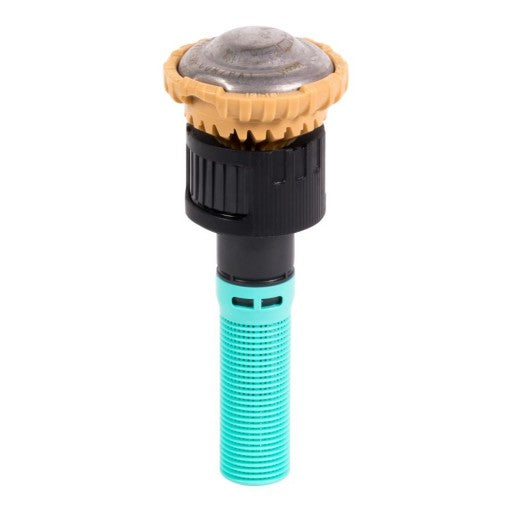

| R-VAN18 |
Variable Arc (45°-270°)
|
4.0m (13ft)
|
5.5m (14ft)
|

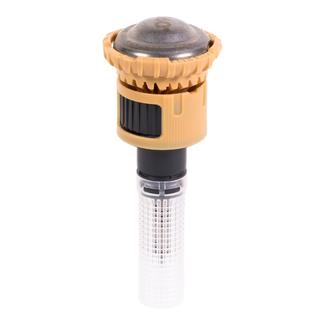

| R-VAN18-360 |
Fixed 360 Rotary Nozzle
|

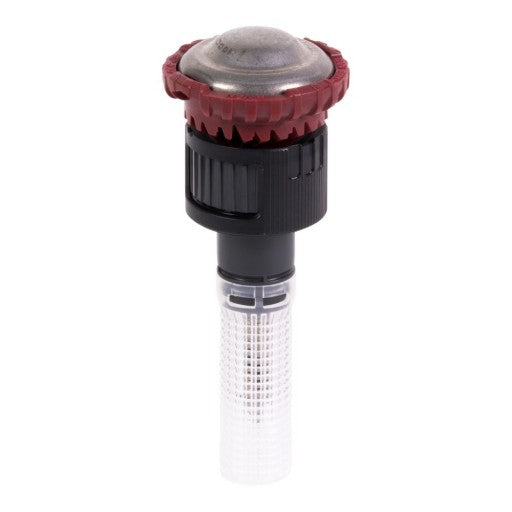

| R-VAN24 |
Variable Arc (45°-270°)
|
5.2m (17ft)
|
7.3 (24ft)
|

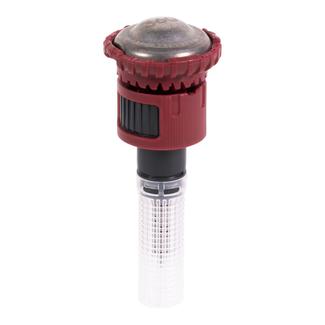

| R-VAN24-360 |
Fixed 360 Rotary Nozzle
|

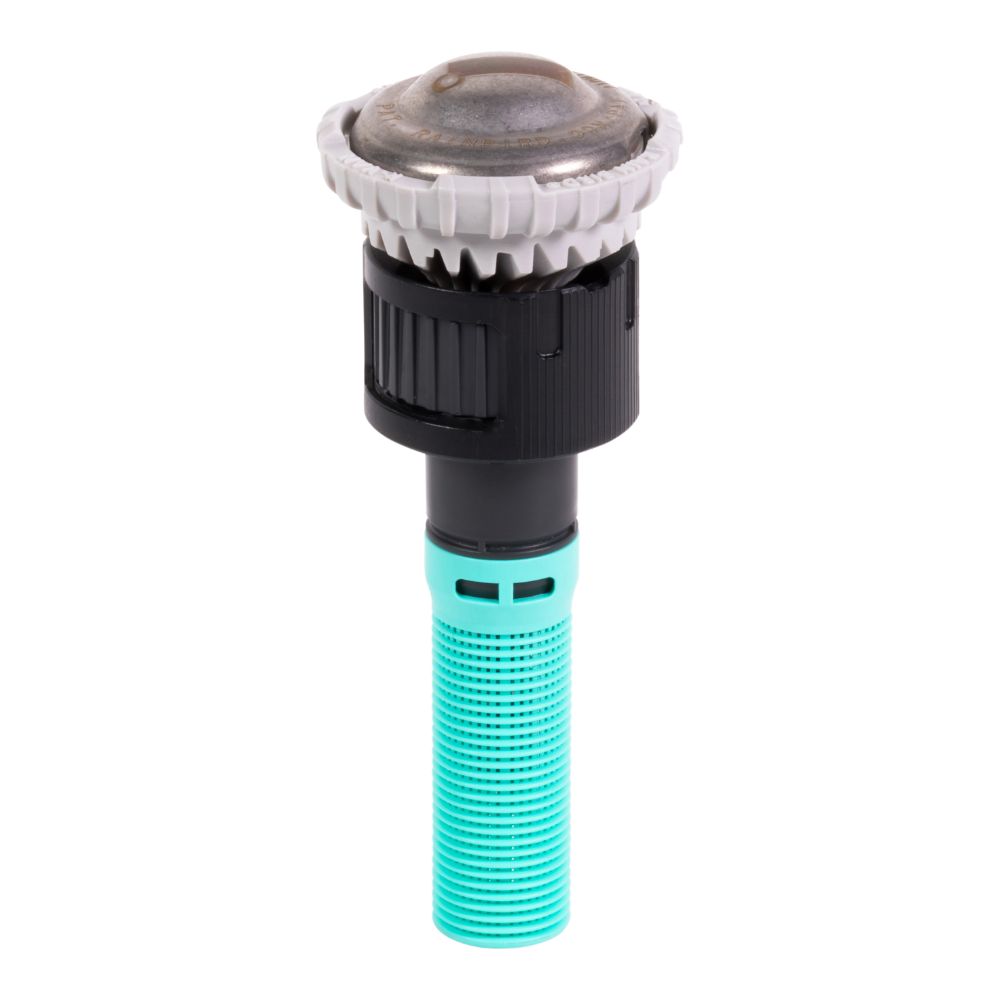

| R-VAN-LCS |
Strip Nozzle |
1.2 x 4.3m
|
1.8 x 4.9m
|

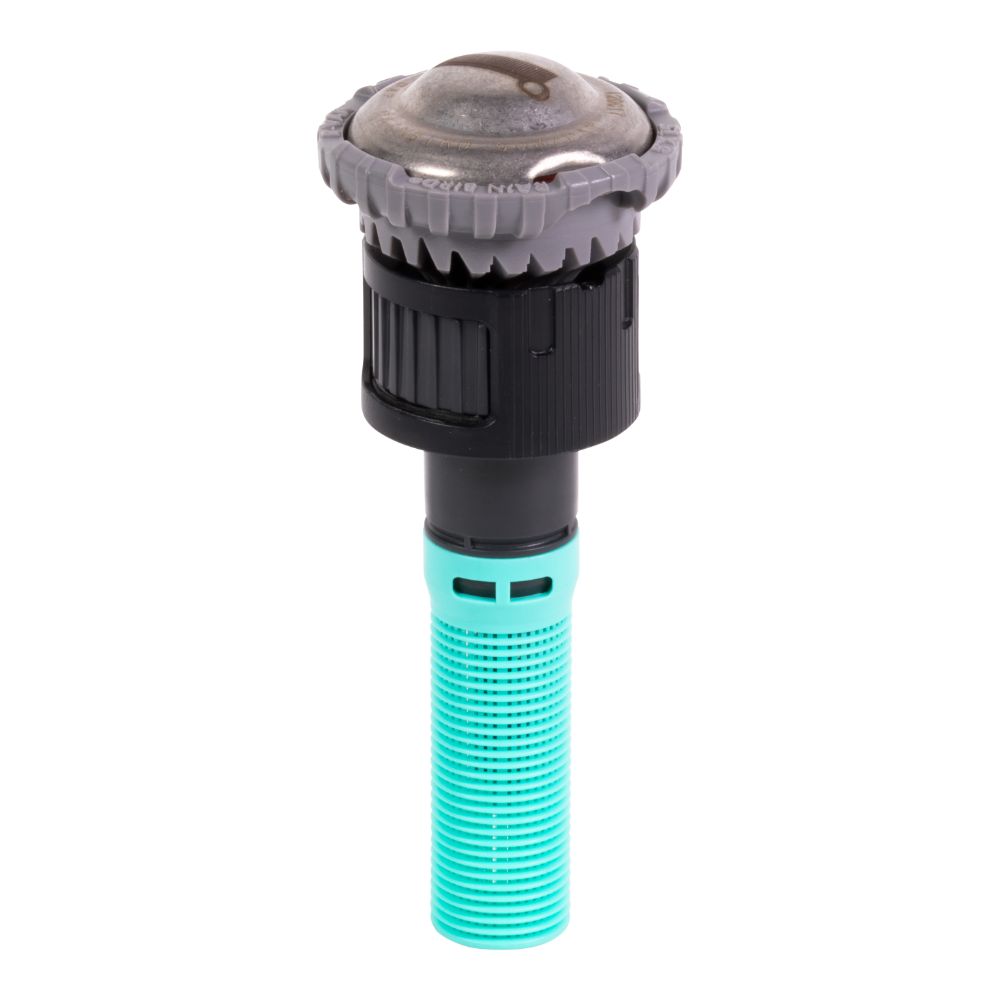

| R-VAN-RCS |

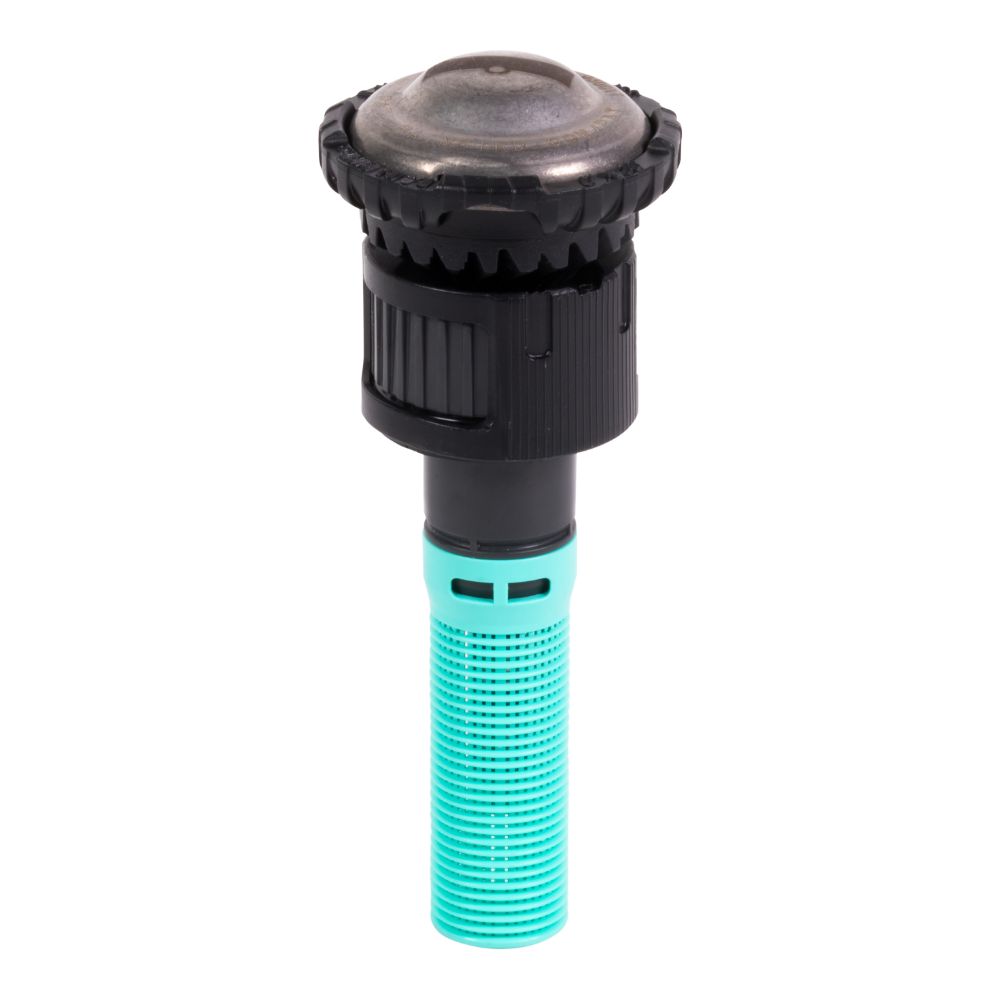

| R-VAN-SST |
1.2 x 8.5m
|
1.8 x 9.8m
|
All R-VAN Nozzle Specifications
Features
- Matched precipitation across radius, arcs, and pattern types
- Low precipitation rate reduces run-off and erosion
- Adjust arc and radius without tools
- A pull-up to flush feature clears the nozzle of dirt and debris
- Color coded and laser marked for easy identification of R-VAN model
- Maintains efficient performance at high operating pressures without misting or fogging
- Compatible with all models of Rain Bird spray bodies, risers and adapters
- Installing with Rain Bird 5000 MPR Series Rotors allows for matched precipitation from 8’to 35’(2.4m to 10.7m)
- Three year trade warranty
