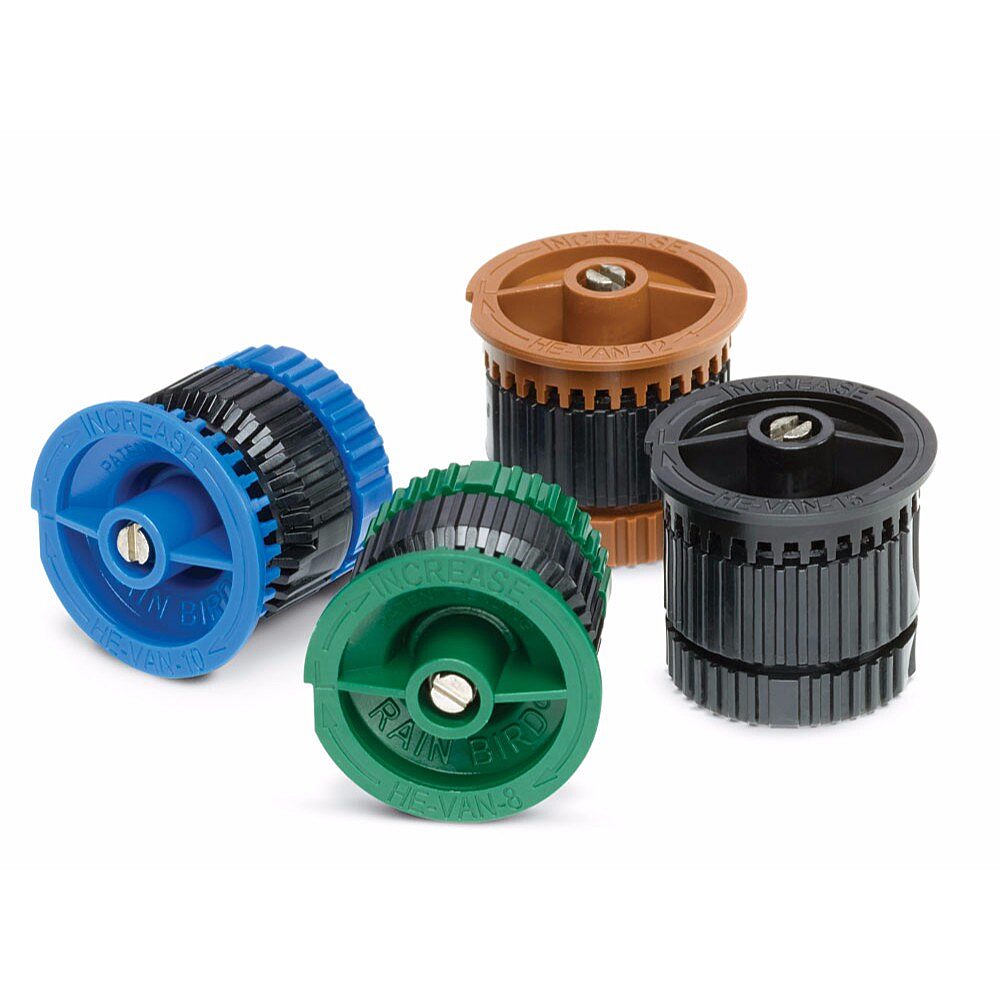

Rain Bird High Efficiency Variable Arc Nozzles - HE-VAN
Rain Bird HE-VAN nozzles offer even coverage throughout the spray pattern, delivering a healthy, beautiful landscape.
Available in popular 8', 10', 12’, and 15’ radii, HE-VAN nozzles also offer matched precipitation with Rain Bird® MPR and U-Series nozzles.

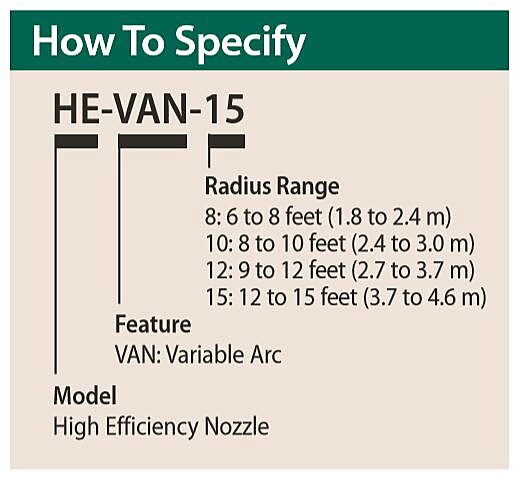

HE-VAN: High Efficiency (HE) - Variable Arc Nozzle (VAN)
Specifications
|

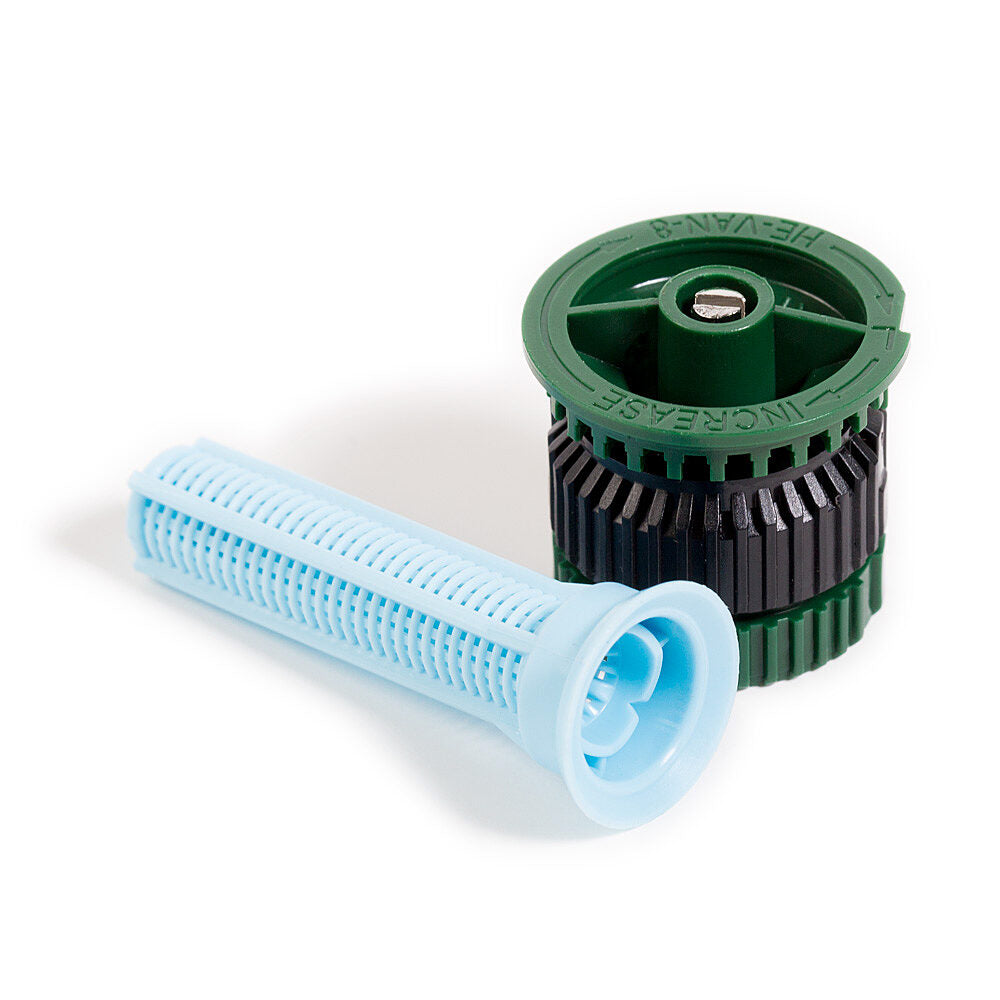

HE-VAN-08
|
HE-VAN-10 |
HE-VAN-12 |
HE-VAN-15 |
Max Spray Radius
|
2.4m (8ft) |
3.0m (10ft) |
3.7m (12ft) |
4.6m (15ft) |
| Min Spray Radius |
1.8m (6ft) |
2.4m (8ft) |
2.7m (9ft) |
3.7m (12ft) |
| Max Flow |
4.43 Lpm |
6.76 Lpm |
8.96 Lpm
|
14.01 Lpm
|
| Min Flow |
0.78 Lpm |
1.20 Lpm
|
1.58 Lpm
|
2.48 Lpm
|
| Colour |
Green |
Blue |
Brown |
Black |
| Inlet Thread |
10mm Female |
10mm Female |
10mm Female |
10mm Female |
All HE-VAN Nozzle Specifications
-
Material: Plastic
-
Minimum recommended pressure: 100 kPa
-
Maximum recommended pressure: 210 Kpa
Features
- HE-VAN’s even coverage allows you to shorten run times by up to 35%, saving you water and money, while still maintaining a healthy lawn

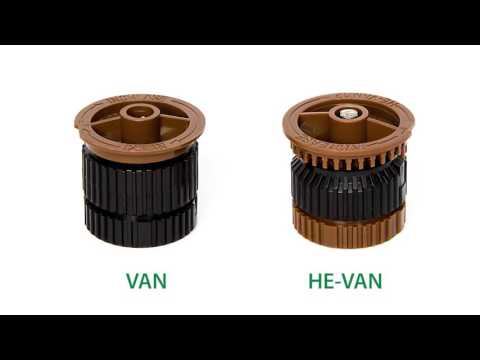

- HE-VAN has more than a 40 percent even-coverage improvement over existing variable arc nozzles
- HE-VAN nozzles have a unique stream pattern, designed for superior coverage and wind resistance

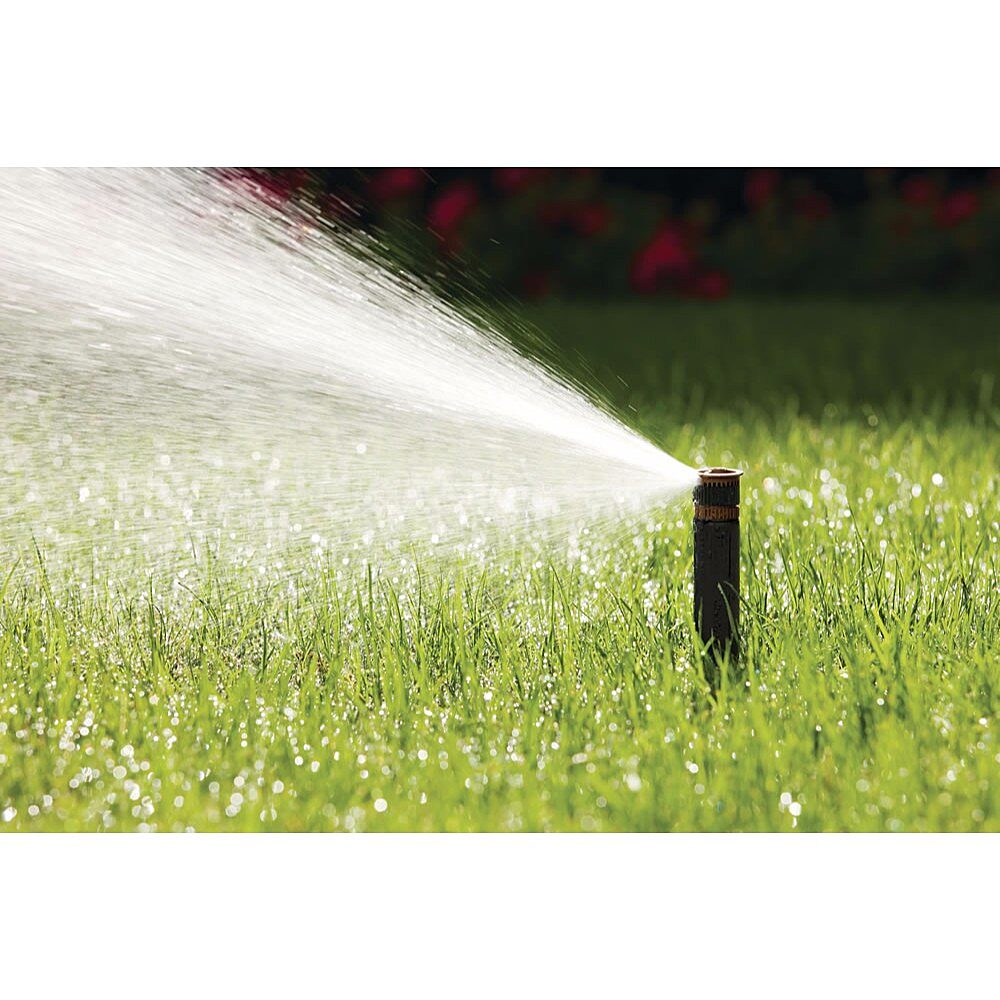

- Low-trajectory spray and large water droplets prevent misting and airborne evaporation, so the right amount of water is delivered to the right place
- Gentle close-in watering eliminates dry spots around the spray head
- HE-VAN nozzles throw to the exact specified radius, delivering the cleanest edge of any VAN on the market today
- Reduced zone run times, compared to competitive nozzles, help stay within tight watering windows, conserve water, and save money

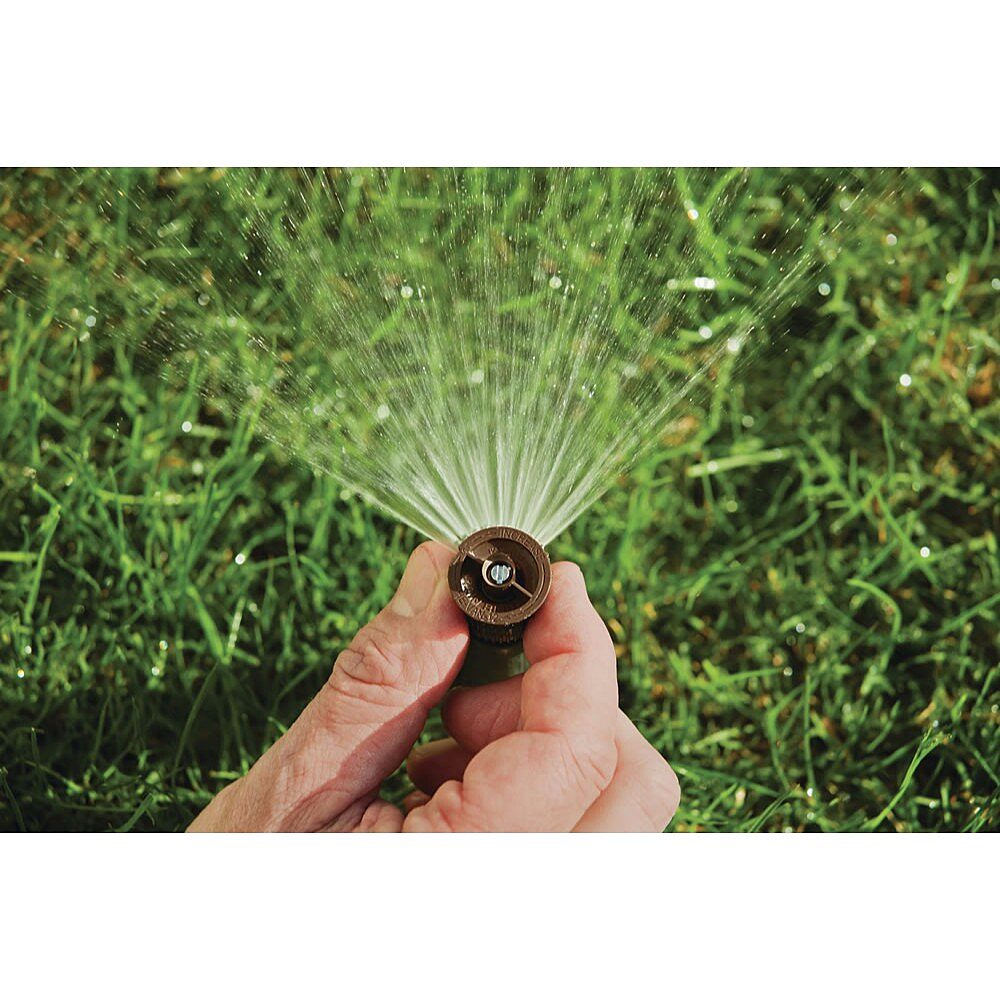

- With full adjustability from 0° to 360°, you'll be able to efficiently water landscapes of all shapes, while saving time and simplifying the design with fewer nozzles variants
- Matched precipitation rates allow you to install Rain Bird HE-VAN, MPR, and U-Series nozzles on the same zone
- HE-VAN nozzles have a tactile click to keep the arc setting from drifting over time
-
Three-year trade warranty
What is a High Efficiency Nozzle?
Typical Nozzle = Uneven Watering - With typical nozzles, part of the lawn may not have enough water, whilst other parts may be over watered. A large portion of the water may be lost to misting / evaporation and over spray.
High Efficiency Nozzle = Even Watering - High Efficiency nozzles provide better coverage. Better coverage allows a shorter run time and allows a saving of up to 25%+ in water volume when compared to a typical nozzle. Additionally, Rain Bird's high efficiency nozzles are also designed and engineered to produce large water droplets to reduce wind drift.
