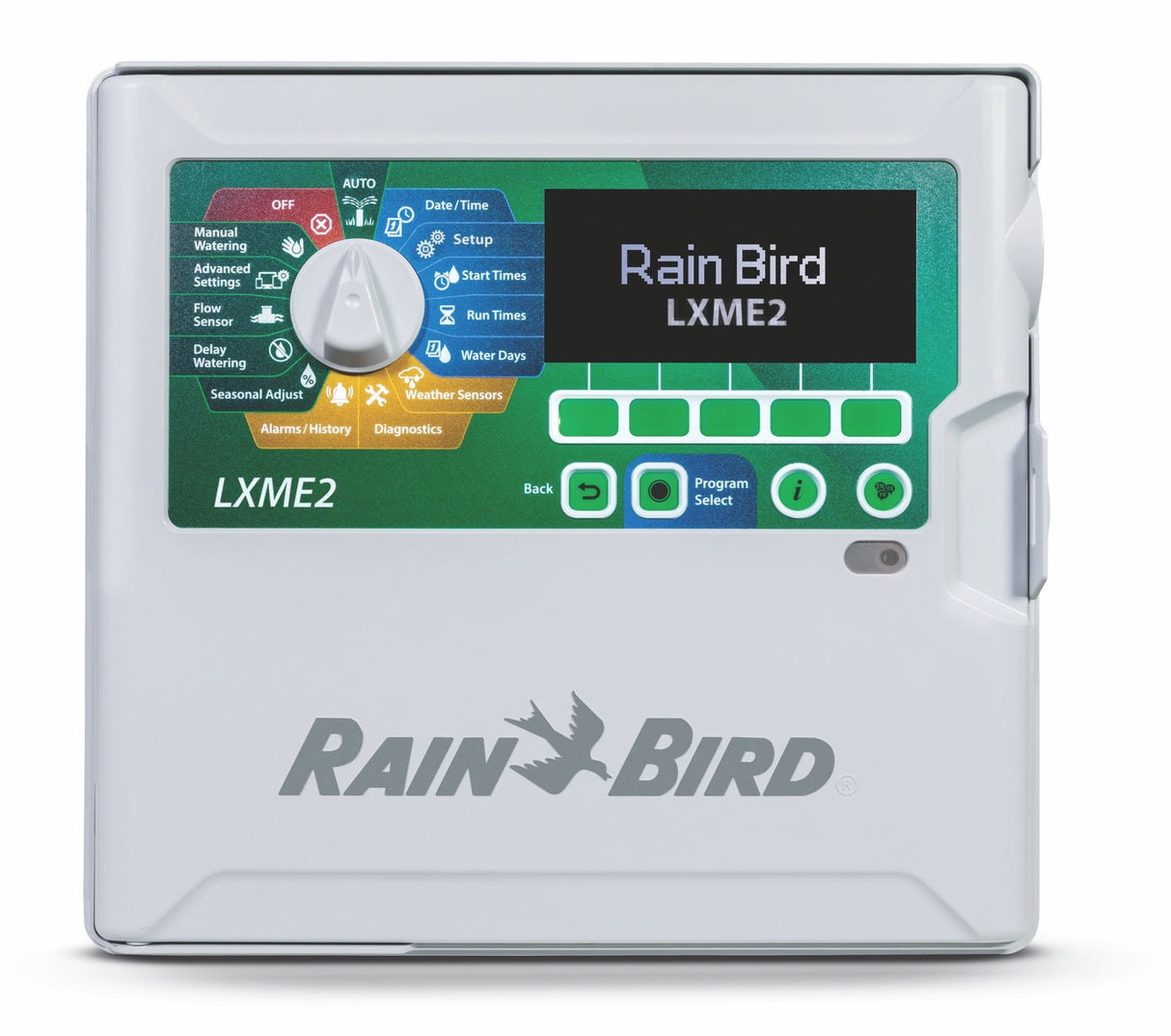

Rain Bird ESP-LXME2 Series Controller
The popular Rain Bird LXME Series commercial controllers have been upgraded now offering 40 programs, a large backlit LCD screen, and simplified programming. The LXME2 is a fully modular controller allowing the user to customise station capacity from 12 to 48 stations and upgrade to the LXME2 PRO by purchasing the PRO controller or installing the Pro Smart Module. The LXME2 PRO gives the user access to one flow sensor input, advanced flow management capabilities, and a second MV2/P pump start output.
Features
- 12-station base unit expandable to 48 stations with (4) 12-station modules
- Access a flow sensor and a second MV2/P booster pump start circuit or normally closed master valve by upgrading to the LXME2 PRO. To upgrade, purchase the LXME2 PRO controller or the Pro Smart Module can be purchased separately.
- *LXME2 controllers only accept 12 station modules
- 40 programs allow for ultimate flexibility in irrigation scheduling
- Large backlit LCD display with easy to navigate soft-key user interface
- Copy and paste functions for easy programming of multiple stations
- FloManager™ manages hydraulic demand, making full use of available water to shorten total watering time
- SimulStations™ are programmable to allow up to 5 stations to operate at the same time (Max 2 SimulStations per station module)
- LXME2 PRO models include additional flow management capability and an additional second MV2/P for station level booster pump control
Controller Features
- Large backlit LCD display with easy to navigate soft-key user interface
- Hot-swappable modules, no need to power down the controller to add/remove modules
- MV1 – Normally closed or Normally open Master valve/pump start circuit
- Master valve delay and inter-station delay
- 6 user-selectable languages
- Non-Volatile (100- year) program memory
- Standard 10kV surge protection
- The front panel is removable and programmable under battery power
Water Management Features
- FloManager™ manages hydraulic demand, making full use of available water to shorten total watering time
- SimulStations™ are programmable to allow up to 5 stations to operate at the same time
- Water Windows by program plus Manual MV Water Window
- Cycle+Soak™ by station
- Rain Delay
- 365-Day Calendar Day Off
- Programmable Station Delay by program
- Weather Sensor programmable by station to prevent or pause watering
- Program or Global Monthly Seasonal Adjust
PRO Models Only

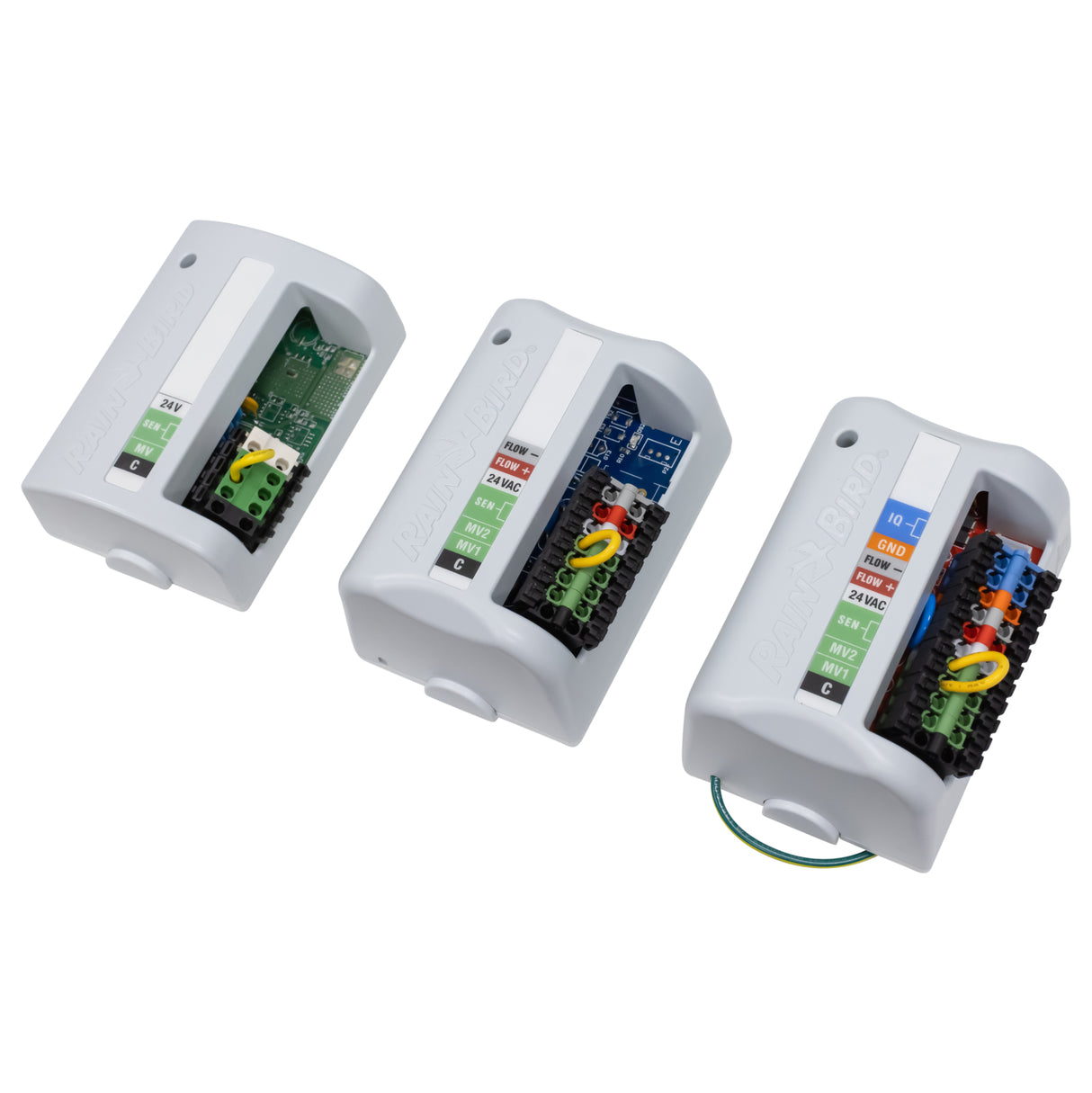

- PRO features can be accessed by installing the LXME2 PRO Controller or by replacing the LXME2 base module with a PRO Smart Module (PSM-LXME2)
- FloWatch™ protection for high and low flow conditions with user defined reactions
- Flow sensing capability (1 input)
- Learn Flow - Automatically Learn Flow rates based on real-time usage
- Flow Usage Totalizer
- MV2/P - Additional 2nd booster pump start circuit or normally closed master valve programmable by station
Diagnostic Features
- Alarm light with external case lens
- External alarm port (0.1A max)
- Program summary and review
- RASTER™ station wiring test
Operating Specifications
- Station run timing: up to 96 hrs continuous runtime
- Seasonal Adjust: 0% to 300% (16 hrs maximum station run time)
- 40 independent programs (programs can overlap)
- 10 start times per program
- Program Day Cycles include: custom days of the week, odd, odd no 31st, even, and cyclical dates
- Manual station start, manual program start, test all Stations
Dimensions
- Width: 36.4 cm Height: 32.2 cm Depth: 14cm
