'One Channel' Outdoor Modular Drainage System

One Channel modular drainage system offers an easy to specify and install outdoor linear drainage system. One Channel is the perfect drainage solution for around pools, outdoor entertaining areas, patios

• Modular design to create any length - Available in 2m or 1m Lengths which easily join together and come with supplied end caps.
• Accessories available - Bottom Outlets, spigots or end outlets can be fitted at any point along the drainage length. Pre Mitered Right Angled corners are available separately too
• Superior Flow Performance - High Flow Capacity to ensure efficient water drainage
• Durable Outdoor Construction - Designed and Manufactured from materials intended for outdoor use to ensure long lasting durability
• Versatile Channel Options - Available in two different channel depths
• Customisable Aesthetic Available in three different grate types to suit your outdoor area's appearance - Innovative Registered Design
• In built 6 degrees fall within the channel to accelerate water flow

All One Channel Drain profiles and grates can be cut to length and joined using joiners or terminated using end caps.

Heel Guard compliance: All 'One Channel' Grates conform to the ASME A112.6.3 standard where in section 7.12 the standard states "A grate designed to resist entry of high-heeled shoes, in which the maximum grate hole size in least dimension shall be 5/16” or 8mm.

Step 1. Select the required drain channel profile

	One Channel 45 (OC45) - 45mm Deep x 110mm Wide  - Made from UV resistant and strengthened UPVC  - Ideal for shallow screeds - Perfect for around pools, patio areas, path ways or similar

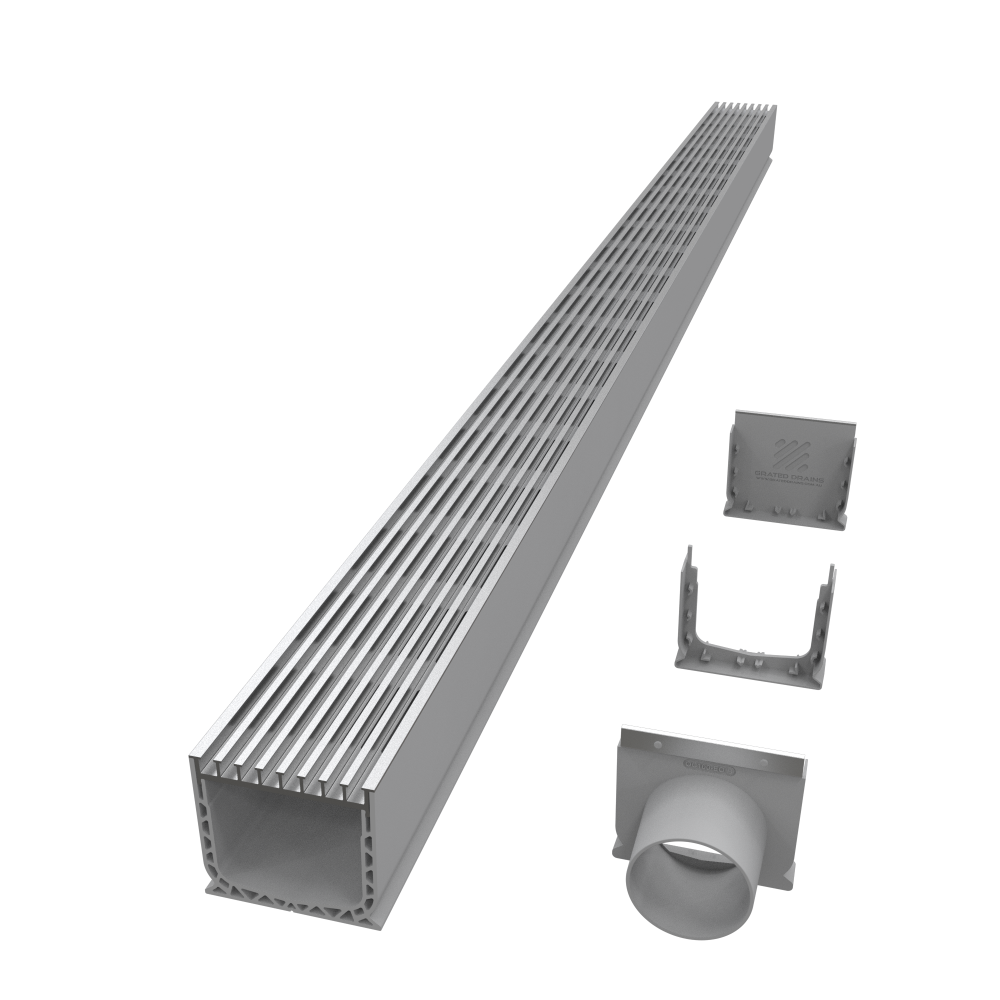

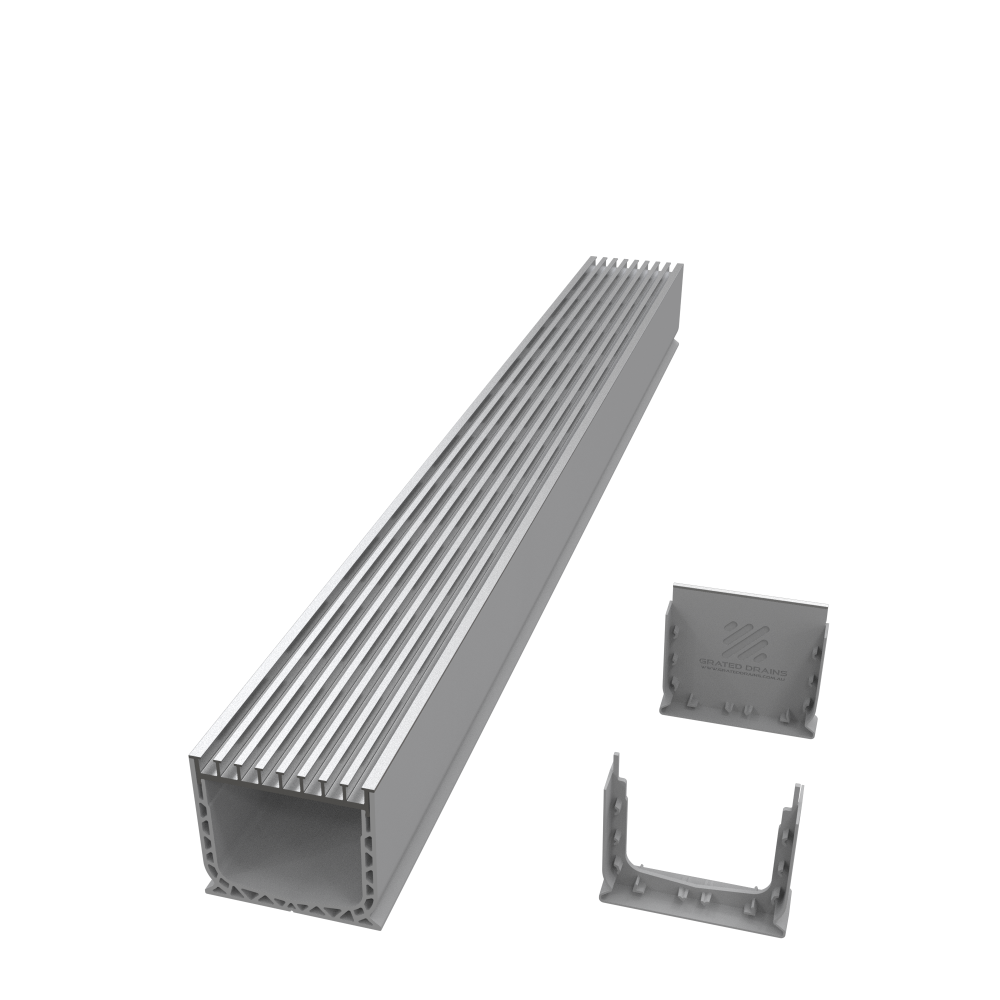

	One Channel 100 (OC100) - 100mm Deep x 110mm Wide - Made from UV resistant and strengthened UPVC  - Ideal for where a larger water flow is needed - Perfect for Driveways or large outdoor areas that need a higher water flow

Step 2. Choose the desired grate style to suit your area

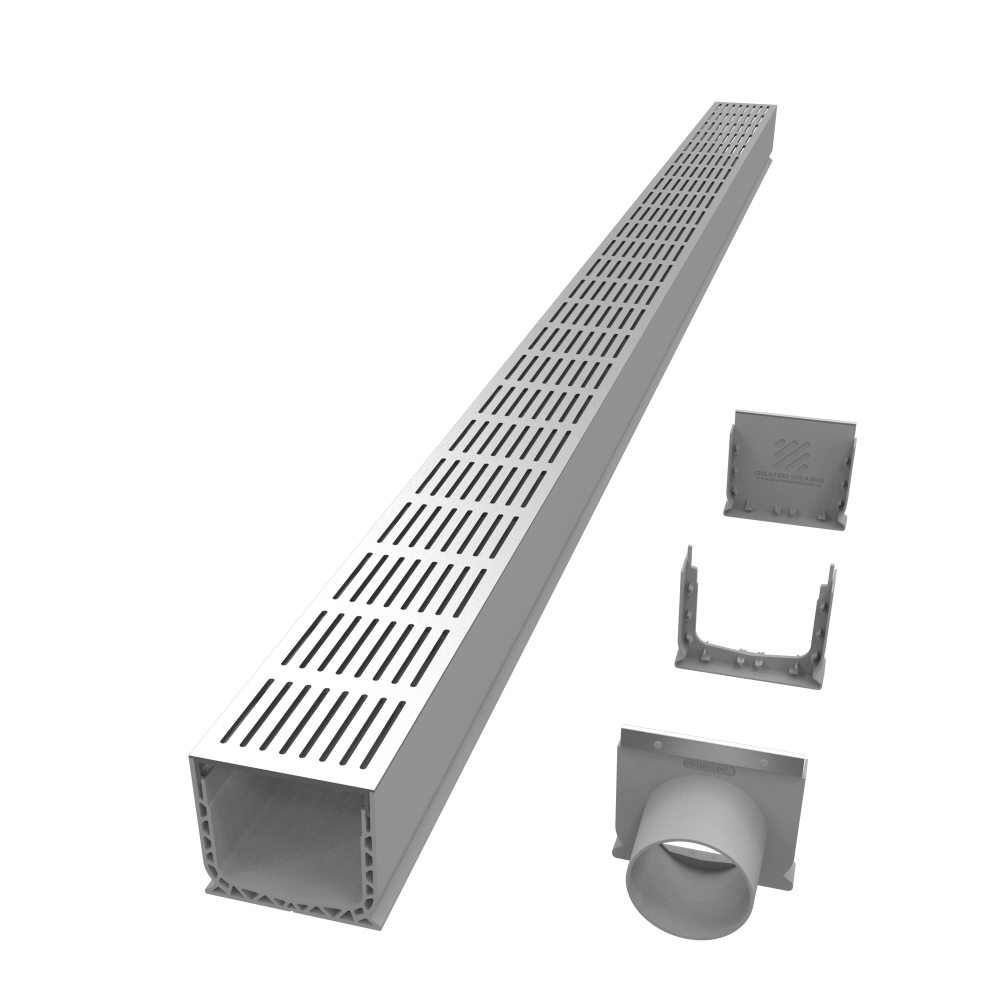

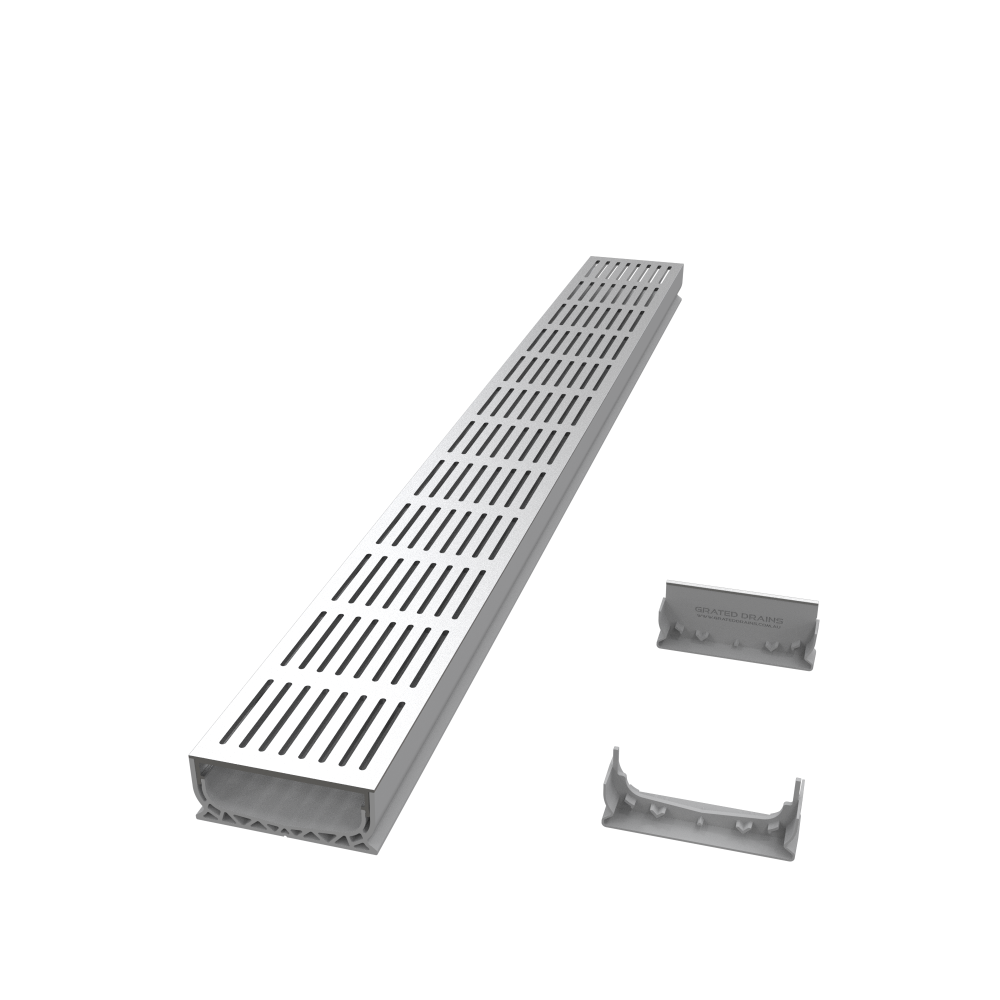

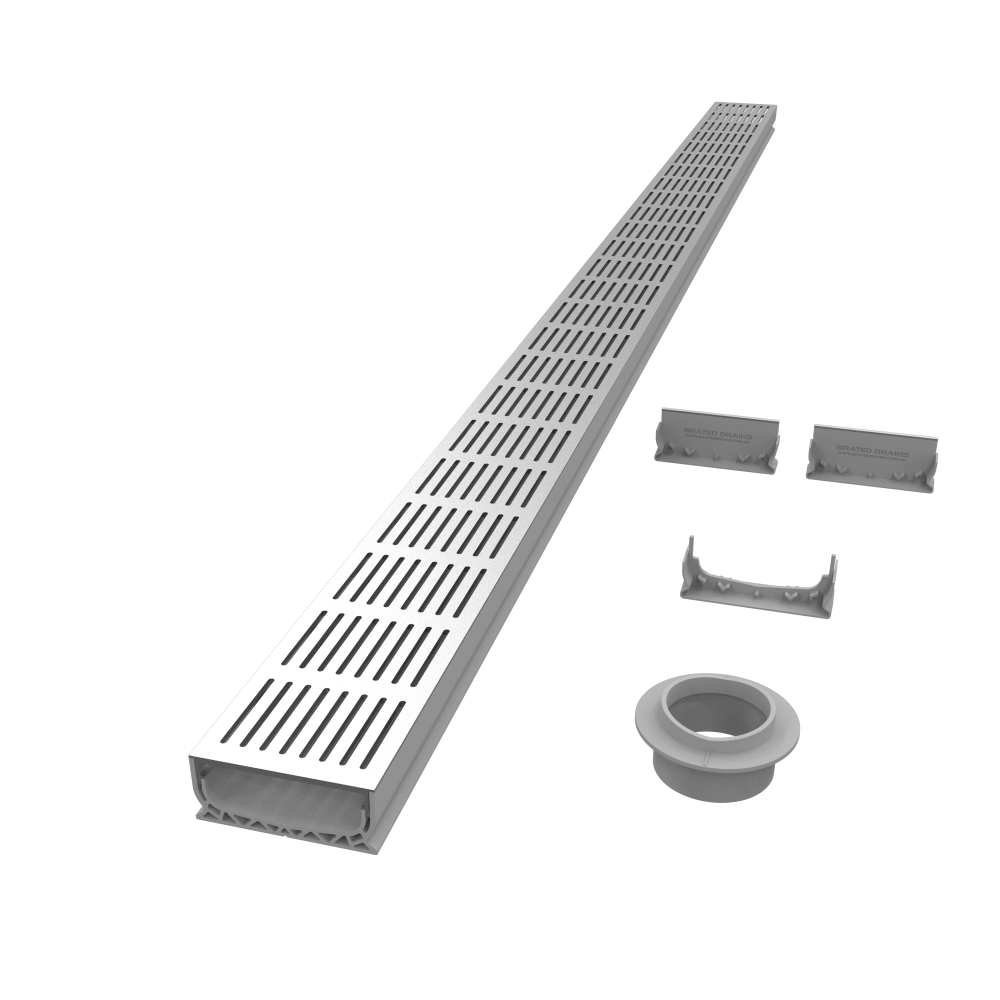

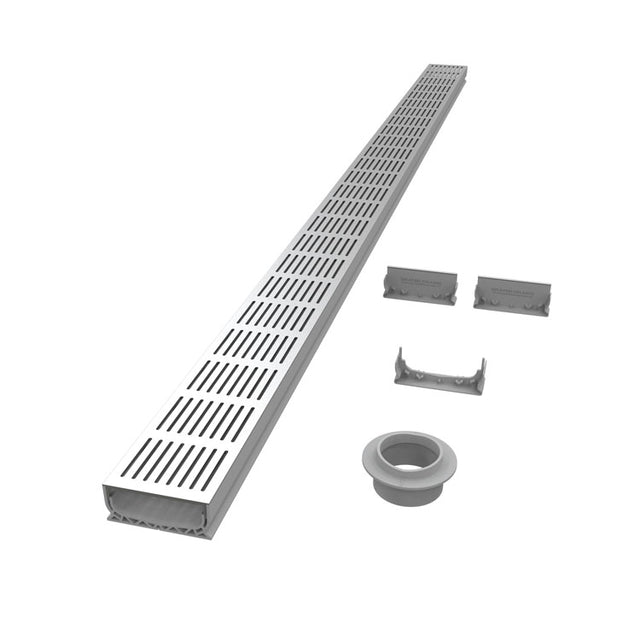

	Economy Slotted Grate - Featuring a sleek and minimalist appearance, the Slotted Grate offers a subtle yet stylish addition to your outdoor space - Made from Marine grade anodised aluminum making it an ideal choice for use in front line salt applications e.g. beach house, salt water pools etc.

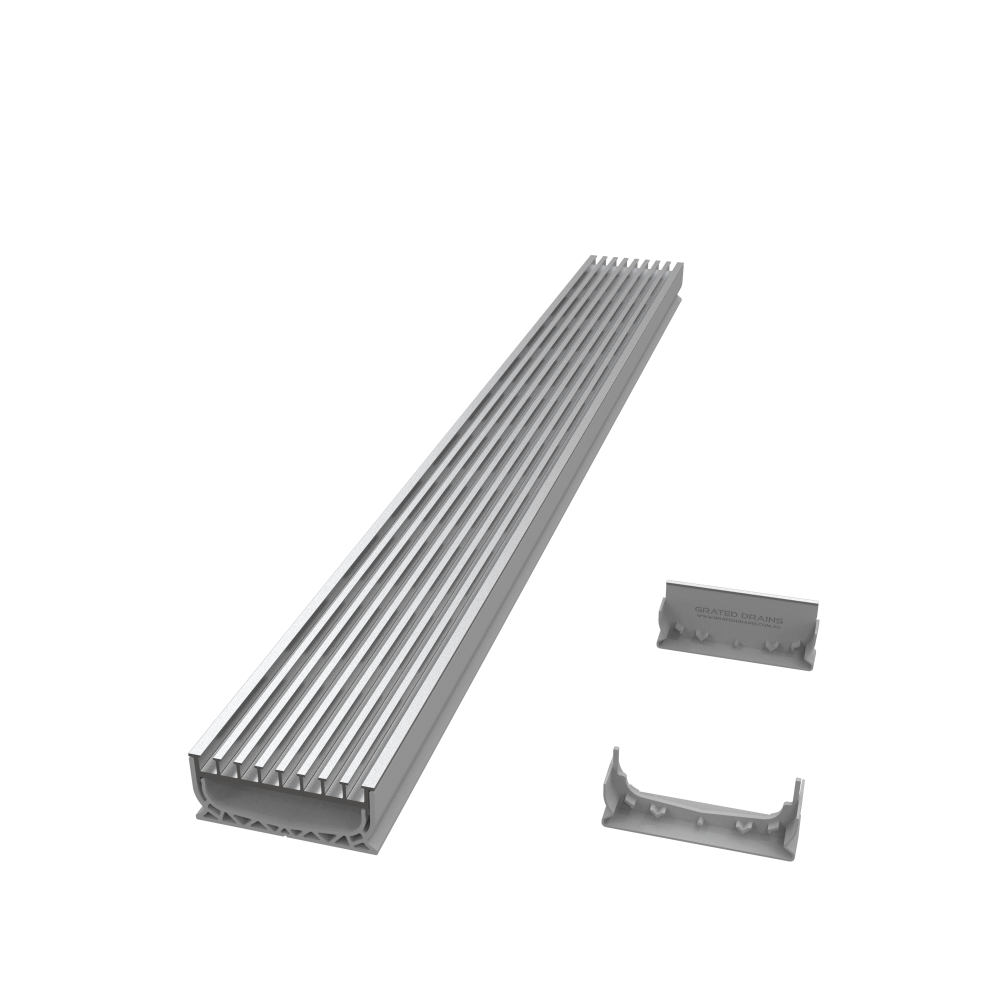

	Premium SubSlotted Grate - Boasting clean architectural lines with its refined appearance, this subslotted grate adds a touch of luxury to your outdoor setting. - Made from Marine grade anodised aluminum making it an ideal choice for use in front line salt applications e.g. beach house, salt water pools etc.  - Large water capture capacity due to the weir effect

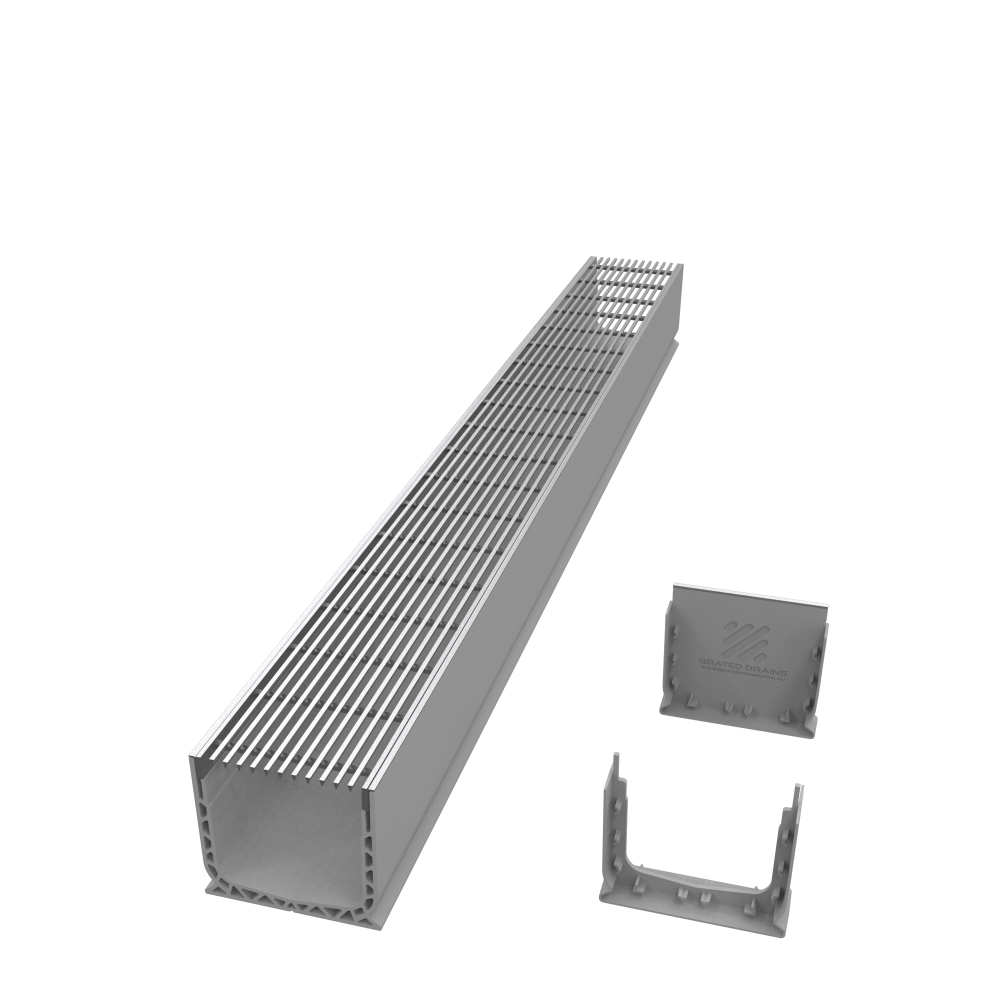

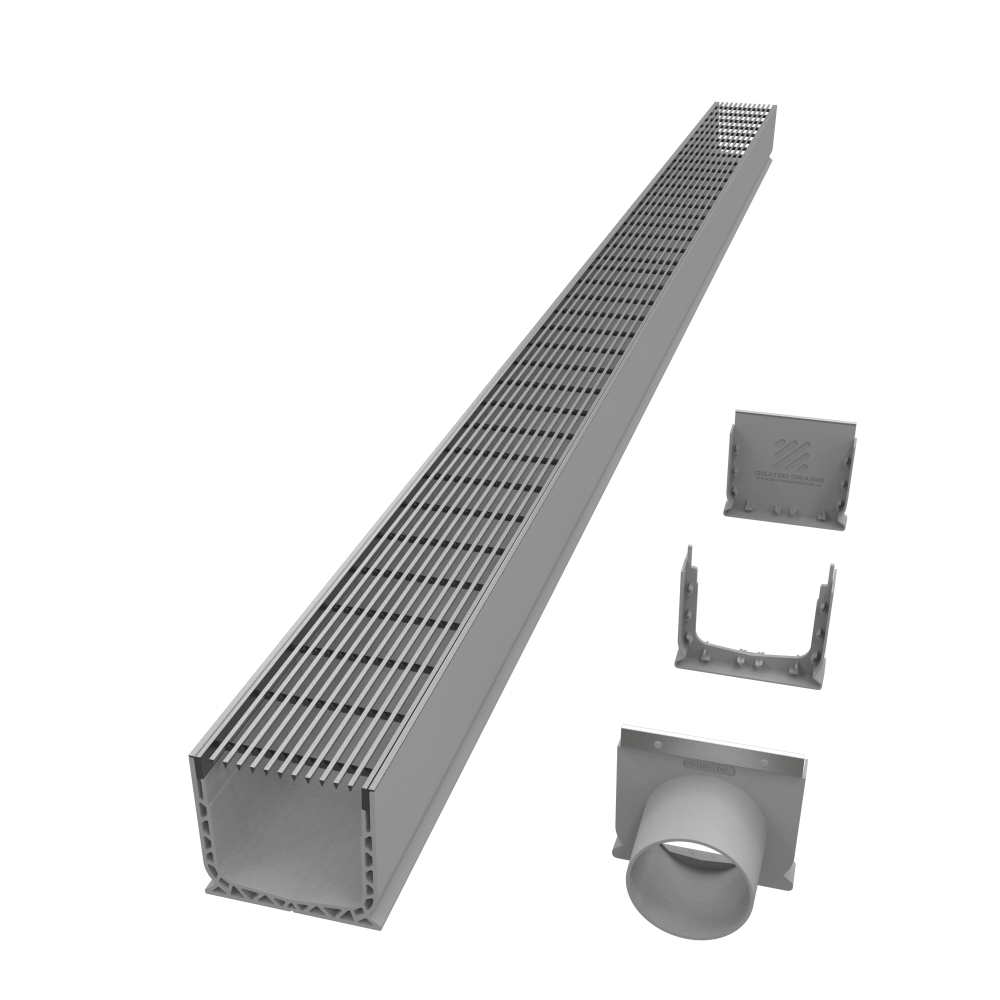

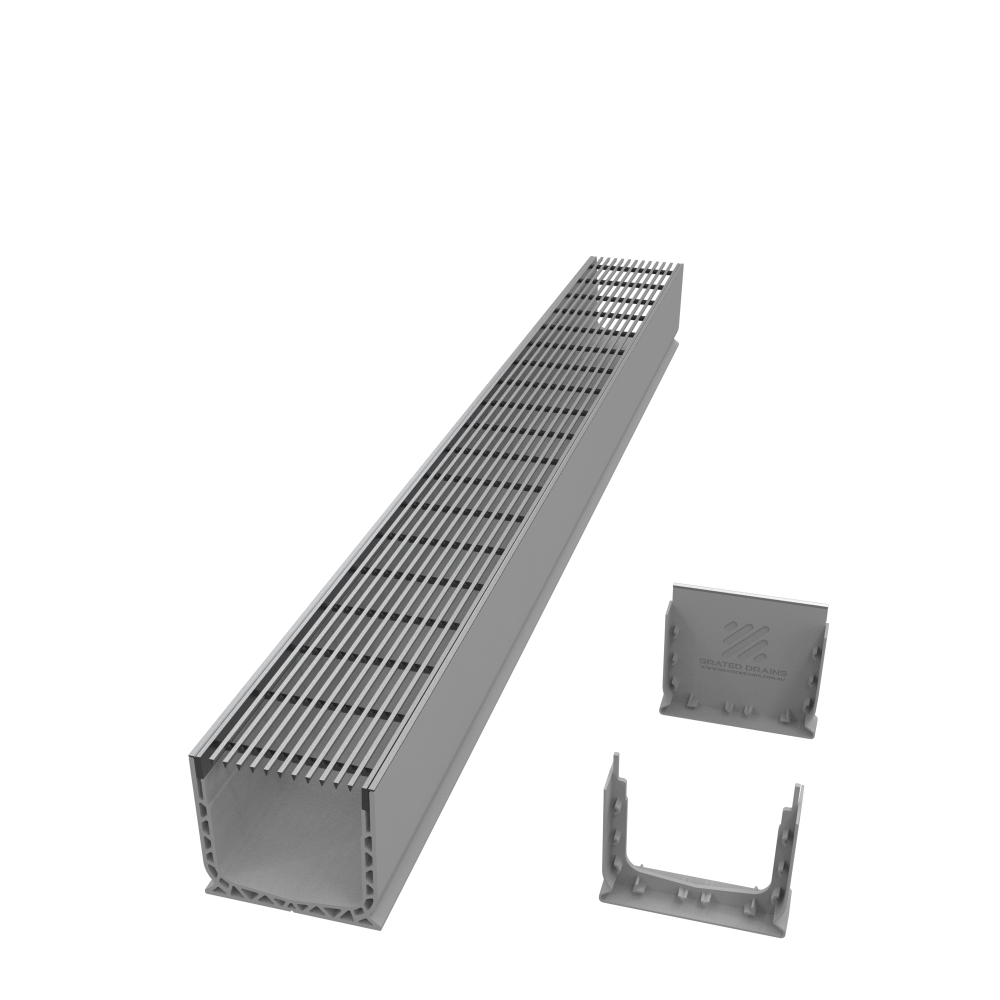

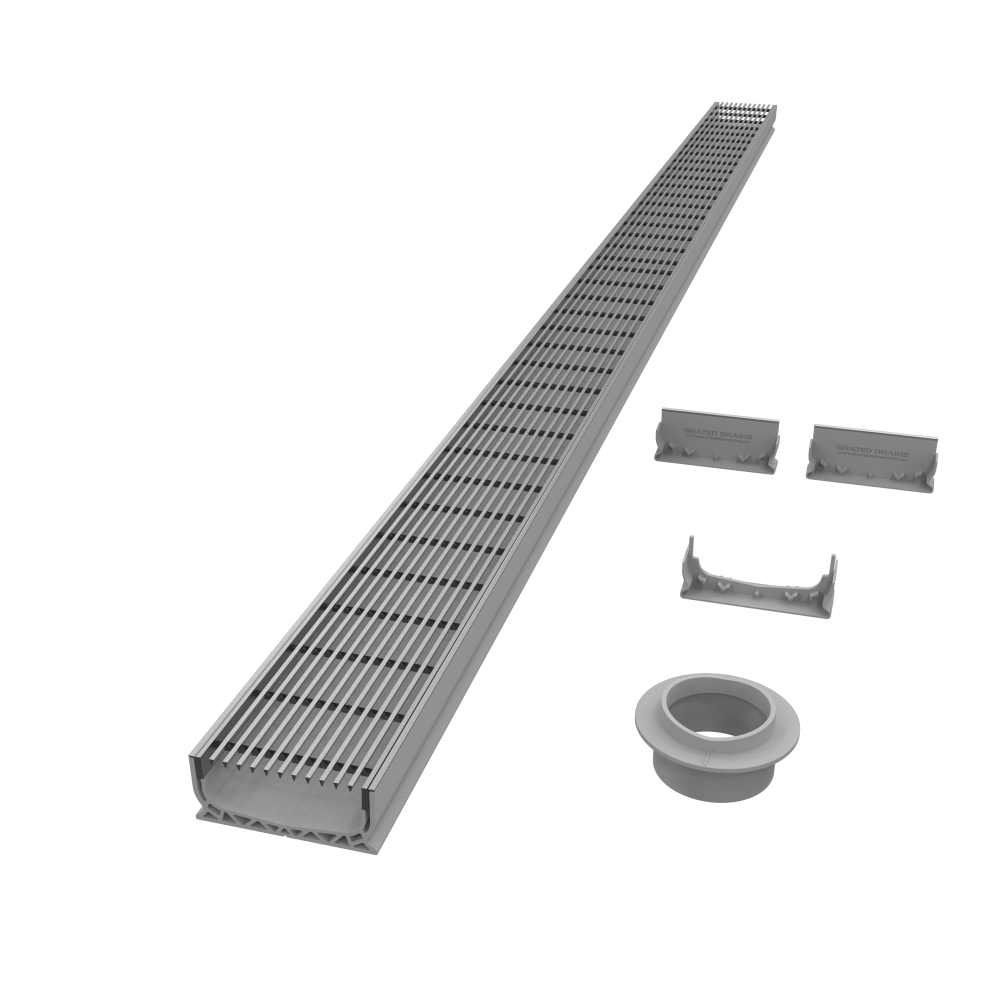

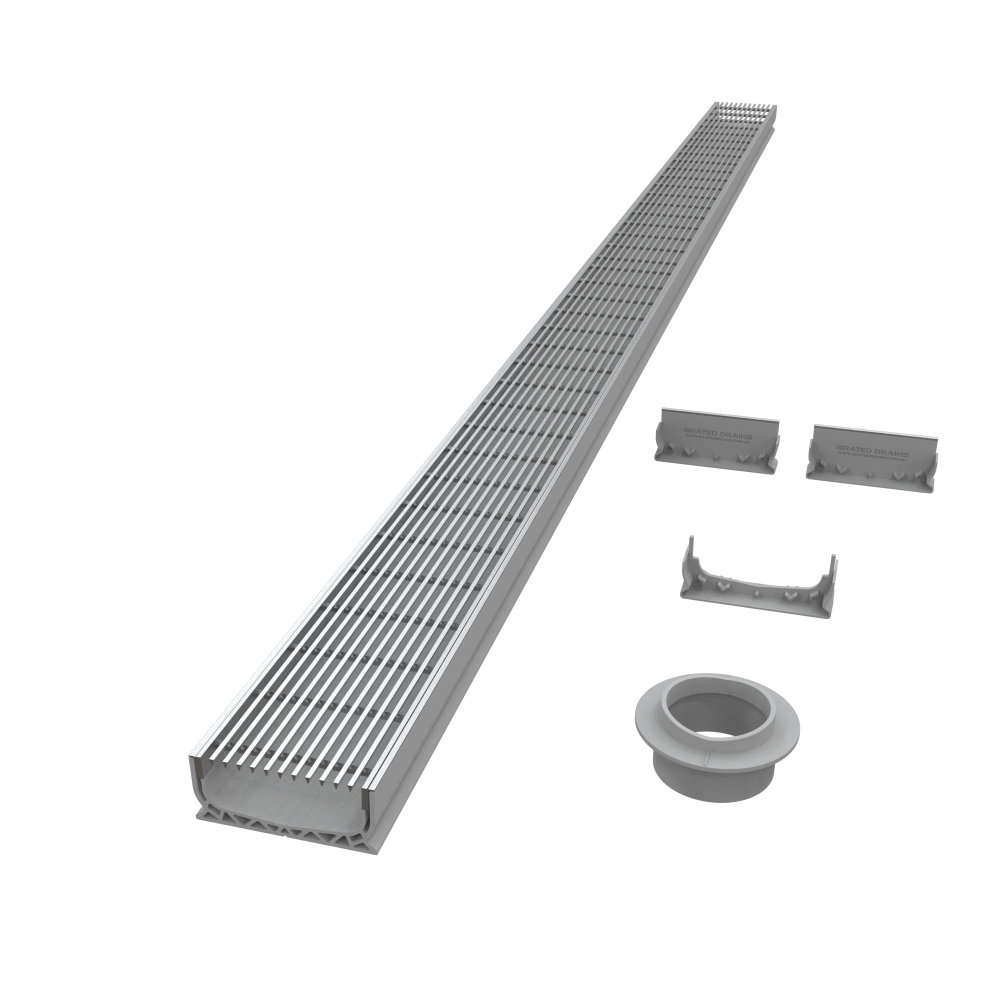

	Stainless Steel 316L Wedge Wire Grate - Crafted from fully Welded Stainless Steel 316L (Low Carbon) this grate offers unparalleled durability and corrosion resistance.  - Designed to withstand the harshest conditions, One Channel's Stainless Steel Grate is a reliable option for long term use.

Step 3. Cut to length, Join or accessorise to complete your solution

	One Channel Grates and Channels can be cut to length and joined at any point.
	90 Degree corners are also available (Sold Separately) to ensure a simple and clean installation

What's included
Click here to purchase additional accessories (joiners, end caps, corners etc)

Downloads One Channel Installation Guide
