Hide Tile Insert Lineal Drain Kit - 1210mm

Hide Tile Insert Lineal Drain Kit - 1210mm

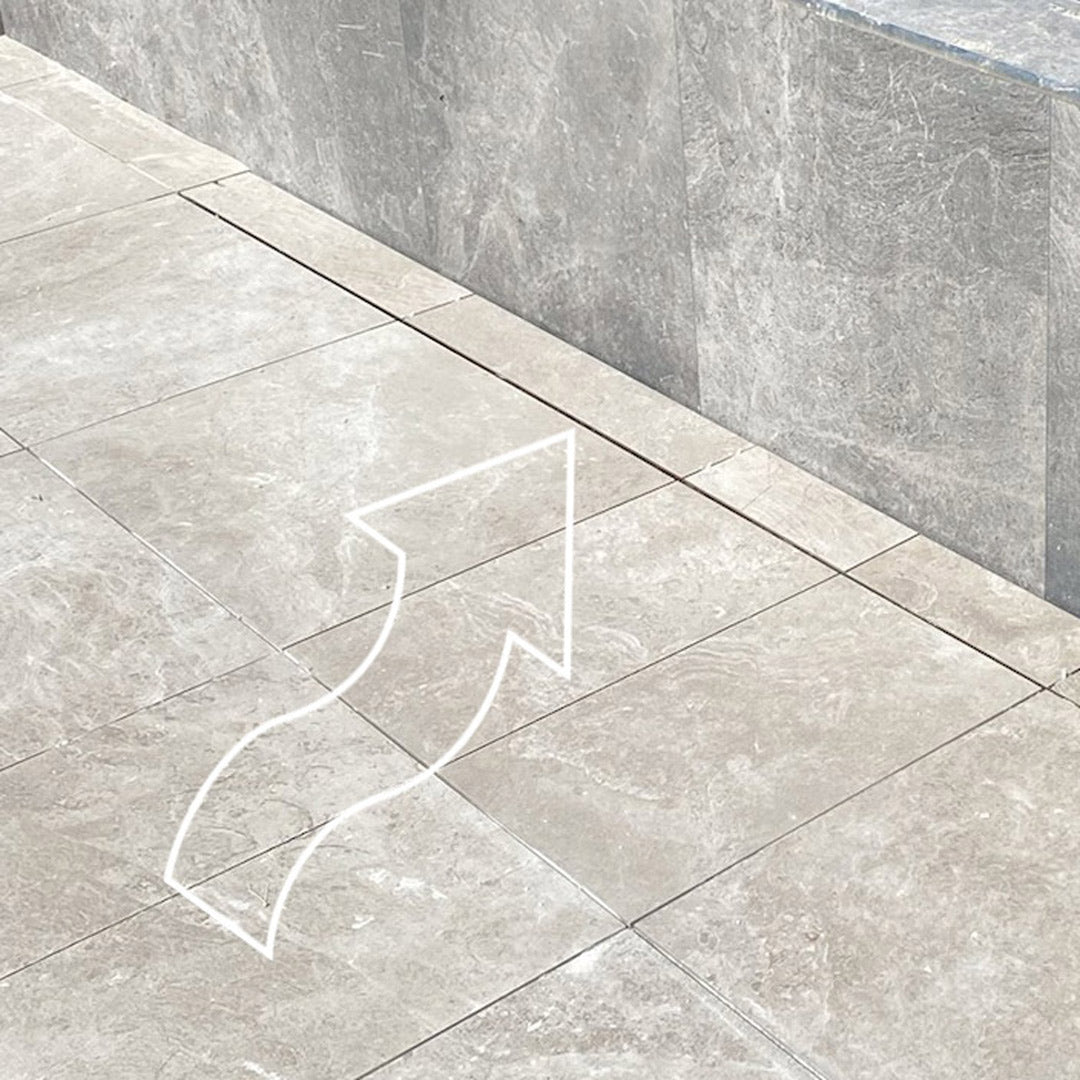

HIDE’s discreet stainless steel stone & tile insert drain covers are available for all popular stone thicknesses including 12, 20, 30mm & 40mm. The drain insert kit is great as a non-slip drain solution.  Note: Everhard Channel Not Included.

• Covers a 20mm deep recess with a width of 125mm.

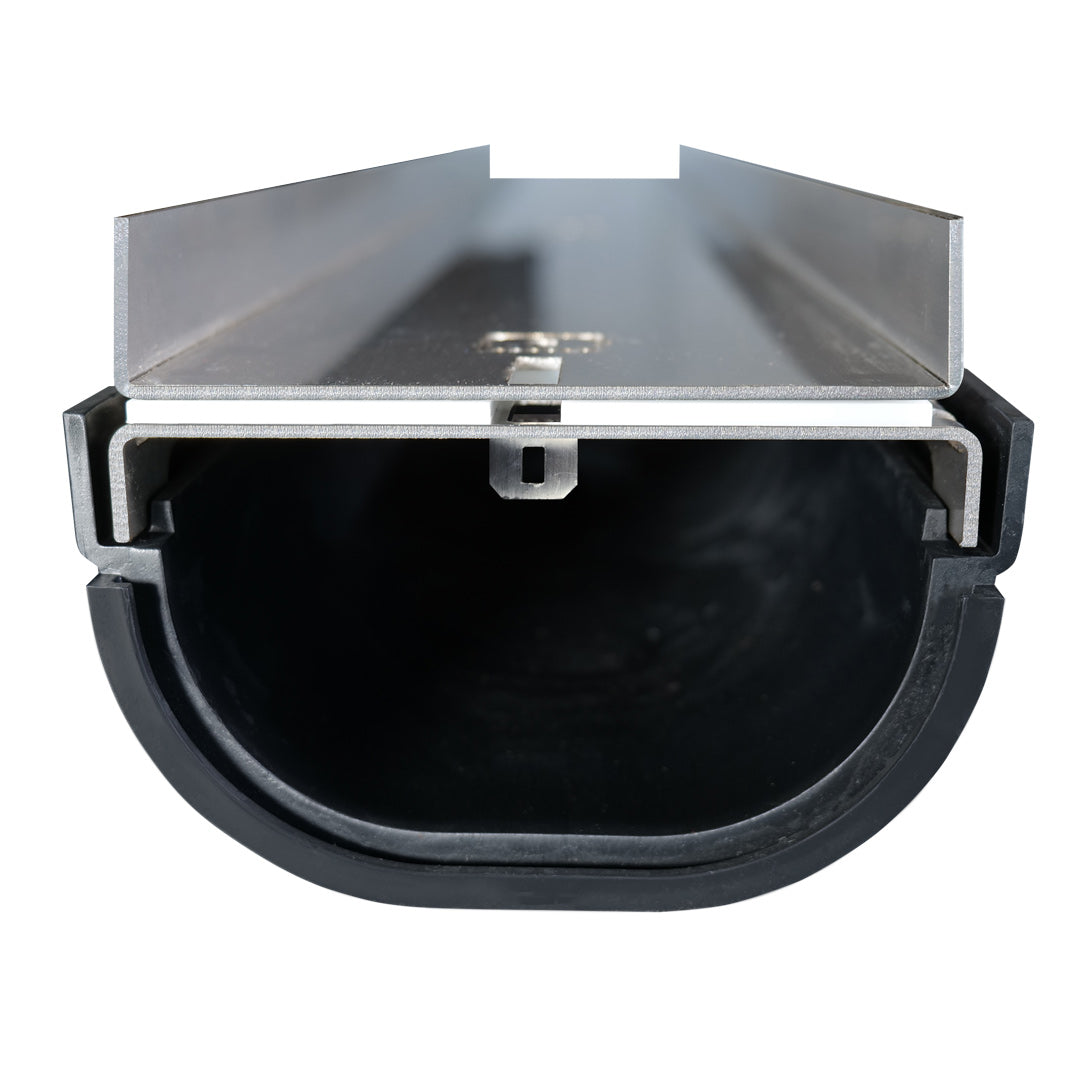

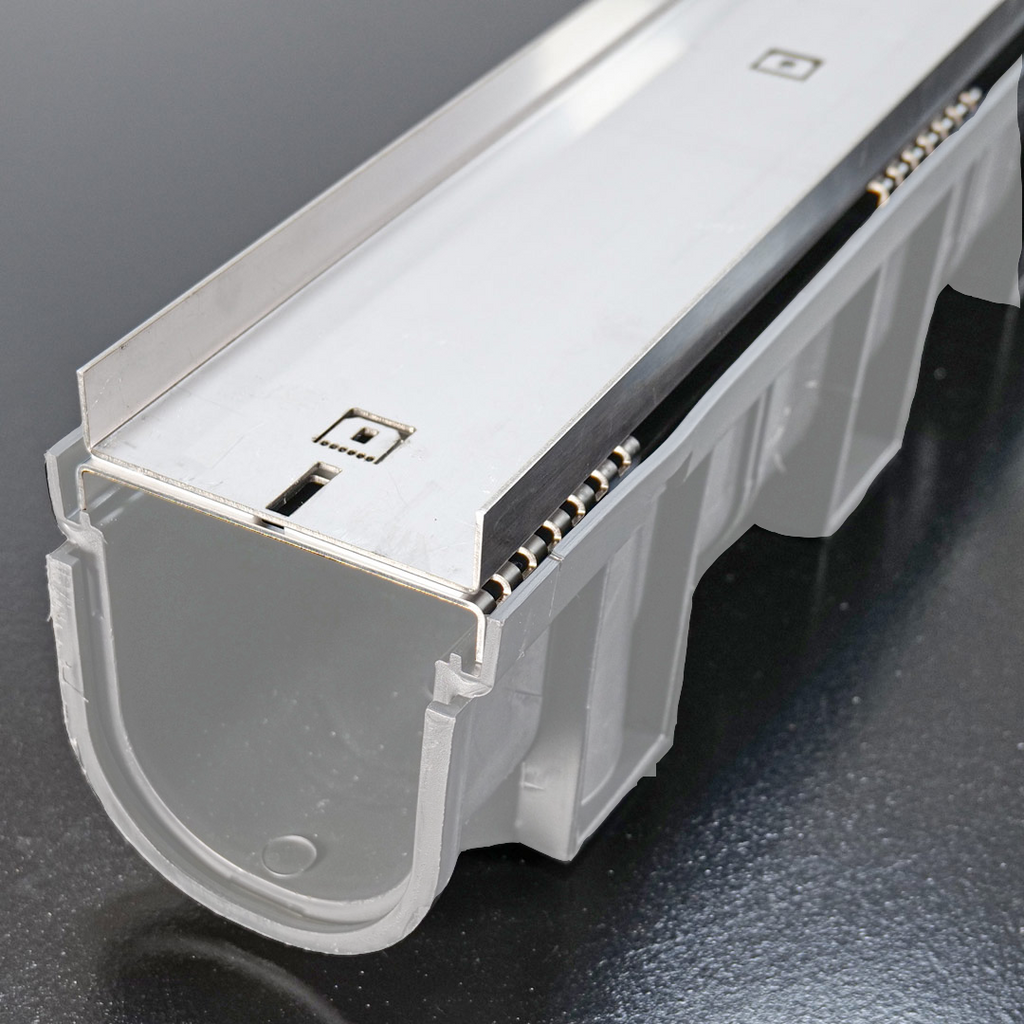

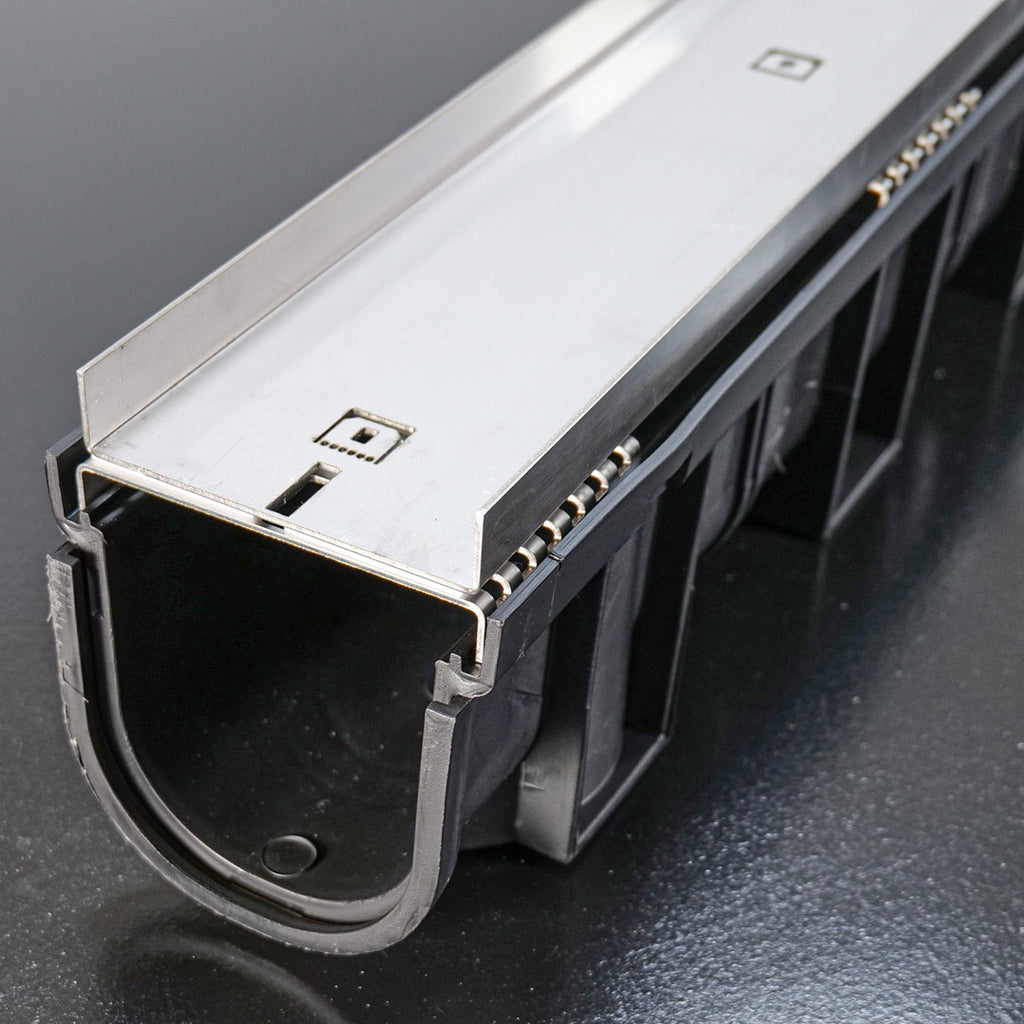

• Compatible with Everhard Channel (Sold separately).
• Easily Removed Modular lengths @ 1210mm.
• Cover Depths to suit 10, 20, 30 & 40mm tile or stone.
•  Adjustable height & clearances.
• Centralising Tabs; A world first in design.
• 90º Mitred corner kit option.
• Inlay with your selected surface finish.
• Once applied you will have Non-Slip
• 10 year warranty.
• Flexible installation features
• No equipotentially bonding required
• Adjust modular lengths to tile widths, S/S Cutting disc (Included in finishing kit).


• 1 x linear lid 1210mm.

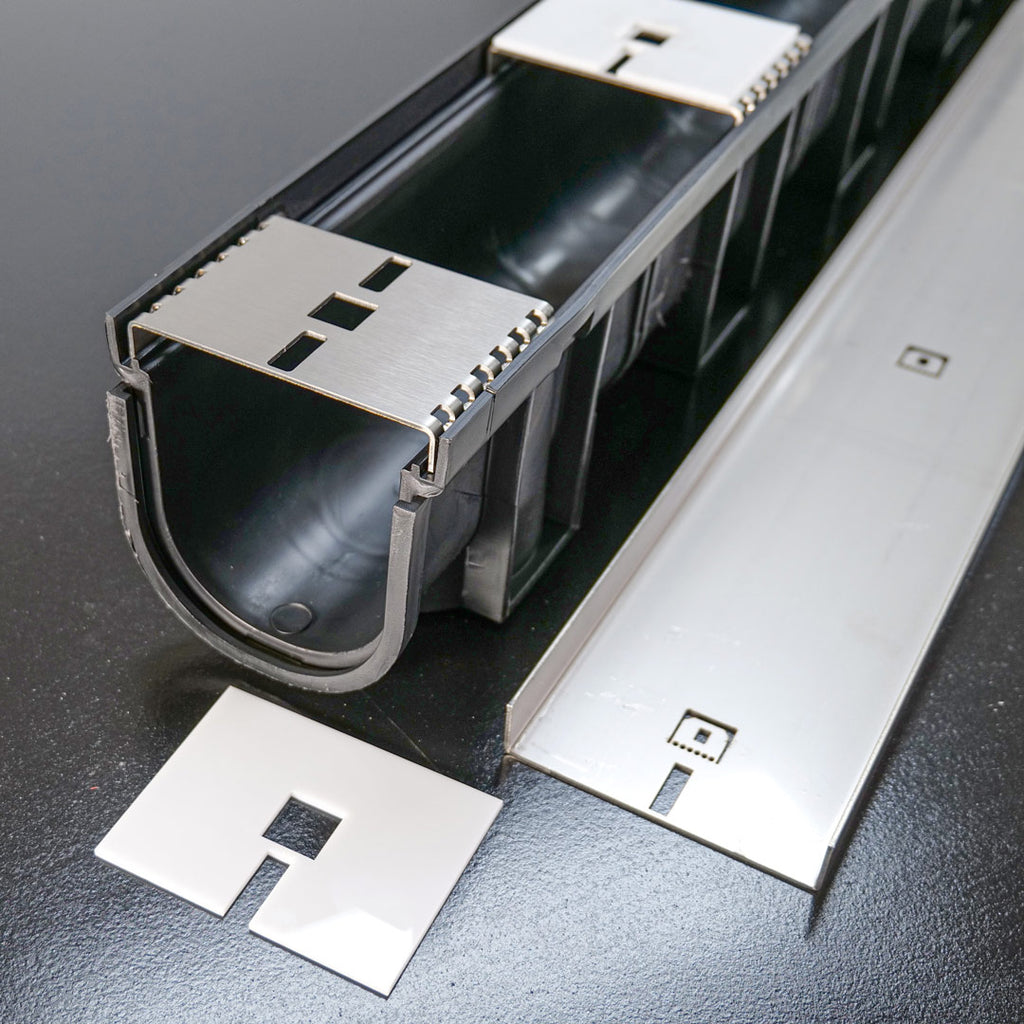

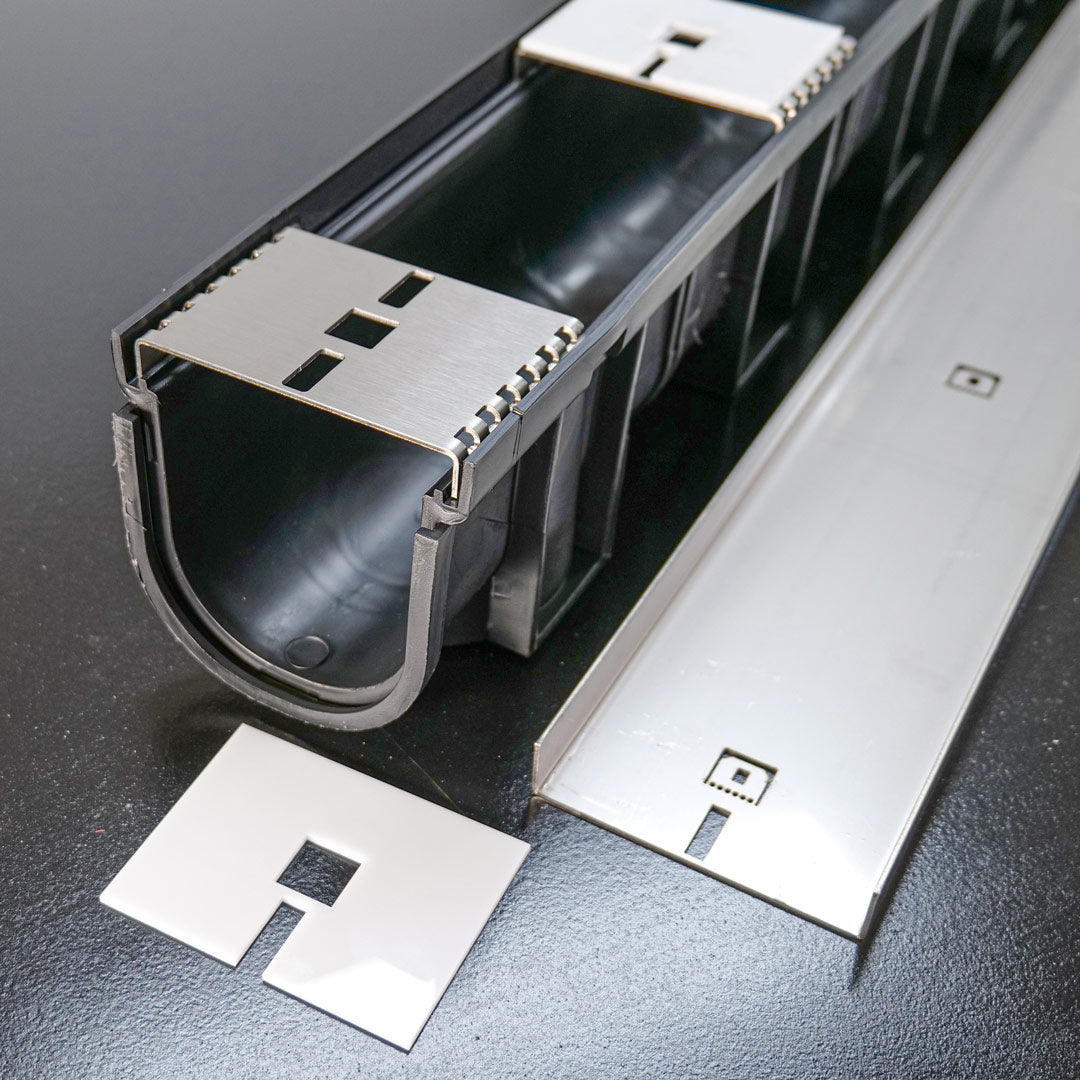

• 5 x linear bridges.
• 5 x height/level levellers.

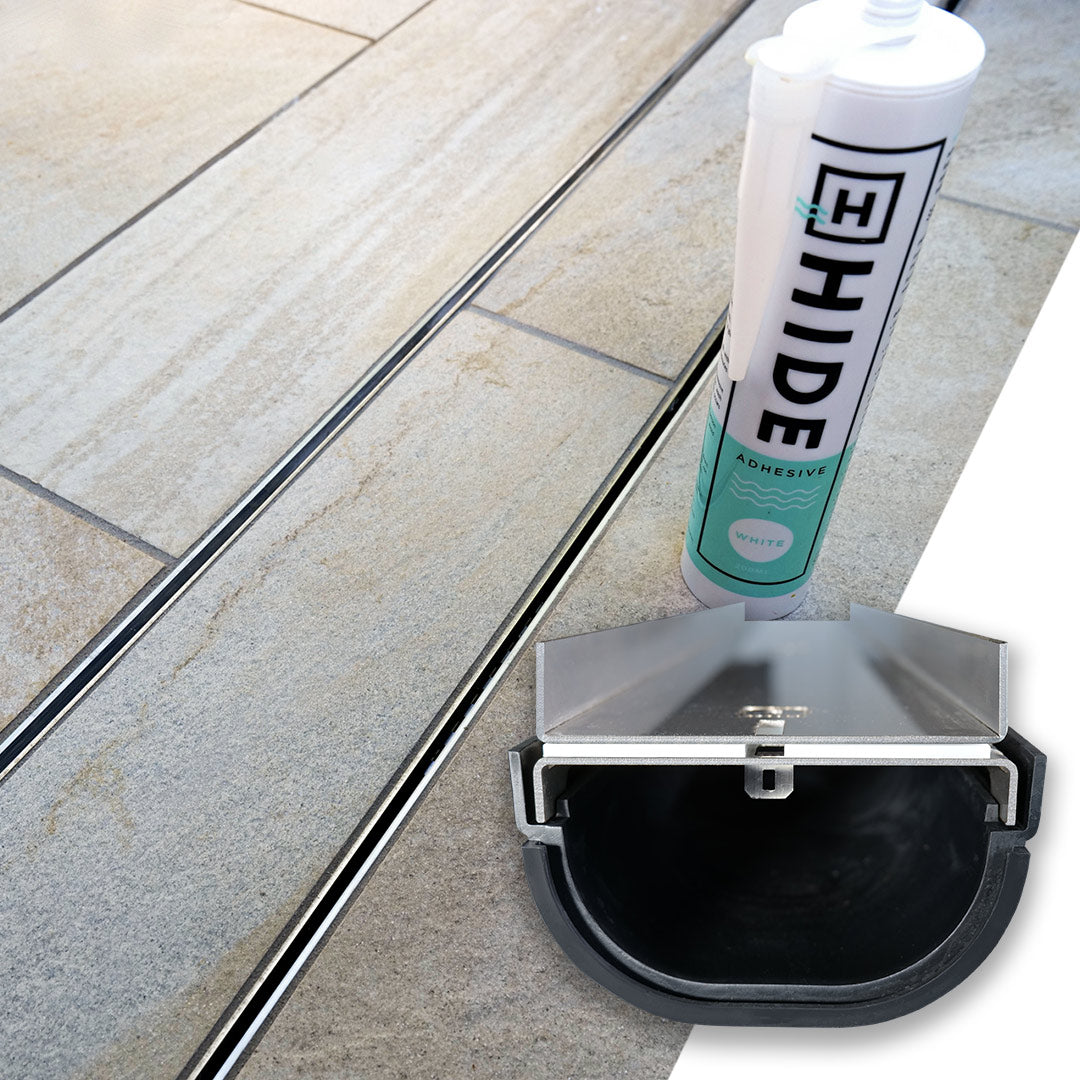

• 2 x adhesive.


• Everhard EasyChannel ~ 1000 L x 138 W x 137mm H
• Everhard EasyChannel Compact ~ 1000 L x 136W x 80mm H
• Finishing Kit
  • One kit required per project
• End Caps
  • A Finishing detail option for multiple butting modular pieces or as finishing for any additional channel lengths. Set of two per pack.
• Tile Edge Trims (Optional)

  • Two lengths of 1210mm trim, to suit either 10, 20, or 30mm stone/tile
  • Stainless steel trim to match the finish of the surrounding tiles to the cover.
• Mitred Corner Kit


• Product Brochure

• Care & Maintenance
• Installation Instructions
• Specifications
