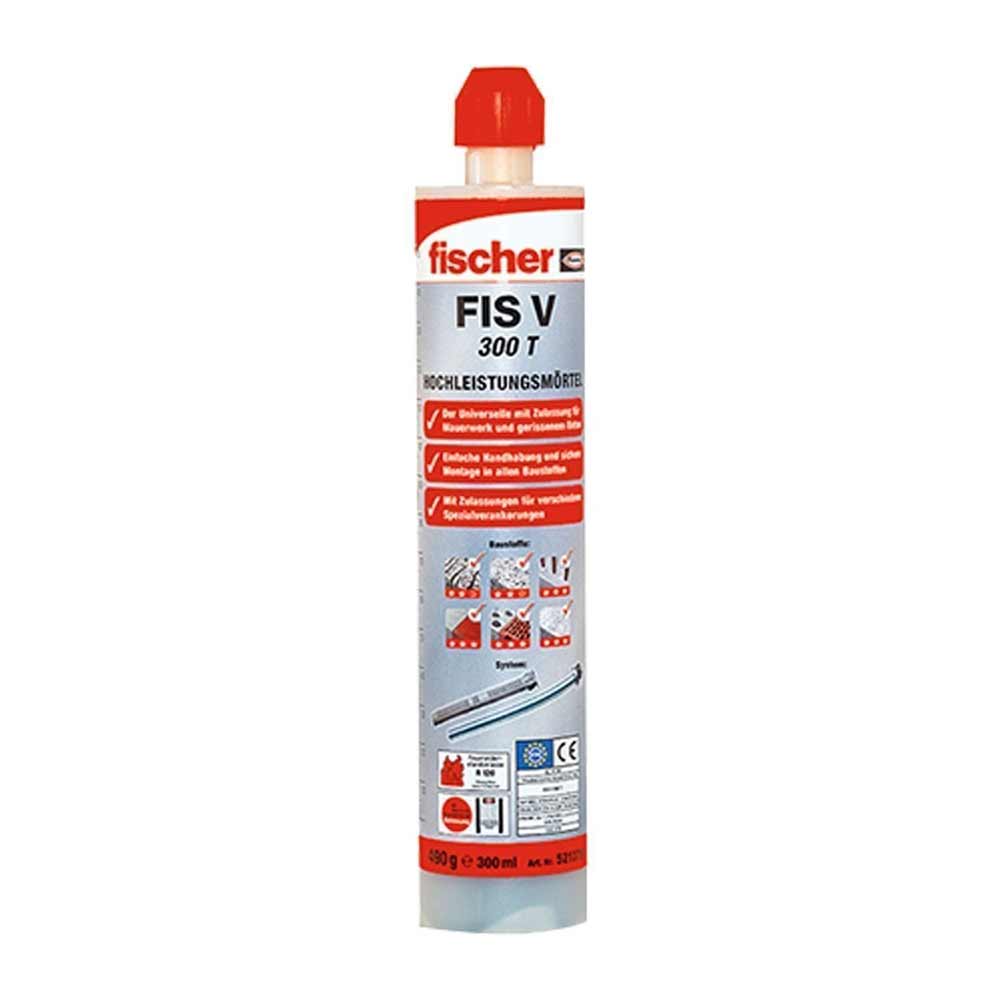

Fischer FIS V – Chemical Anchor

 Fischer Fis V - Injection Mortar

Functioning

• The FIS V is a 2-component injection mortar based on vinyl ester.
• Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
• The injection cartridges are quick and easy to use with the fischer dispensers.
• Partially used cartridges can be reused, simply by changing the static mixer.

Advantages

• The FIS V injection mortar has numerous system approvals, such as in cracked and non-cracked concrete, masonry and for special applications. FIS V is thus the universal injection mortar family with guaranteed reliability for practically all areas of application.
• The extensive range of accessories is ideally suited to the FIS V injection mortar family, increases the great flexibility of the system and thus allows for a broad range of applications.

Applications

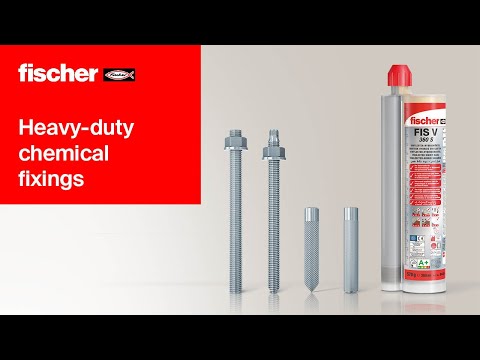

• Threaded rods
• Internal threaded anchor RG MI
• Injection anchor sleeves FIS H
• Rebar anchor
• Aerated concrete centring sleeve PBZ
• Remedial wall tie VBS 8

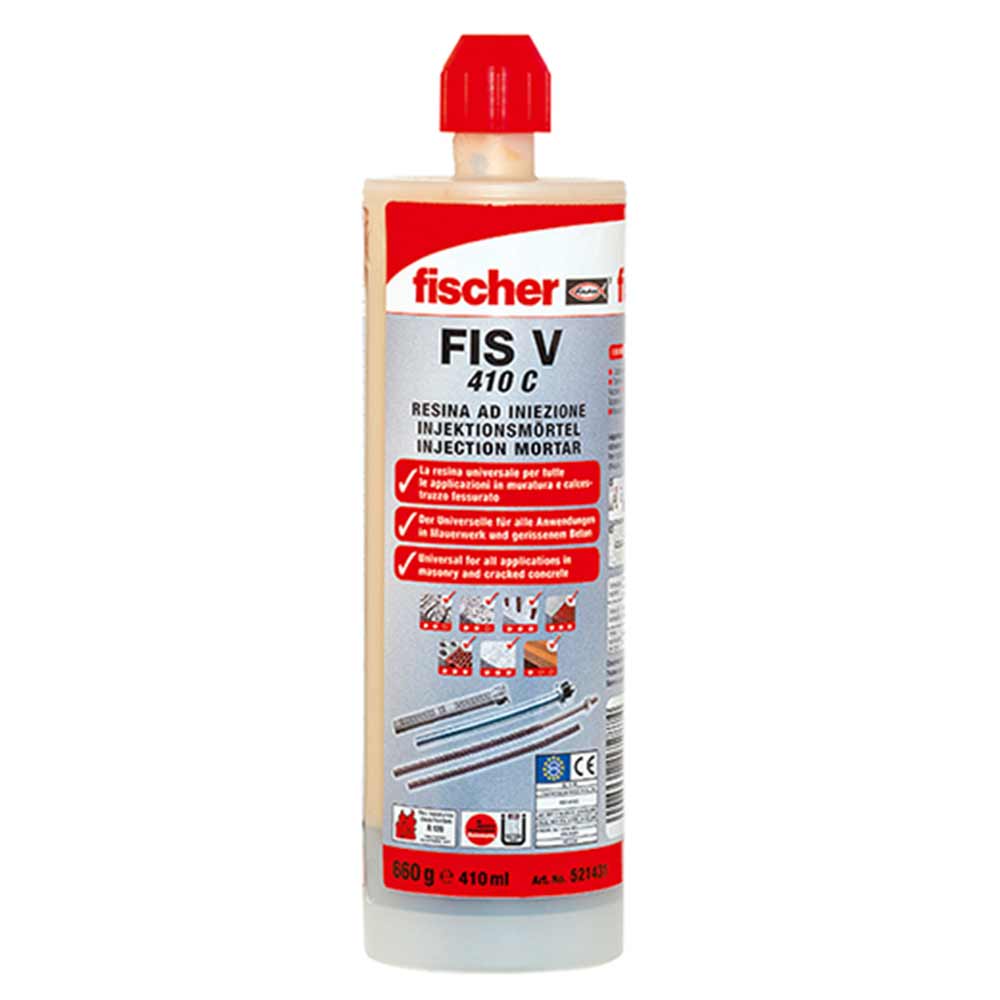

• Anchoring's in water filled drill holes (only FIS V 410 C).

Approved for Anchoring's in

• Concrete C20/25 to C50/60, cracked and non-cracked
• Hollow blocks made from lightweight concrete
• Hollow blocks made from concrete
• Vertically perforated brick
• Perforated sand-lime brick
• Solid sand-lime brick
• Aerated concrete
• Solid brick.

Also approved for:

• Rebar connections
• Remedial wall tie VBS 8
• Weather facing reconstruction system FWS II
• Stand-off installation Thermax.

Downloads

• GHS Safety Data Sheet
