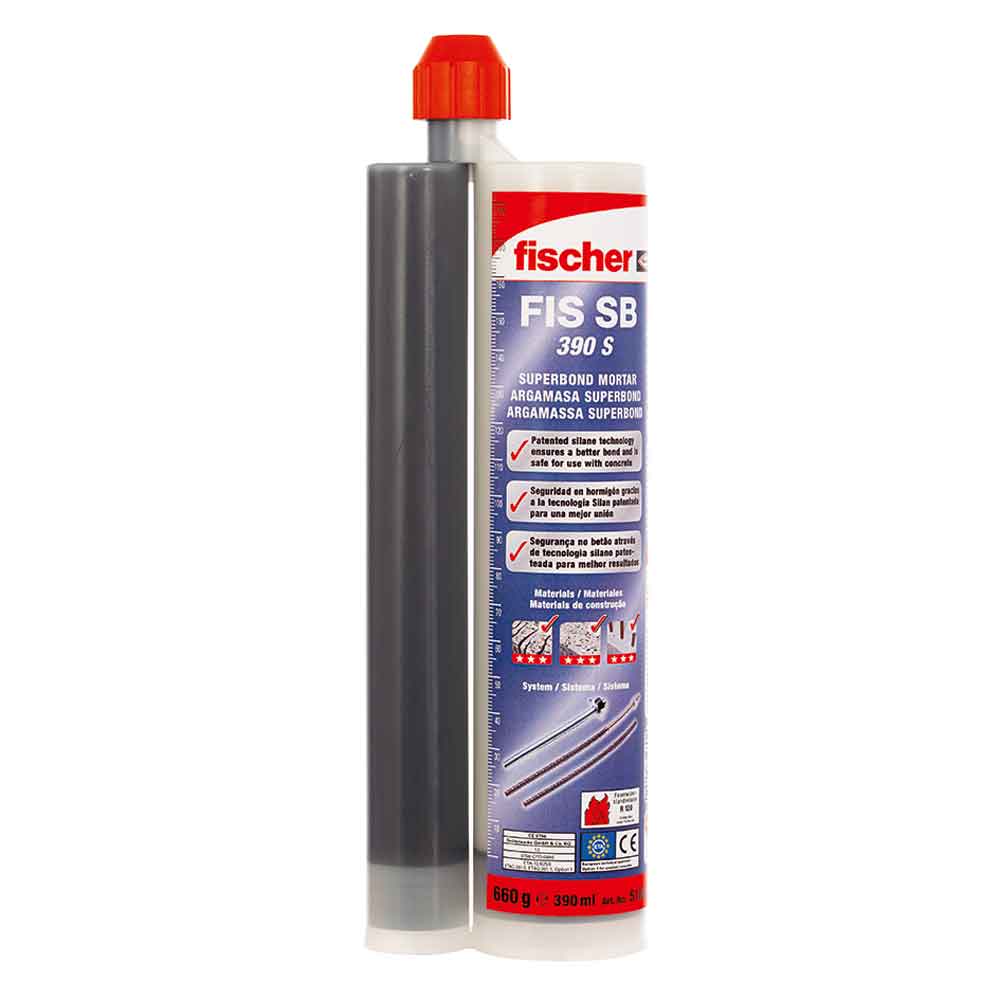

FIS SB 390 S - Superbond Mortar

 Fischer FIS SB 390 S - Superbond Mortar

Functioning

• The injection system, which comprises the Superbond mortar FIS SB, an injection mortar based on a vinyl ester hybrid with hydro silicon technology, is suitable (in conjunction with the correct threaded rod) for pre-positioned and push-through installation.
• Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the injection capsule in the static mixer.
• The mortar is injected bubble-free from the drill hole base.
• The mortar bonds the entire surface of the anchor rod with the drill hole wall and seals off the drill hole.
• The anchor rod is set manually by lightly rotating it until it reaches the drill hole base.
• During push-through installation, the annular gap between the anchor rod and attachment is fi filled with Super-bond mortar FIS SB

Advantages

• Thanks to its high bond strength, Superbond mortar FIS SB achieves a very high load level for safe use in cracked and non-cracked concrete.
• Variable anchorage depths from 4x to 20x anchor rod diameter allows for ideal adaptation to the load being applied and ensures an optimized installation time and use of materials.
• The Superbond mortar can even be used at extremely high temperatures of up to +150 °C. This opens up new application fields, where no chemical anchor could be used previously.
• The Superbond mortar FIS SB is approved for seismic applications, which ensures safety even under extreme conditions.

Applications

• Heavy steel constructions
• Silo installations
• Tall shelving
• Sound barriers
• Guard rails
• Staircases
• Masts
• Machines

Approved for anchorings in:

• Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

• Concrete C12/15
• Natural stone with dense structure

Downloads

GHS Safety Data Sheet

ICC ES Evaluation Report
