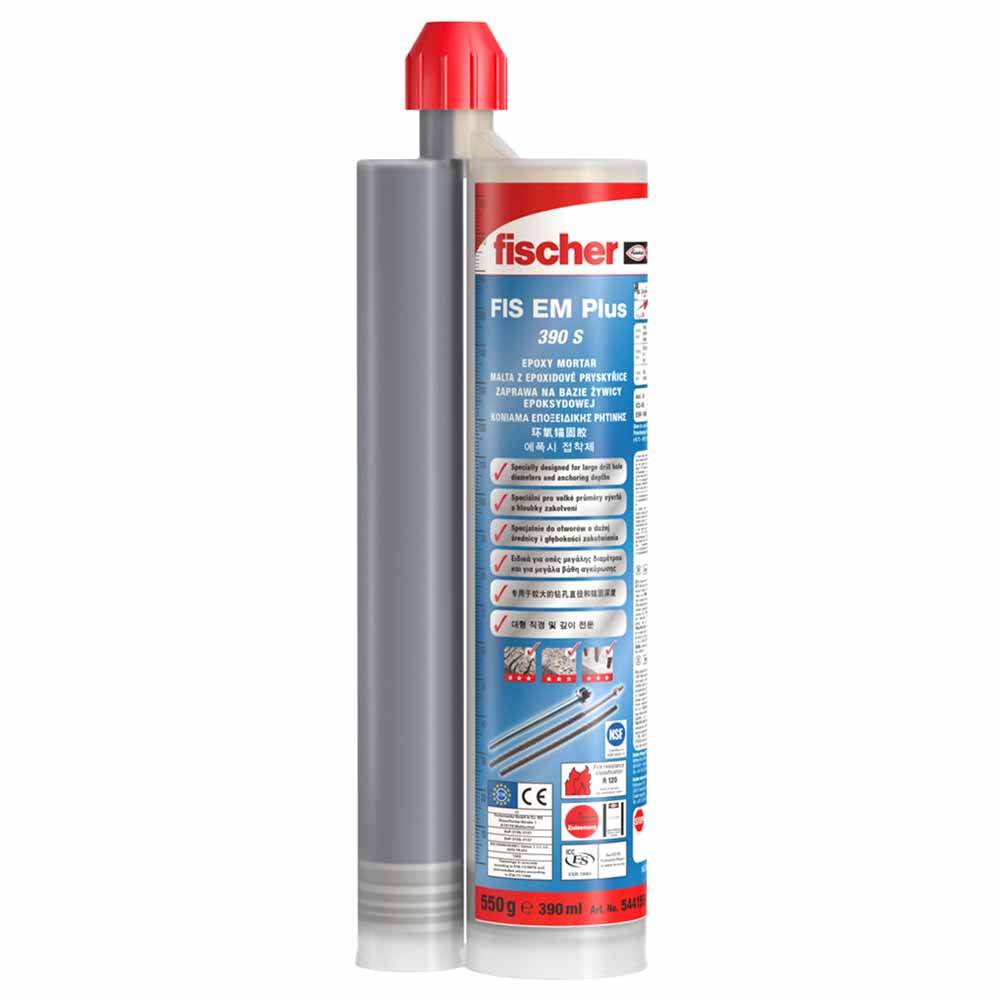

FIS EM PLUS – Epoxy Mortar

 Fischer FIS EM Plus - Epoxy Mortar

Functioning

• The epoxy mortar FIS EM Plus combined with the FIS A threaded rod, is suitable for pre-positioned and push-through installation and with the internal threaded anchor RG M I for pre-positioned installation.
• Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the injection capsule in the static mixer.
• The mortar is injected bubble-free from the drill hole base.
• The mortar bonds the entire surface of the anchor with the drill hole wall and seals off the drill hole.
• The anchor rod is set manually by lightly rotating it until it reaches the drill hole base.
• During push-through installation, the annular gap between the anchor rod and attachment is filled with FIS EM Plus.

Advantagges

• The optimised formulation of the epoxy resin mortar FIS EM Plus leads to improved load values in cracked and non-cracked concrete.
• The mortar can be used for rebar connections from diameter 8 to 40 mm.
• With threaded rod FIS A, the loads to be applied can be designed variably by selecting the anchorage depth.
• Temporary and detachable fixing points are possible with the internal threaded anchor RG M I.
• For practical use on the building site, FIS EM Plus can be processed at low temperatures down to 0°C (outside of the assessment even down to -5°C).
• The mortar is approved for diamond-drilled and water-filled drill holes as well as seismic applications of performance categories C1, C2 and thus offers safety under extreme conditions.

Applications

• Post-installed rebar connections
• Jointers for concrete layers
• Rim beam anchorings
• Seismic applications
• Anchorings in diamond-drilled drill holes
• Heavy steel constructions
• Silo installations
• Tall shelving
• Sound barriers
• Temporary or removable fixings (with internal threaded anchor RG M I).

Also suitable for:

• Natural stone with dense structure.

Downloads

• GHS Safety Data Sheet
