AusDrain - HexCell Drainage Cell - Proudly Australian Made!
Sold per square metre, if you require 30sqm then you purchase 30pcs.
Ausdrain’s drainage cells create a permanent, non-clogging void between the concrete slab and the soil profile that will not collapse or distort. Our 30mm and 50mm voids enables a direct flow of water to designated outlets avoiding the risk of water build-up and penetration. The large surface and capacity void space enables superior drainage efficiency compared to the small voids created by using a gravel system.
The lightweight nature of this product reduces weight on the structure by 98% over gravel making it the perfect choice for planter boxes, roof gardens and landscaped podiums. In addition, there is a 5:1 reduction in the drainage medium height allowing greater soil depth and scope for plantings.
The high compressive strength of our range enables materials to be delivered directly by truck and machinery to spread sand and soil once a minimum of 300mm has been placed over the drainage cell/ filter fabric layer.
Filter fabric is placed over the drainage cells and is supplied in roll widths of 600mm, 1.2m and 2m. The fabric combined with a layer of washed sand, filters the water eliminating staining caused by gravel, stone and soil materials. The drainage cell also acts as a membrane protection layer, however, it is recommended that a layer of protection board be placed between the membrane and drainage cell.
- Roof top gardens
- Podiums
- Retaining walls
- Civil works
- Sports fields
- Under slab drainage
- Planter boxes
Specifications

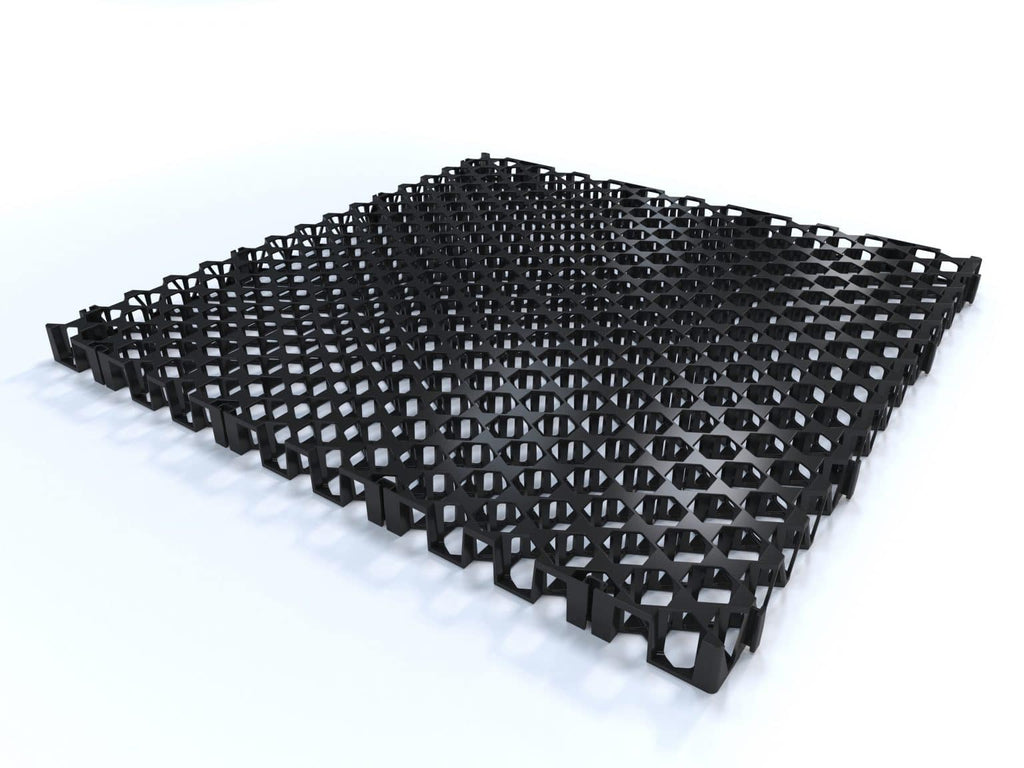

30mm HexCell Technical Data (Standard Duty 550)
- Height: 30mm
- Width: 550mm
- Length: 550mm
- Weight: 2.15kg/sqm
- Surface Void: 70%
- Compressive Strength: 70 tonnes/sqm
- Flow Rate: >14,400 L/H/sqm
- Service Temperature: - 30°C + 120°C
- Chemical Properties: Unaffected by moulds and algae, soil-bourne chemicals and bacteria
30mm HexCell Technical Data (Extra Duty 550)
- Dimensions: 30mm
- Width: 600mm
- Length: 600mm
- Weight: 2.6kg/sqm
- Surface Void: >65%
- Compressive Strength: 80t/m2
- Flow Rate: 14,400 litres/h/sqm @ 1% fall
- Service Temperature: -30°C + 120°C
- Chemical Properties: Unaffected by moulds and algae, soil-bourne chemicals and bacteria

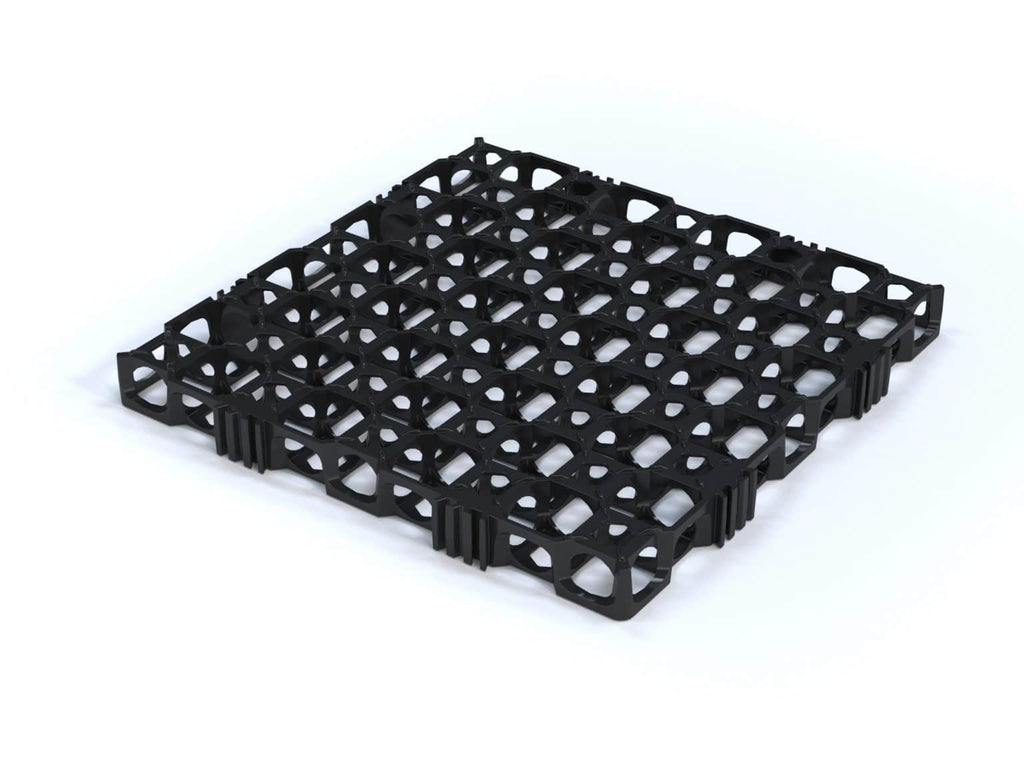

50mm HexCell Technical Data (Extreme Duty 550)
- Height: 50mm
- Width: 550mm
- Length: 550mm
- Weight: 4.36kg/sqm
- Surface Void: 70%
- Volume Void: 90%
- Compressive Strength: 150 tonnes/sqm
- Flow Rate: >19,200 L/H/sqm
- Service Temperature: - 30°C + 120°C
- Chemical Properties: Unaffected by moulds and algae, soil-bourne chemicals and bacteria
