Atlantis - Flo-Wall Panel

Atlantis - Flo-Wall Panel

The Atlantis Flo-Wall® range is ideal for the rapid drainage of saturated ground. The Flo-Wall® range is suited for applications including underground car parks, basements, retaining walls and seepage cut-off trenches.

HIGH STRENGTH
The Atlantis Flo-Wall® range features high compressive strength that will not crush over time ensuring long term drainage performance.

HYDROPHILIC GEOTEXTILE

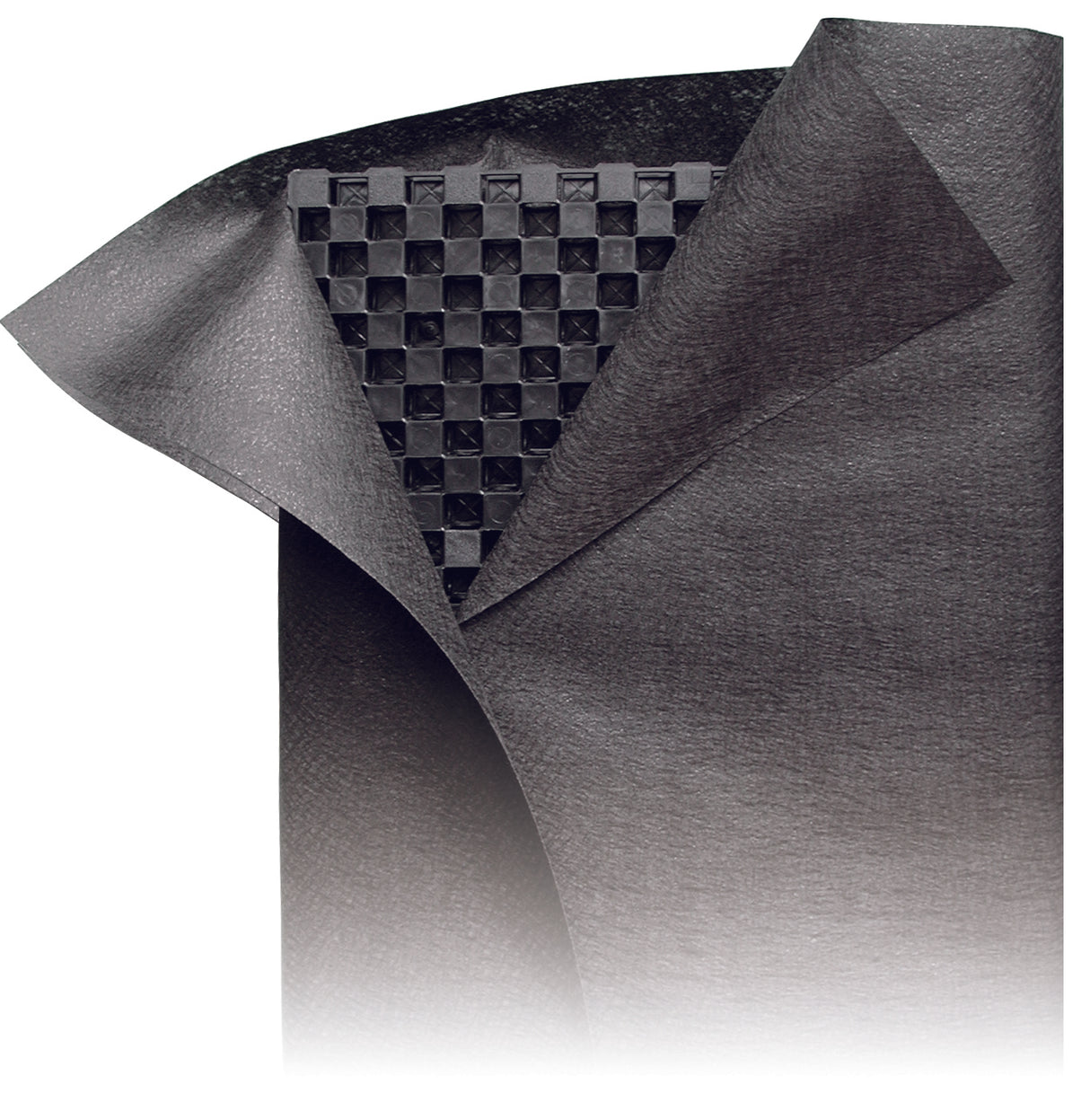

The Flo-Wall® range are prefabricated products wrapped with a high quality Italian made geo textile with hydrophilic properties for effective drainage that does not require a head of pressure to perform.

UNLIMITED LENGTH
The Atlantis Flo-Wall® range can be easily connected together to form the lengths required for the project. Each Flo-Wall® is provided with an overlap allowance of geo textile to allow each connection to be appropriately sealed with tape

Applications Retaining walls Foundation walls Basements Underground parking Bridge abutments and abutments Civil works Tunnels in areas that require hydrostatic pressure relief Downloads Flow Wall Specs
