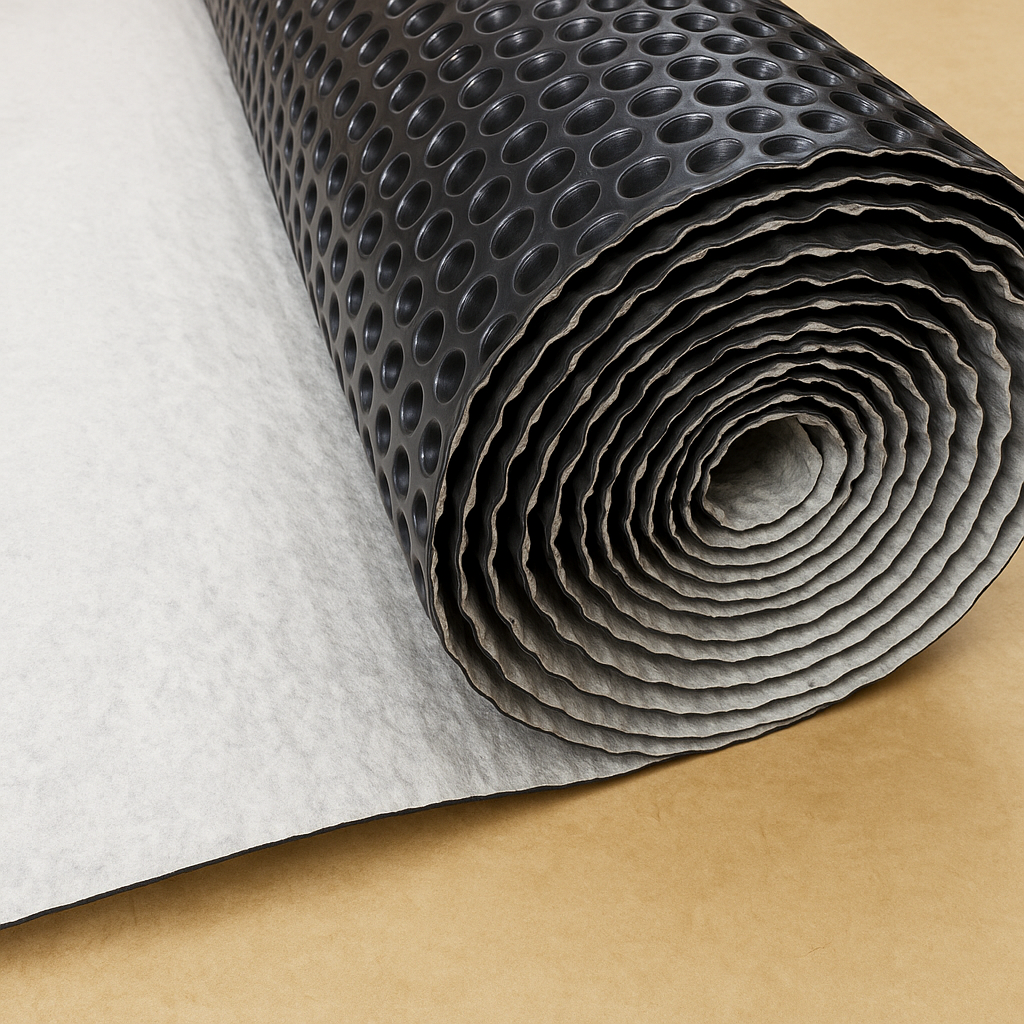

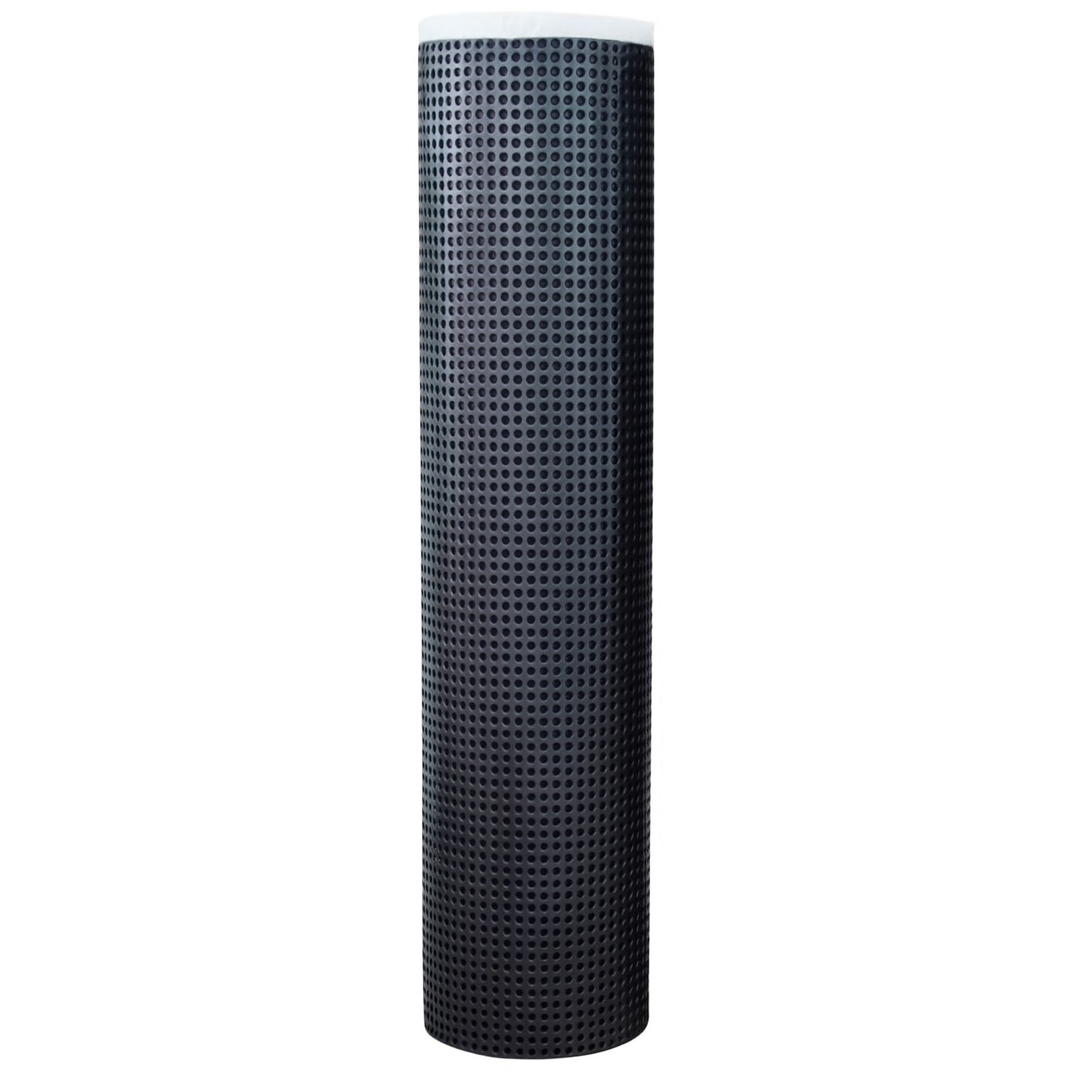

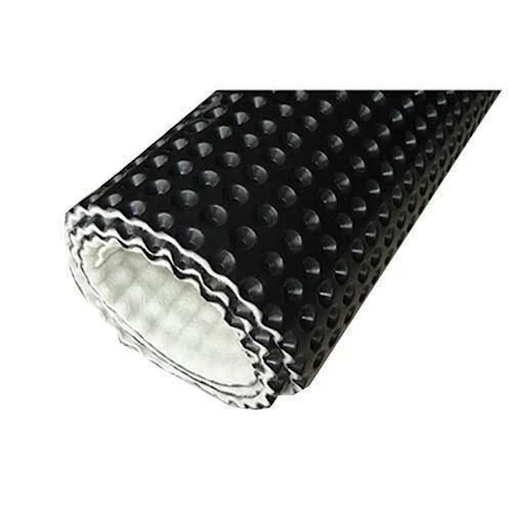

10mm Drainage Board Dimple Matting

10mm Drainage Board Dimple Matting

A high-performance drainage board, dimple matting solution designed to protect foundations, walls, and landscaped surfaces from water ingress. With its 10mm dimpled profile and integrated non-woven geotextile layer, this drainage sheet prevents soil particles from clogging the system while enabling continuous water flow from surrounding soil. The result is a reliable, efficient drainage, and protection against structural water damage across residential, commercial, and civil applications.

This system is ideal for use in retaining and basement walls, planter boxes, tunnels, and roof gardens—areas where drainage is crucial and structural integrity must be preserved. The dimple configuration creates an air gap that allows water inflow and transport while supporting ventilation, which helps prevent moisture buildup.

The integrated 130 g/m² geotextile is factory-adhered, ensuring consistent filtration and protection throughout the system's lifespan. Whether you're lining a tunnel wall or managing planter box drainage, this product performs under pressure—literally.

Specifications and Features 10mm high dimple configuration An adhered 130gsm hydrophillic geotextile fabric Dimple configuration to encourage water capture and discharge Resistance to biological attack and to a wide range of soil-borne chemicals Maximum continuous length is 20m as the roll length is 20m Applications Retaining and basement walls Tunnels and landfills Paved Areas Roof gardens and landscaped decks Planter boxes Benefits Wide, lightweight rolls allowing rapid and low cost install Puncture resistant, offering waterproofing membrane protection
