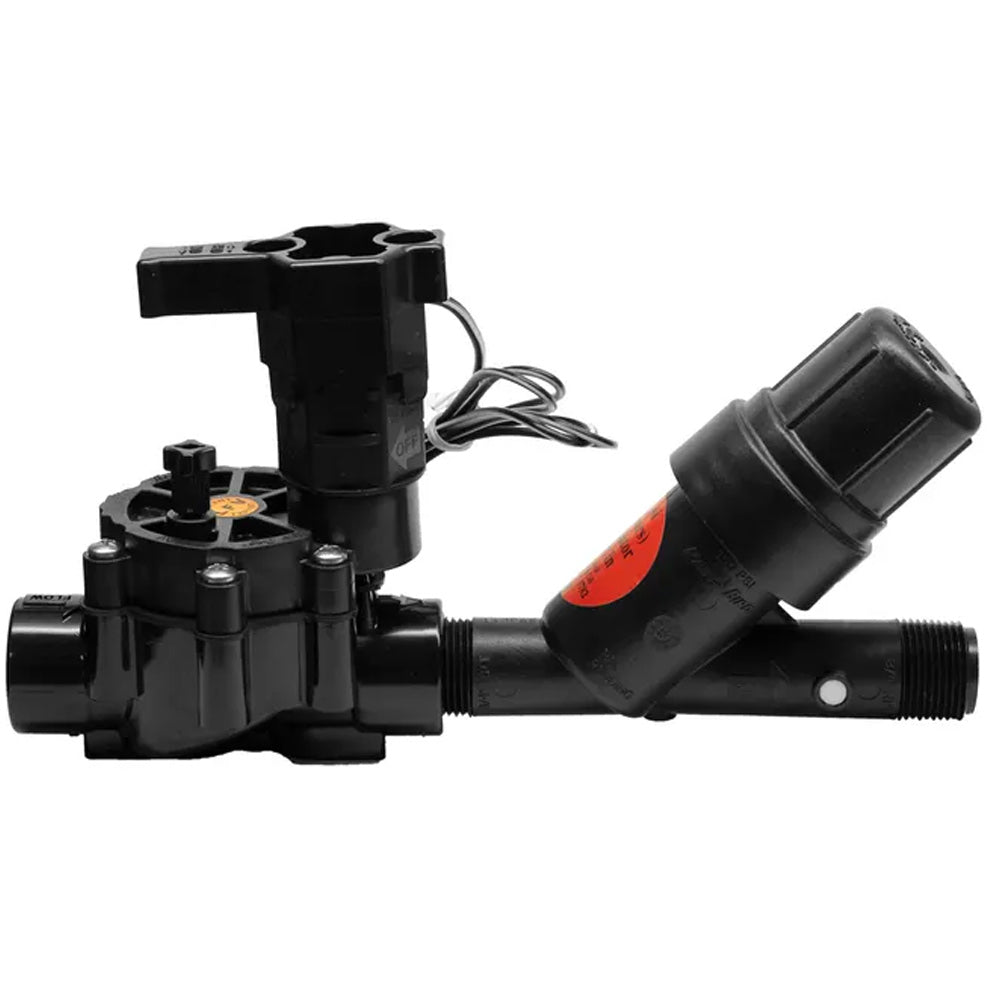

Xeri Control Zone Kit with Solenoid and PRF Filter

Solenoid Val Specifications & Features

• Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
• Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring

• Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
• Unique, easy-to-turn pressure assisted flow control mechanism (DVF models only)
• External bleed to manually flush the system of dirt and debris during installation and system start-up
• Internal bleed for spray-free manual operation
• Accepts Rain Bird TBOS latching solenoid for use with most battery-operated controllers or use the DVF Valve with 9V latching coil
• Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream

PRF Filter Specifications & Features

• Reduces the number of components in a control zone, making it smaller and easier to install. More control zones can fit in one valve box
• Combination unit comes with 200 mesh (75 micron) stainless steel reduces the number of connections, making installation easier and faster
• Static RBY filter regulates pressure to a nominal 30 or 40 psi (2.0 or 2.8 bar) - PR RBY Filter Cap has sealing O-ring and unthreads to provide access to the filter element for easy cleaning
• 30 or 40 psi pressure regulator is integrated into the filter body
• Robust body and cap are made of glass-filled polypropylene and provide 150 psi pressure rating
• ¾ units: 0.8 to 18.9 l/m
• 1" units: 11.4 to 56.8 l/m
• Inlet pressure: 20 to 150 psi
• Regulated pressure: As stated below
• 3⁄4" units: 30 psi.
• 1" units: 40 psi.
