Rain Bird Pressure Regulating RBY Filter 200 Mesh
From
$45.99
Unit price
/
Unavailable
RainBird Pressure Regulating RBY Filter
Unique, compact unit that works with all valves to create a simple, efficient control zone. Combines filtration and pressure regulation in one piece for protection of downstream components in a low-volume irrigation system
Features
-
Reduces the number of components in a control zone, making it smaller and easier to install. More control zones can fit in one valve box
-

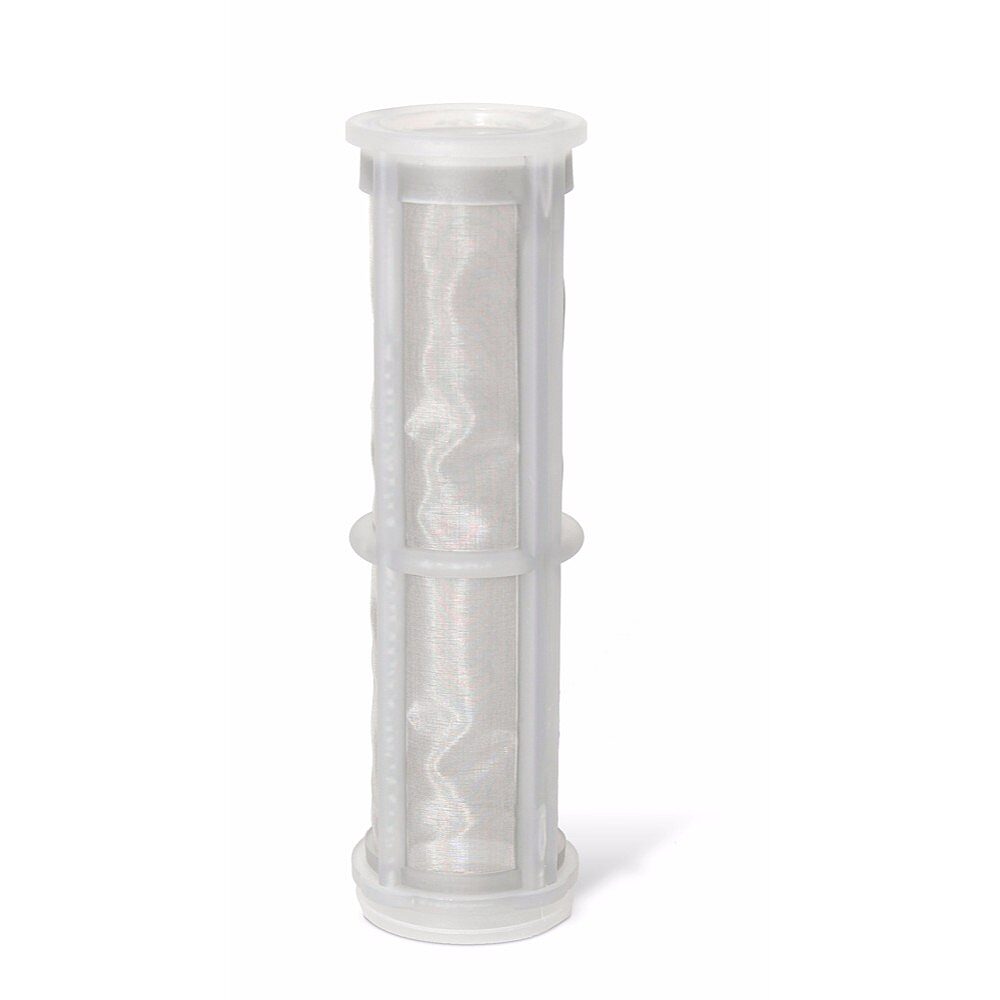

Combination unit comes with 200 mesh (75 micron) stainless steel reduces the number of connections, making installation easier and faster
-
Static RBY filter regulates pressure to a nominal 30 or 40 psi (2.0 or 2.8 bar) - PR RBY Filter Cap has sealing O-ring and unthreads to provide access to the filter element for easy cleaning
-
30 or 40 psi pressure regulator is integrated into the filter body
-
Robust body and cap are made of glass-filled polypropylene and provide 150 psi pressure rating
Specification
Operating Range
Flow:
- Note the 1" unit is 1" BSP, the 3/4" unit is 3/4" NPT
- ¾" units: 0.8 to 18.9 l/m
- 1" units: 11.4 to 56.8 l/m
- Inlet pressure: 20 to 150 psi
- Regulated pressure:
- 3⁄4" units: 30 psi
- 1" units: 40 psi
- Note: When installing with emission points more than 1.5m above the pressure regulating filter, a check valve should be installed after the regulator.
- Note: Filter must be installed downstream of a control valve and not under constant pressure.
