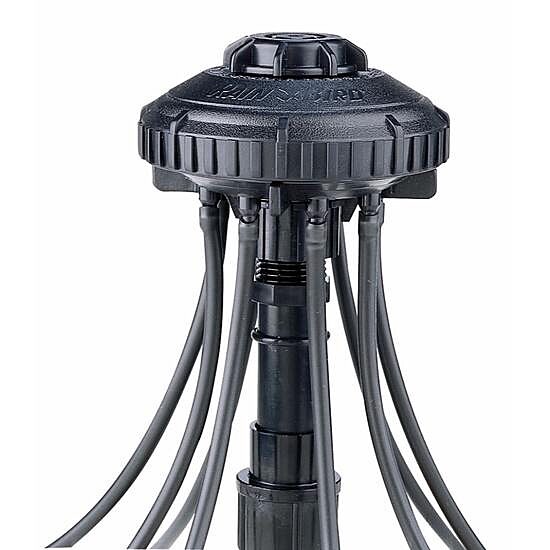

Rain Bird XERI-BIRD With 8 Emitters

 Specifications and Features

• The only multi-outlet device on the market with 8 configurable ports and 10 flow options for each port for maximum flexibility
• Contains a built-in filter. Makes retro-fitting easy when installed with the optional
• Easy to maintain, because body can be easily removed from riser
• Threads onto any 1⁄2" (15mm) male riser and delivers water to multiple locations for increased system flexibility

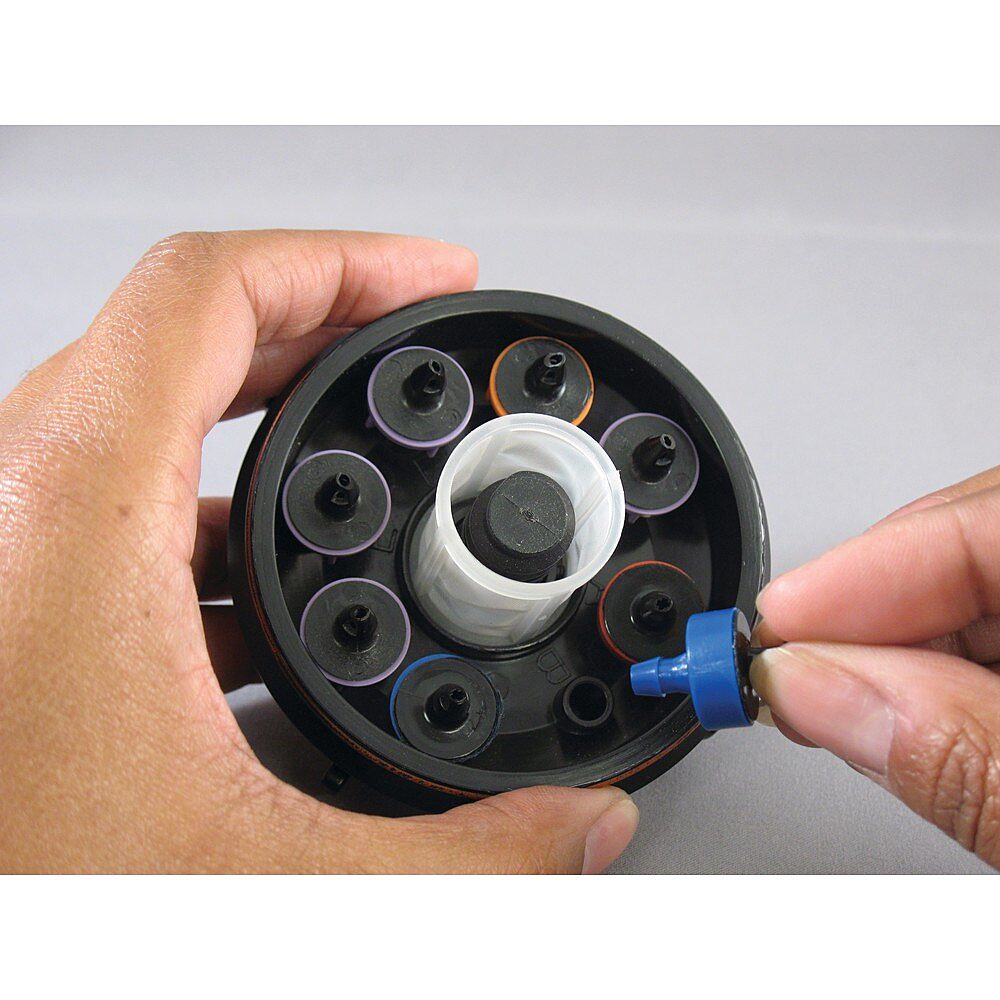

• Each port accepts a Xeri-Bug™ Emitter or PC Module for independent flows from 1.89 to 90.84 l/h or use a self-piercing barb connector for unrestricted flow
• Feature an integral 200 mesh (75 micron) filter which is easily serviceable from the top of the unit
• Eight bottom-mounted, sure-grip barbed outlets securely retain 4mm Distribution Tubing
• Unique union base nut allows removal of Xeri-Bird 8 body from riser for easy installation and maintenance
• Emitters must be installed inside the Xeri-Bird to prevent excess back pressure
• Tubing not included.
