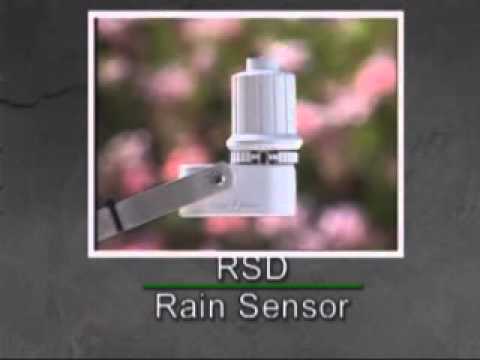

Rain Bird Hard-Wired Rain Sensor
The Rain Bird RSD Series Rain Sensor automatically shuts off your irrigation system when it rains, so you don't have to worry when you're home or away. The RSD Series Rain Sensor easily connects to most irrigation system controllers. RSD Series Rain Sensors offers flexible, multiple rainfall settings which are quick and easy to adjust with a twist of the dial.
Features
-
Automatic rain shut-off prevents overwatering due to natural precipitation
-
Robust, reliable design reduces service call backs
-
Moisture sensing disks work in a variety of climates
-
Different sensor mounts permit speed and flexibility on the job site
-
Latching hinge maintains alignment
Specifications
- Power Source: 12NiCAD Battery.
- Battery Size: 174mm x 166mm x 126mm.
- Measurements: 260mm x 260mm x 200mm.
Mechanical Properties
- Multiple rainfall settings from 1⁄8"– ¾" (5 - 20 mm) are quick and easy with just the twist of a dial
- Adjustable vent ring helps control drying time
- High-grade, UV resistant polymer body resists the elements

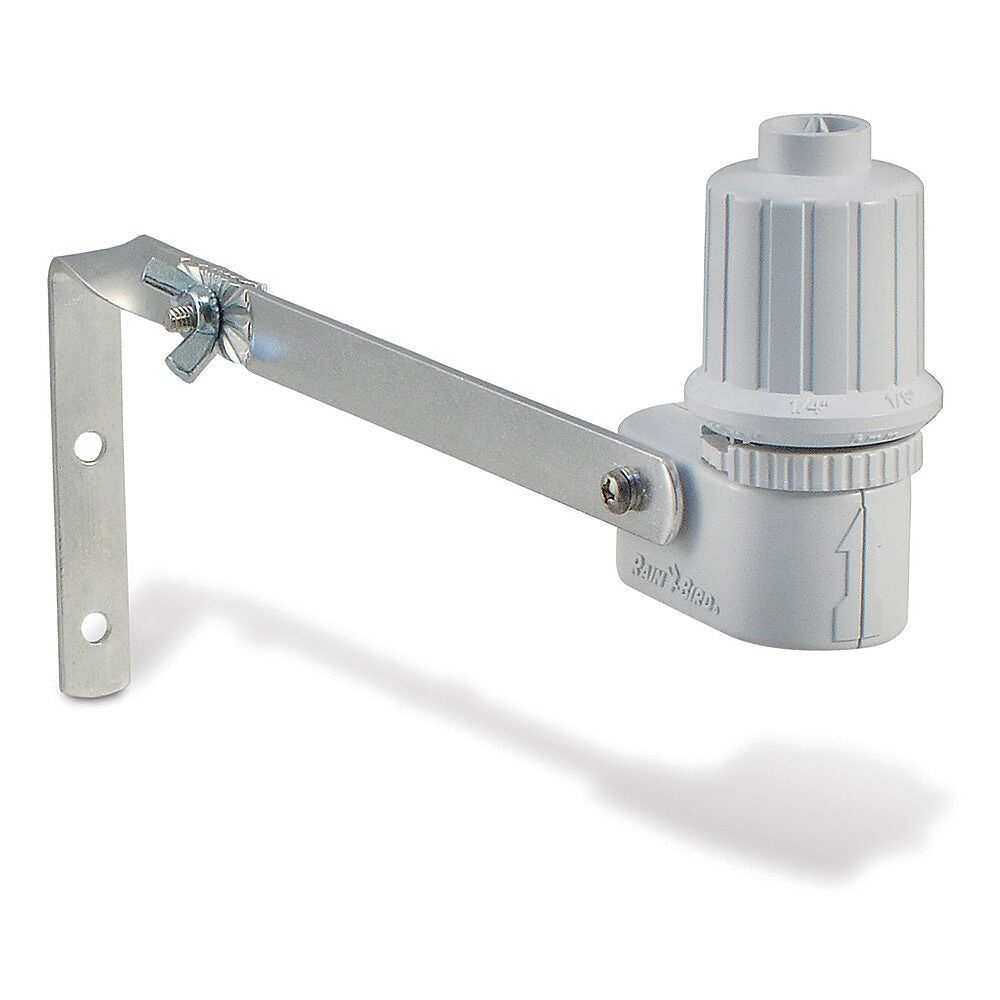

- Comes with 5" latching aluminum bracket
- Not compatible with ESP-SMT or ESP-SMTe controllers
Electrical Specifications
- Application: Suitable for low voltage 24 VAC control circuits and 24 VAC pump start relay circuits.Not recommended for use with high voltage pump start, pump start relay circuits or devices
- Switch electrical rating: 3A @ 125/250 VAC
- Capacity: Electrical rating suitable for use with up to ten 24 VAC,7 VA solenoid valves per station, plus one master valve
- Wire: 7.6 m length of #20, 2 conductor UV resistant extension wire
Certifications
- RCM Australia and New Zealand
Dimensions
- Overall length: 16.5 cm
- Overall height: 13.7 cm
- Bracket hole pattern: 3.2 cm
