Description

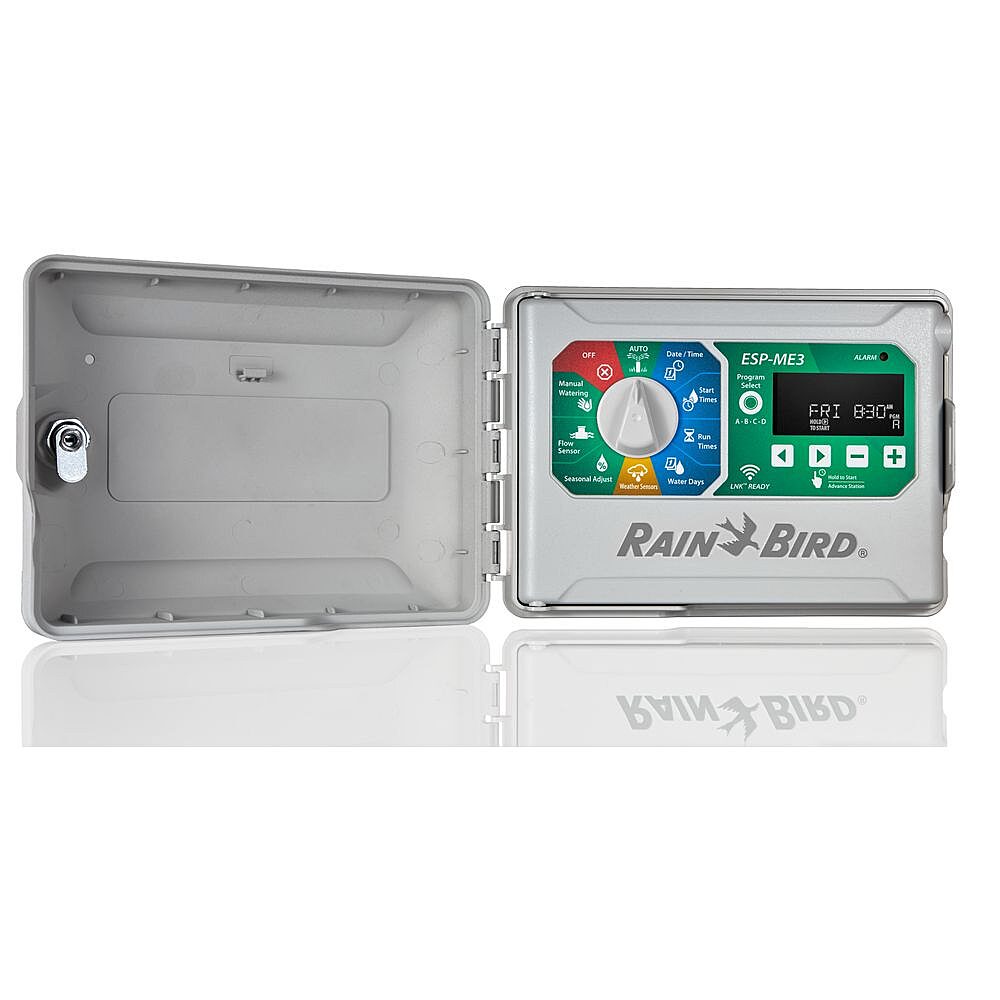

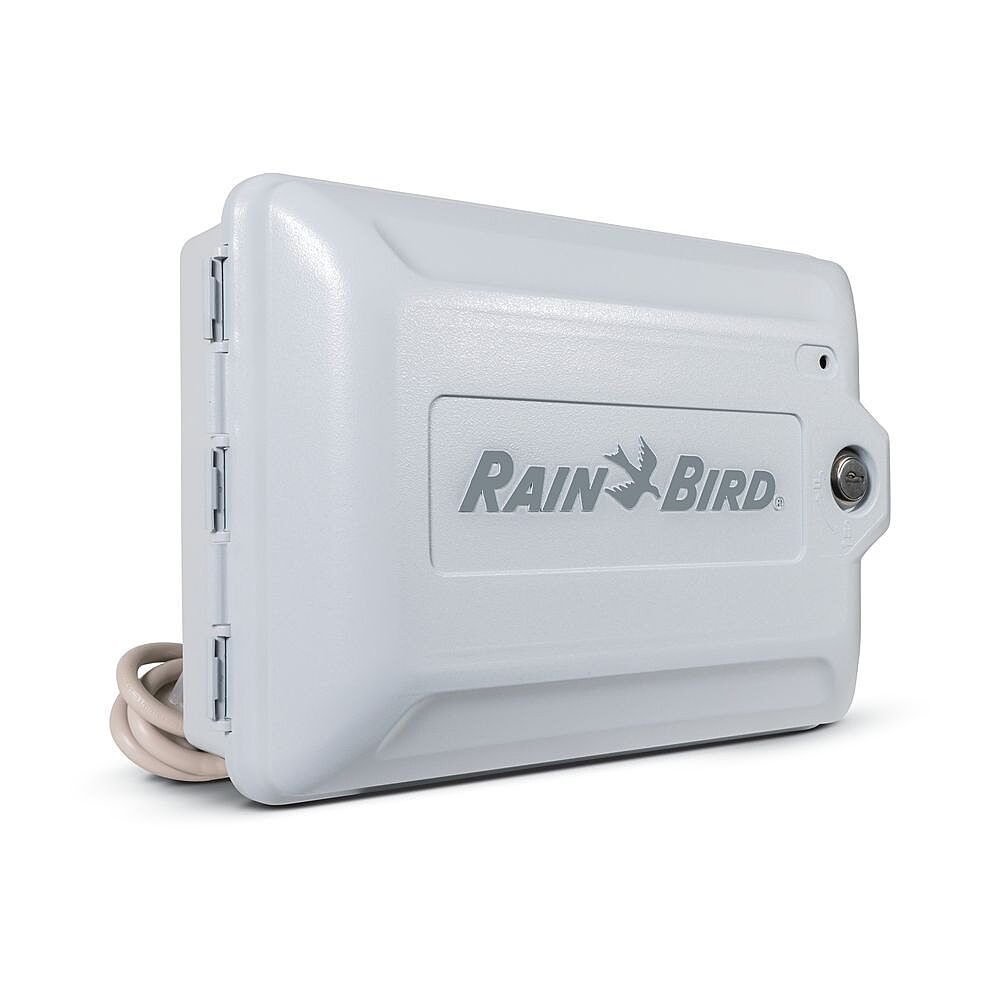

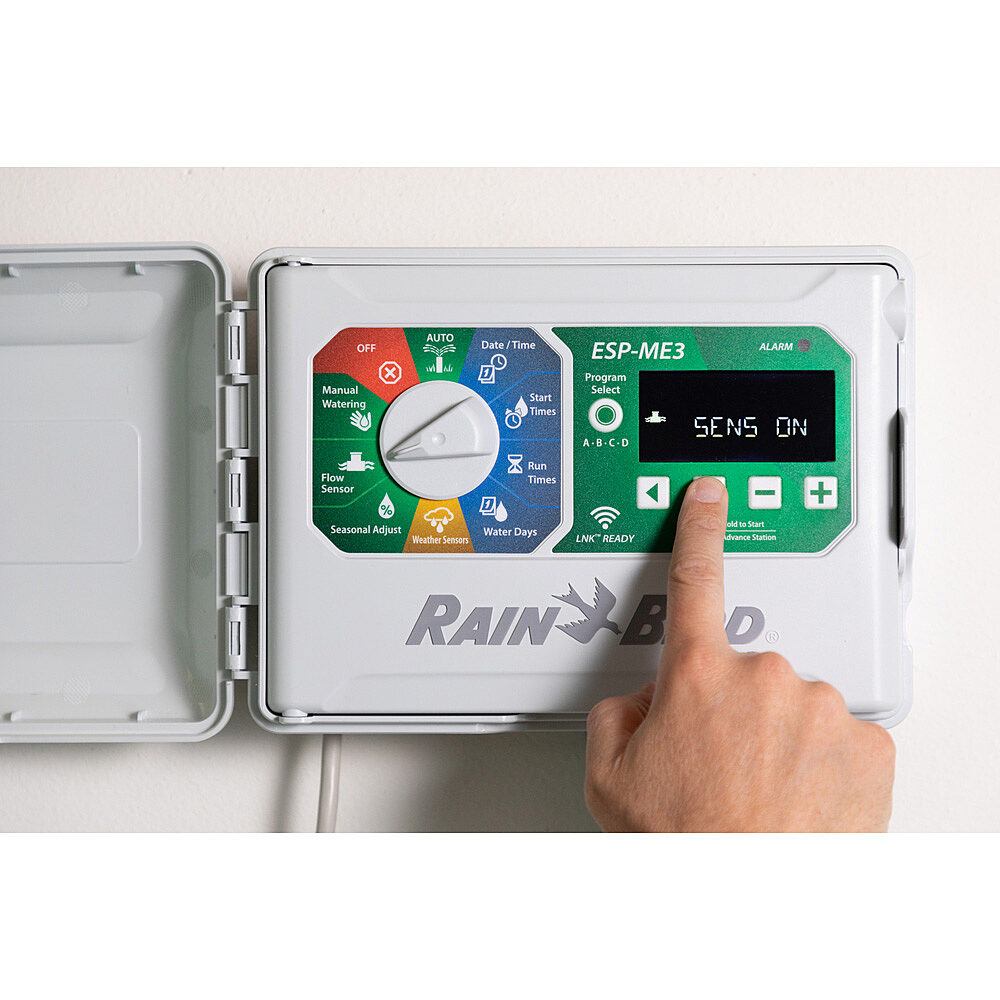

Rain Bird ESP-ME3 Series Controller & Wifi Combo

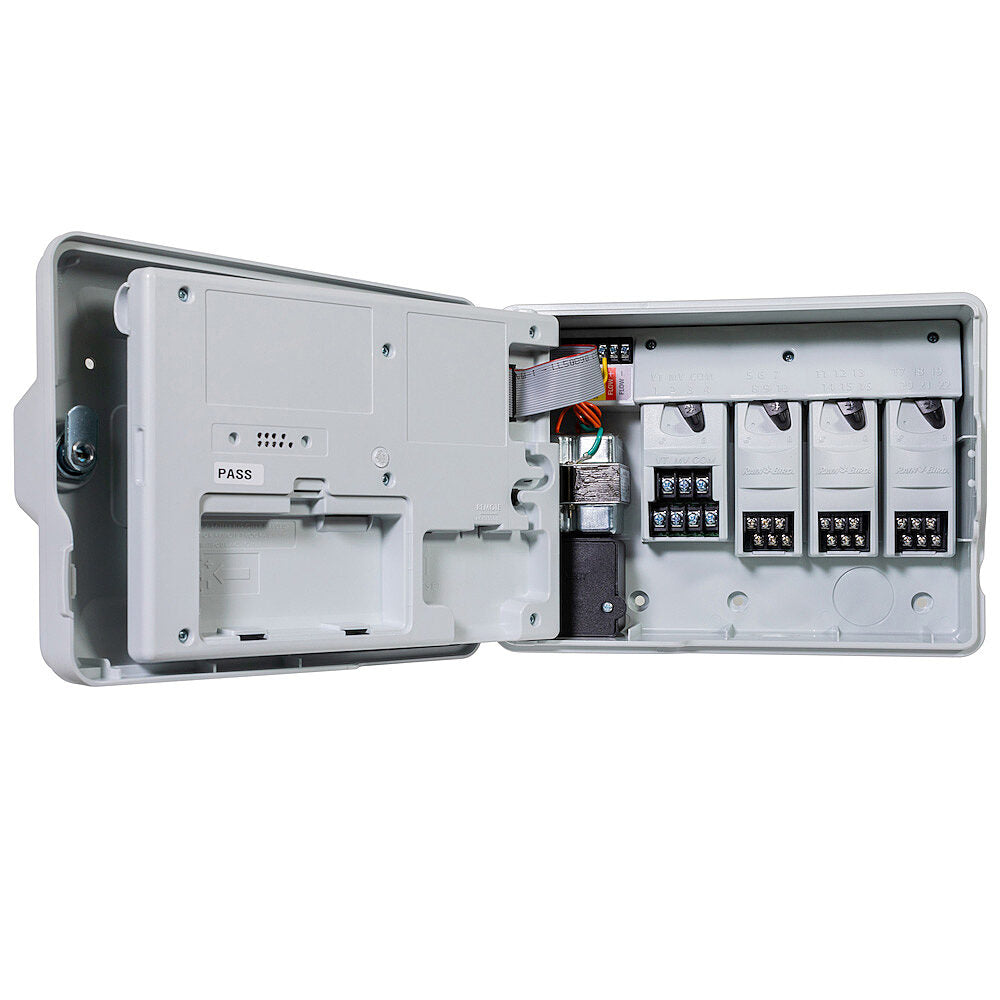

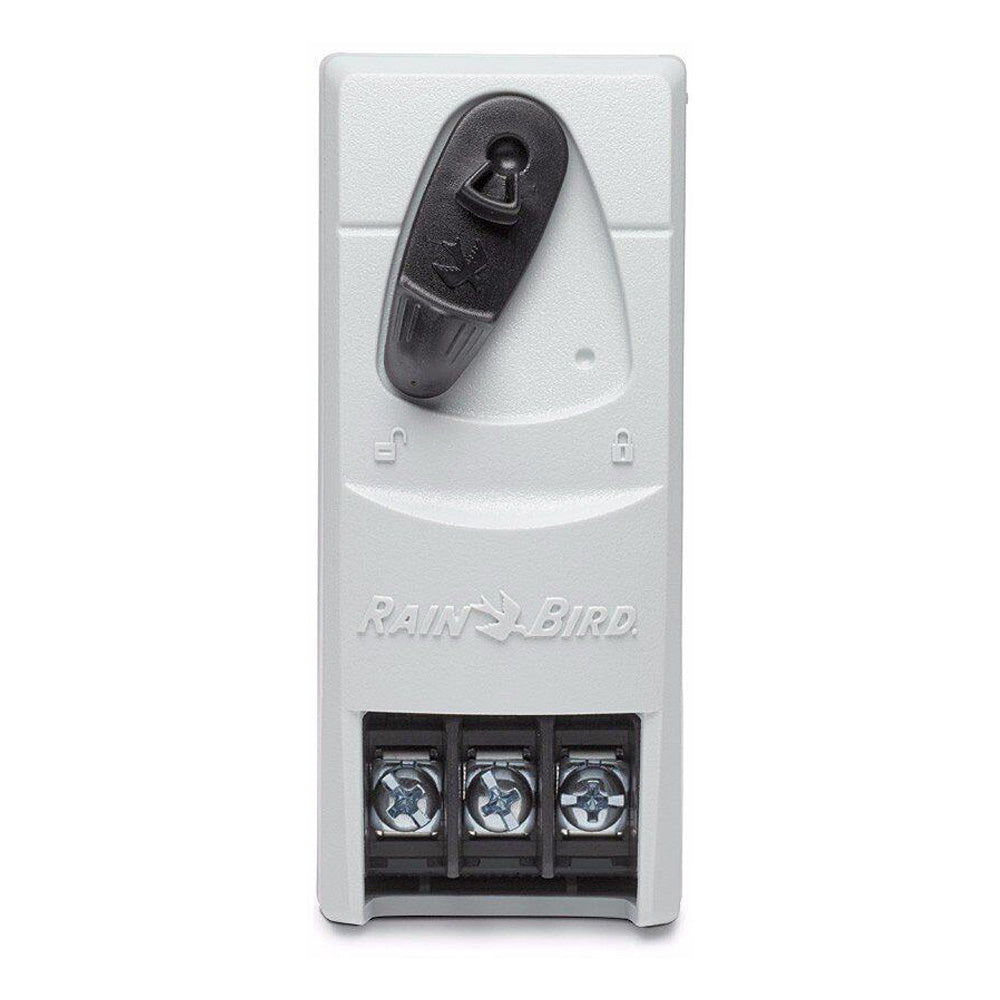

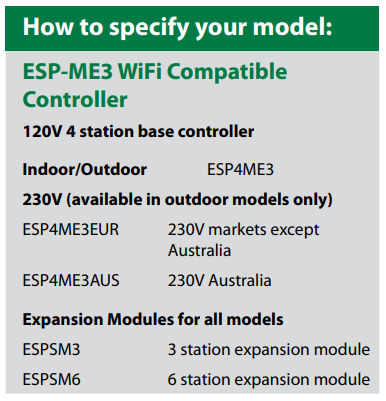

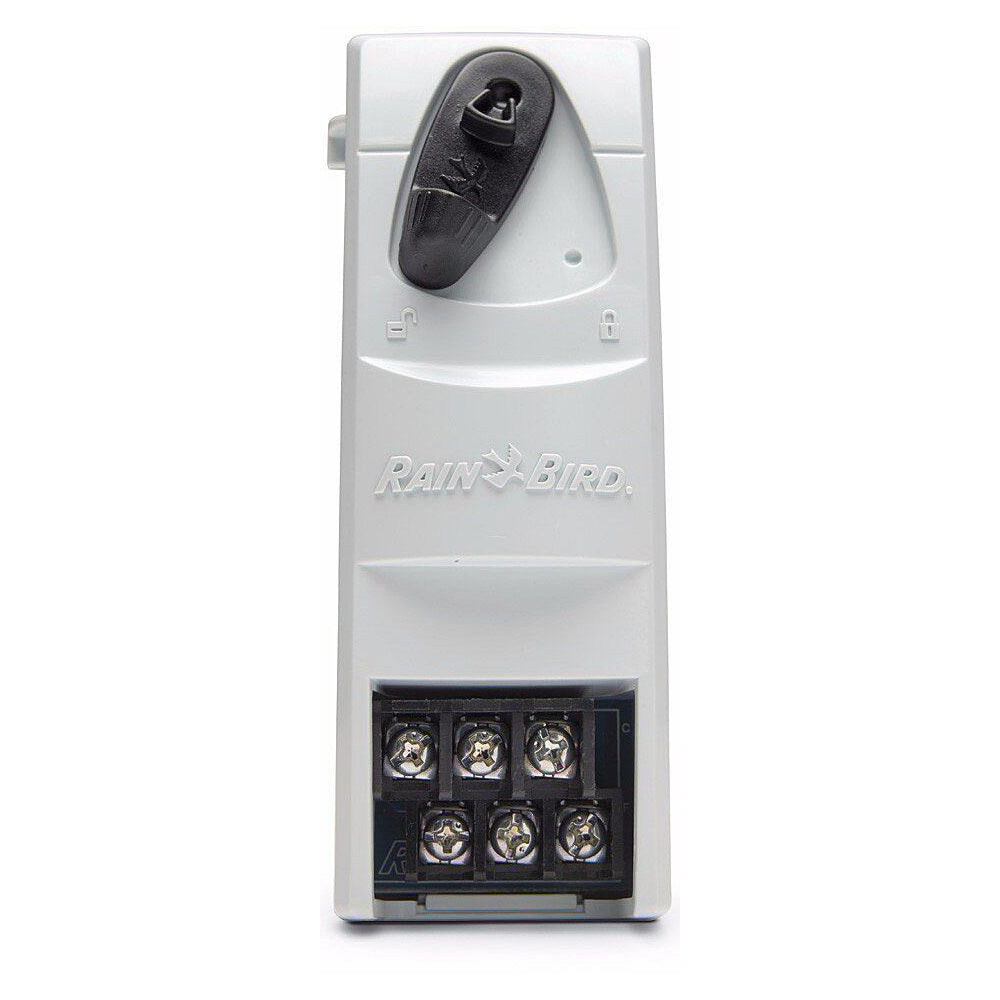

Capable of supporting up to 22 stations, the ESP-ME3 provides the station count options customers need. Purchase the ESP-ME3 Controller which supports 4 stations straight out of the box, then simply add station modules to the existing controller when expanding the irrigation system without removing or even powering down the controller.
Upgrade the ESP-ME3 to a SMART controller by adding the LNK WiFi module and a WR2 rain sensor. The LNK makes programming and monitoring easy through the free Rain Bird app.
For even greater water monitoring and protection from a broken irrigation system, install a flow sensor - Contact us today to know more!
Features
- Built-in flow-sensing capabilities

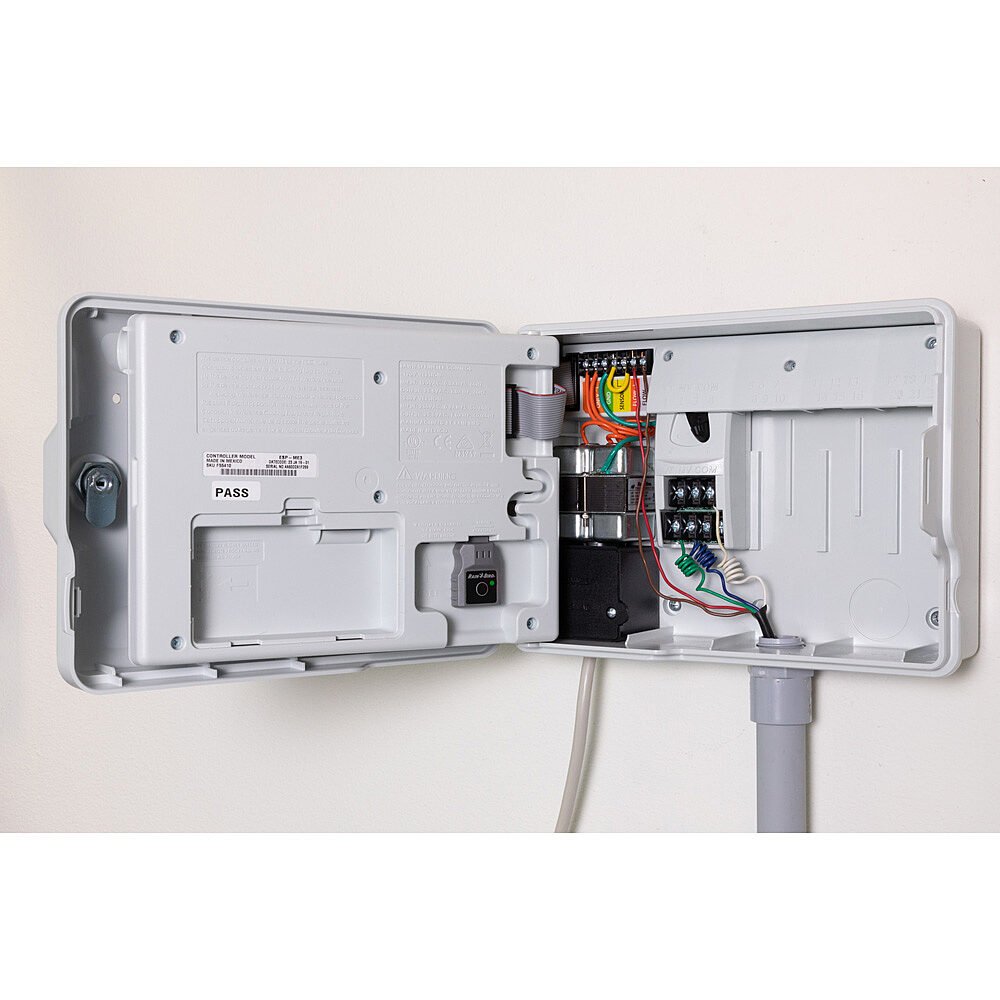

- Easy to install indoors or outdoors with pre-installed power cord
- Back-lit LCD display for improved visibility in low-light and direct sun conditions
- Upgradeable for WiFi-based remote monitoring and control via iOS and Android mobile devices (Available in Bundle)
- Internet-based weather information can be used to make daily adjustments to the irrigation schedule, saving up to 30% in water with LNK WiFi Module (available in Bundle)

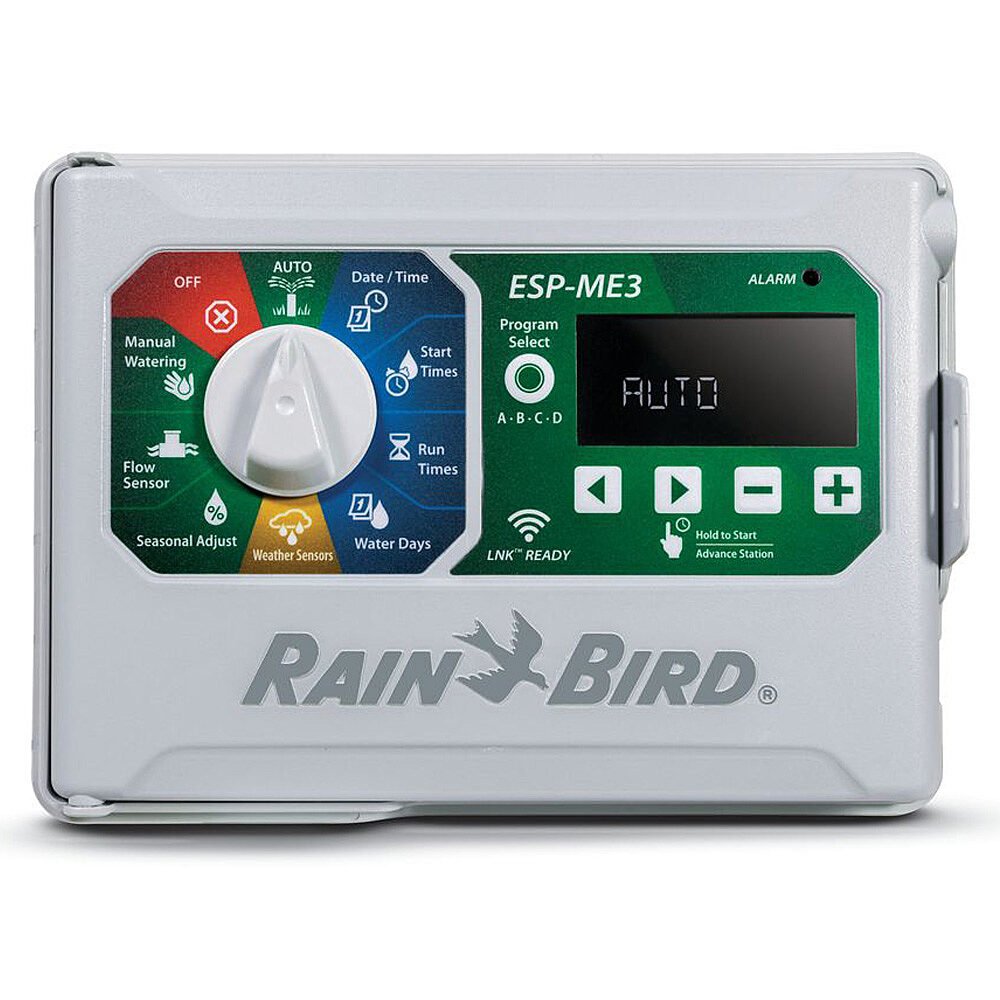

- Large LCD display with easy to navigate user interface
- Master valve/pump start circuit
- Non-Volatile (100 year) storage memory
- Remotely Programmable under 9V battery power (not included)
- Program based scheduling allows 4 individual programs with 6 independent start times per program for 24 total start times
- Watering schedule options: By days of week, ODD calendar days, EVEN calendar days, or Cyclic (every 1 – 30 days) Advanced Features
- Advanced diagnostics and short detection with LED alert
- Contractor Default™ Program Save/Restore saved program(s)
- Rain Sensor bypass by Station
- Delay Watering up to 14 days (applies only to stations not set to ignore Rain Sensor)
- Manual Watering option by program or station
- Seasonal Adjust applied to all programs or individual program
- Adjustable delay between valves (default set to 0)
- Master Valve on/off by station
Specifications
- Station timing: 1 minute to 6 hours
- Seasonal Adjust: 5% to 200%
- Max operating temperature: 65°C
- Dimensions
- Width: 27.2 cm
- Height: 19.5 cm
- Depth: 11.2 cm
Downloads

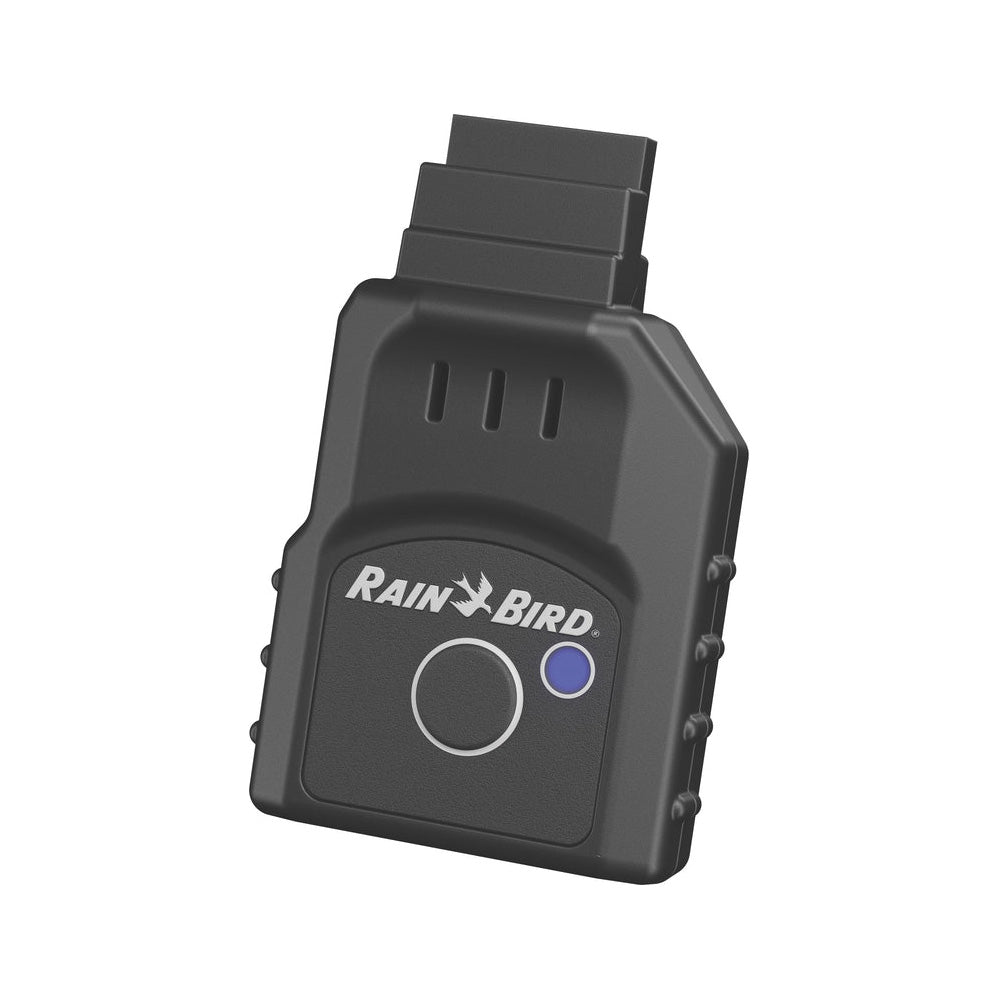

Rain Bird LNK Wifi Module

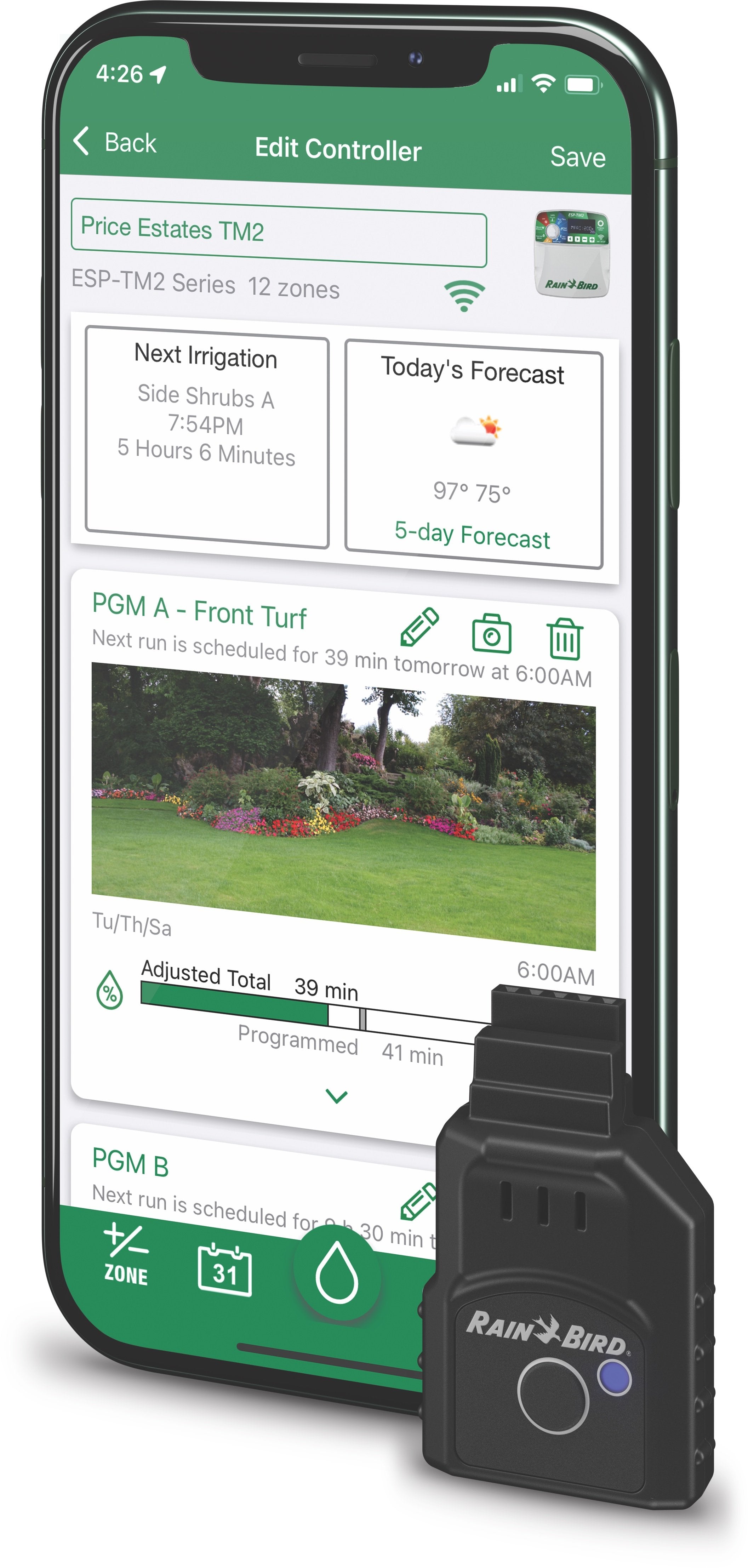

The Rain Bird LNK WiFi Module allows easy access and control of Rain Bird wifi compatible controllers from anywhere in the world. With the LNK WiFi Module and Rain Bird’s FREE mobile app, users get access to off-site management, real-time alerts and advanced water management tools via their smart phone or tablet.
Features
- Upgrades WiFi-ready controllers (ESP-Me and ESP-TM2) to make them fully accessible and programmable from iOS or Android compatible devices
- Operates like a wireless remote control for your irrigation system while onsite or an internet-based monitoring and control system when offsite
- Streamlines and simplifies initial irrigation timer setup and seasonal adjustment
- Instant access allows for real-time system management and timer settings
- Compatible professional app features allow for simple multi-site management and as well as remote diagnostics by landscape professionals
- Built-in mobile notifications provide troubleshooting access, simplify service calls, and warn of freezing conditions when expected
- Automatic weather adjustments provide daily run time changes, saving up to 50% in water
- Superior programming capabilities that are designed to meet the most stringent water restrictions
LNK Wifi 2 Added Features
- NEW Quick Pair Technology for faster, more seamless setup
- Automatic weather adjustments provide active run time changes to save water and money
- You will receive push notifications for irrigation and weather-based events with tailored alerts. That way you get the information that matters to you most.
- With remote diagnostics you can set up service calls, troubleshooting access, receive weather conditions warnings, and much more
- Weather data from local weather sources automatically adjust system run times on a daily basis. Your garden only receives the water it needs while saving up to 50% in water.
- Superior programming capabilities that are designed to meet the most stringent water restrictions
- LNK2 uses encrypted wireless communication to help protect our user’s privacy
Specifications
- 2.4 GHz (only) WiFi router compatible with WEP and WPA security settings
- Compatible with iOS 8.0 and Android 6 (Marshmallow) or later mobile devices
- Operating Temperature: -10° C to 65°C
- Storage Temperature: -40°C to 66°C
- Operating Humidity: 95% max at 10°C to 49°C non-condensing environment
