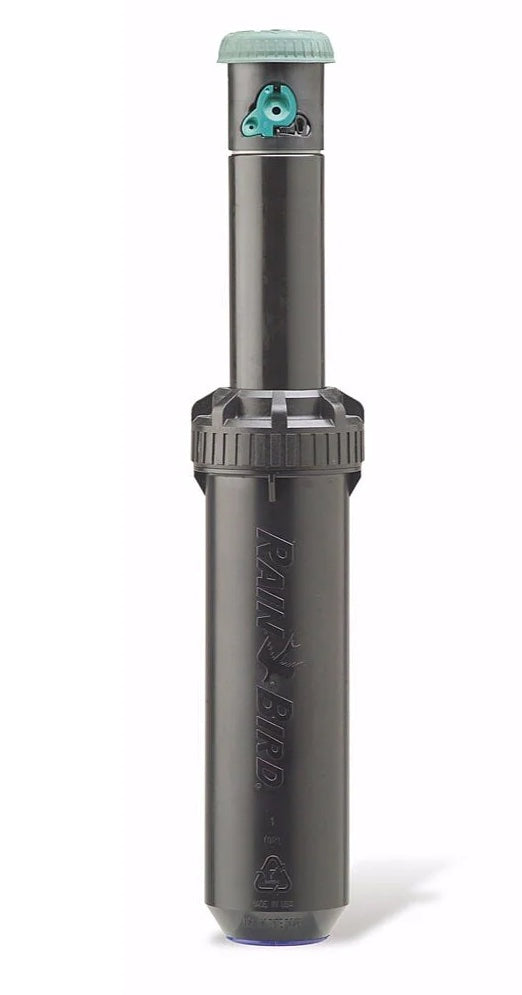

Rain Bird 8005 Series Rotor Pop-Up Sprinklers
 Rain Bird 8005 Series Rotor Pop-Up Sprinklers
Protect Your Turf with High Performance, Vandal- and Abuse-Resistant Rotors from 11.9 to 24.7 m
The Rain Bird® 8005 Rotor is built rugged to withstand the harsh conditions and vandalism present in commercial rotor applications. It has been designed and tested to ensure the high reliability demanded by the market today. With its extensive customer identified features, it is versatile enough to fit all applications. The Rain Bird® 8005 Rotor, with its extensive customer identified features and 24.7 m radius, is ideal for watering sports fields, parks, and other large turf applications.
Features
-
Vandal resistance, brass reinforced turret for increased side impact durability
- Memory Arc® returns the rotor to its original arc setting
- Non-strippable drive mechanism prevents damage from vandals
- Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50° to 330° part-circle, 360° non-reversing full-circle. Full and part circle operation in one unit
- Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection
- SAM Seal-A-Matic check valve
- 3-port, color-coded Rain Curtain nozzles for optimal long-range, midrange, and close-in watering
- 5 year warranty
Specifications
- Radius: 11.9 to 24.7 m
- Precipitation rate: 12 to 31 mm/h
- Pressure: 50 to 100 psi (3.5 to 6.9 bar)
- Flow: 0.86 to 8.24 m3/h; 14.4 to 137.4 l/m)
- 1" BSP female threaded inlet
- SAM Seal-A-Maticâ„¢ check valve holds up to 3.1 m of elevation change
- Nozzle outlet trajectory is 25º
- Rain Curtainâ„¢ Nozzles: Included with rotor, other sizes available upon request; 10-grey, 12-beige, 14-light green, 16-dark brown, 18-dark blue
Optional Features
Contact us today if the option you're after is not available online!

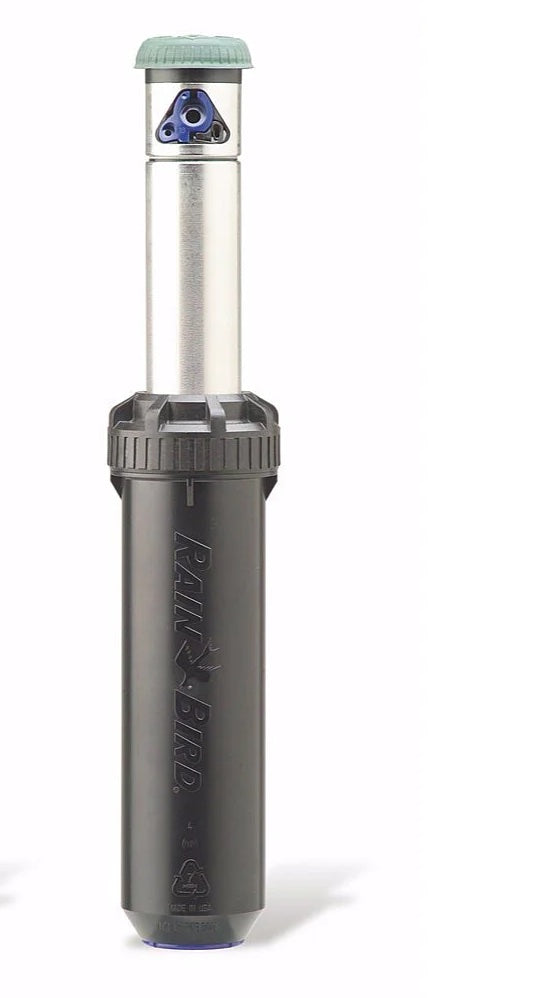

- Stainless steel (SS) riser helps deter vandalism on public turf areas
- Purple cover (NP) for non-potable systems
- Optional Sod Cup
Dimensions
-
Exposed diameter: 4.8 cm
- Overall diameter: 7.9 cm
- Overall height: 25.7 cm
- Pop-up height: 12.7 cm
- Note: Pop-up height is measured from cover to the primary nozzle port. Overall body height is measured popped down
