Rain Bird Falcon 6504 Series Rotor Pop-Up Sprinklers
 Rain Bird Falcon 6504 Series Rotor Pop-Up Sprinklers
Reliable and Economical Full- or Part-Circle Rotor Pop-Up Sprinklers
With the Falcon 6504 rotor, you can have it all -- uncompromising performance, superior distribution, reliability and durability. Rain Curtainâ„¢ nozzles maximize performance and coverage. A multi-function wiper seal and tapered riser keep the stem clear of debris, providing long-term protection. Plus, heavy-duty construction makes the Falcon 6504 one of the toughest rotors in the field.
Available in full- and part-circle models with optional stainless steel riser, the Falcon 6504 is ideal for large turf sites such as parks, athletic fields, cemeteries, schools and commercial sites with spacing up to 19.8 meters.
Features
- Ratcheting stem just like standard spray bodies
- 3-port, color-coded Rain Curtain nozzles for optimal long range,midrange, and close-in watering
- SAM Seal-A-Matic check valve
- Heavy-duty, stainless steel retract spring ensures positive pop-down
-
5 year trade warranty
Specifications
-
Precipitation Rate:Â 9 to 33 mm/h
-
Radius:Â 39 to 65 feet (11,9 to 19,8 m
-
Pressure:Â 30 to 90 psi (2,1 to 6,2 Bars)
-
Flow:Â 0,66 to 4,93 m3/h; 0,18 to 1,37 l/s)
-

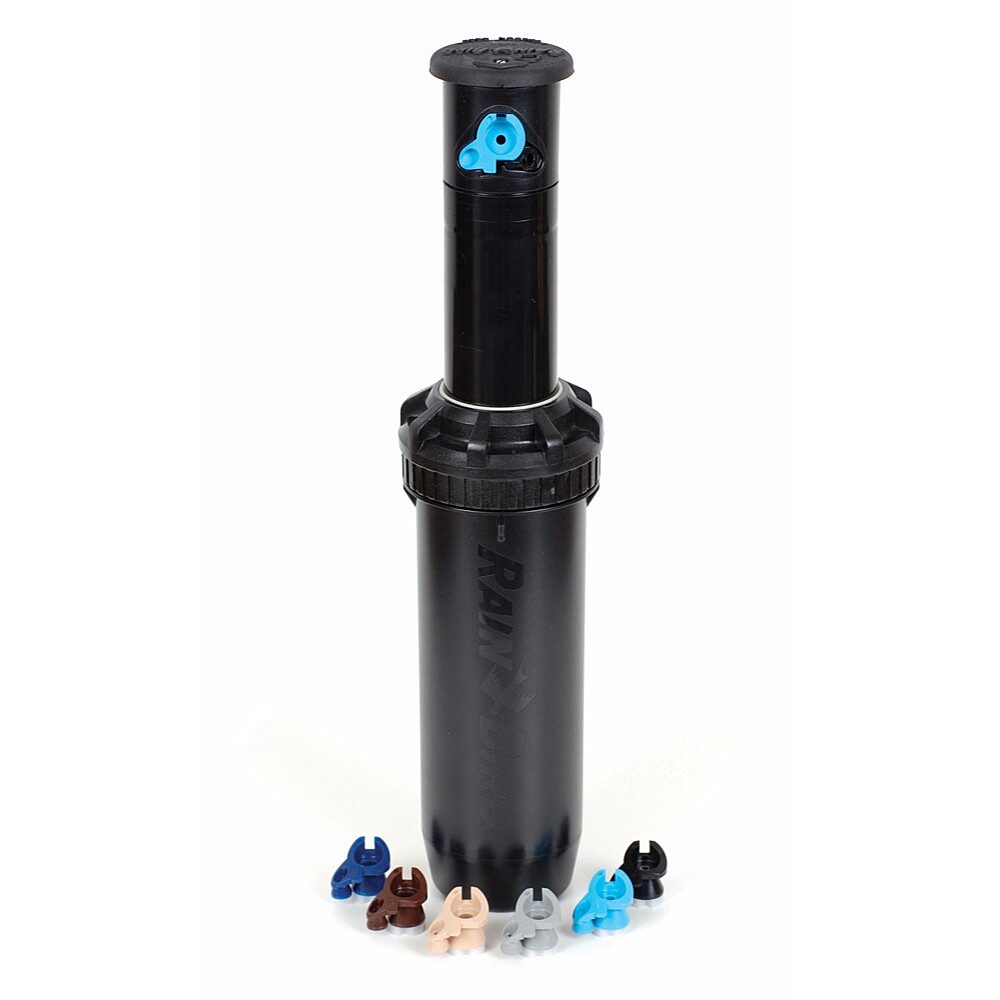

Rain Curtainâ„¢ Nozzles:Â Included with rotor, other sizes available upon request; 10-grey, 12-beige, 14-light green, 16-dark brown, 18-dark blue
-
1" (26/34) female NPT or BSP threaded inlet
-
SAM check device holds up to 10 feet (3,1 m) of elevation change
-
Nozzle outlet trajectory is 25°
Optional Features
Contact us today if the option you're after is not available online!

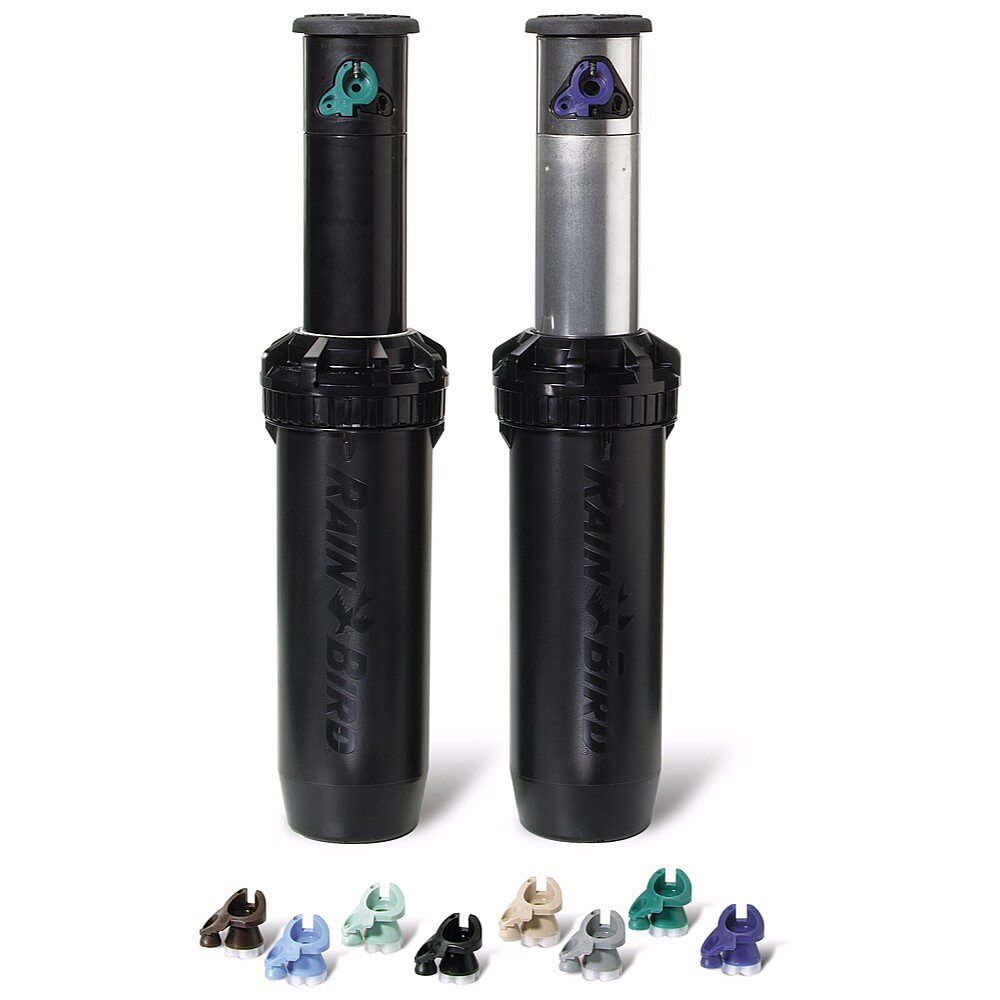

- Stainless steel (SS) riser helps deter vandalism on public turf areas
- Purple cover (NP) for non-potable systems
Dimensions
- Overall height: 21.6 cm
- Pop-up height: 10.2 cm
- Exposed surface diameter: 5.1 cm
- Note: Pop-up height measured from the cover to center of nozzle. Overall body height is measured popped down
