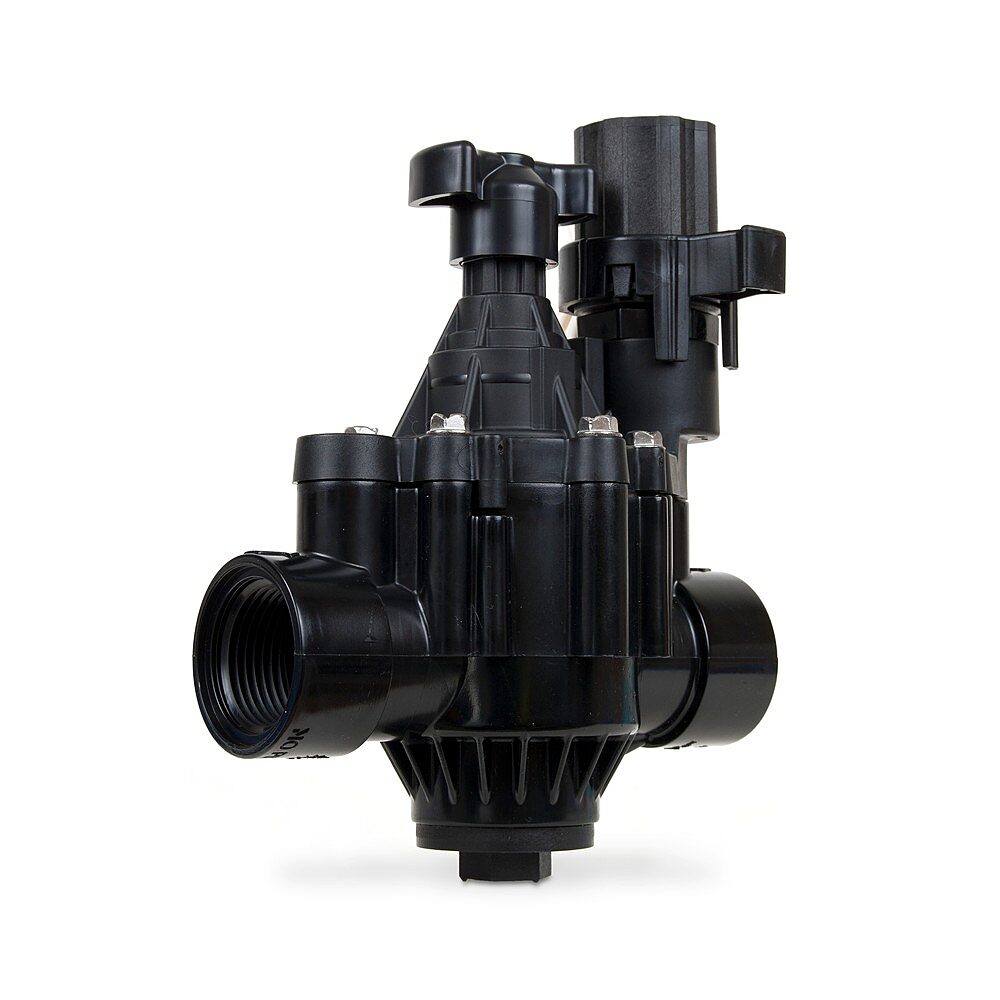

RainBird PGA Series Solenoid Valve
 RainBird PGA Series Solenoid Valve
Built for high-end residential and light commercial applications, Rain Bird PGA series valves are the toughest, most reliable valves in their class. These long-lasting, easy-to-service valves are proven to perform at the highest level, even under harsh temperatures and intense pressure. For maximum peace of mind, PGA series valves also offer a best-in-class, three-year trade warranty because you care about your reputation and so do we.
Features
-
Water-tight seal between the body and bonnet for maximum confidence, even in the most extreme conditions Â
-
Robust construction and electrical design for quiet performance
-
Filtered pilot flow to resist debris and clogging Â
-
Slow closing to prevent water hammer and subsequent system damage Â
-
Normally closed, forward flow design Accepts latching solenoid for use with Rain Bird battery-operated controllers Â
-
Multi-drive screws (Phillips, flathead, hexagonal) for easy maintenance Â
-
Manual internal bleed operates the valve without allowing water into the valve box. This allows the pressure regulator to be adjusted without turning the valve on at the controller Â
-
One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service Three-year trade warrantyÂ
-
Accommodates optional, field-installed PRS-D pressure regulating dial to ensure optimum sprinkler performance Â
-
Accepts latching solenoid for use with Rain Bird battery-operated controllers
Specifications
-
Pressure:Â 15 to 150 psi
-
Flow without PRS-D option:Â 2 to 150 gpm (0.45 to 34.05 m3/h; 7.8 to 568 l/m) Â
-
Flow with PRS-D option:Â 5 to 150 gpm (1.14 to 34.05 m3/h; 19.2 to 568 l/m) Â
- 24VAC 50/60Hz (cycles/sec) solenoid power requirement Â
-
Inrush current:Â 0.41A (9.9VA) at 50/60Hz Â
-
Holding current:Â 0.14A (3.43VA) at 50/60Hz Â
-
Solenoid coil resistance:Â 30-39 Ohms, nominal
