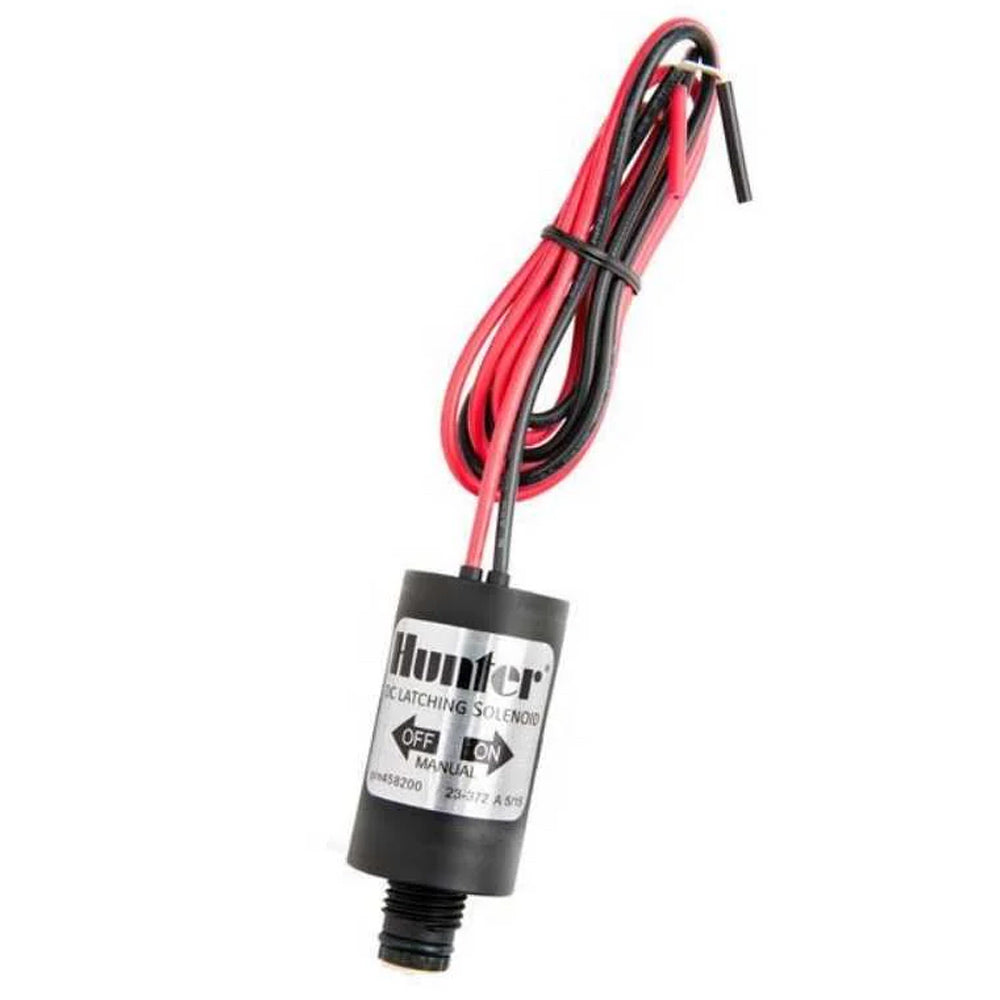

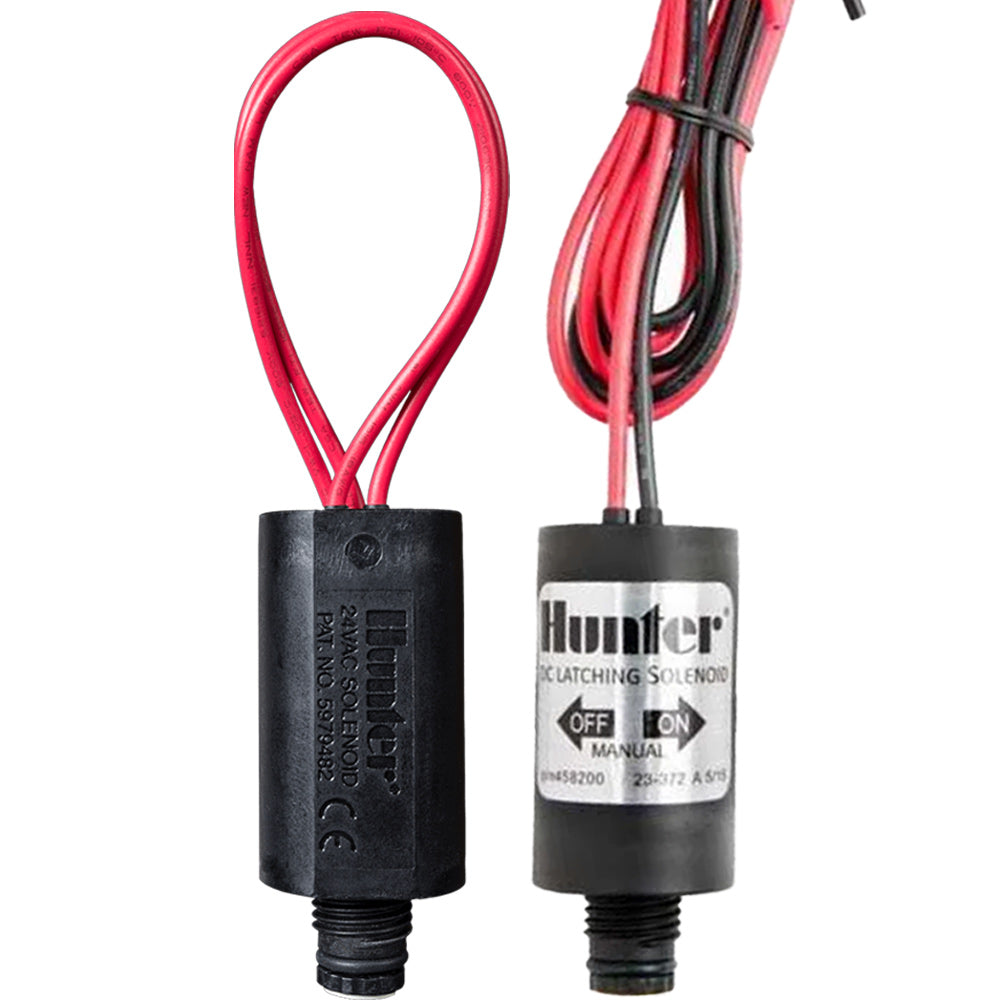

Hunter Solenoid Latching Coil

$41.95

Hunter Solenoid Latching Coil

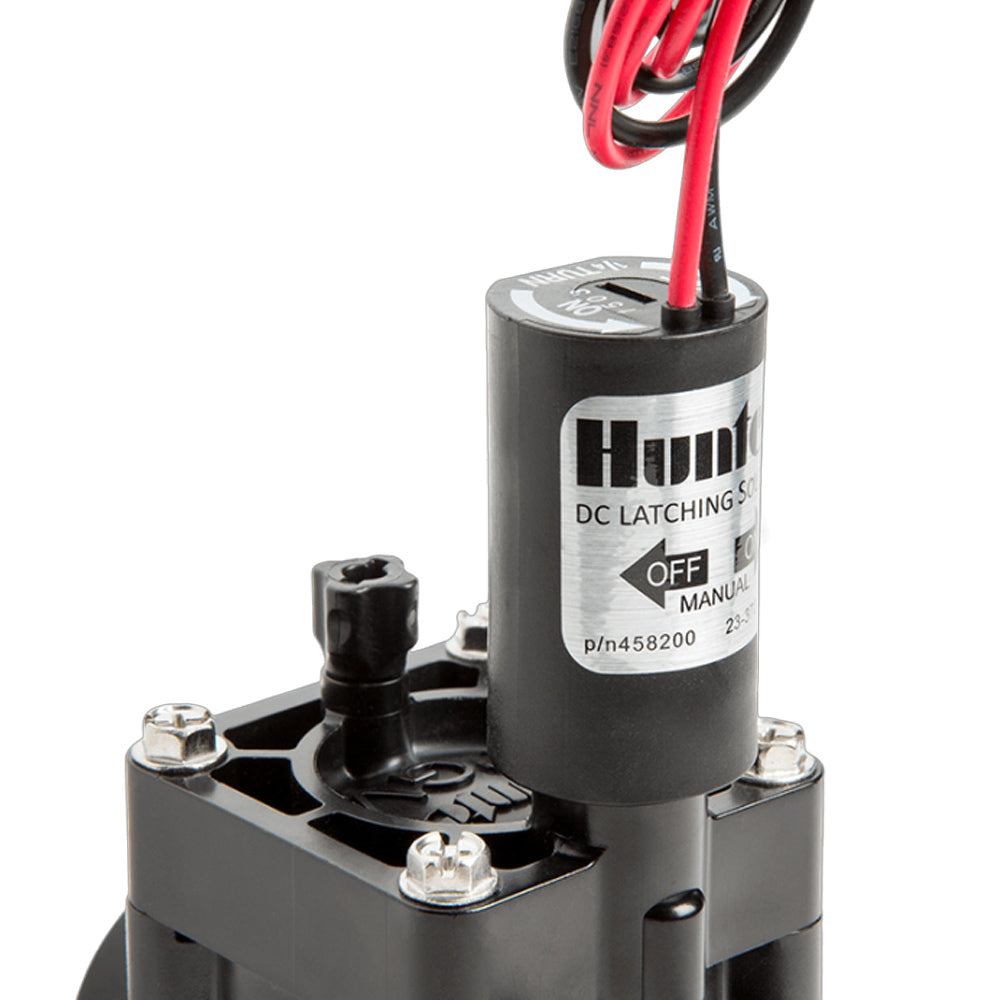

Extend the life of your solenoid with our Hunter DC Latching Solenoid Coil. To install just screw the coil into the top of our PGV solenoid valves great for converting a solenoid into either a DC solenoid for battery-operated controllers or an AC solenoid 240v controllers. See our range of Hunter irrigation supplies for much more.

 9-12V Specifications and Features

  • Minimum opening/operating voltage: 6 VDC.
  • Maximum recommended voltage: 9 VDC.
  • Coil resistance: 4.8 ohms nominal.
  • Maximum operating pressure: 13.79 bar; 1379 kPa.
  • Wire leads: 45 cm of 0.8 mm2 Black and Red UL-approved wire.

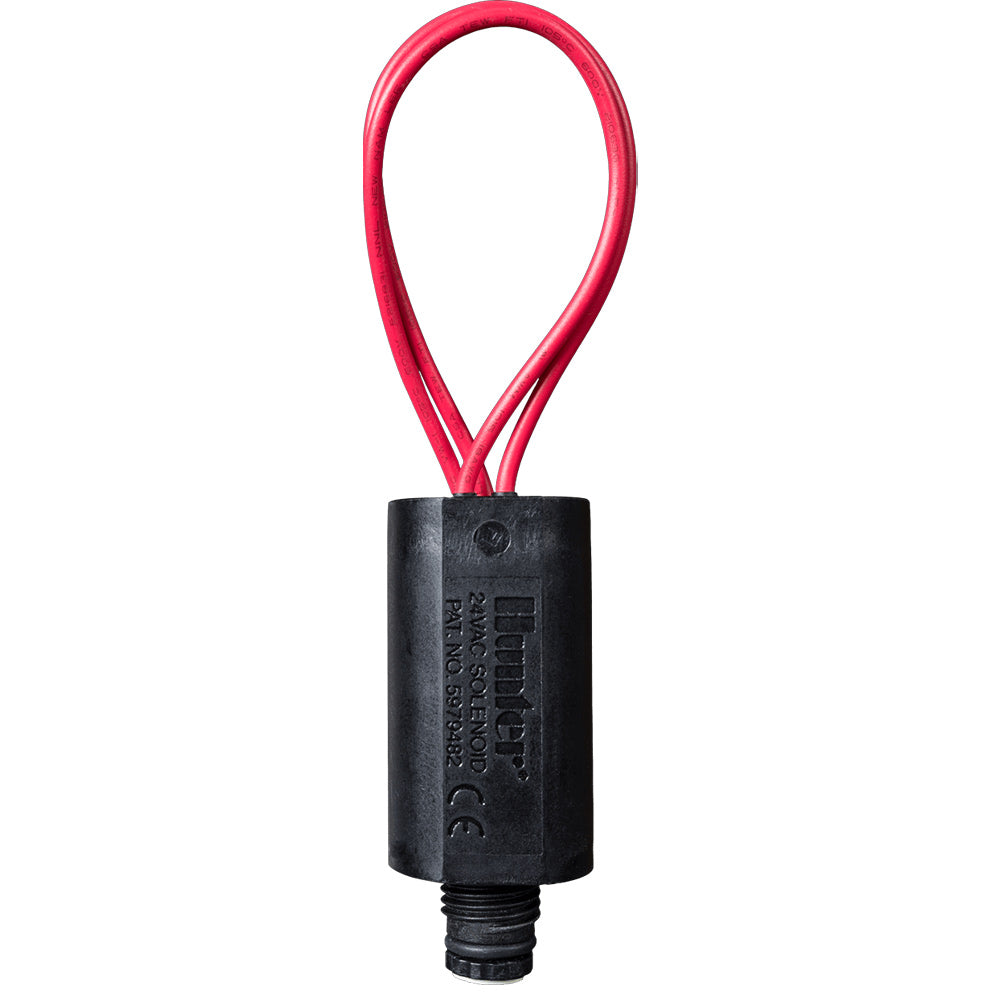

24V Specifications and Features

  • Minimum opening/operating voltage: 19 VAC.
  • Maximum recommended voltage: 28 VAC.
  • Current at 24 VAC:.
    • 350 mA inrush, 190 mA holding, 60 Hz.
    • 370 mA inrush, 210 mA holding, 50 Hz.
  • Maximum operating pressure: 15.17 bar; 1517 kPa.
  • Wire leads: 45 cm of 0.8 mm2 UL-approved wire.
