Arkal Red 120 Mesh Manual Disc Filter

$151.59

Arkal Red 120 Mesh Manual Disc Filter

The Arkal Red 120 Mesh Manual Disc Filter is designed to be used with your drip irrigation system. Great as being a primary or backup filtration unit, rated as a red disc filter the innovative design allows it to remove solids from your water flow. The innovative disc filter technology uses a series of compact discs allowing water to flow through while trapping solids. The discs are housed in a polyamide housing resistant to the toughest environments out in the field. The filters come with two male threads with varying thread sizes, capacities or with valve outlets.

Not suitable for mains pressure. Must be placed after the solenoid or controller.

 Specifications and Features

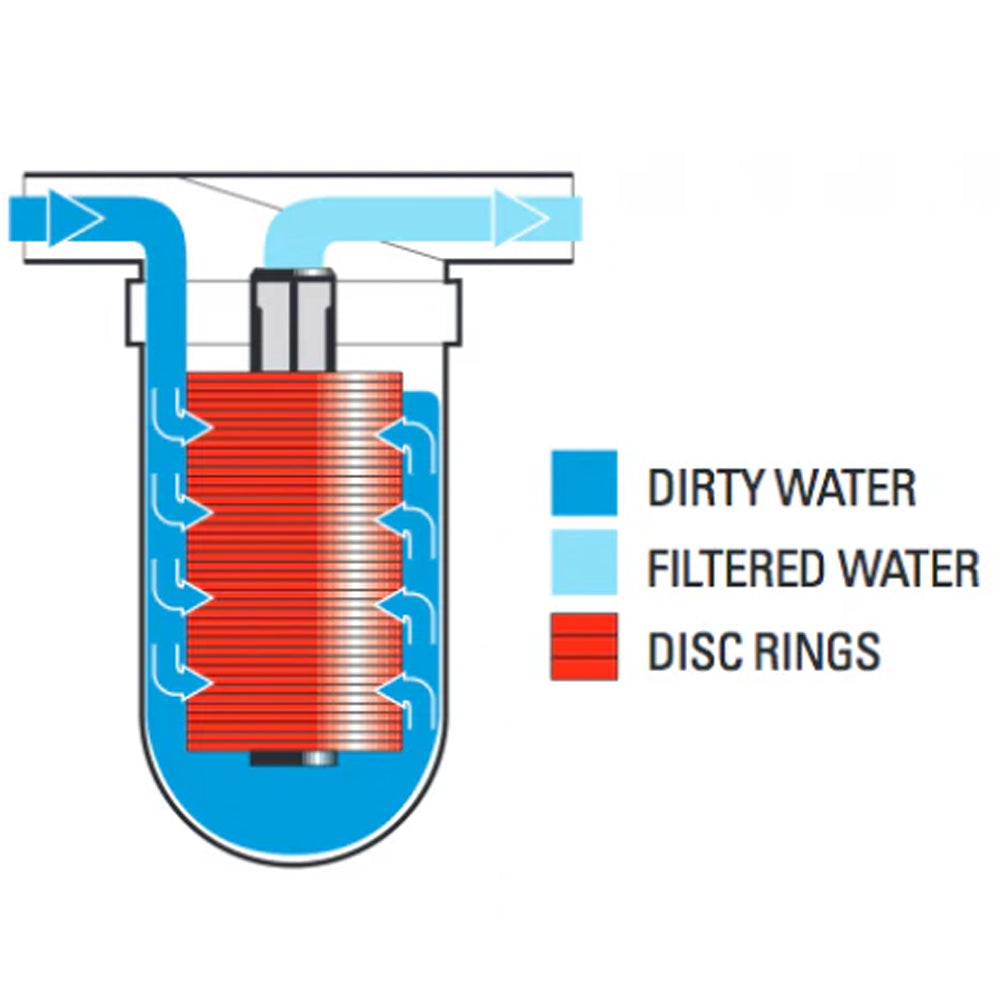

  • The filter element consists of grooved discs, mounted on a spine, forming a cylindrical filter element. The discs are compressed together by a spring located at the bottom of the filter cover.
  • Screw-On Filter Cover.
  • Resistant to chemicals and liquid fertilizers.
  • Long Life.
  • Corrosion Resistance.
  • 12 month warranty.

Installation Guide

  • Use teflon tape.
  • Ensure correct inlet/outlet direction.
  • When connecting filter to pipe - do not over tighten.

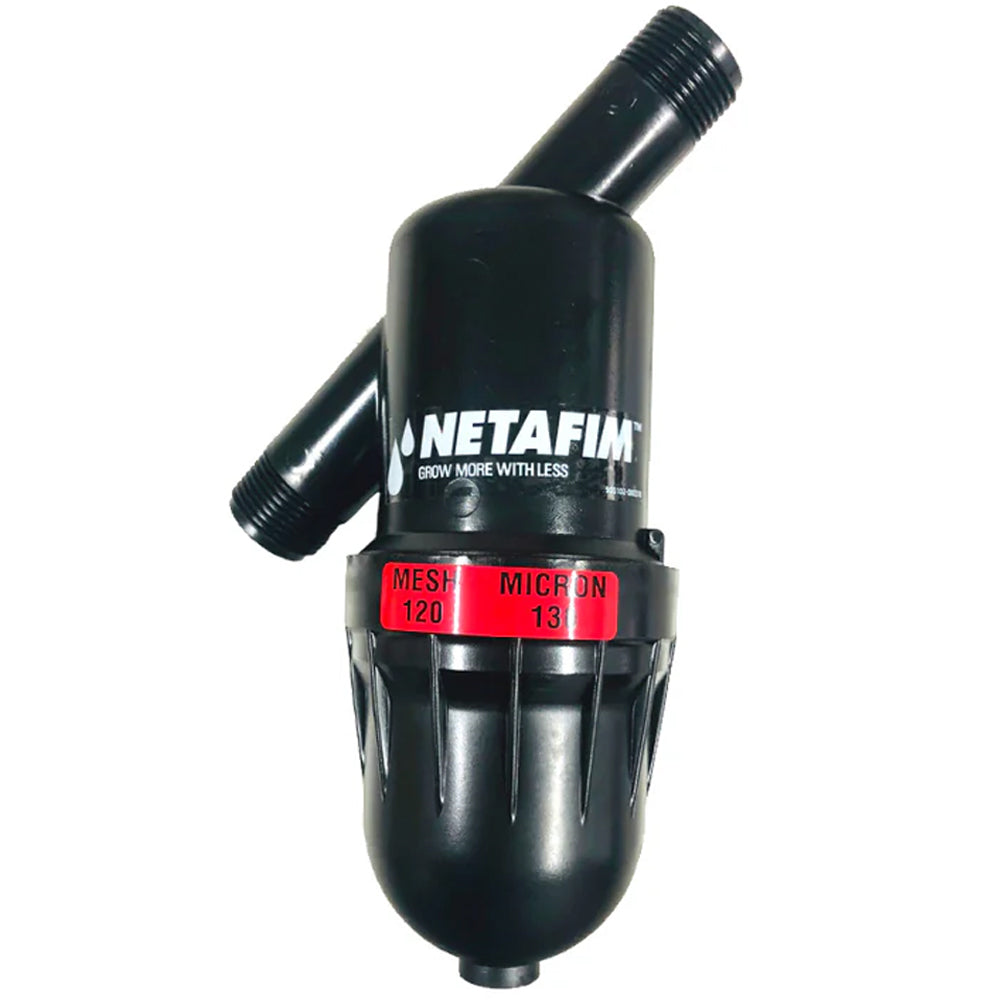

Technical Data 20mm Filter

  • Inlet Thread Size: 20mm BSPM.
  • Max Flow: 66.67 Lpm.
  • Max Pressure: 10bar.
  • 130 Micron / 120 Mesh.
  • Filter Length: 144mm.
  • Filter Width: 74mm.
  • Distance between connections: 150mm.

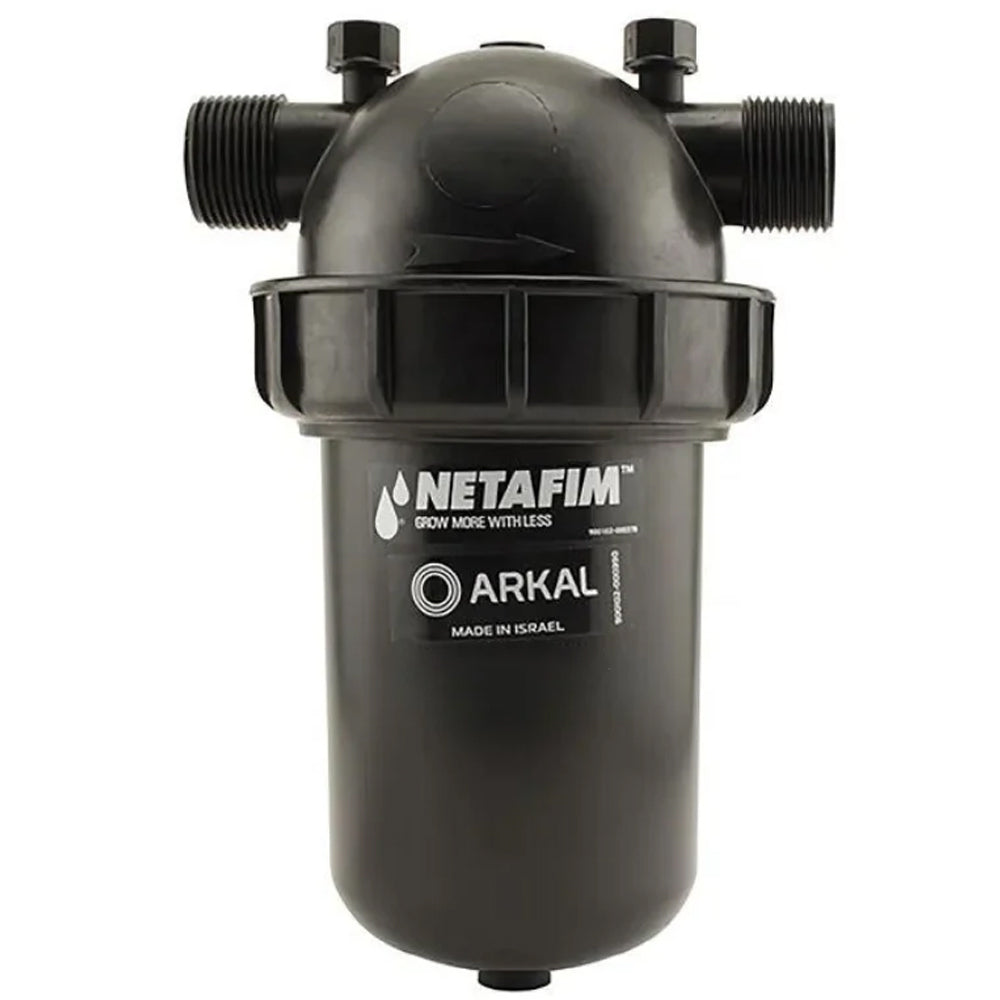

Technical Data 25mm Filter

  • Valve outlet included.
  • Plastic wrench to remove screw off filter housing.
  • Inlet Thread Size:  25mm.
  • Max Flow: 100Lpm.
  • Max Pressure: 10bar.
  • 130 Micron / 120 Mesh.
  • Filter Length:  301mm.
  • Filter Width: 130mm.
  • Distance between connections: 158mm.

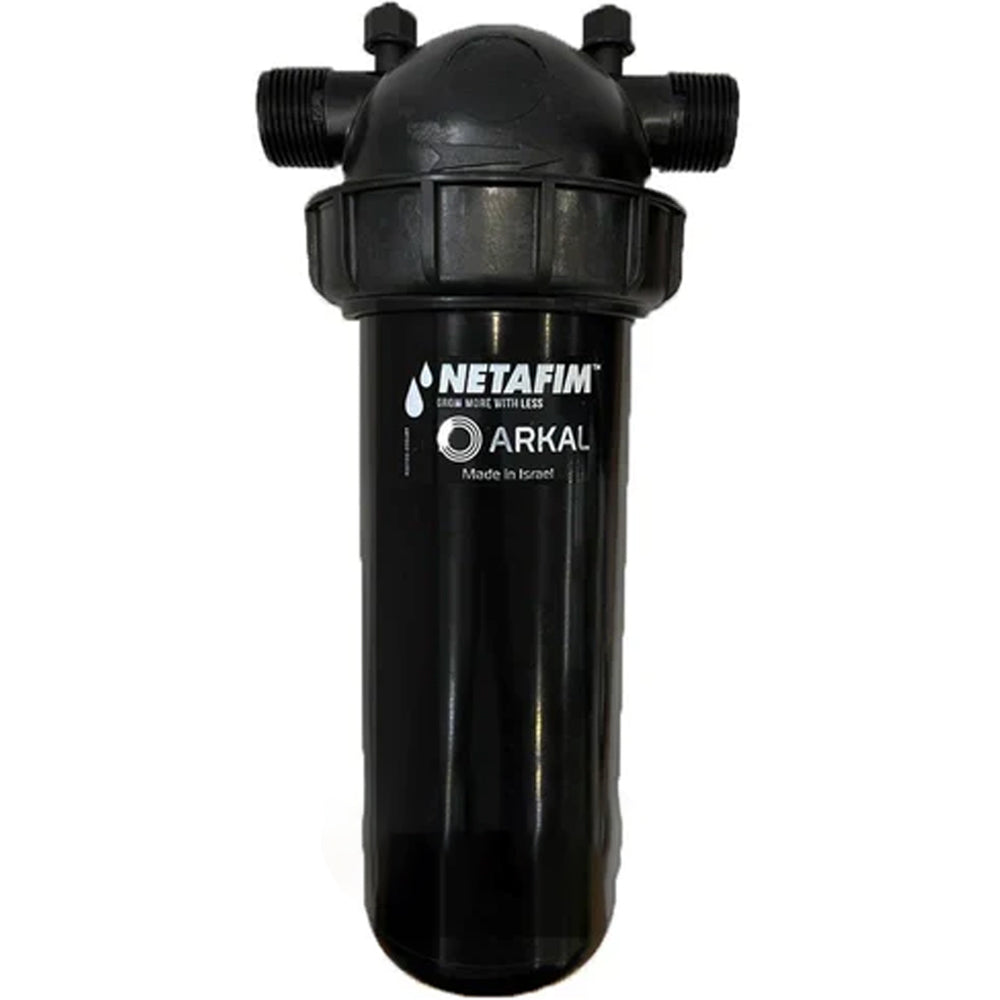

Technical Data 25mm Super Filter

  • Valve outlet attached.
  • Plastic wrench to remove screw off filter housing.
  • Inlet Thread Size:  25mm.
  • Max Flow: 102Lpm.
  • Max Pressure: 10bar.
  • 130 Micron / 120 Mesh.
  • Filter Length:  340mm.
  • Filter Width: 130mm.
  • Distance between connections: 158mm.

Technical Data 25mm Super Filter

  • Brass Valve outlet attached.
  • Plastic wrench to remove screw off filter housing.
  • Inlet Thread Size:  25mm.
  • Max Flow: 102Lpm.
  • Max Pressure: 10bar.
  • 130 Micron / 120 Mesh.
  • Filter Length:  340mm.
  • Filter Width: 130mm.
  • Distance between connections: 158mm.

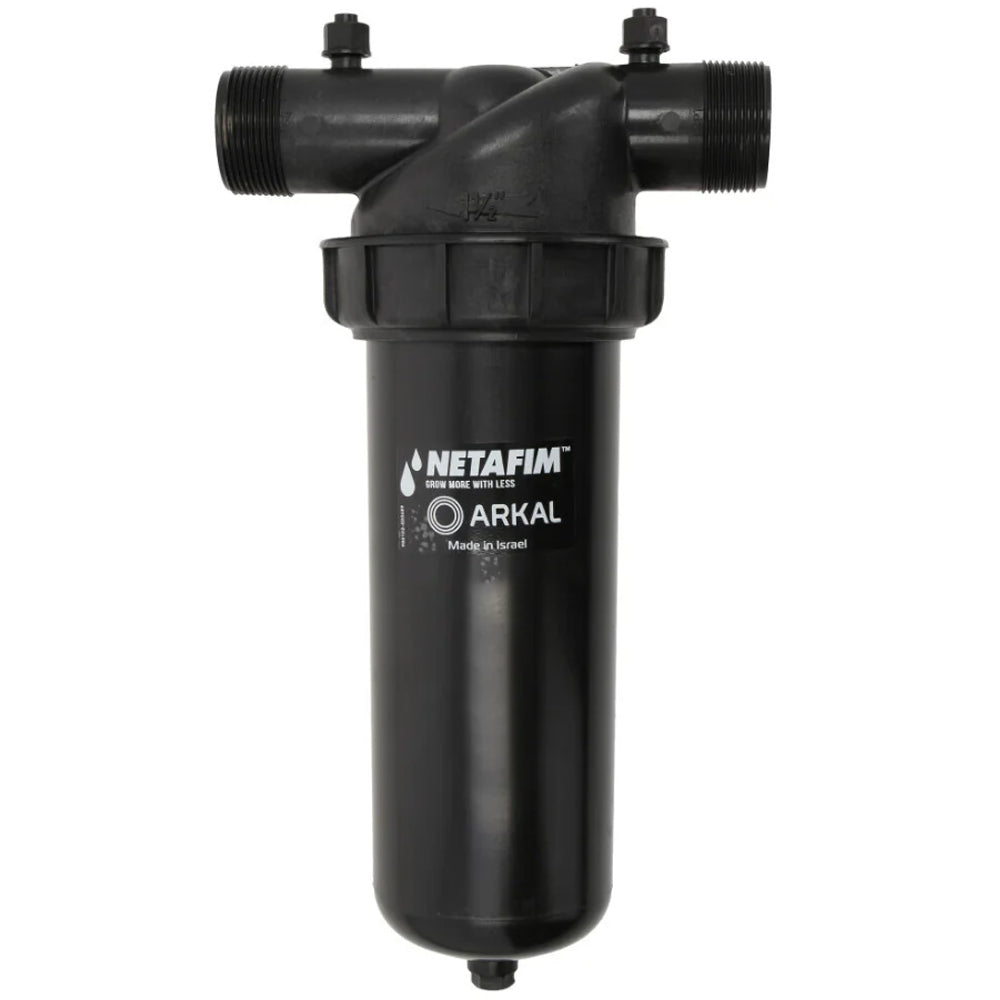

Technical Data 40mm Super Filter

  • Valve outlet included.
  • Plastic wrench to remove screw off filter housing.
  • Inlet Thread Size:  40mm.
  • Max Flow: 133Lpm.
  • Max Pressure: 10bar.
  • 130 Micron / 120 Mesh.
  • Filter Length:  402mm.
  • Filter Width: 130mm.
  • Distance between connections: 120mm.

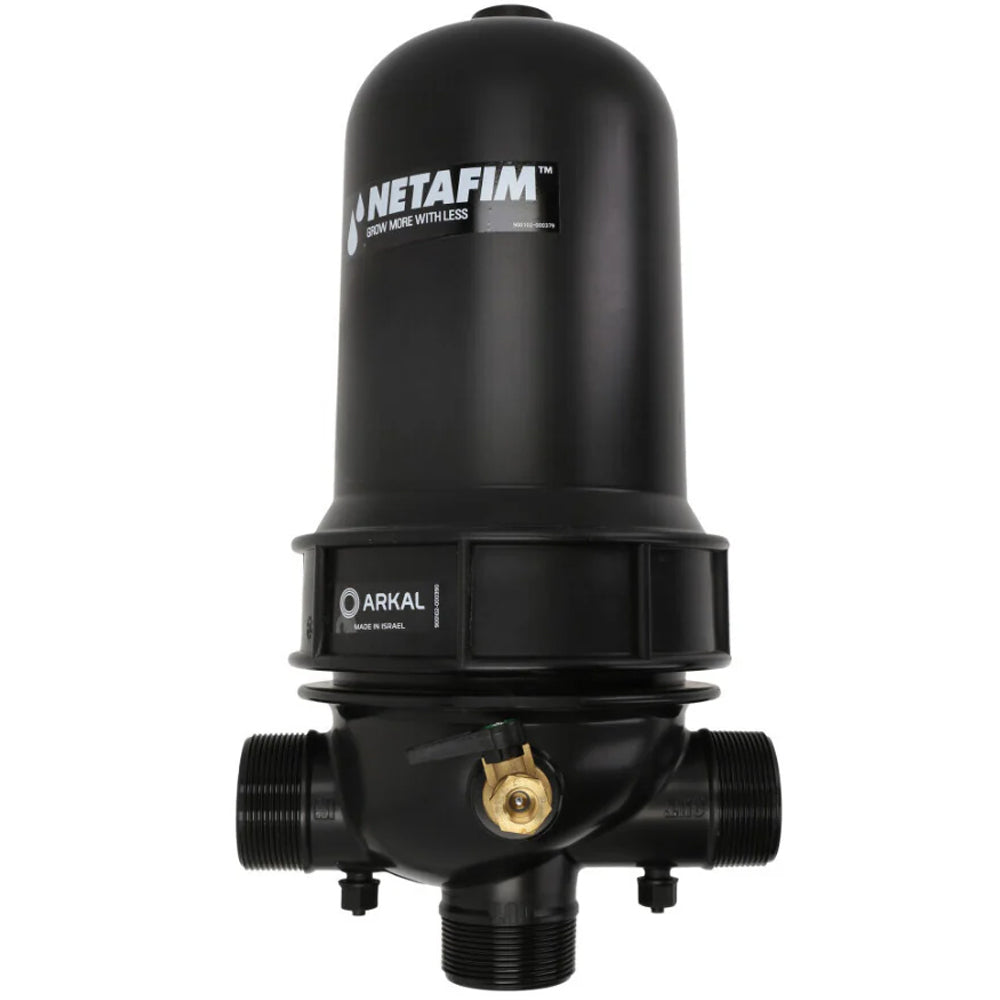

Technical Data 50mm Super Filter

  • Brass valve outlet attached.
  • Plastic wrench to remove screw off filter housing.
  • 1x Female Thread End Cap.
  • Inlet Thread Size:  50mm.
  • Max Flow: 414Lpm.
  • Max Pressure: 10bar.
  • 130 Micron / 120 Mesh.
  • Filter Length:  425mm.
  • Filter Width: 230mm.
