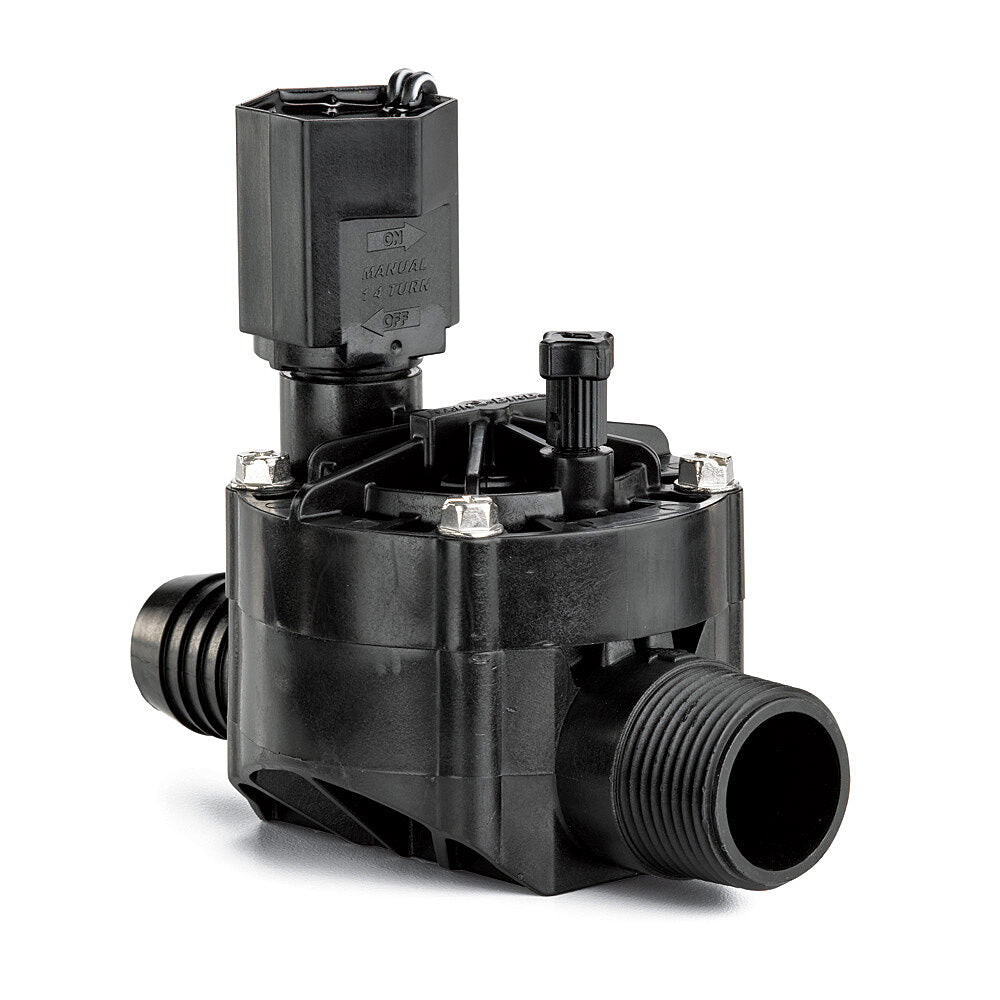

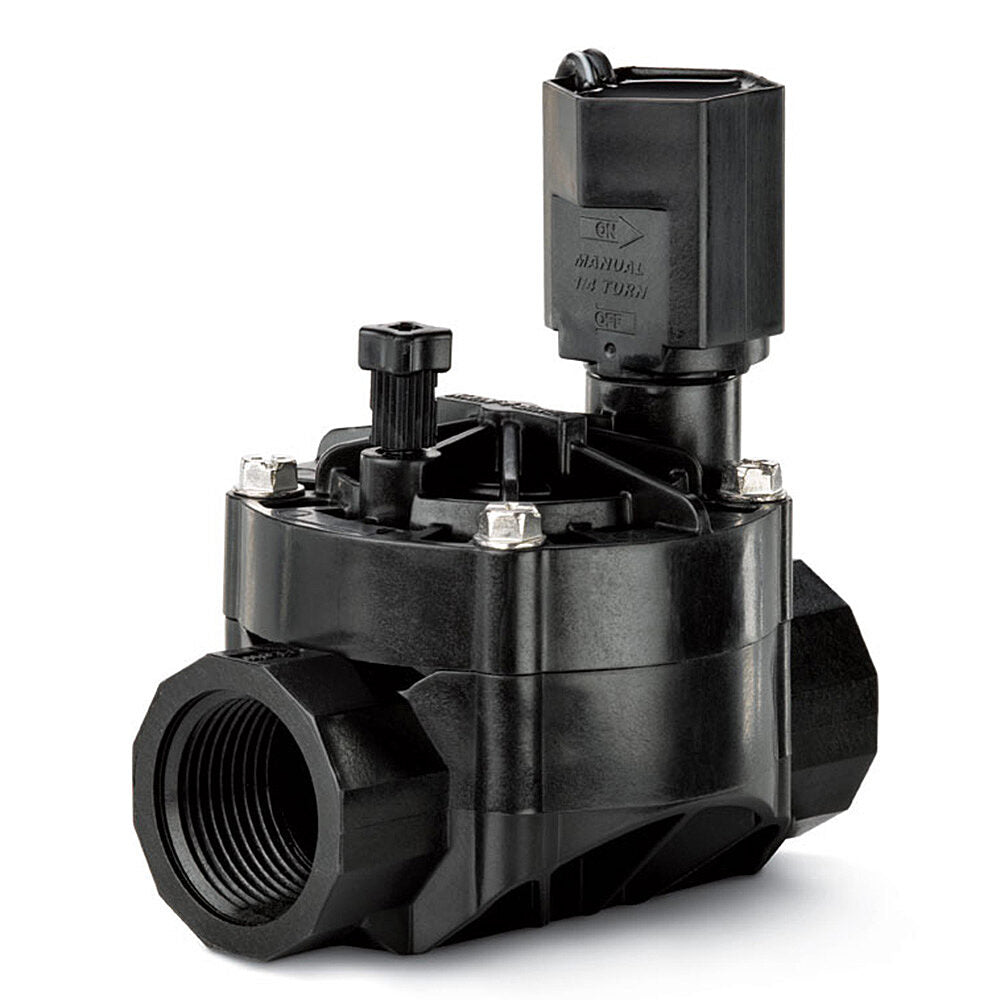

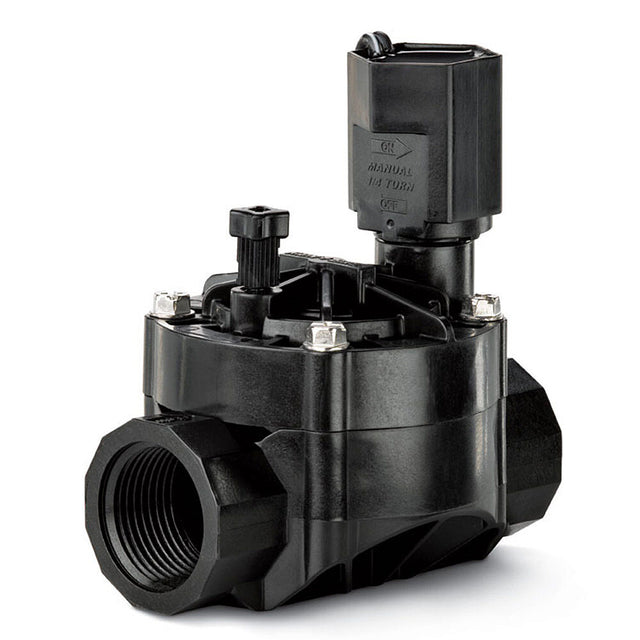

 RainBird 25mm HV Valve BSP x BSP - with Flow Control - HV Series
Outstanding performance. Unmatched durability.
- Eccentric diaphragm for smooth closing, less water hammer
- Compact design, 2.54 in. spin radius for tight installations (install more valves in a single valve box)
- Captive multi-drive screws for ease of access and faster bonnet removal
- Glass-filled polypropylene body for strength
- Your choice of tools to open valve (nut driver, Phillips head screw driver, slotted head screw driver)
- Four screws for quick access to diaphragm
. .
Features
-
Patented, eccentric, balanced pressure, Buna-N diaphragm with self-cleaning 90-mesh (200 microns) pilot water filter and captured stainless steel spring – Eccentric design provides smoother closing, less water hammer
-
Only four durable, captured multi-drive bonnet screws that come out with half the number of turns for fast and easy servicing – at least twice as fast as the competition
-
Glass-filled polypropylene body for strength (slip by slip model bodies are PVC)
-
All popular model configurations available
-
Compact design, 2.54" spin radius for tight installations
-

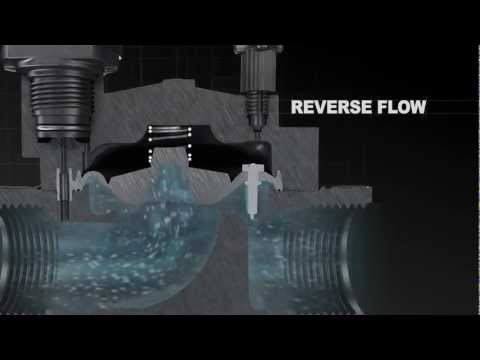

Reverse flow, normally closed design
-
External bleed to manually flush the system of dirt and debris during installation and system start-up
-
Internal bleed for spray-free manual operation
-
Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
Specifications
- Pressure: 15 to 150 psi
- 25mm Female BSP thread
